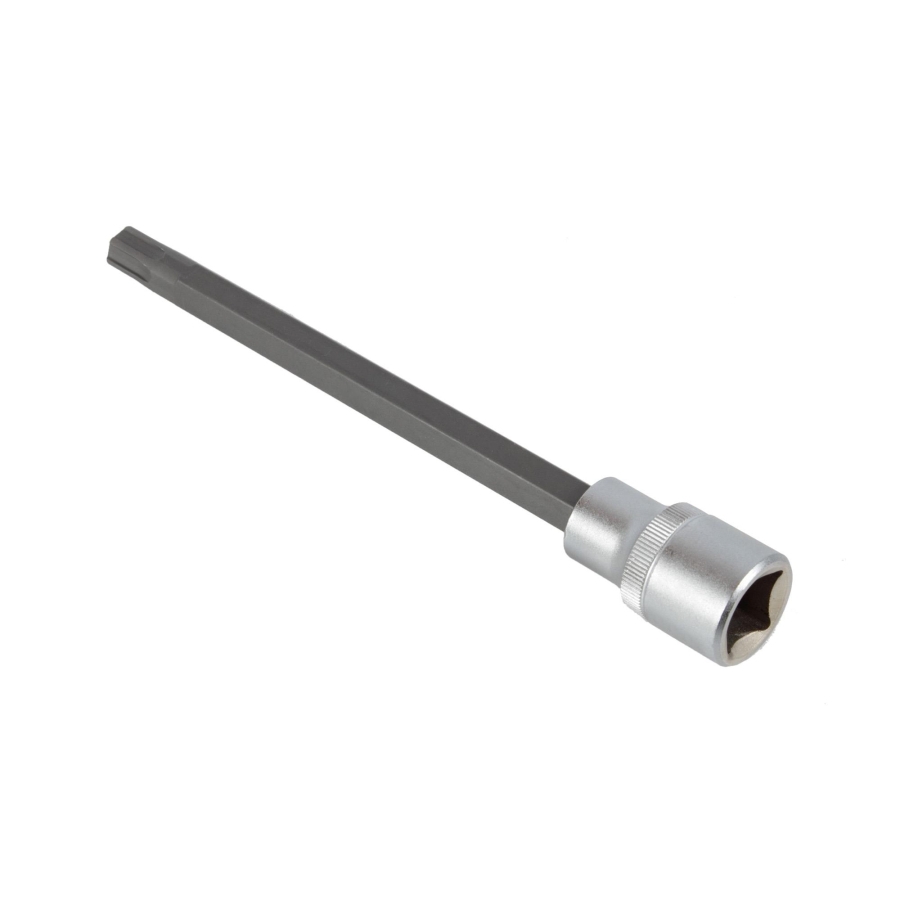

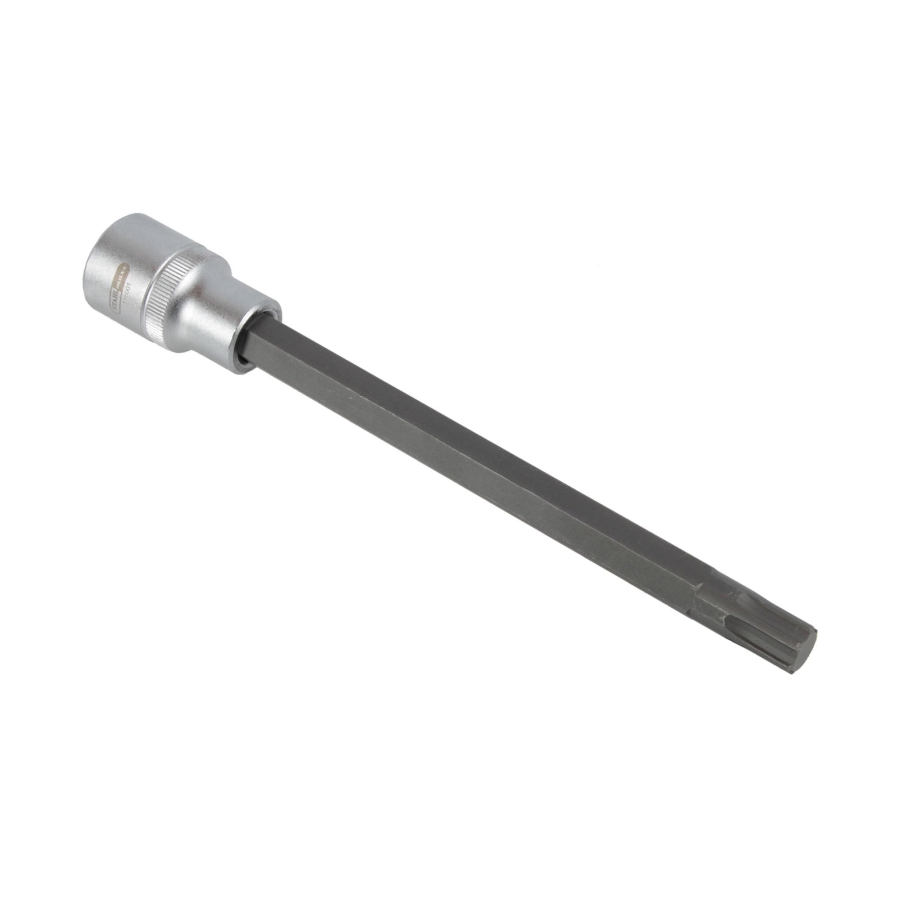

Polydrive T52 Bit Socket, 12.5 mm Drive, 168 mm, for VAG Cylinder Head Bolts
-
Code:116001
-
Weight:0.160 Kgs
Overview:
✔ Special T52 Polydrive bit socket for VAG cylinder head bolts
✔ For installing and removing bolts with a special spline profile
✔ Suitable for 1.8, 1.8T and 2.0 FSI engines
✔ 168 mm length for access to deeply positioned bolts
✔ 12.5 mm square drive
✔ Made in Germany
Special Polydrive T52 bit socket for installing and removing VAG cylinder head bolts with a specific spline profile.
The 168 mm extended design provides reliable access to deeply positioned cylinder head bolts. The socket is manufactured in Germany and features a matt chrome-plated, knurled finish for secure handling.
Suitable Engines
The special Polydrive profile is used in the following engines:
- 1.8 engines
- 1.8T engines
- 2.0 FSI engines
Tested with the Following Elring Cylinder Head Bolts
Item no. 005.610 / 005610, 057.410 / 057410, 057.450 / 057450, 104.930 / 104930, 130.830 / 130830, 130.850 / 130850, 290.440 / 290440, 325.040 / 325040, 325.930 / 325930, 655.490 / 655490, 804.870 / 804870
Technical Data
- Drive: 12.5 mm internal square
- Profile: Polydrive T52
- Length: 168 mm
- Surface finish: matt chrome-plated
- Grip area: knurled
- Manufactured in Germany
To Be Used as VW
T10070, 3452
Original numbers are for comparison purposes only; this is not an original tool!
