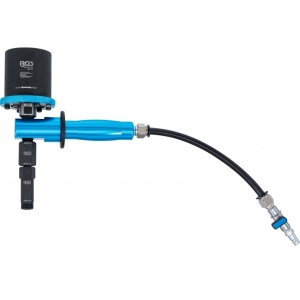

Pneumatic Injector Puller Kit with 18 Adapters

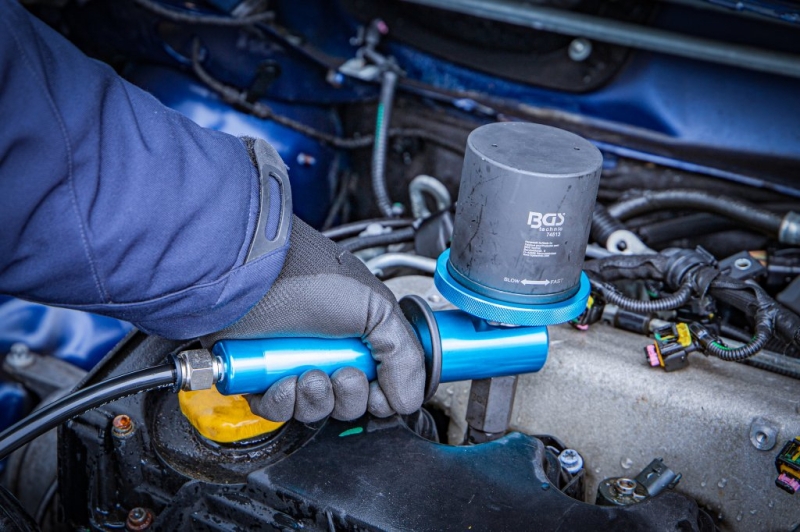

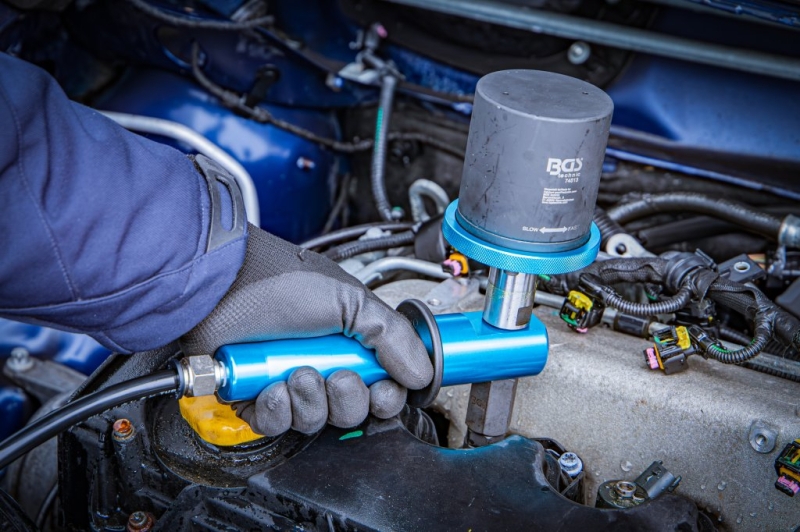

The Pneumatic Injector Puller Kit is a powerful and compact professional solution for fast and safe removal of seized, corroded, or carbonized diesel injectors. Using compressed air-driven impact force, the tool efficiently releases even heavily stuck injectors while minimizing the risk of cylinder head damage.

Designed for demanding workshop environments, this tool significantly reduces labor time and improves removal efficiency on passenger cars, vans, and heavy-duty vehicles. The compact and ergonomic construction ensures easy handling, even in confined engine bays.

The kit includes a comprehensive 18-piece adapter set with both internal and external threads, covering a wide range of common diesel injector applications.

Key Features & Benefits:

• Powerful pneumatic impact system for removing seized or carbon-blocked diesel injectors

• Compact, ergonomic design for optimal control in tight working areas

• Wide adapter range suitable for most diesel engines

• Piston stroke: 38 mm

• Impact rate: 300 / 900 strokes per minute

• Air hose connection: Ø 12 mm

• Maximum torque: 600 Nm

• Spindle thread: M18 x 1.5

Technical Specifications:

• Piston stroke: 38 mm

• Impact rate: 300 / 900 strokes/min

• Air connection: Ø 12 mm

• Max. torque: 600 Nm

• Spindle thread: M18 x 1.5

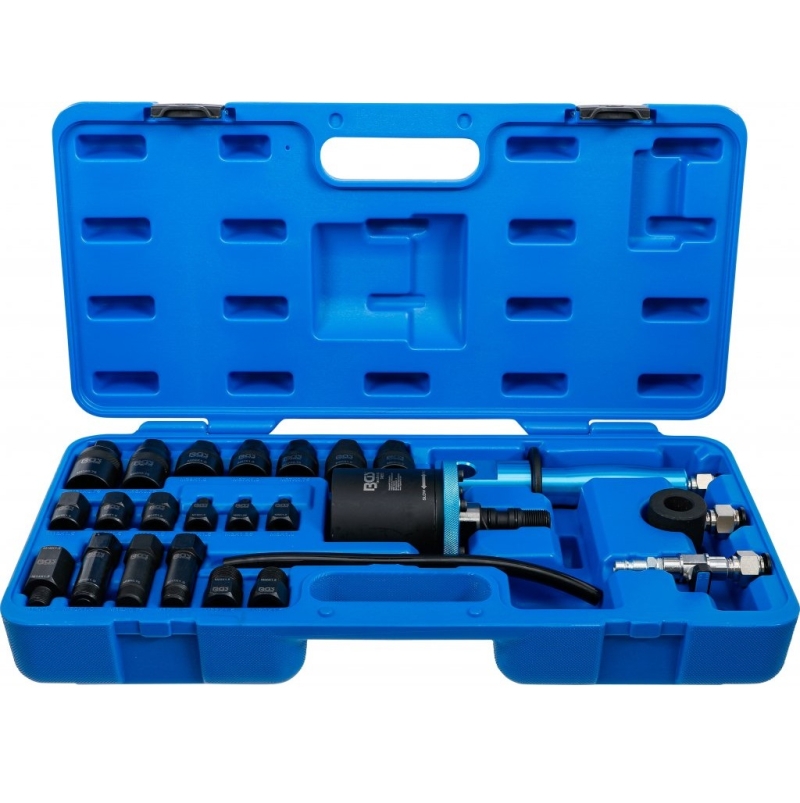

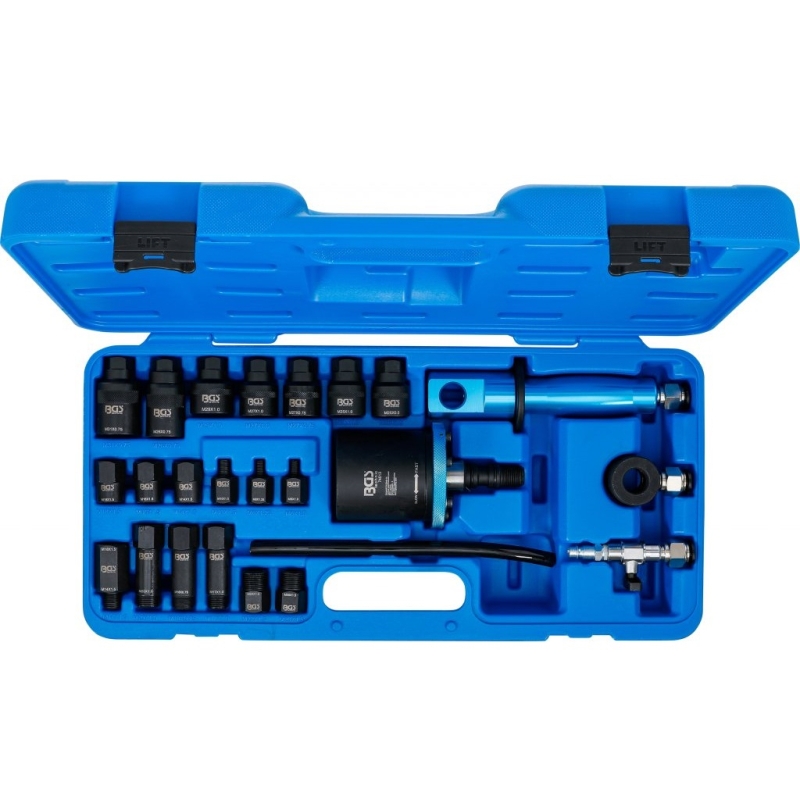

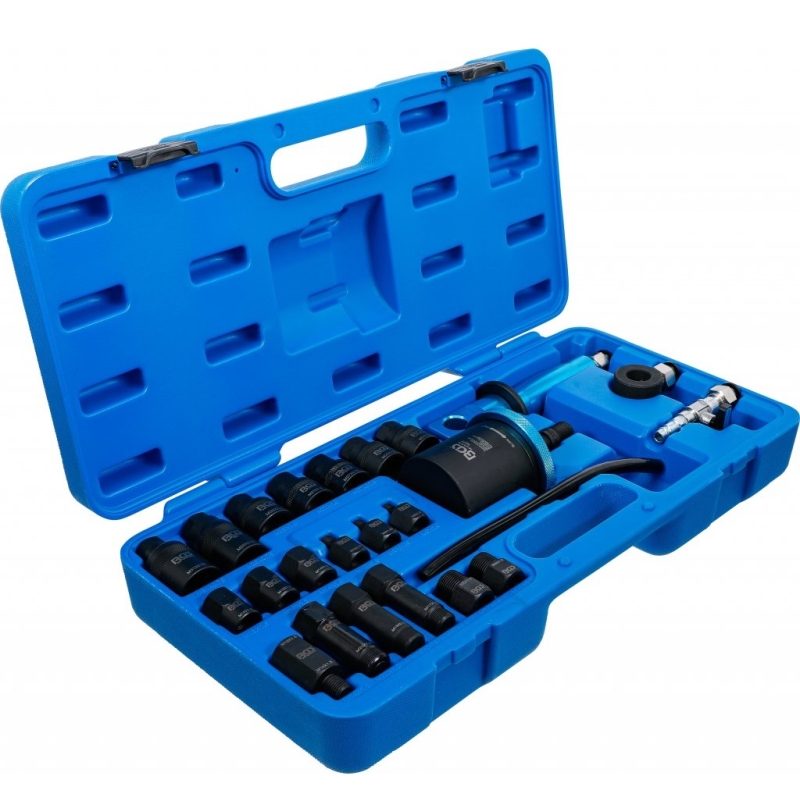

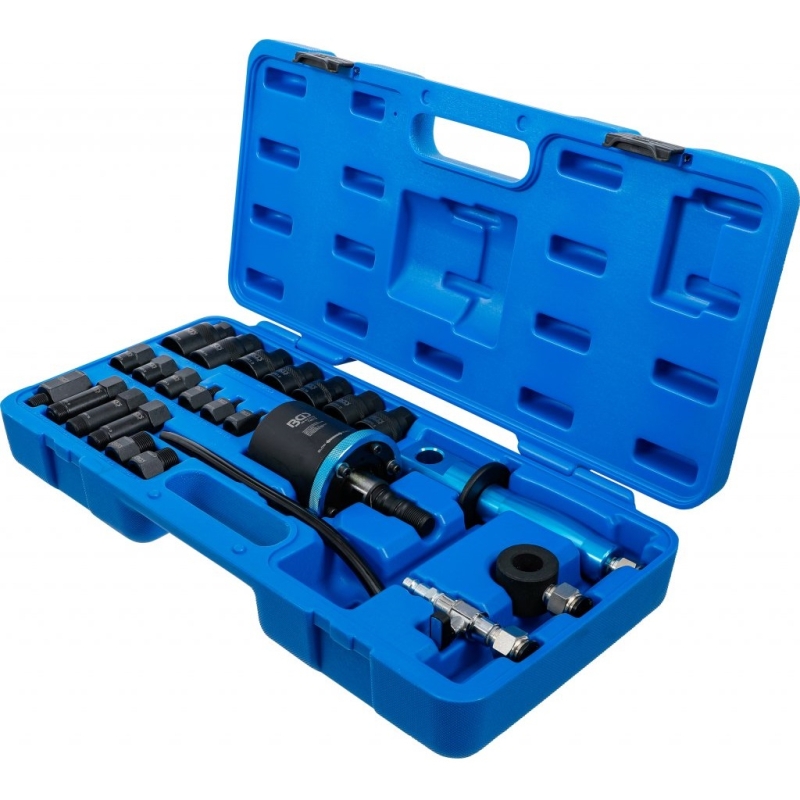

Scope of Delivery:

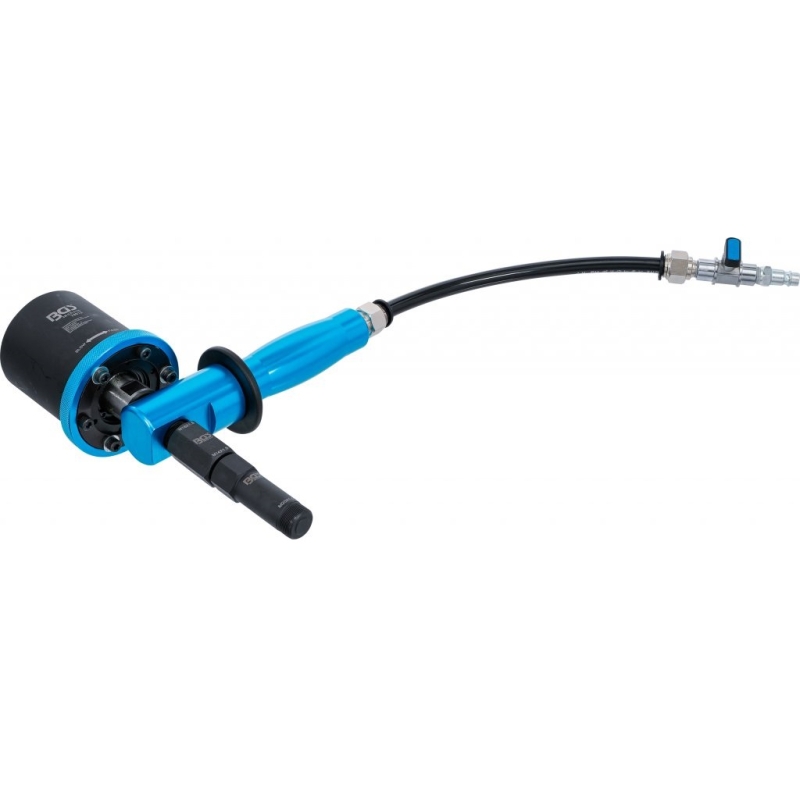

• 1x Pneumatic injector puller

• 2x Air adapters (with and without handle)

• 1x Air control valve

• 1x Connection hose

• 18x Internal and external thread adapters (M8–M31)

Adapter Sizes:

Internal Thread:
M31x0.75 | M26x0.75 | M29x1 | M27x1 | M27x0.75 | M25x1 | M25x0.5 | M18x1.5 | M16x1.5 | M14x1.5

External Thread:
M10x1.5 | M8x1.25 | M8x1 | M14x1.5 | M20x1 | M18x0.75 | M17x1 | M22x1.5 | M20x1.5

Built for professional automotive workshops requiring reliability, power, and broad compatibility.

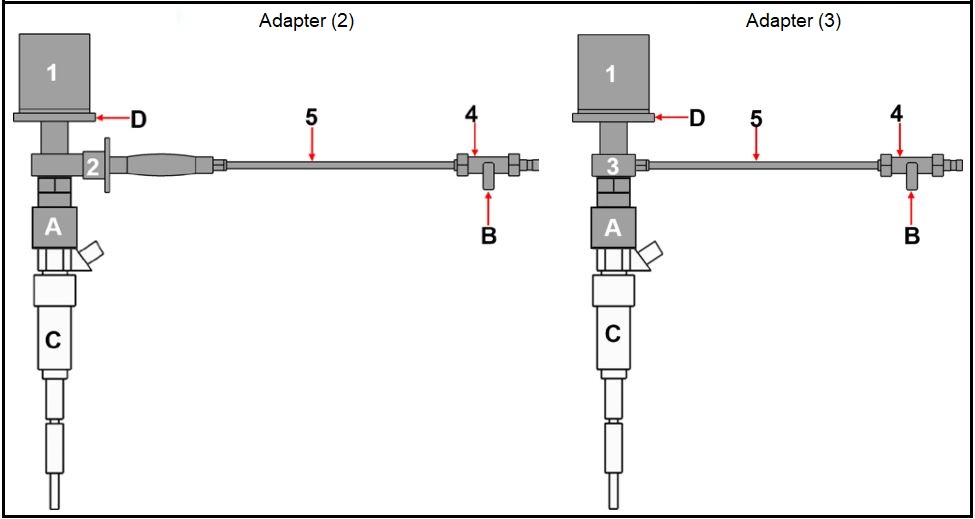

Usage Instructions – Pneumatic Injector Puller Kit

1. Select a suitable thread adapter (6–24) for the injector.

2. Attach the adapter (A) to the injector (C). If needed, disassemble the solenoid to connect the adapter to the internal or external thread.

3. Choose the appropriate air adapter (2 or 3) depending on available space.

4. Lightly oil the two O-rings on the puller’s draw bolt (1).

5. Insert the puller’s draw bolt (1) through the hole in the air adapter (2/3) and attach the unit to the selected adapter (A) already installed on the injector (C). Ensure the hose connection points in a direction with sufficient space for the air hose (5).

6. Make sure all components are securely connected.

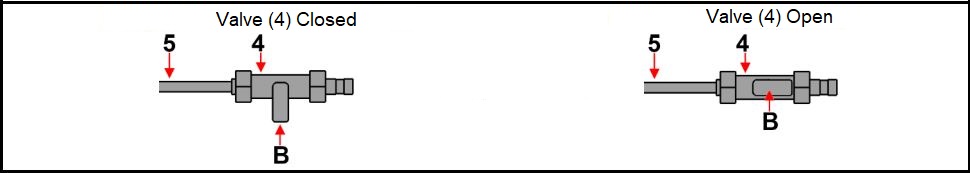

7. Close the air valve (4) on the lever (B).

8. Connect the air valve (4) to the air source hose.

9. Select the speed on the ring (D) – Slow = 300 strokes/min | Fast = 900 strokes/min.

10. Open the air valve (4) on the lever (B); the tool will start operating.

11. Before disassembling the tool, close the air valve and disconnect it from the air supply hose.
