Pneumatic Vibrating Hammer for Injectors

The Pneumatic Vibrating Hammer is a professional, air-driven tool designed for the safe, fast, and efficient removal of injectors that have seized due to corrosion or carbon deposits. Its compact construction, low overall height, and included thread adapters make it ideal for working in tight engine bays where traditional slide hammers cannot reach.

Powerful vibrations break loose rust and carbon buildup while facilitating the penetration of cleaning agents along the injector shaft. This ensures faster, easier, and gentler removal—even in the most stubborn cases.

The tool kit includes a comprehensive set of threaded adapters compatible with most passenger car and van injector types, making it a universal and cost-effective solution for workshops and service technicians.

Key Advantages:

• Stahlmaxx professional-grade tool for workshop use

• Comprehensive adapter set included

• Compatible with most injector models on the market

• Compact design for tight spaces

• Can be combined with a hydraulic extraction system

• Cost-efficient thanks to interchangeable extensions and adapters

Usage Instructions:

1. Attach the appropriate adapter to the injector and connect to the pneumatic hammer.

2. Use the included handle for better grip if space allows.

3. Adjust vibration intensity or continuous operation via the control lever.

4. For stuck injectors, increase operating duration.

5. For extra safety, use the included holding rod to catch injectors that may release suddenly.

6. Always check surrounding components to avoid damage. When using extraction claws, secure them firmly to the injector (e.g., hose clamps).

Maintenance:

• To ensure long service life, regularly add air tool oil to the air connection to prevent internal corrosion.

Technical Data:

• Total length (without adapter): 135 mm

• Stroke length: 15 mm

• Cylinder length: 90 mm

• Cylinder diameter: 80 mm

• Hose length: 800 mm

• Thread size: M14x1.5

• Weight: 1.5 kg

• Vibration: 15.2 m/s²

• Max. stroke rate: 4500 strokes/min

• Air consumption: 110 l/min

• Working pressure: 6.2 bar

• Noise level: 99 dBa

Note: Original numbers are for reference only; this is not an OEM tool.

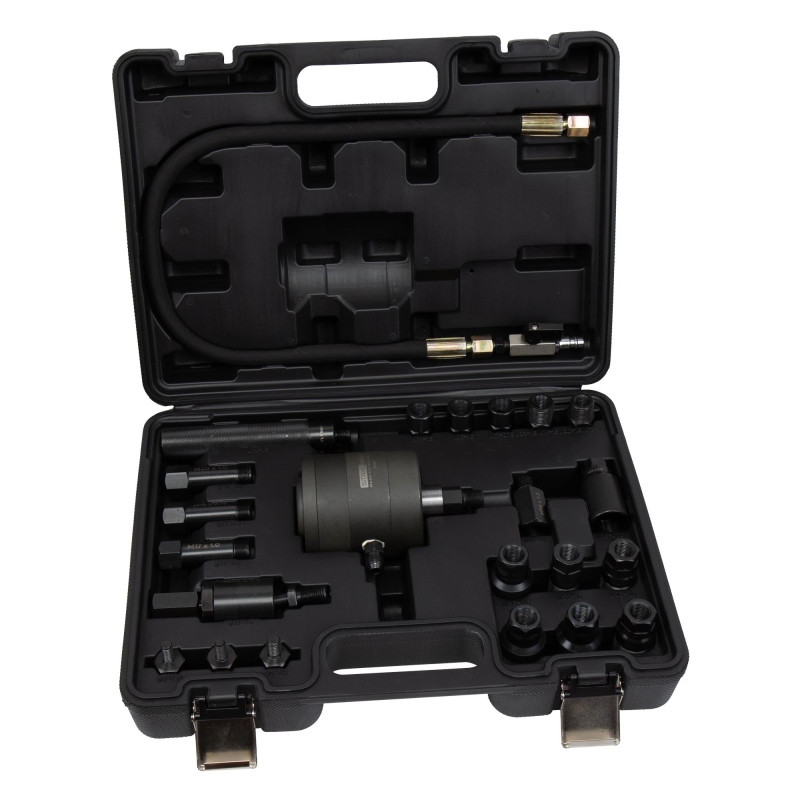

Scope of Delivery for Art. No. 122066
(ET = external thread, IT = internal thread, L = length)

Pneumatic Hammer and Accessories:

• 1 × Pneumatic vibrating hammer (ET M14 x 1.5, L 83 mm)

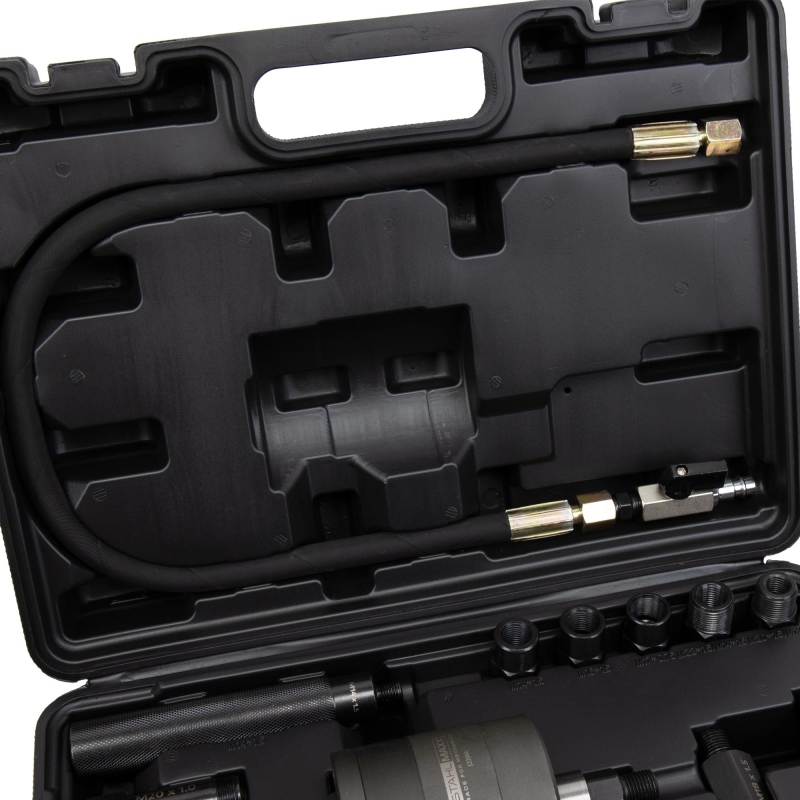

• 1 × Adapter hose with control lever (ET ¼", IT ¼", L 630 mm)

Adapters for Accessories or Other Uses:

• 1 × Handle, L 150 mm, IT M14 x 1.5 to ET M14 x 1.5

• 1 × Coupling adapter with clamp, L 70 mm, IT M14 x 1.5 to ET M14 x 1.5

• 1 × Thread adapter, L 37 mm, IT M14 x 1.5 to ET M8 x 1.0

• 1 × Thread adapter, L 37 mm, IT M14 x 1.5 to ET M8 x 1.25

• 1 × Thread adapter, L 37 mm, IT M14 x 1.5 to ET M10 x 1.5

• 1 × Thread adapter, L 50 mm, IT M14 x 1.5 to ET M18 x 1.5

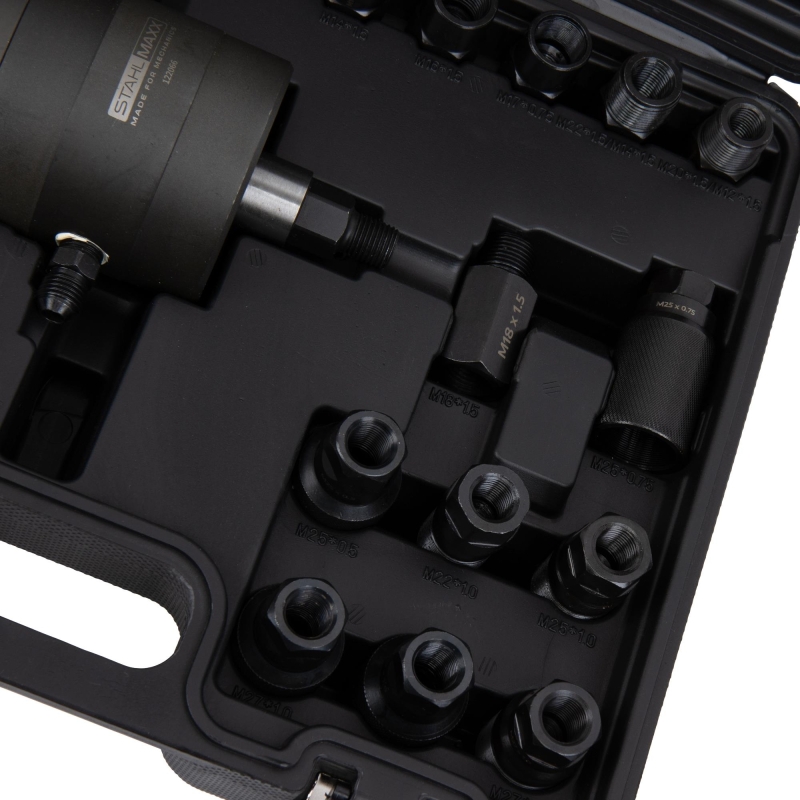

Adapters for Direct Mounting on Injectors:

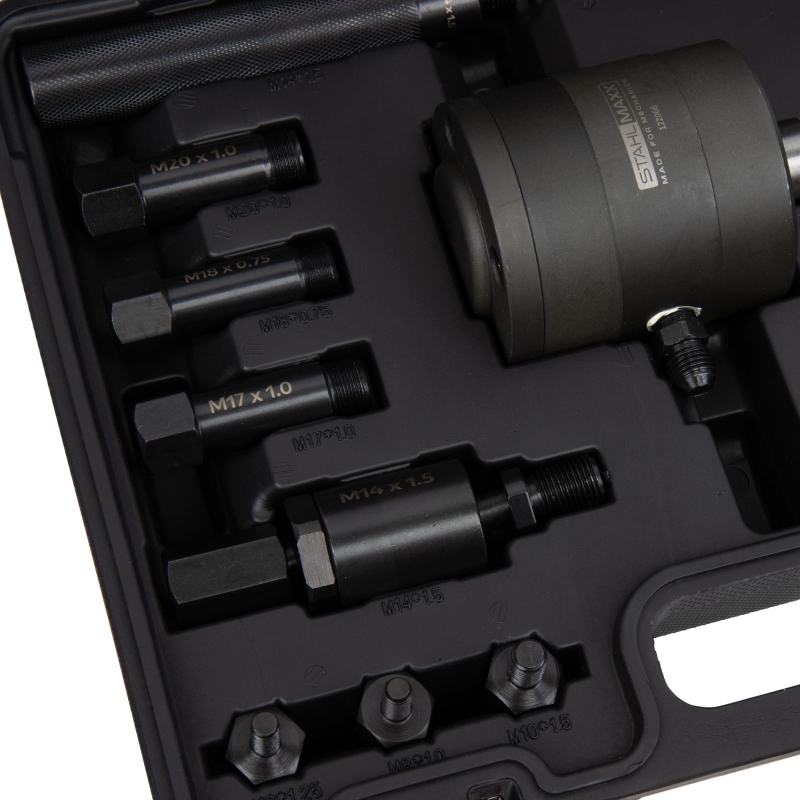

Adapters with External Thread:

• 1 × Thread adapter, L 65 mm, IT M14 x 1.5 to ET M17 x 1.0 for Bosch injectors

• 1 × Thread adapter, L 65 mm, IT M14 x 1.5 to ET M18 x 0.75 for Delphi injectors

• 1 × Thread adapter, L 65 mm, IT M14 x 1.5 to ET M20 x 1.0 for Denso injectors

• 1 × Thread adapter, L 45 mm, IT M14 x 1.5 to ET M22 x 1.0 for Denso injectors

• 1 × Thread adapter, L 45 mm, IT M14 x 1.5 to ET M25 x 1.0 for Siemens injectors

• 1 × Thread adapter, L 45 mm, IT M14 x 1.5 to ET M27 x 1.0 for Siemens injectors

Adapters with Internal Thread:

• 1 × Thread adapter, L 34 mm, IT M14 x 1.5 to IT M14 x 1.5 for Bosch & Delphi injectors

• 1 × Thread adapter, L 34 mm, IT M14 x 1.5 to IT M16 x 1.5 for Bosch injectors

• 1 × Thread adapter, L 34 mm, IT M14 x 1.5 to IT M17 x 0.75 for Bosch injectors

• 1 × Thread adapter, L 45 mm, IT M14 x 1.5 to IT M25 x 0.5 for Denso injectors

• 1 × Thread adapter, L 62 mm, IT M14 x 1.5 to IT M25 x 0.75 for Denso injectors

• 2 × Thread adapters, L 45 mm, IT M14 x 1.5 to IT M27 x 1.0 for Bosch & Denso injectors

Adapters with External and Internal Thread:

• 1 × Thread adapter, L 34 mm, IT M14 x 1.5 to ET M20 x 1.5 and IT M12 x 1.5

• 1 × Thread adapter, L 34 mm, IT M14 x 1.5 to ET M22 x 1.5
