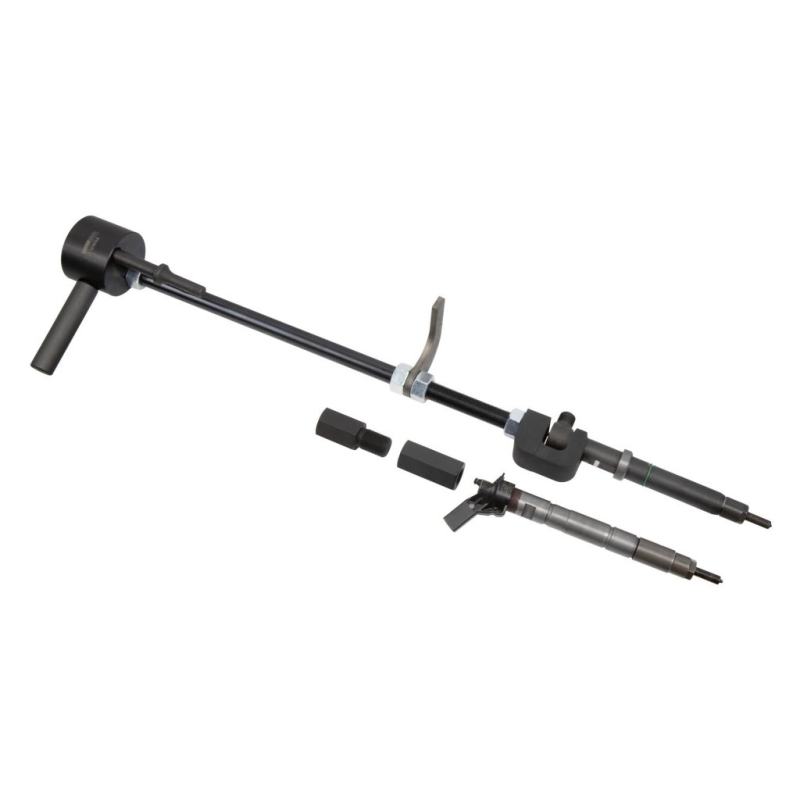

Injector Removal Tool with Pneumatic Chisel Hammer

The Injector Removal Tool with Pneumatic Chisel Hammer is a professional special tool set developed for the effective removal of seized diesel injectors and injection nozzles using vibration and directional impact force.

In daily workshop operations, stuck injectors are a frequent and costly challenge. Defective injectors or leaking copper sealing washers require removal, yet corrosion, carbon buildup, moisture, and debris often make conventional removal methods ineffective. Standard workshop procedures described in OEM manuals frequently fail in real-world conditions.

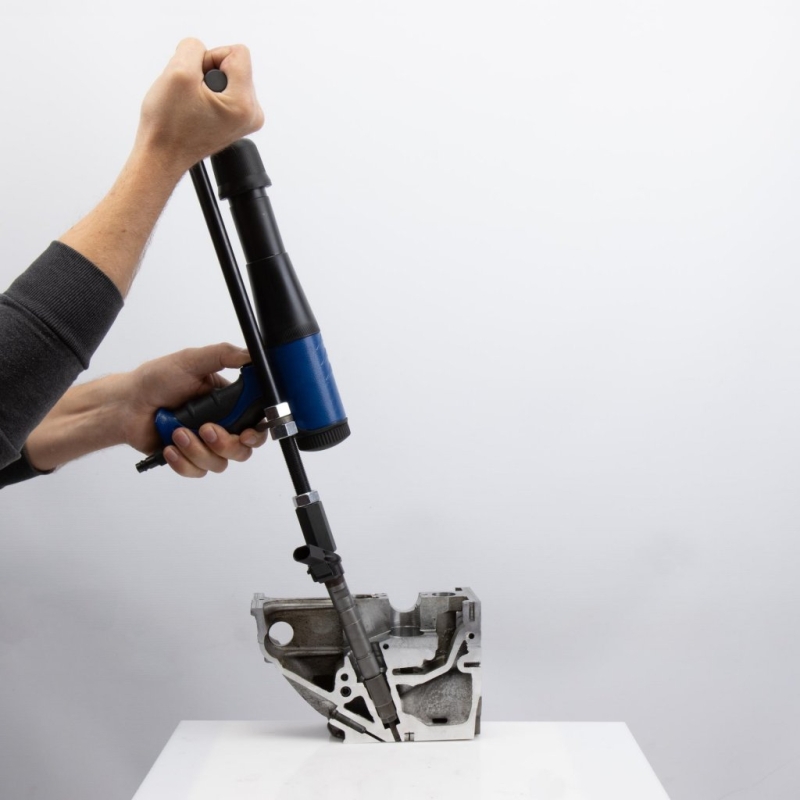

Technically, removing seized injectors using vibration combined with axial impact force is significantly more effective than purely mechanical spindle or hydraulic pulling systems. This method reduces stress on the cylinder head and minimizes the risk of damage.

This improved version introduces several key upgrades:

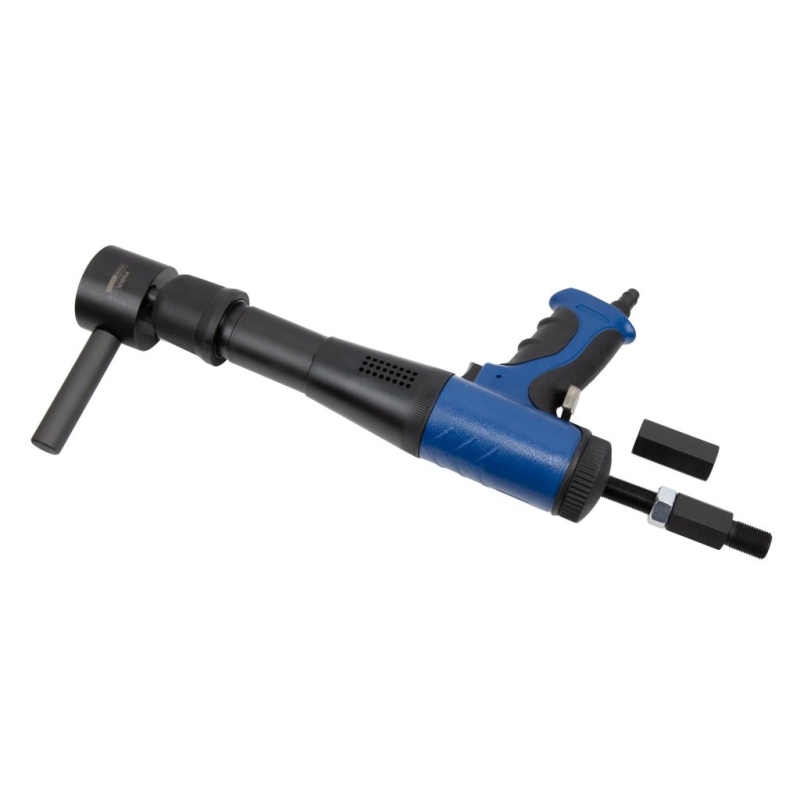

• Increased efficiency and handling through an integrated mounting bracket

• The bracket holds the vibration hammer securely, allowing continuous operation (e.g., secured with cable ties on the control trigger) for extended working time

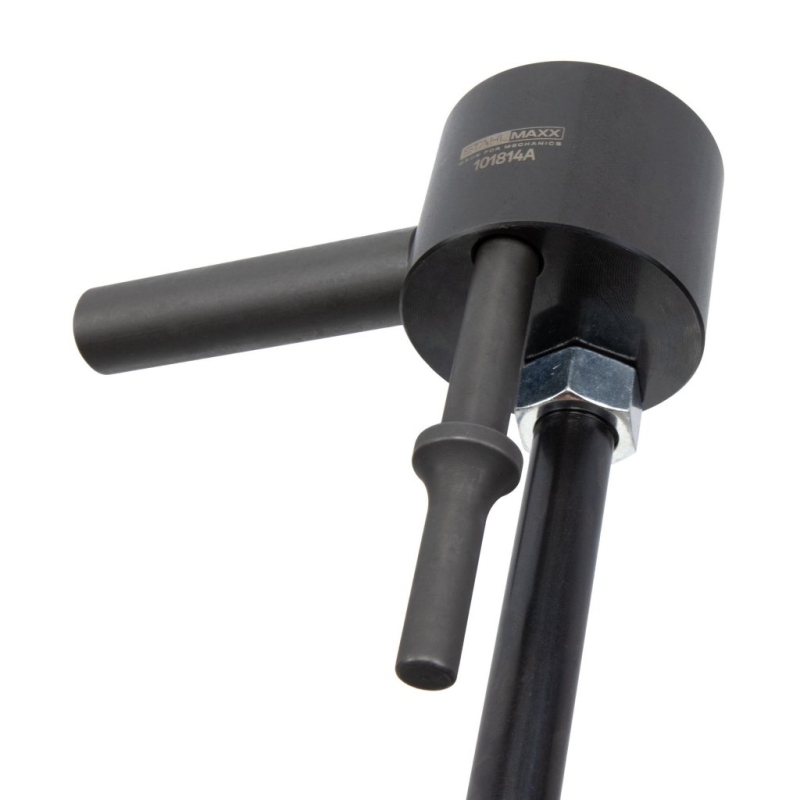

• Improved ergonomics and reduced installation height by relocating the handle to the side

• Compatible with all injector adapters and pull claws with M18 x 1.5 internal thread

• Included adapters allow conversion to M18 x 1.5 external thread and M14 x 1.5 internal thread

• The 5/8" x 18 UNF pull rod thread is retained for backward compatibility and long-term spare parts availability

Suitable for injector adapters and removal claws listed in the additional tools section.

Advantages & Features:

• Professional quality workshop tool

• All components made of high-quality hardened steel

• Improved version of a proven system

• High compatibility with injector adapters and claws

• Effective vibration-based removal technology

• Designed for continuous operation capability

Technical Specifications:

• Impact rate: 2100 blows/min

• Impact energy: 12 Joules

• Tool holder: 10 mm round shank

• Pull rod length: 410 mm

• Pull rod thread: 5/8" x 18 UNF

• Adapter compatibility: M18 x 1.5 and M14 x 1.5

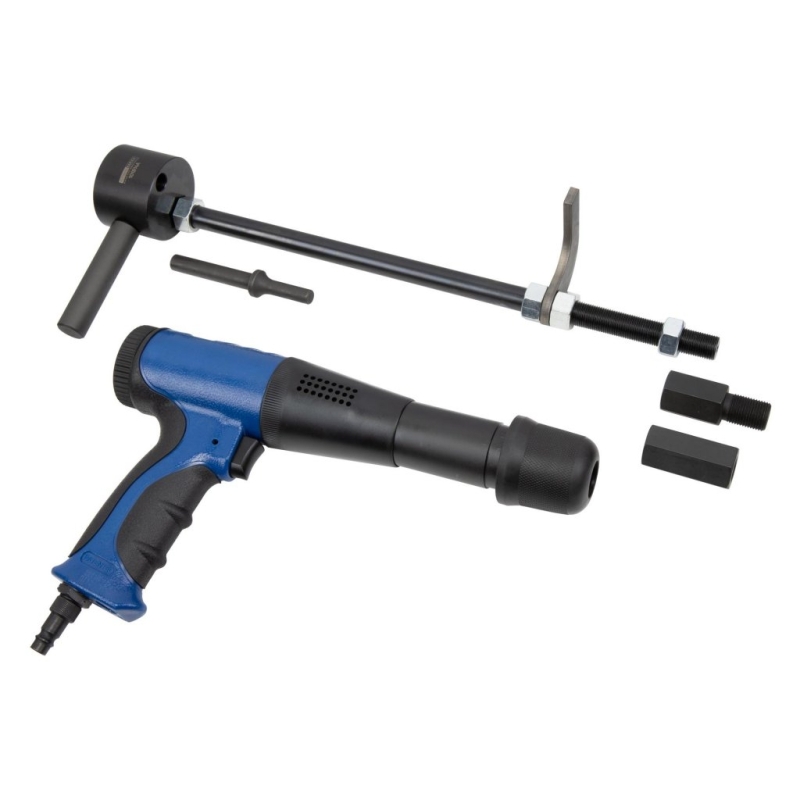

Scope of Delivery:

• 1 × Pneumatic chisel vibration hammer (2100 blows/min, 12 J, 10 mm round shank holder)

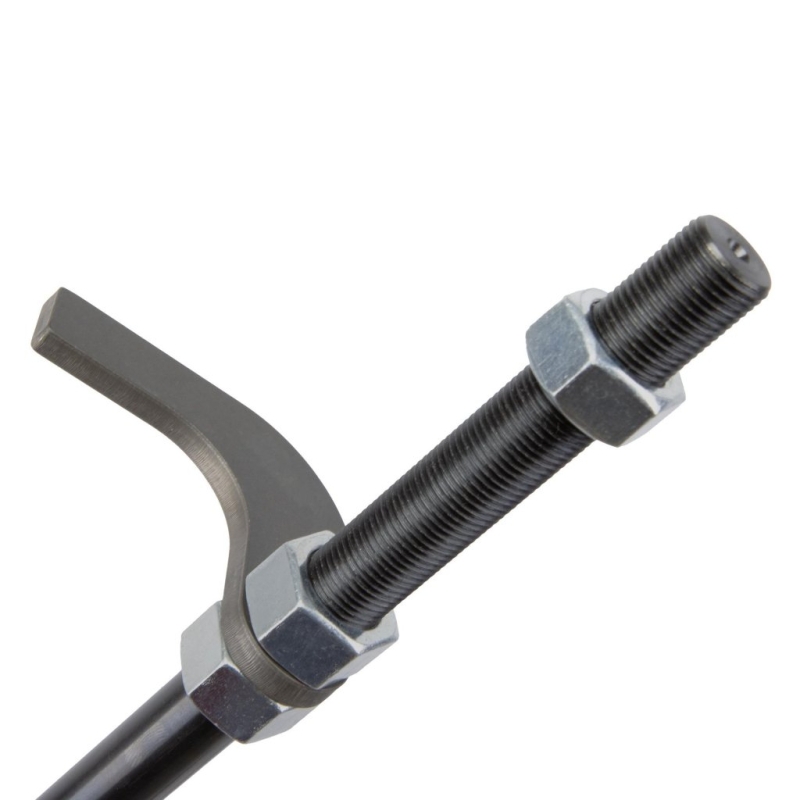

• 1 × Pull rod, 410 mm length, threaded on both ends (40 mm / 120 mm thread length)

• 4 × Threaded lock nuts

• 1 × Mounting bracket for vibration hammer, 90°, material thickness 6 mm

• 1 × Thread adapter IT 5/8" x 18 UNF to ET M18 x 1.5

• 1 × Thread adapter IT 5/8" x 18 UNF to IT M14 x 1.5
