Injector Puller for Pneumatic Chisel Hammer

The Injector Puller for Pneumatic Chisel Hammer is a specialized workshop tool developed for the effective removal of seized diesel injectors and injection nozzles using vibration and impact force.

Seized injectors caused by corrosion, carbon deposits, moisture, or contamination are a common workshop challenge. When an injector is defective or its copper sealing washer leaks, removal is mandatory. Conventional spindle or hydraulic pulling systems often fail under such conditions.

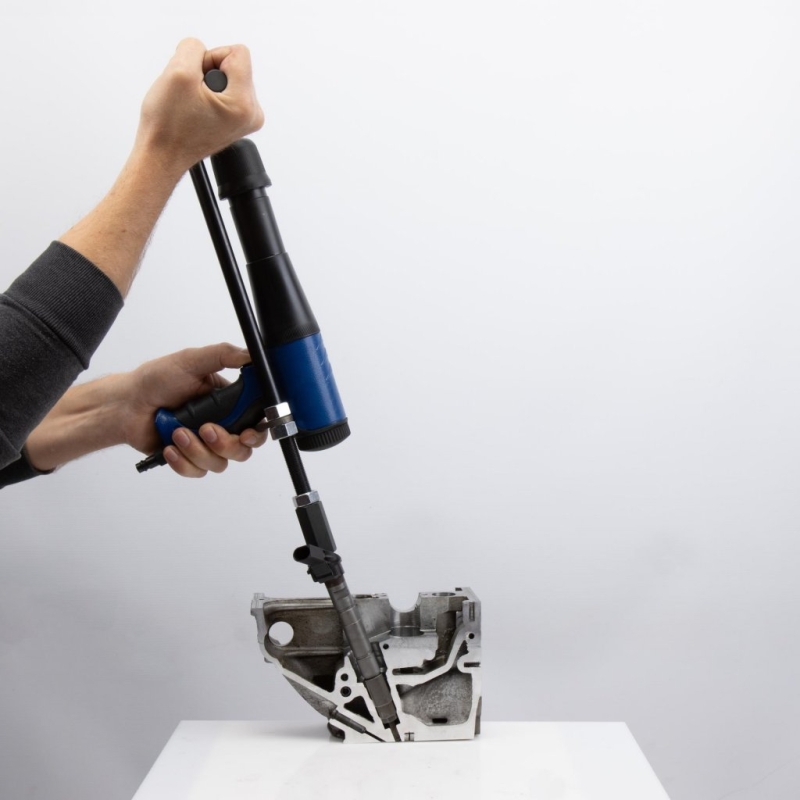

This system utilizes vibration combined with axial impact force in the pulling direction, providing a more efficient, controlled, and component-friendly removal process compared to purely mechanical pulling methods.

The updated version includes important improvements:

• Increased efficiency and improved handling thanks to a mounting bracket

• The bracket securely holds the vibration hammer, enabling continuous operation (e.g., by securing the trigger for extended vibration cycles)

• Improved ergonomics and reduced installation height with side-mounted handle position

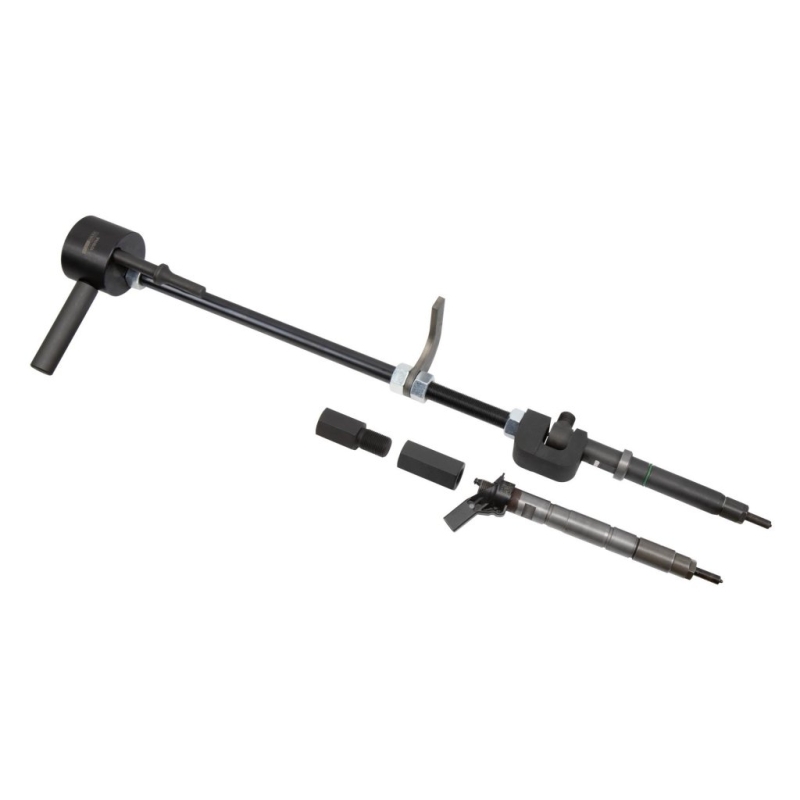

• Compatible with all injector adapters and pull claws with M18 x 1.5 internal thread

• Included adapters allow conversion to M18 x 1.5 external thread and M14 x 1.5 internal thread

• 5/8" x 18 UNF pull rod thread retained for maximum backward compatibility and long-term spare parts availability

Suitable for injector adapters and removal claws listed in the additional tools section.

This product is also available as a complete set including pneumatic vibration chisel hammer under Art. No. 101815A.

Advantages & Features:

• Professional workshop quality tool

• Manufactured from high-quality hardened steel

• Improved version of a proven removal system

• High compatibility with injector adapters and pull claws

• Vibration-assisted removal for reduced risk of cylinder head damage

Technical Specifications:

• Pull rod length: 410 mm

• Thread length (both ends): 40 mm / 120 mm

• Pull rod thread: 5/8" x 18 UNF

• Adapter compatibility: M18 x 1.5 and M14 x 1.5

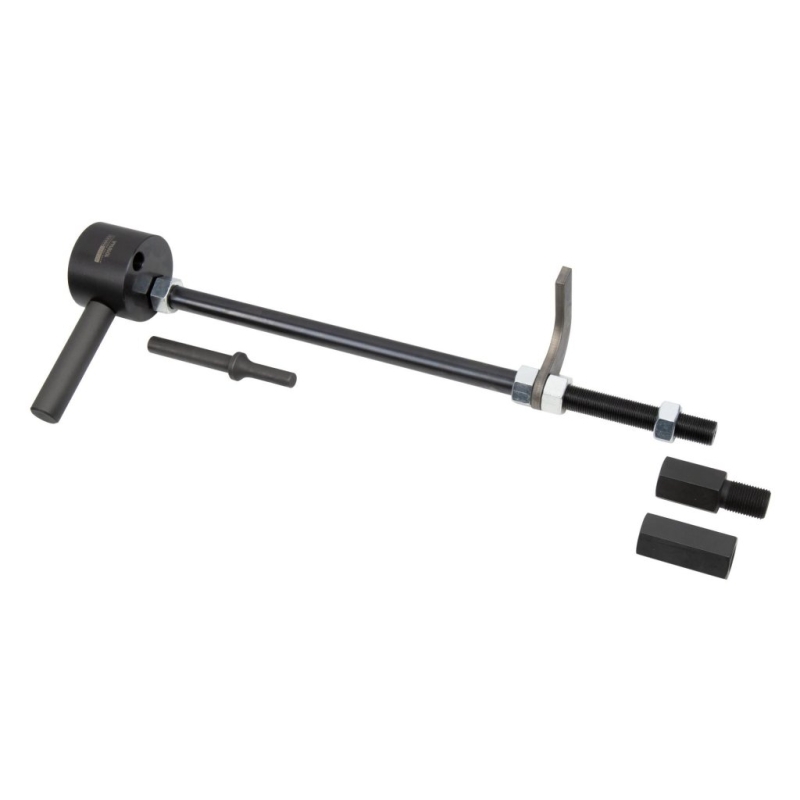

Scope of Delivery:

• 1 × Pull rod, 410 mm, threaded on both ends (40 mm / 120 mm thread length)

• 4 × Threaded lock nuts

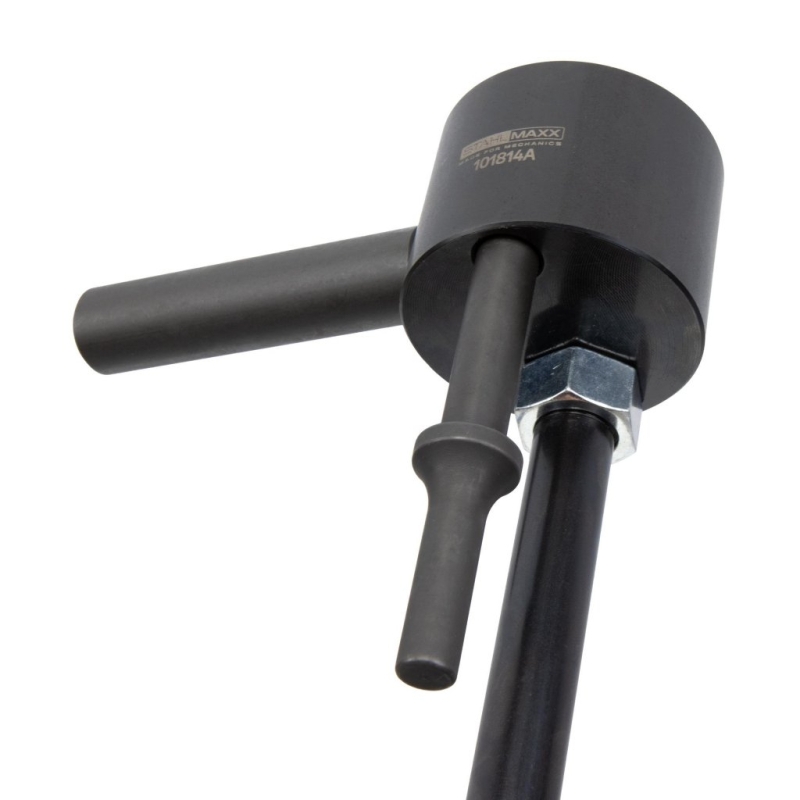

• 1 × Mounting bracket for vibration chisel hammer, 90°, material thickness 6 mm

• 1 × Thread adapter IT 5/8" x 18 UNF to ET M18 x 1.5

• 1 × Thread adapter IT 5/8" x 18 UNF to IT M14 x 1.5
