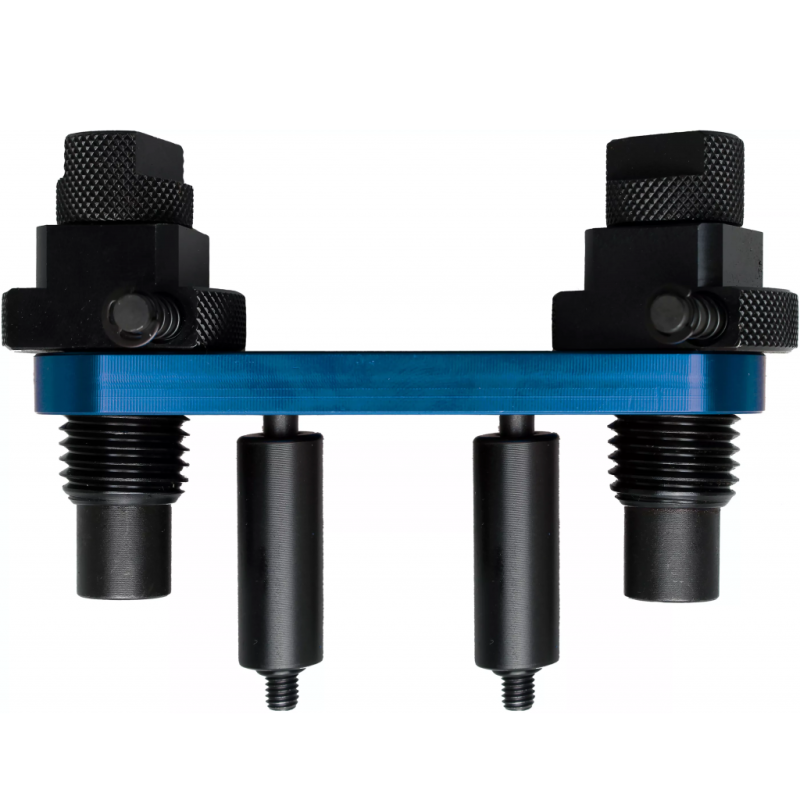

BMW injector tool, as BMW 130270

This BMW injector tool, equivalent to BMW OEM 130270, is specifically developed for the safe removal and installation of gasoline direct injection injectors on BMW inline 6-cylinder turbocharged engines from model year 2009 and later.

The tool ensures controlled extraction and precise reinstallation without damaging injector nozzles, sealing rings, or the cylinder head. Proper injector handling is critical for maintaining correct fuel delivery, combustion efficiency, sealing integrity, and optimal engine performance.

Applications

• Removal of petrol injectors

• Installation of injectors after service or replacement

• Work on BMW direct injection petrol engines

• Prevents damage to sensitive fuel system components

Features & Benefits

• Equivalent to BMW special tool OEM 130270

• Designed for BMW inline 6-cylinder direct injection engines

• Safe and controlled injector extraction

• Minimizes risk of damage to cylinder head and injectors

• Ideal for service, repair, and injector replacement

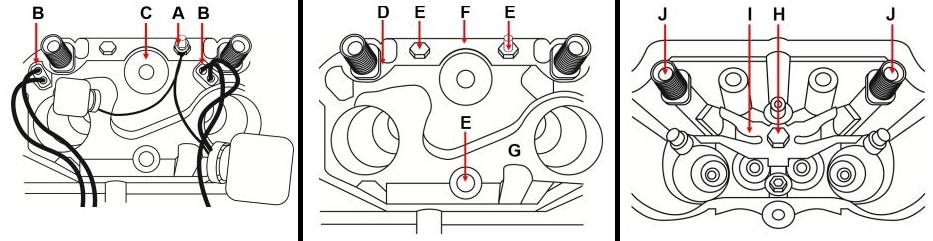

Basic Usage Overview

1. Loosen nut (A) and remove ground lead

2. Disconnect injector connector (B)

3. Loosen and remove locking screw (C)

4. Remove screws (E) and clamp plates (D and F)

5. Clamp plate (D) must be replaced during reinstallation

6. Remove EMC plate (G)

7. Loosen screws (H) and remove clamping device (I)

8. Use the injector tool to extract injectors (J) from the cylinder head

9. Mark injectors and reinstall in original positions

OEM reference number is provided for identification purposes only. This product is not manufactured by or affiliated with BMW.
