BMW Diesel Injector Extractor – M47TU, M57, M57TU Engines

This professional BMW diesel injector extractor is designed for fast and safe removal of seized injectors while keeping the cylinder head in place, saving time and effort during engine repairs. The tool rests securely on the cylinder head, allowing high extraction force without damaging surrounding components. Ideal for workshops and vehicle technicians working with BMW diesel engines.

The set includes adjustable support feet, a bearing-mounted support bridge, and a spindle that threads into the injector, enabling controlled upward force to extract the injector safely.

Features & Benefits

• Cylinder head removal not required

• Stable support on the cylinder head for maximum extraction force

• Safe and controlled injector removal

• User-friendly, durable construction

• Suitable for professional workshops and advanced mechanics

Compatible Engines

• BMW M47TU

• BMW M57

• BMW M57TU

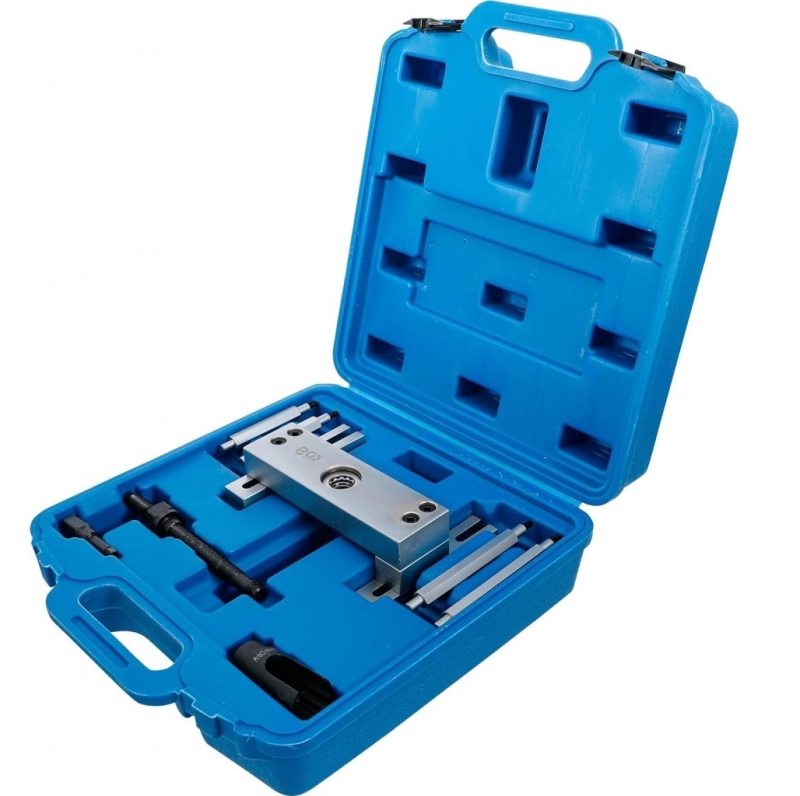

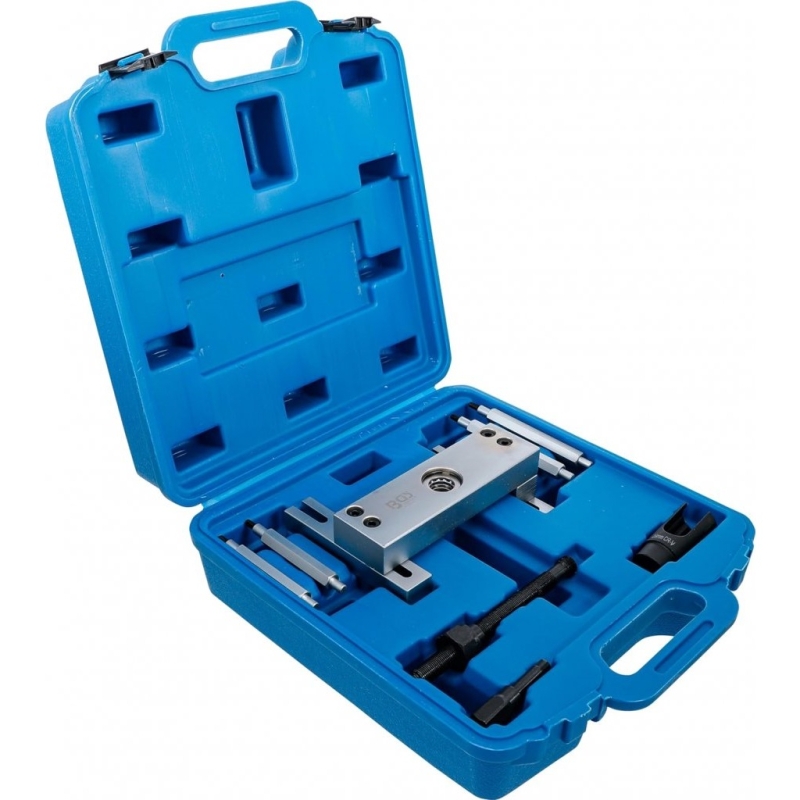

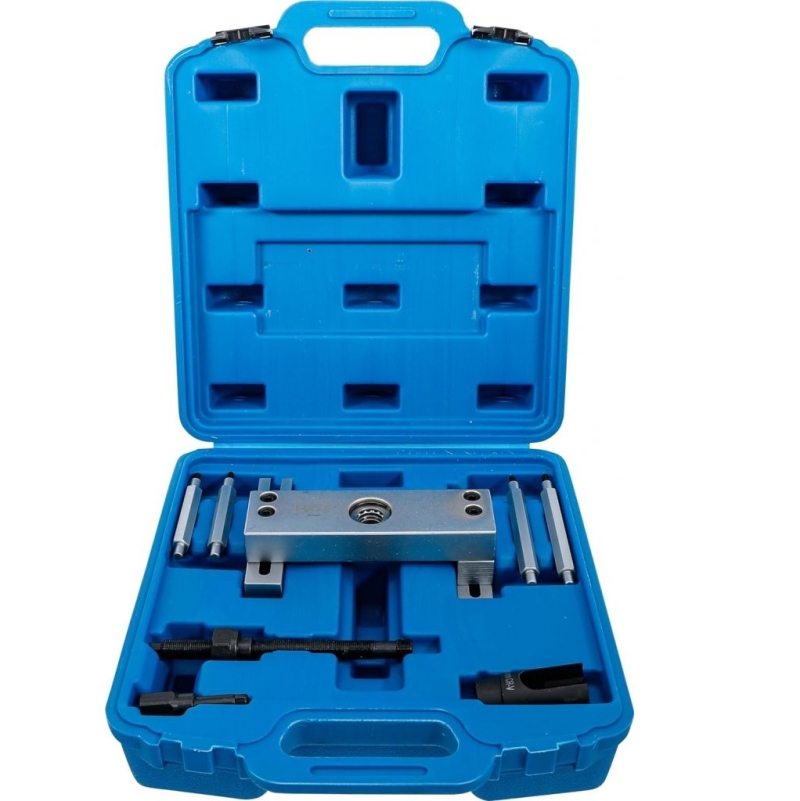

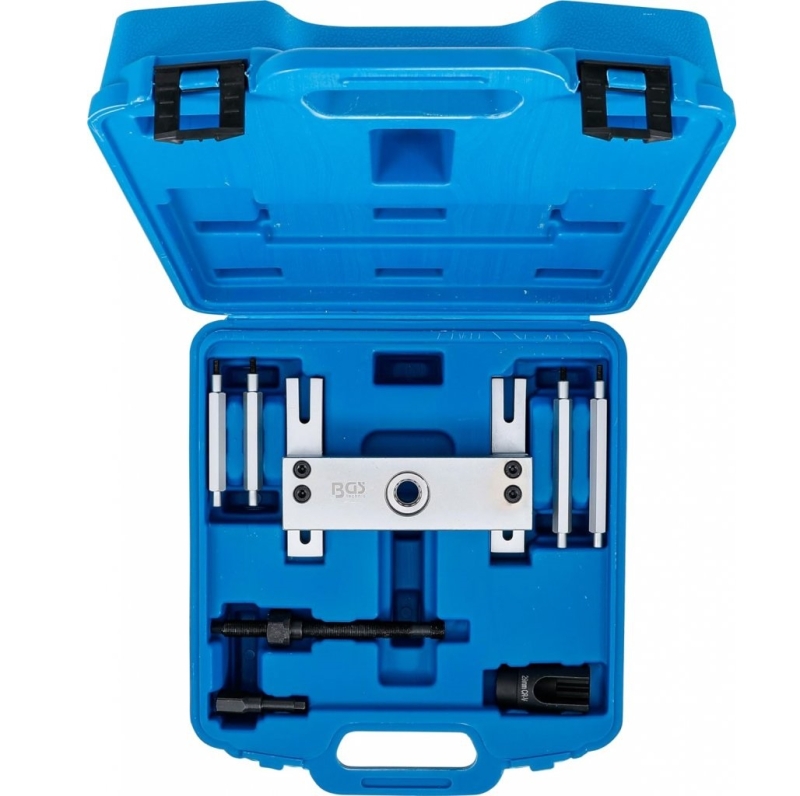

Scope of Delivery

• 2 × Support feet 115 mm

• 2 × Support feet 140 mm

• Support bridge with bearing

• Spindle M16 with M17 thread for injector attachment

• 29 mm socket for removing the electrical unit

• Allen key for injector needle removal

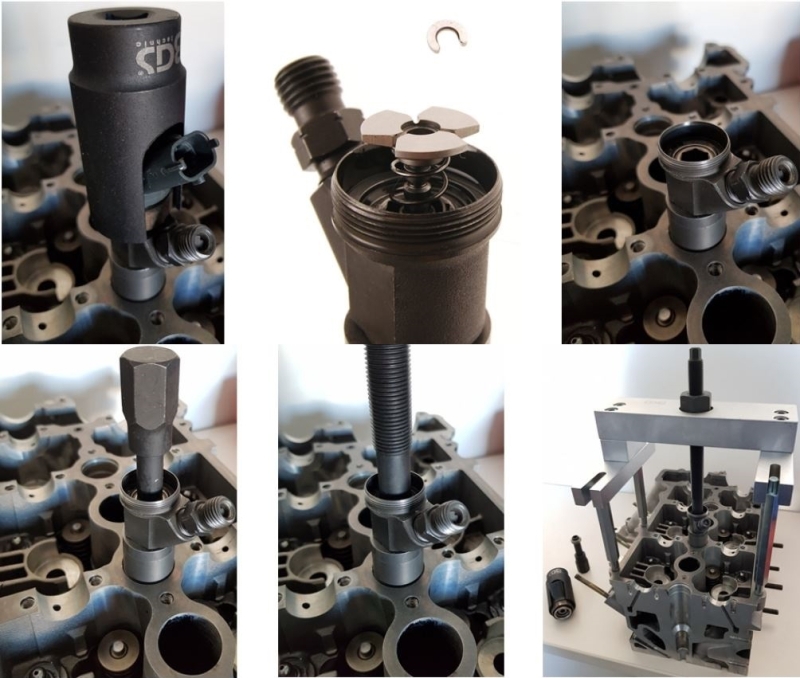

Usage Instructions

1. Remove fuel lines and wiring from the injector.

2. Loosen and remove the electrical unit using the 29 mm socket.

3. Remove the injector clamp.

4. Press down the clover-shaped washer and remove the retaining ring. Note: Small parts may fall out.

5. Remove the ring screw with the Allen key.

6. Screw in the spindle (M17 thread) into the injector’s internal thread and tighten to ~5 Nm.

7. Mount the spindle through the support bridge bearing and place the support feet against the cylinder head.

8. Install the spindle nut.

9. By turning the spindle nut against the bearing in the support bridge, the injector is extracted.
