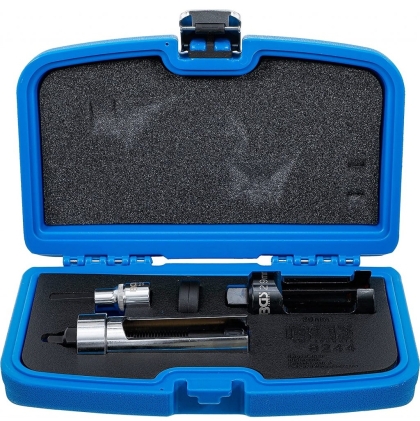

Injector Puller Kit – Mercedes CDI Engines – Common Rail

This professional injector puller kit is designed to efficiently remove stuck common-rail injectors, especially in tightly fitted systems. Using a pull spindle and support cylinder, injectors can be extracted with high precision and controlled force.

Applications

Suitable for Mercedes CDI engines:

• OM611, OM612, OM613

• OM646 (not LA EVO)

• OM647, OM648

• Other vehicles with Bosch common-rail injectors

The kit helps remove injectors that are seized or hard to access, making repairs and maintenance faster and safer.

Features

• Robust components for extracting stuck common-rail injectors

• Support cylinder and pull spindle allow precise and safe extraction

• Compatible with Mercedes, BMW, and other vehicles using Bosch common-rail systems

• Usable on multiple engines to facilitate injector replacement

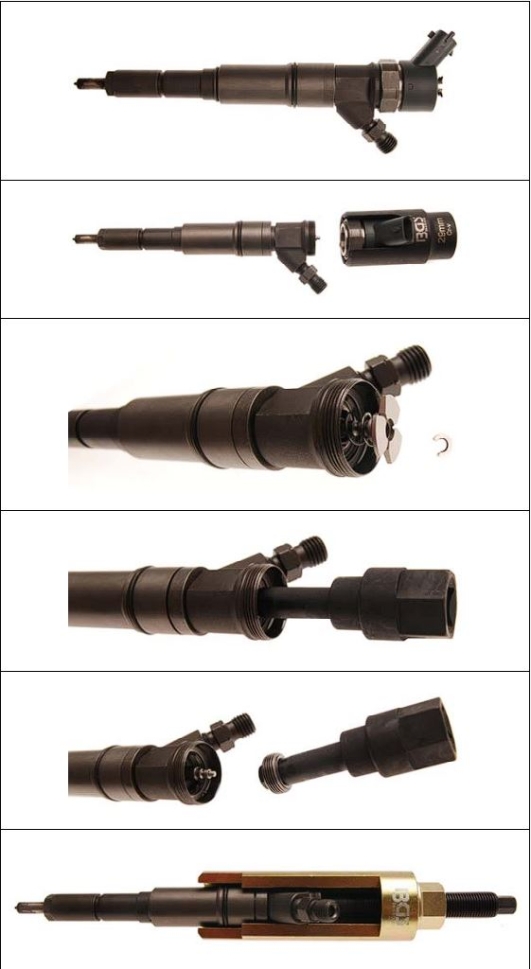

Usage Instructions

1. Remove injector mounting brackets.

2. Detach the electrical unit using the slotted insert. Be careful not to dislodge injector components.

3. Press down the clover-shaped disc and remove the locking ring.

4. Remove washer and spring.

5. Unscrew the ring nut with the included insert.

6. Remove control plungers and any loose components. Small parts can fall easily.

7. Slide the support cylinder over the injector and screw the pull spindle into the injector.

8. Extract the injector using the spindle nut.

Important: Follow vehicle-specific service manuals and recommended procedures. This guide is a general instruction and does not replace OEM documentation.

Scope of Delivery

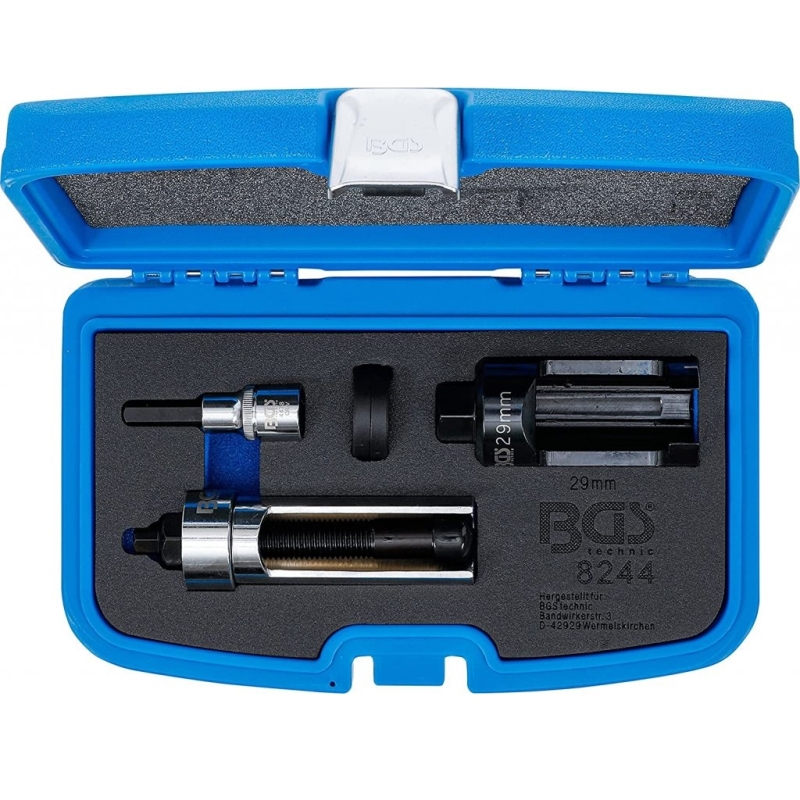

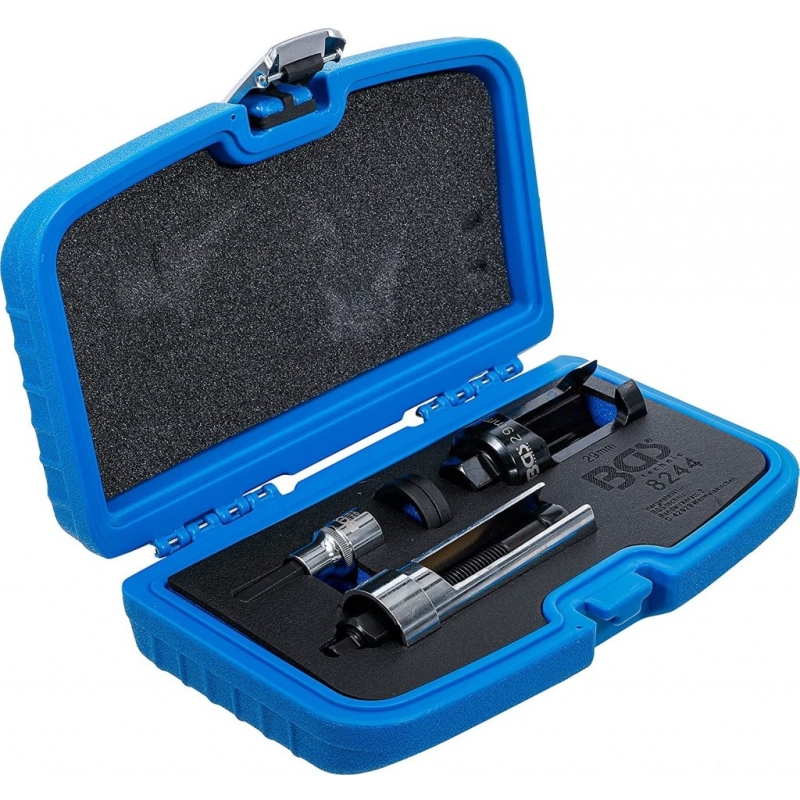

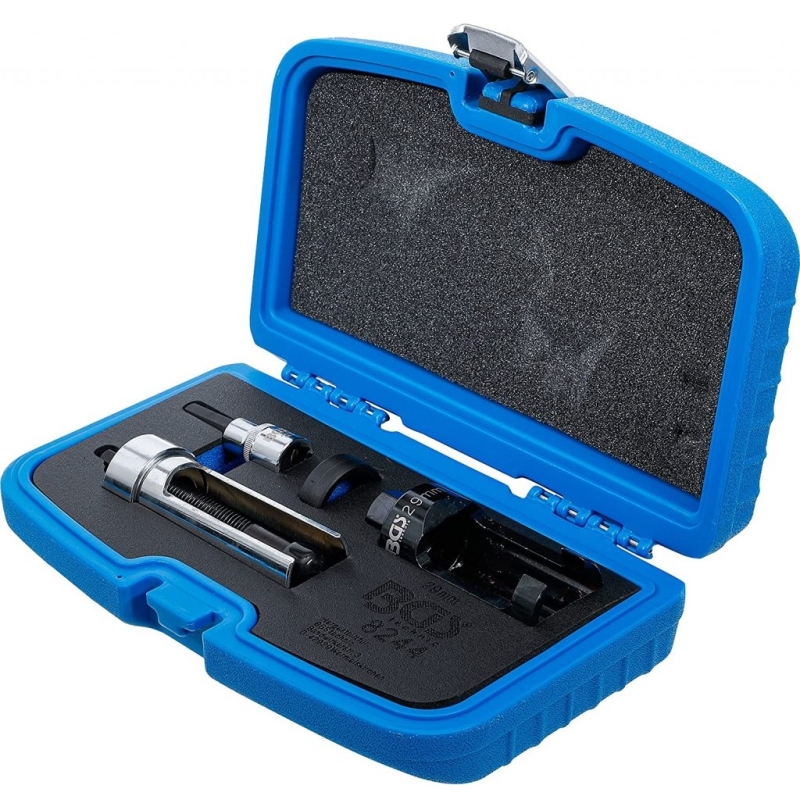

• 1x Injector sleeve, 12.5 mm (1/2"), hex 10 mm

• 1x Protective ring for mounting under pull sleeve

• 1x Sleeve 29 mm, slot opening: 50 mm, outer hex: 22 mm

• 1x Pull spindle / extraction sleeve, outer hex: 21, 22 mm, slot opening: 85 mm
