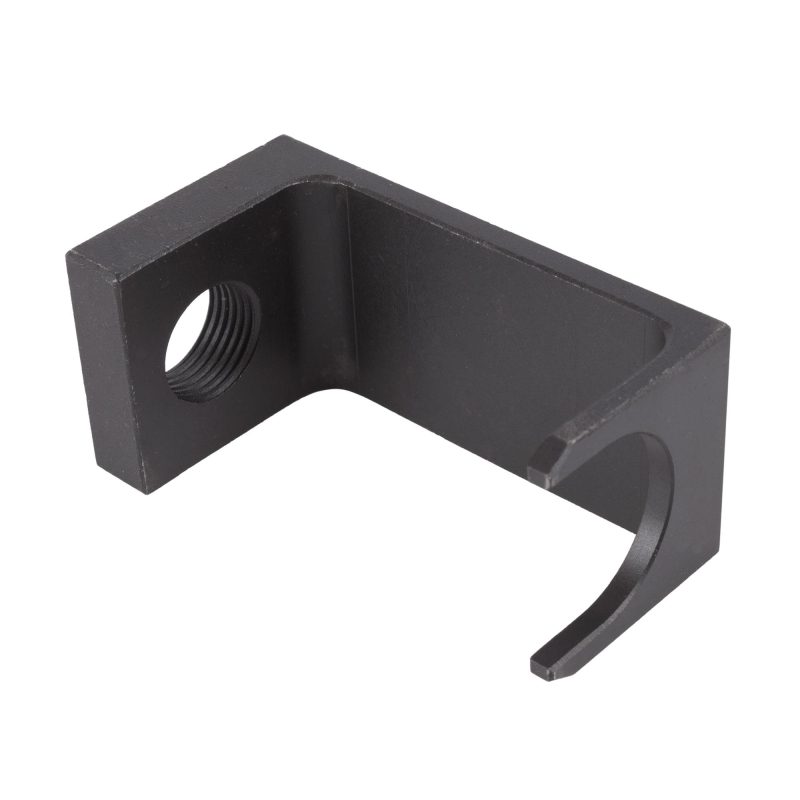

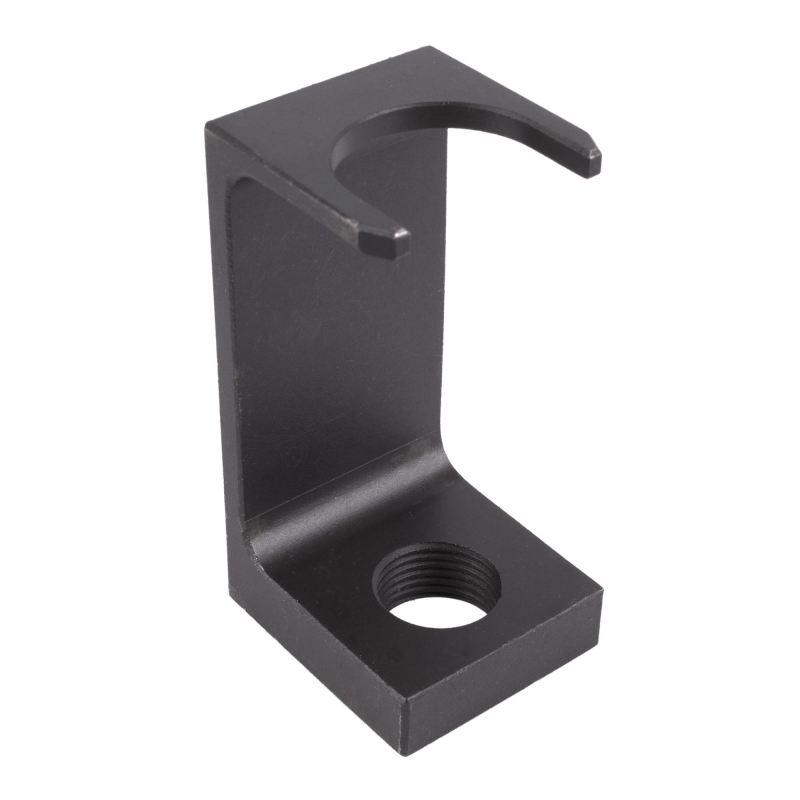

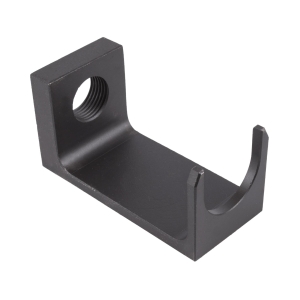

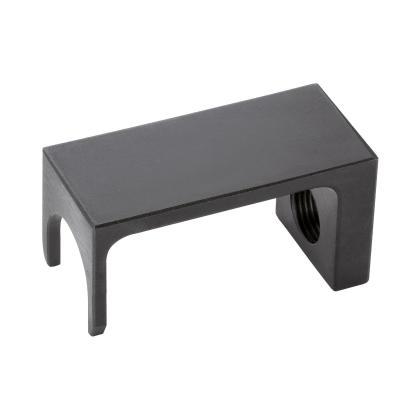

Injector Removal Fork 26 mm for Opel, Fiat & Ford

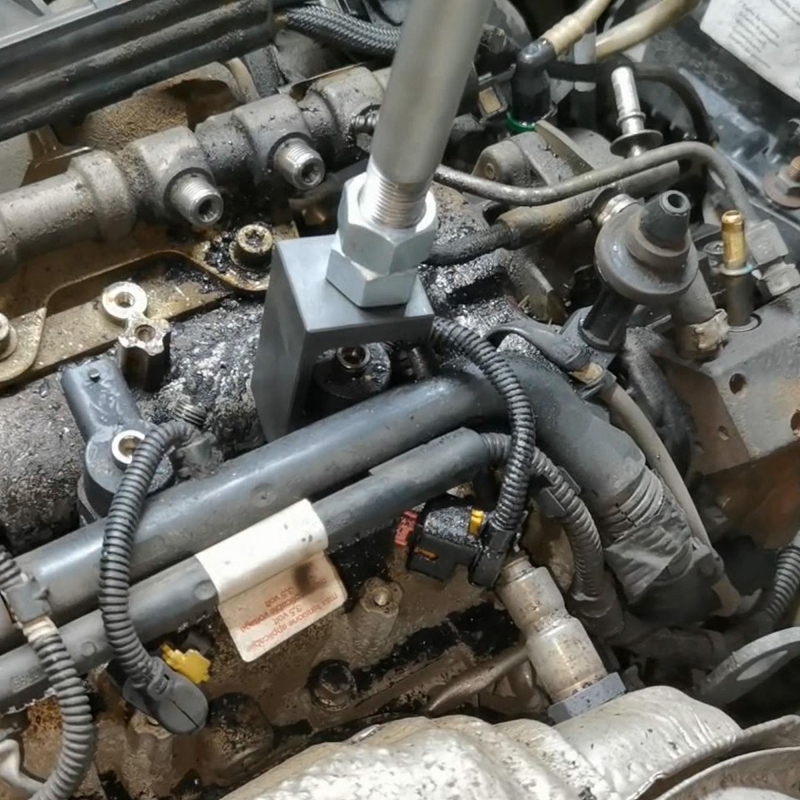

This 26 mm injector removal fork is a professional slide hammer attachment developed for the controlled extraction of diesel fuel injectors without causing housing or nozzle damage.

The fork design allows secure engagement under the injector body, enabling removal while minimizing mechanical stress. When used correctly, it allows the injector to be reused after removal.

Particularly suitable for Denso injectors installed in various Opel and Fiat diesel engines, as well as selected Ford TDCi and PSA-based HDi applications.

Equivalent to several OEM special service tools.

Technical Specifications

• Thread connection: M18 × 1.5

• Compatible with slide hammer article no. 100540 or 116181

• Fork width: 26 mm

Suitable for Example Engines & Vehicles

Opel Engine Codes:
Z19DT, Z19DTH, Z19DTL, A20DTH (LBS), A13DTC, Z13DT (double clamp), Z13DTH, A20DTR (LBY), A20DTJ (LBX), A20DTC (LCD)

Fiat / PSA Applications:
Ducato
Citroën Jumper HDi 4HV / P22DTE engines

Ford Applications:
TDCi engines P8FA, P8FB, JXFA, JXFC, QWFA (Puma engines)

OEM Tool References

Opel: EN-46786, KM328B
Fiat: 2000017200

Original numbers are for identification and comparison purposes only. This is not an original OEM tool.

ALFA ROMEO MITO (955_) (08.2008 - 12.2018) 1.3 MultiJet (955AXH1B, 955AXT1A) (90 HP, 66 kW)

ALFA ROMEO MITO (955_) (08.2008 - 12.2018) 1.3 MultiJet (955AXP1A, 955AYC1A) (95 HP, 70 kW)

CHRYSLER YPSILON (05.2011 - ) 1.3 Multijet (95 HP, 70 kW)

FIAT 500 (312_) (07.2007 - 12.2017) 1.3 D Multijet (312AXE1A) (95 HP, 70 kW)

FIAT 500C (312_) (09.2009 - 12.2015) 1.3 D Multijet (312CXE1A, 312AXE1A) (95 HP, 70 kW)

FIAT 500L (351_, 352_) (09.2012 - 05.2018) 1.3 D Multijet (199.LYM11, 199.LYM1A) (95 HP, 70 kW)

FIAT 500X (334_) (09.2014 - ) 1.3 D Multijet (334AXH1A) (95 HP, 70 kW)

FIAT DOBLO Bus (263_) (11.2009 - 07.2010) 1.3 D Multijet (263AXC1A) (90 HP, 66 kW)

FIAT DOBLO bus (263_) (11.2009 - 07.2010) 1.3 D Multijet (263AXU1A) (95 hp, 70 kW)

FIAT DOBLO Cargo (263_) (02.2010 - ) 1.3 D Multijet (263WXU1A) (95 hp, 70 kW)

FIAT DOBLO Cargo (263_) (02.2010 - ) 1.3 D Multijet (80 hp, 59 kW)

FIAT DOBLO Cargo (263_) (02.2010 - ) 1.3 D Multijet (90 hp, 66 kW)

FIAT DOBLO Flatbed/Chassis (263_) (02.2010 - ) 1.3 D Multijet (263.HXT1A, 263.YXT1A) (80 hp, 59 kW)

FIAT DOBLO Flatbed/Chassis (263_) (02.2010 - ) 1.3 D Multijet (263.HXU1A, 263.YXU1A) (95 hp, 70 kW)

FIAT DOBLO Flatbed/Chassis (263_) (02.2010 - ) 1.3 D Multijet (90 hp, 66 kW)

FIAT FIORINO MPV (225_) (11.2007 - ) JTD Multijet (225BXE1A) (95 hp, 70 kW)

FIAT FIORINO Panel Van/MPV (225_) (01.2007 - 12.2013) 1.3 D Multijet (225BXE1A) (95 hp, 70 kW)

FIAT FIORINO Panel Van/MPV (225_) (01.2007 - 12.2013) 1.3 D Multijet (225CXG1A, 225AXL1A, 225AXG11, 225BXL1A,... (80 hp, 59 kW)

FIAT GRANDE PUNTO (199_) (06.2005 - 12.2015) 1.3 D Multijet (199.AXD11, 199.AXD1A, 199.AXD1B,... (90 hp, 66 kW)

FIAT GRANDE PUNTO Van (199_) (02.2006 - 06.2013) 1.3 JTD Multijet (199CXD1B) (90 hp, 66 kW)

FIAT IDEA (350_) (12.2003 - 12.2015) 1.3 D Multijet (90 HP, 66 kW)

FIAT IDEA (350_) (12.2003 - 12.2015) 1.3 D Multijet (95 HP, 70 kW)

FIAT IDEA Van (350_) (10.2004 - 12.2012) JTD Multijet (350BXG1A) (90 HP, 66 kW)

FIAT LINEA (323_, 110_) (10.2006 - 12.2019) 1.3 D Multijet (323AXB11, 323AXB1A) (90 HP, 66 kW)

FIAT LINEA (323_, 110_) (10.2006 - 12.2019) 1.3 D Multijet (323AXB1A) (95 HP, 70 kW)

FIAT LINEA (323_, 110_) (10.2006 - 12.2019) 1.3 D Multijet (93 HP, 68 kW)

FIAT LINEA (323_, 110_) (10.2006 - 12.2019) 1.3 JTD Multijet (323AXB1A) (86 HP, 63 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 1.3 D Multijet (312PXU1A, 312PXW1A) (95 HP, 70 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 1.3 D Multijet (80 HP, 59 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 1.3 D Multijet 4x4 (312PXS2A) (80 HP, 59 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 1.3 D Multijet 4x4 (312PXU1A) (95 HP, 70 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 1.3 D Multijet (312PXS2A) (80 HP, 59 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 1.3 D Multijet 4x4 (312PXS2A) (80 HP, 59kW)

FIAT PUNTO (199_) (01.2012 - 04.2018) 1.3 D Multijet (95 HP, 70 kW)

FIAT PUNTO (199_) (01.2012 - 04.2018) 1.3 JTD Multijet (199.AYR1A, 199.BYR1A) (90 HP, 66 kW)

FIAT PUNTO EVO (199_) (07.2008 - 06.2013) 1.3 D Multijet (199AXD1B, 199AXD1A, 199BXD1B, 199BXD1A,... (90 HP, 66 kW)

FIAT PUNTO EVO (199_) (07.2008 - 06.2013) 1.3 D Multijet (95 HP, 70 kW)

FIAT PUNTO EVO Box Body/Hatchback (199_) (03.2009 - 02.2012) 1.3 D Multijet (199.AXU1A) (95 HP, 70 kW)

FIAT PUNTO EVO Box Body/Hatchback (199_) (03.2009 - 02.2012) 1.3 D Multijet (199CXD1B, 199CXD1A) (90 HP, 66 kW)

FIAT PUNTO Box Body/Hatchback (199_) (04.2008 - ) 1.3 D Multijet (95 HP, 70 kW)

FIAT QUBO (225_) (02.2008 - ) 1.3 D Multijet (225AXE1A, 225CXE1A) (95 HP, 70 kW)

FIAT QUBO (225_) (02.2008 - ) 1.3 D Multijet (225AXG1A, 225CXG1A, 225AXG11, 225CXG11) (80 HP, 59 kW)

FIAT STRADA Pick-up (178_) (02.1998 - 12.2015) 1.3 D Multijet (278AYR1A) (87 HP, 64 kW)

FIAT STRADA Pick-up (178_) (02.1998 - 12.2015) 1.3 D Multijet (278AYR1A) (95 HP, 70 kW)

FIAT TIPO Estate (356_) (03.2016 - ) 1.3 D (356WXH1A) (95 HP, 70 kW)

FIAT TIPO Hatchback (356_) (03.2016 - ) 1.3 D (356HXH1A) (95 HP, 70 kW)

FIAT TIPO Saloon (356_) (10.2015 - ) 1.3 D (356SXB1A, 356SXH1A, 356SXD1A) (95 HP, 70 kW)

LANCIA MUSA (350_) (10.2004 - 09.2012) 1.3 D Multijet (350.AXG11, 350.AXG1A) (90 HP, 66 kW)

LANCIA MUSA (350_) (10.2004 - 09.2012) 1.3 D Multijet (350.AXM11, 350.AXM1A, 350.AXI1A) (95 HP, 70 kW)

LANCIA YPSILON (312_) (05.2011 - ) 1.3 D Multijet (312.YXE1A, 312.YXU1A) (95 HP, 70 kW)

LANCIA YPSILON (843_) (10.2003 - 12.2011) 1.3 D Multijet (843.AXE11, 843.AXE1A) (90 hp, 66 kW)

LANCIA YPSILON (843_) (10.2003 - 12.2011) 1.3 D Multijet (843.AXH1A, 843.AXE1A) (105 hp, 77 kW)

OPEL COMBO Van/MPV (X12) (02.2012 - ) 1.3 CDTI (B05) (80 hp, 59 kW)

OPEL COMBO Van/MPV (X12) (02.2012 - ) 1.3 CDTI (B05) (90 hp, 66 kW)

OPEL COMBO Van/MPV (X12) (02.2012 - ) 1.3 CDTI (B05) (95 hp, 70 kW)

OPEL COMBO Tour (X12) (02.2012 - ) 1.3 CDTI (C26, D26, E26, C05) (75 HP, 55 kW)

OPEL COMBO Tour (X12) (02.2012 - ) 1.3 CDTI (C26, D26, E26, C05) (80 HP, 59 kW)

OPEL COMBO Tour (X12) (02.2012 - ) 1.3 CDTI (C26, D26, E26, C05) (90 HP, 66 kW)

OPEL COMBO Tour (X12) (02.2012 - ) 1.3 CDTI (C26, D26, E26, C05) (95 HP, 70 kW
