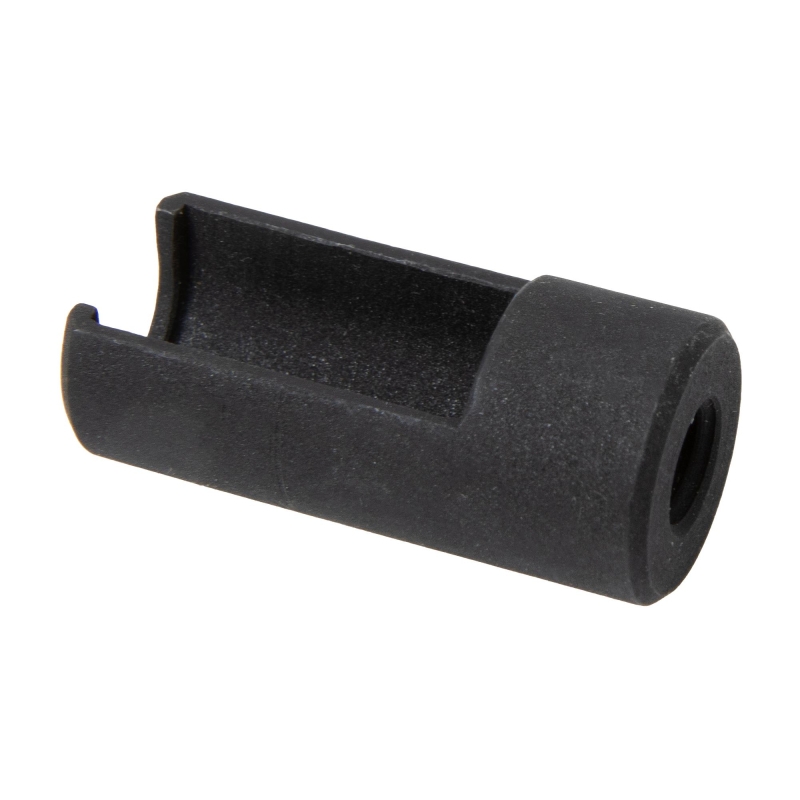

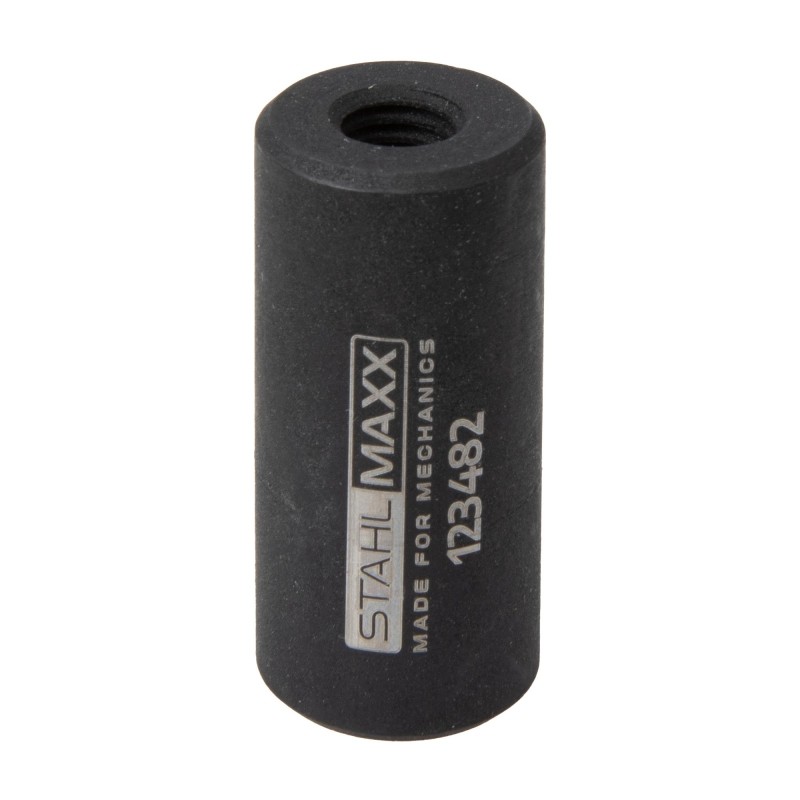

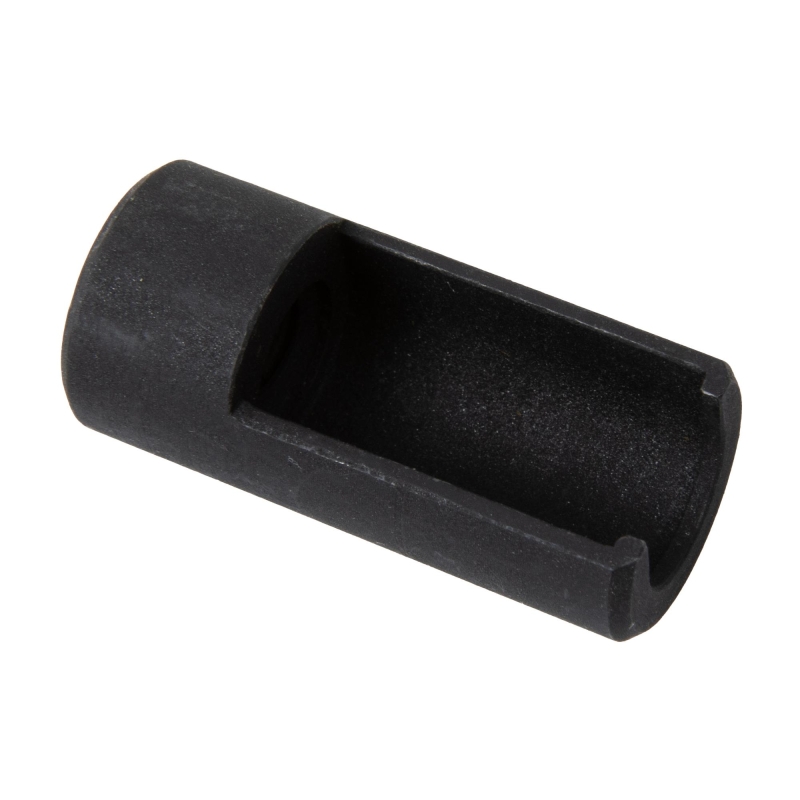

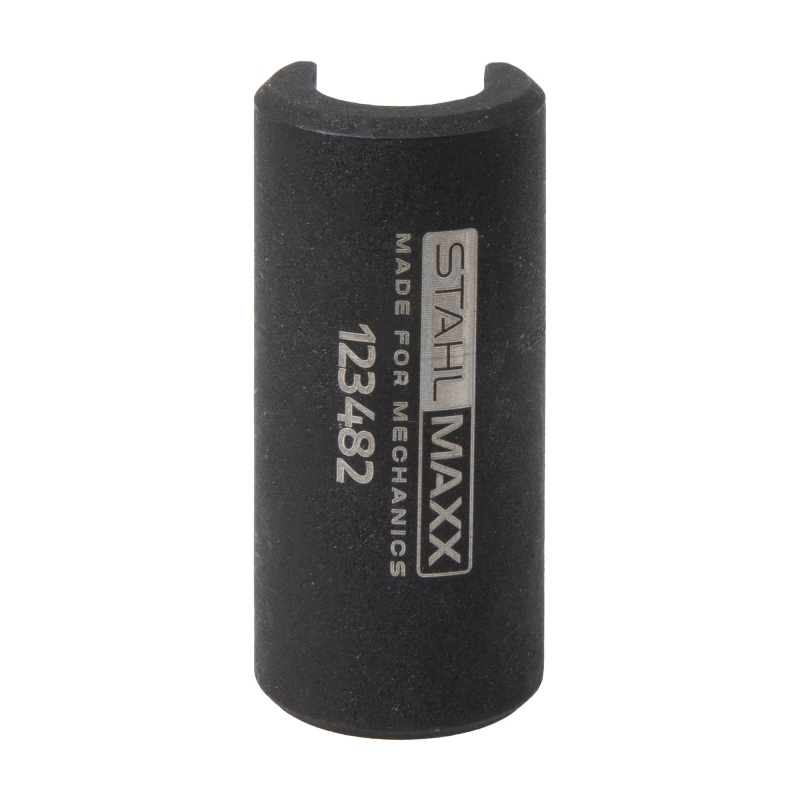

Injector Removal Adapter 3.0L TFSI – VAG & Porsche (T10133/22)

This special adapter is designed for removing plastic injectors from 3.0L TFSI direct-injection engines in VAG and Porsche vehicles. Direct-injection engines, such as 3.0L 6-cylinder models, use injectors that are primarily made of plastic.

Using standard workshop tools can result in damage, leaks, or operational failures.

To ensure professional and safe extraction, this adapter features an M8x1.25 internal thread. It can be used with a slide hammer (Art. No. 116739, equivalent to T10133) or our injector removal kit (Art. No. 117217), allowing removal of injectors according to manufacturer specifications.

Important: Teflon sealing rings must be recalibrated for reinstallation. Additional tools listed in the kit may be required.

Suitable Engine Codes

DCBE, DCBD, DGRB, DGRC, DLZA, DLZB, DMTD, DGRB, DGRC, MCT.MA, MDC.NA

Compatible Injector Reference Numbers (Delphi Type)

06M906036T
06M906036AE
06M906036T
Delphi 28408295-12B1

OE Reference Number

T10133/22 (for comparison only)

Key Features

• Stahlmaxx quality tool

• Professional use according to repair manual

• Cost-effective accessory for existing or previous kits

Original numbers are for reference only; these are not OEM tools.

AUDI A6 Allroad C8 (4AH) (11.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A6 C8 (4A2) (02.2018 - ) 55 TFSi Mild Hybrid quattro (340 HP, 250 kW)

AUDI A6 C8 Avant (4A5) (05.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI A7 Sportback (4KA) (10.2017 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (340 HP, 250 kW)

AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (455 HP, 335 kW)

AUDI Q8 (4MN) (02.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)

AUDI Q8 (4MN) (02.2018 - ) 55 TFSI e quattro (340 HP, 250 kW)

AUDI Q8 (4MN) (02.2018 - ) 60 TFSI e quattro (340 HP, 250 kW)

BENTLEY BENTAYGA (4V1) (10.2015 - ) 3.0 Hybrid (340 HP, 250 kW)

PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 E-Hybrid AWD (462 HP, 340 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 AWD (9YBAA1) (340 HP, 250 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (340 HP, 250 kW)

PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (461 HP, 339 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 2.9 Turbo AWD (441 HP, 324 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 3.0 GTS (360 HP, 265 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 3.0 S (340 HP, 250 kW)

PORSCHE MACAN (95B) (02.2014 - 12.2018) 3.0 S (354 HP, 260 kW)

VW TOUAREG (CR7) (11.2017 - ) 3.0 TSI 4motion (340 hp, 250 kW
