Glow Plug & Injector Seat Cleaning Kit

Price: €176.50 345.20лв.

Code:

8723
Weight:

2.370 Kgs

Professional cleaning kit for injector seats, glow plug bores, and injector shafts. Efficiently removes carbon, dirt, and residues to ensure optimal sealing and prevent leaks during installation of new injectors and glow plugs.

Estimated Shipping

outside Varna starts at €4.94 to Varna starts at €4.94

Send to friend

Rate this product

This glow plug and injector seat cleaning kit is designed for thorough cleaning and preparation of injector seats, glow plug bores, and injector shafts. The complete kit allows precise removal of deposits and ensures correct sealing surfaces for reliable engine performance.

The kit is ideal for professional workshops and experienced home mechanics performing maintenance on diesel engines.

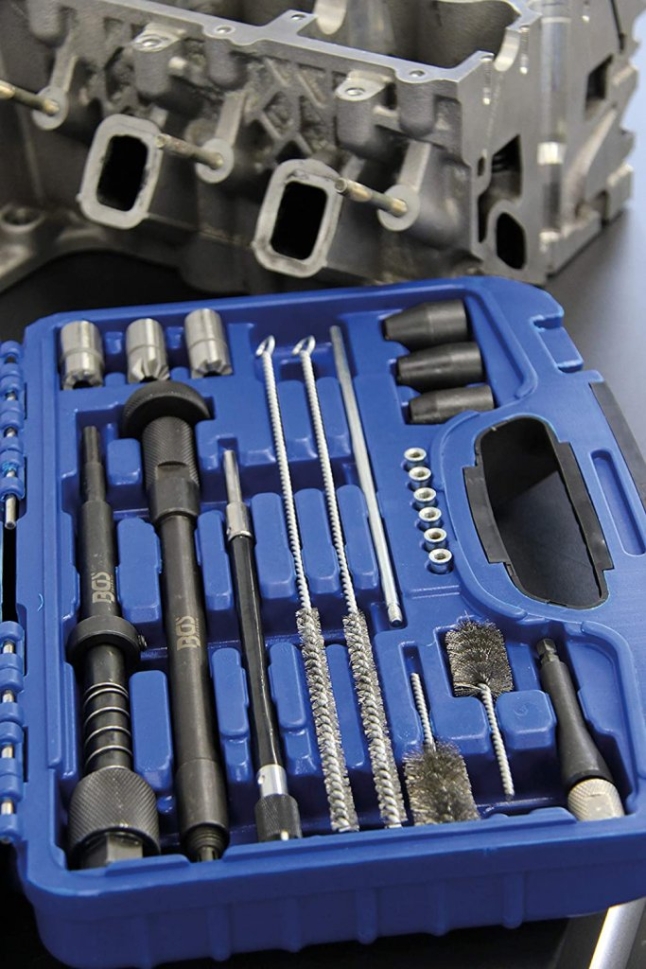

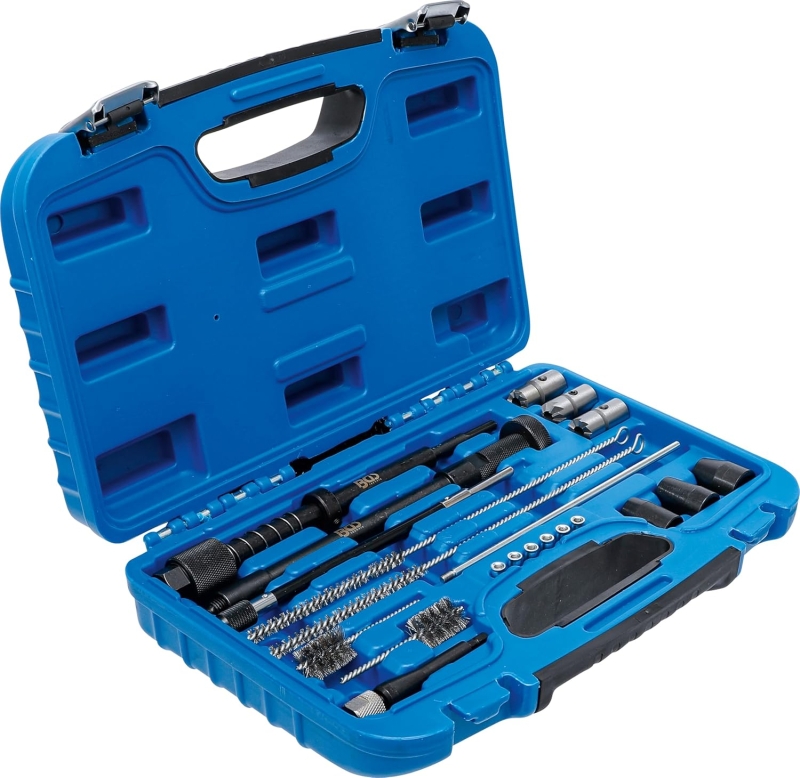

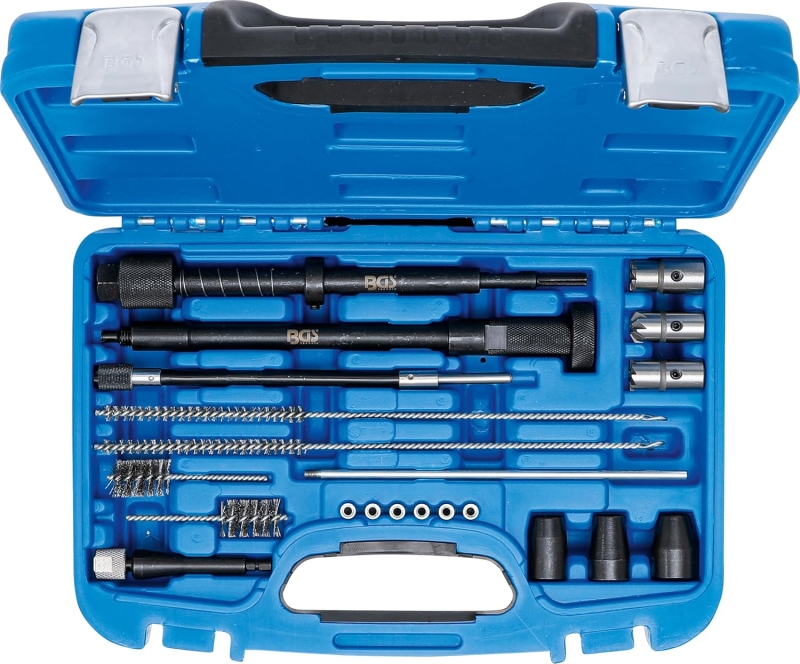

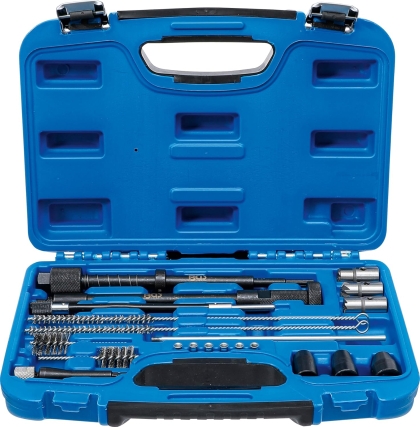

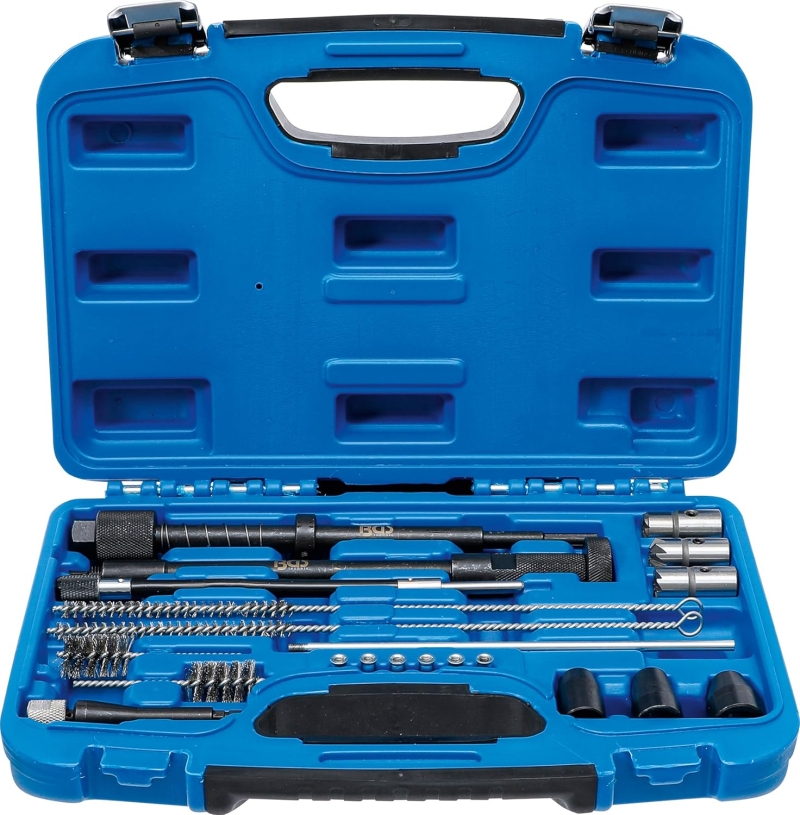

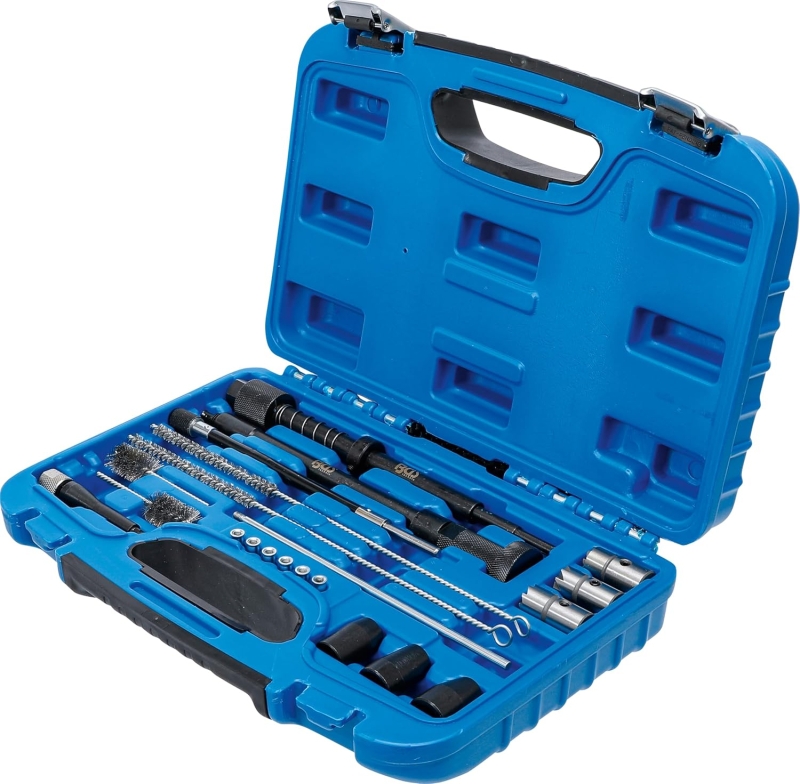

Scope of Delivery

4 × Cleaning brushes
Brush holder
3 × Injector seat cutters
Cutter guide
Seal ring puller
Brush holder extension

Applications

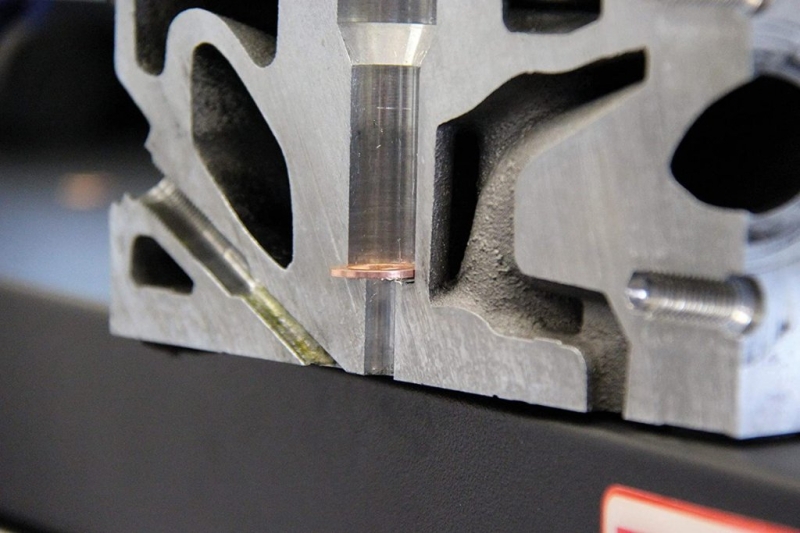

Removal of injector seals
Cleaning of injector seats
Cleaning of glow plug bores
Preparing sealing surfaces for installation of new injectors and glow plugs

Usage Instructions

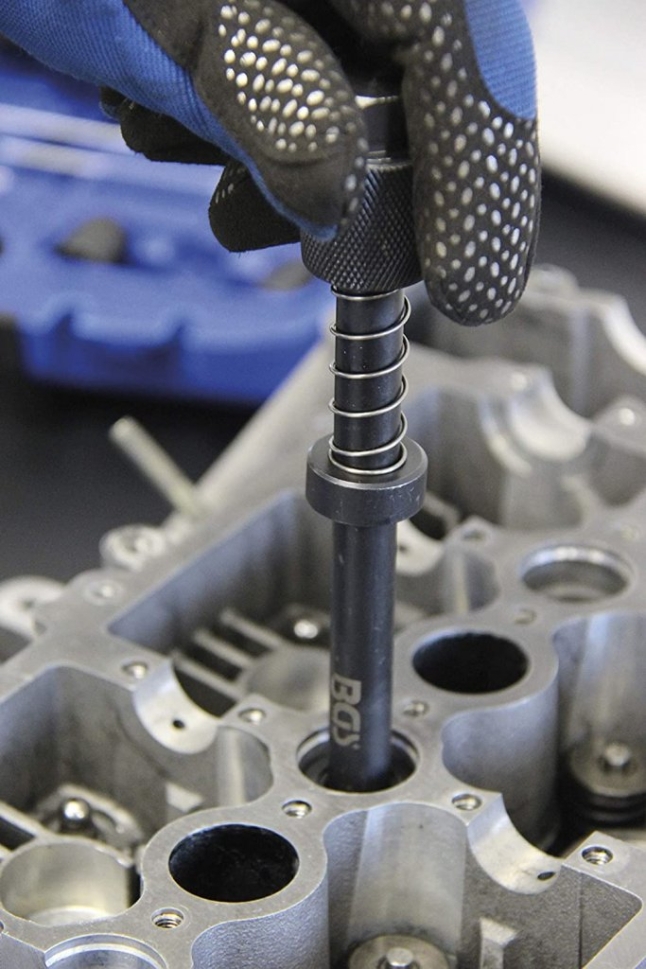

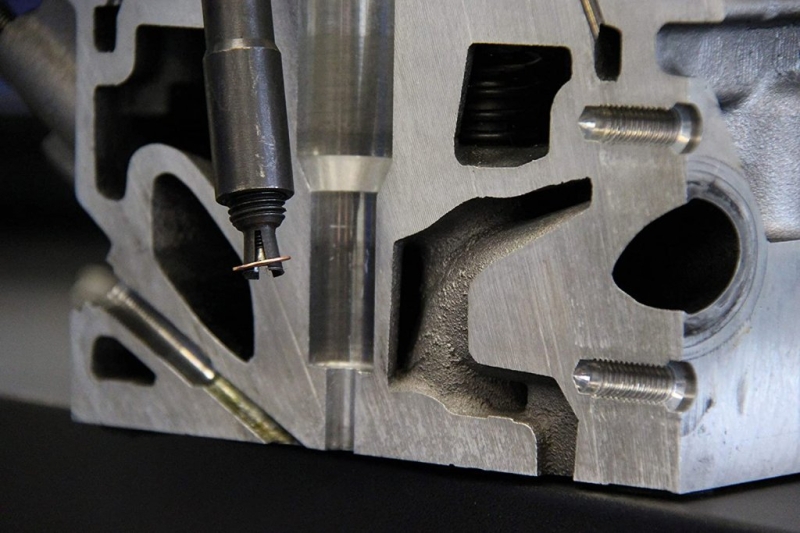

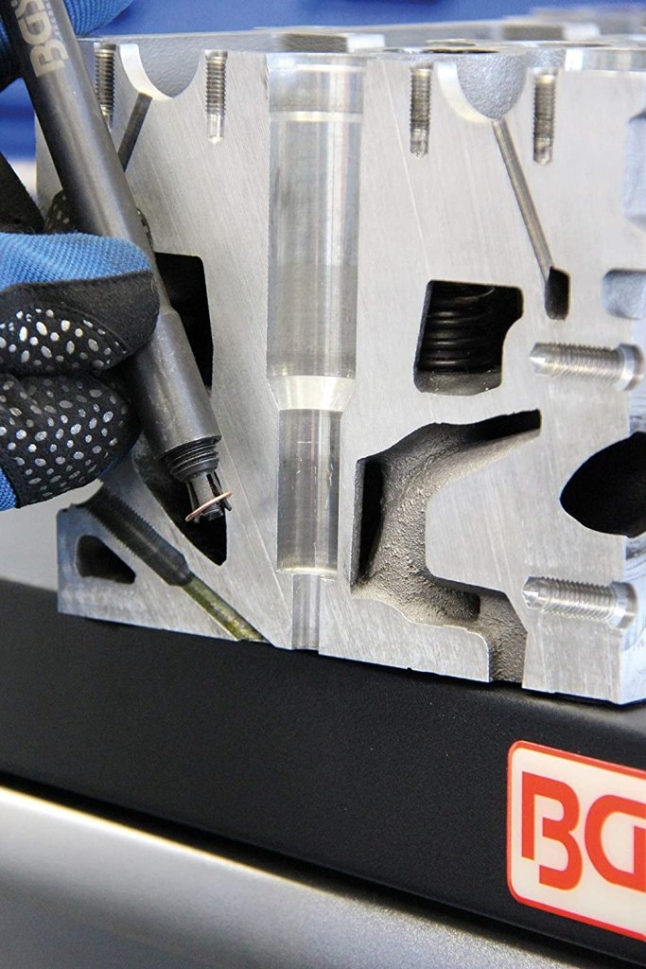

Removing Injector Seals

Loosen the expansion cone on the seal puller by turning the knurled screw counterclockwise.
Position the puller in the injector shaft and the expander in the seal bore.
Tighten the expansion cone clockwise to fix the tool.
Remove the seal by lifting the puller.

Cleaning Injector Seats

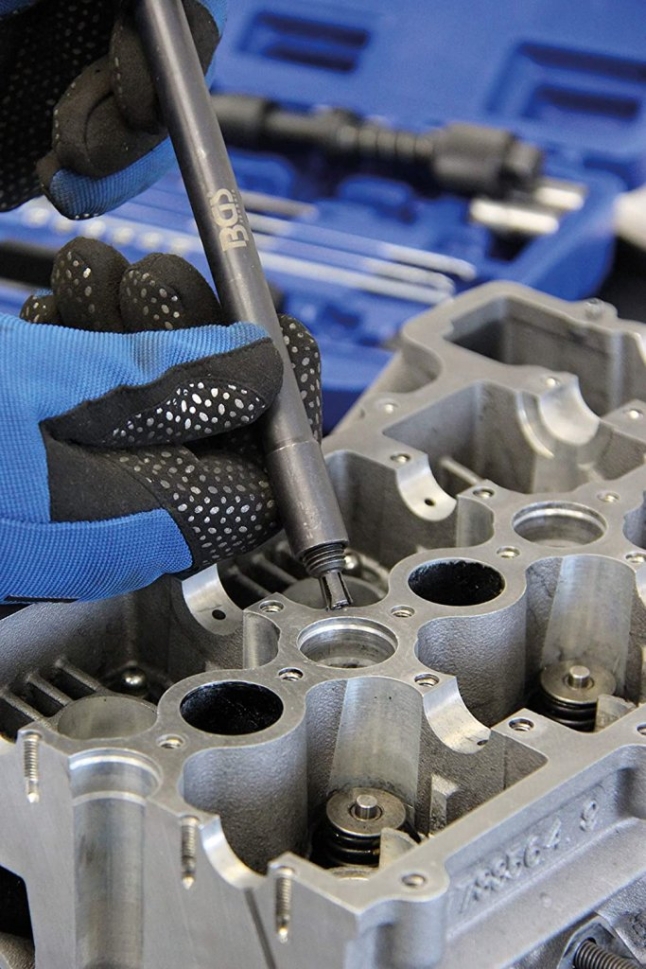

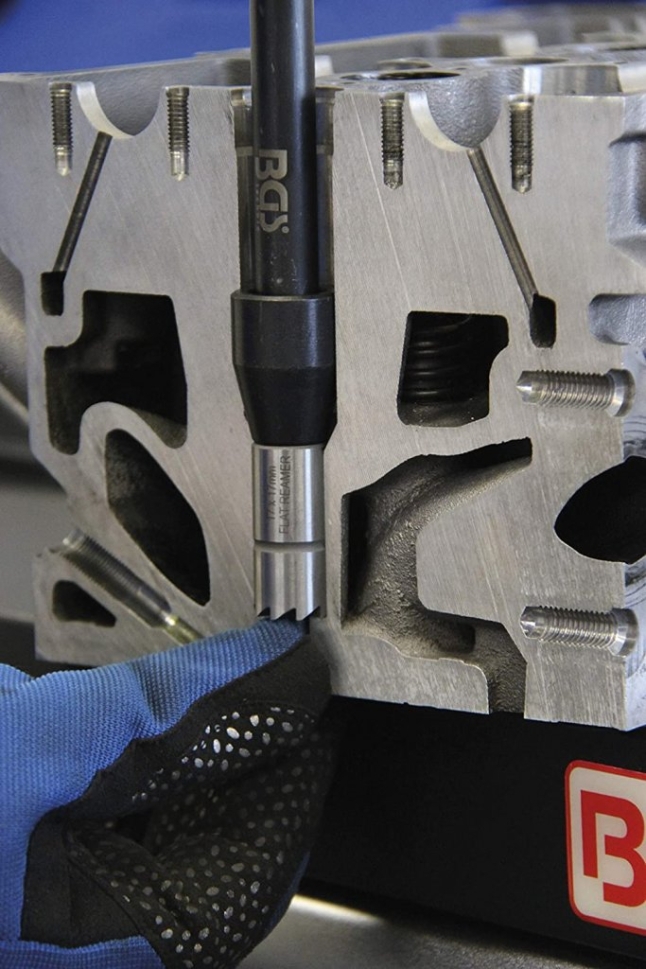

Select the correct guide cone and attach to the cutter holder.
Choose the cutter head matching the seal/injector and secure with the pin screw.
Apply grease to the cutting edge.
Adjust the height with the adjustment ring so the cutter rests on the sealing surface. Check centering carefully.
Clean the sealing surface by turning the cutter holder by hand.
Carefully remove the tool.

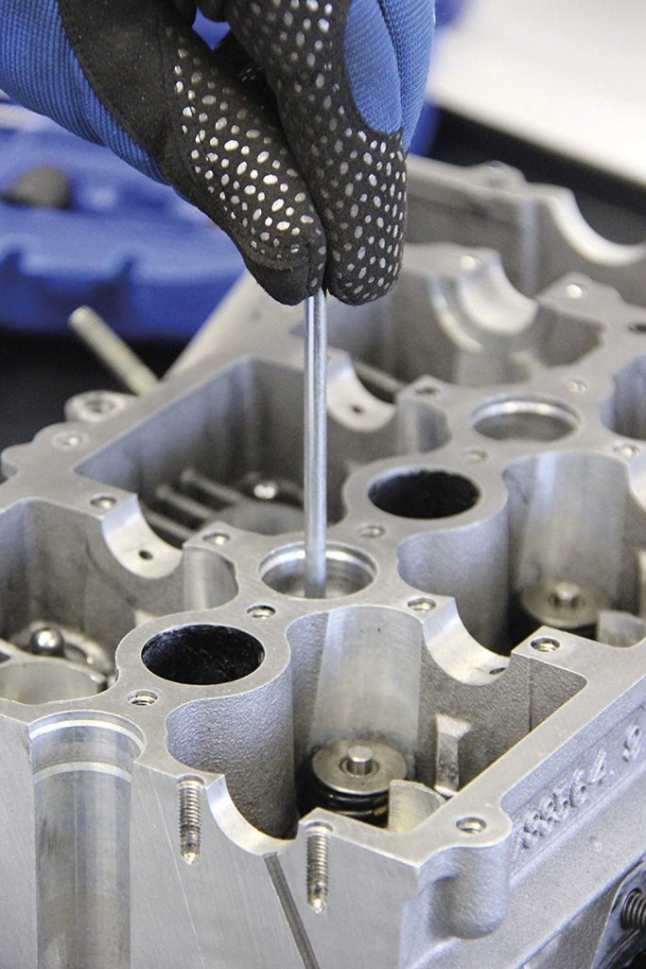

Cover the combustion chamber hole with the included cap and press down with the cap rod.
Remove dirt with compressed air (always wear safety glasses).

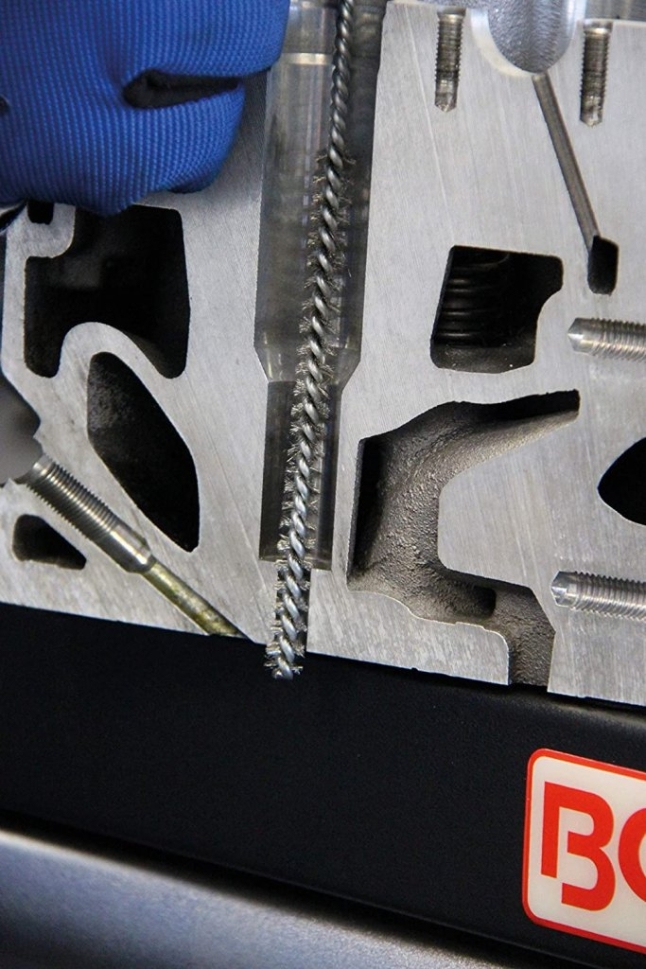

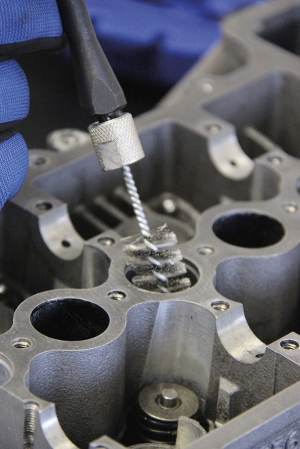

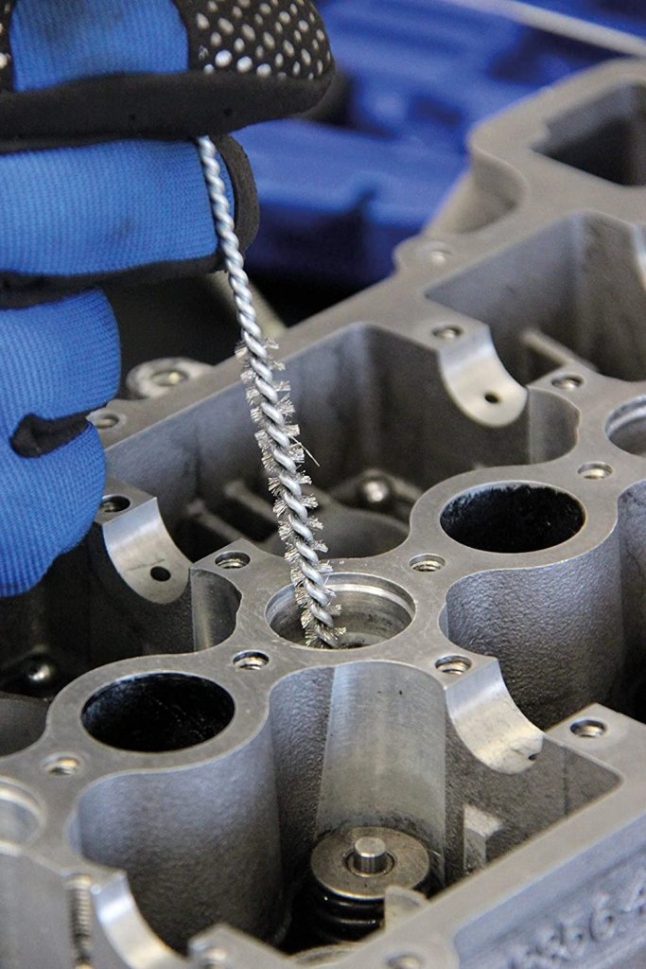

Clean the injector shaft with the cleaning brush by hand or with a drill; use the brush holder extension if needed.
Repeat compressed air blowing after brushing.
Remove the cap and inspect seat and bore before installing new components.
