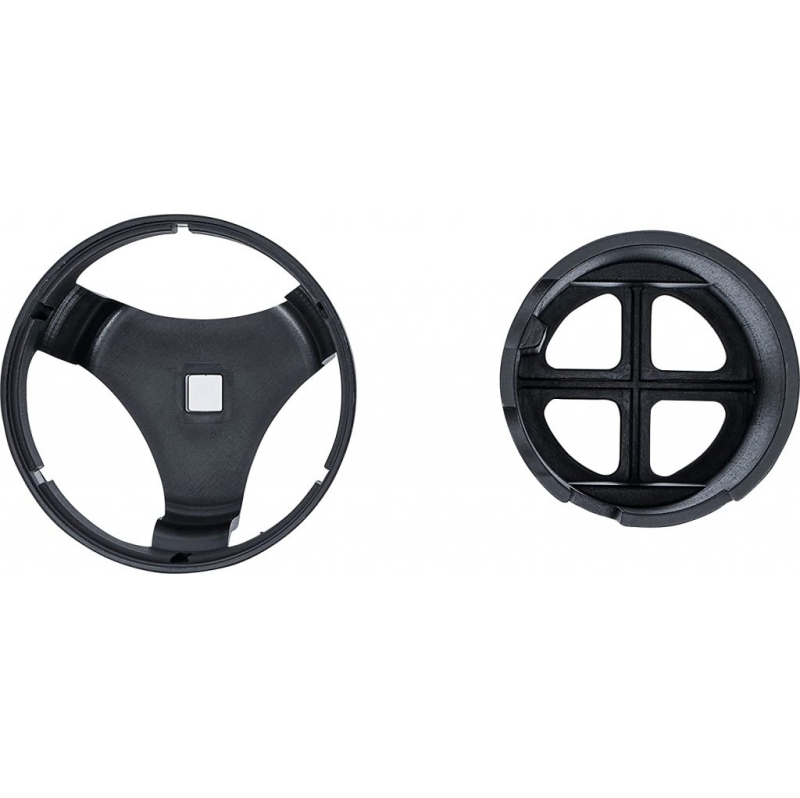

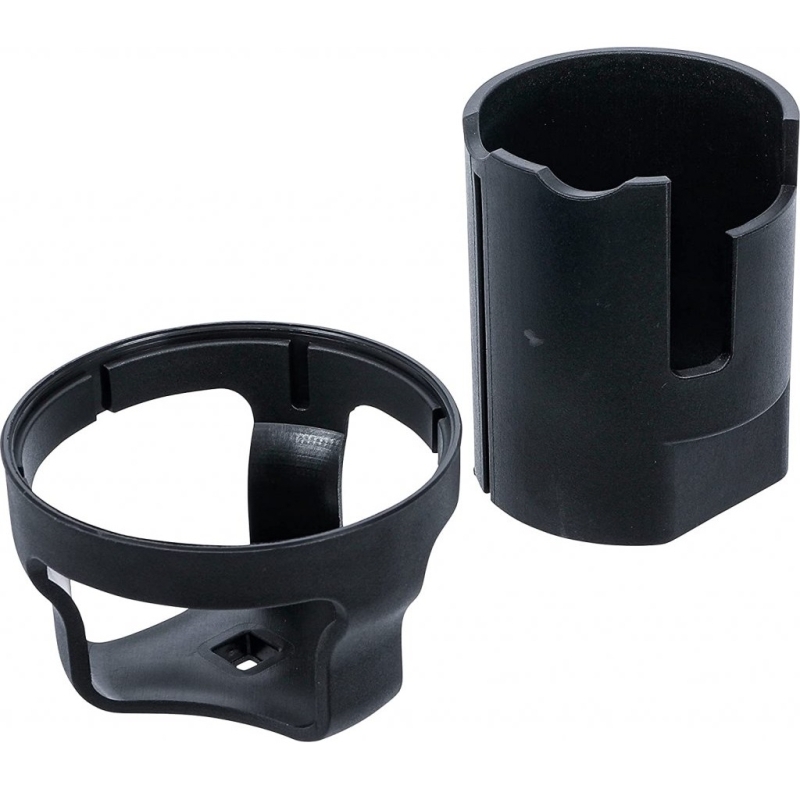

Diesel Fuel Filter Tool – JTD / CDTi / DDiS / TiD / VCDi / HDi

This specialized diesel fuel filter tool enables easy, safe removal and installation of fuel filter housings on modern diesel engines. Ideal for workshops and advanced DIY mechanics, it prevents cracking or damage to expensive plastic housings while reducing service time.

Key Features & Benefits

• Compatible with a wide range of vehicles: Chevrolet, Citroën, Fiat, Peugeot, Saab, Subaru, Suzuki, Opel (Vauxhall).

• Stable construction allows secure clamping in a vise.

• Equipped with a 12.5 mm (1/2”) square drive for use with a ratchet or torque wrench.

• Exact fit ensures safe removal and installation without risk of cracks.

• Minimizes labor time and simplifies the service process.

Compatible Engines

• 1.3 JTD / CDTi / DDiS

• 1.9 JTD / CDTi / TiD

• 2.0 VCDi / HDi / JTD

• 2.2 HDi / JTD

• 2.8 HDi / JTD

• 3.0 HDi / JTD

Usage (Quick Guide)

1. Disconnect hoses and electrical connections from the fuel filter housing.

2. Secure the tool’s lower part in a vise.

3. Place the fuel filter housing into the tool and align the grooves.

4. Connect a ratchet to the tool’s square drive and loosen the filter housing top.

5. Replace the filter element and O-ring.

6. Reassemble according to manufacturer torque (30 Nm) and check for leaks.
