Injection Pump Sprocket Holding Tool for Ford

Price: €17.95 35.11лв.
  • Code:
    103999
  • Weight:
    0.100 Kgs

Special holding tool designed to secure the injection pump sprocket when removing the fuel pump on Ford Duratorq diesel engines. Prevents sprocket movement and ensures safe and correct pump removal.

Estimated Shipping

outside Varna starts at €4.13 to Varna starts at €4.13

We have 63 in stock

Add to wishlist

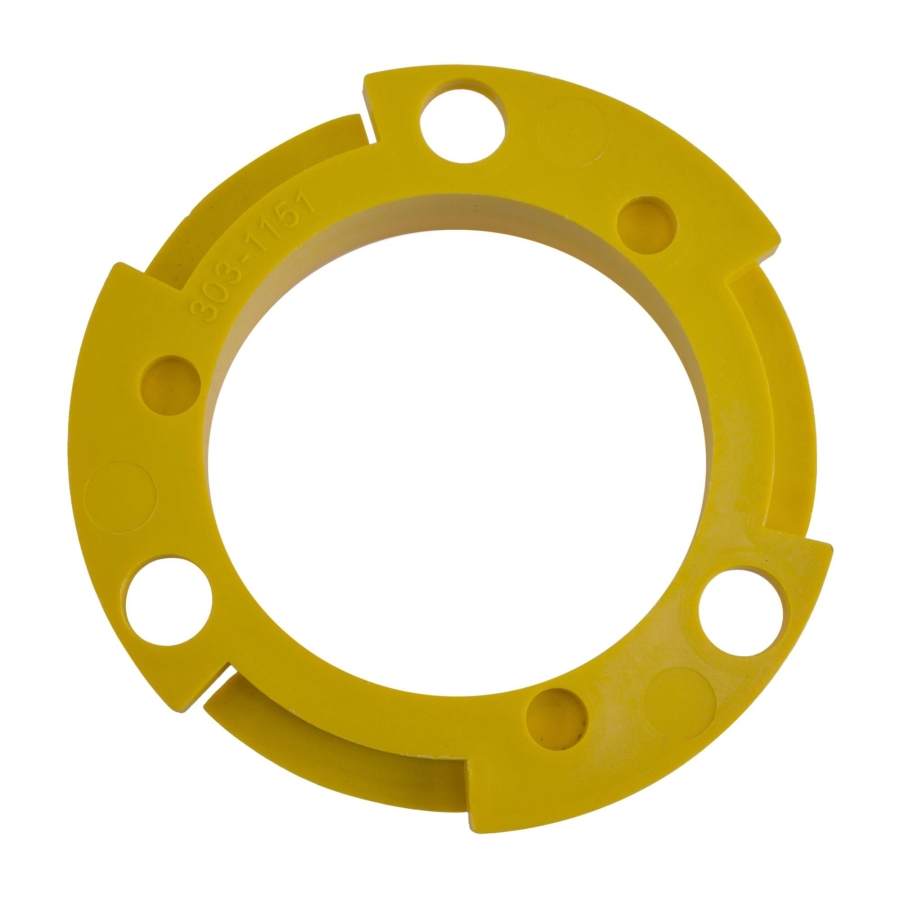

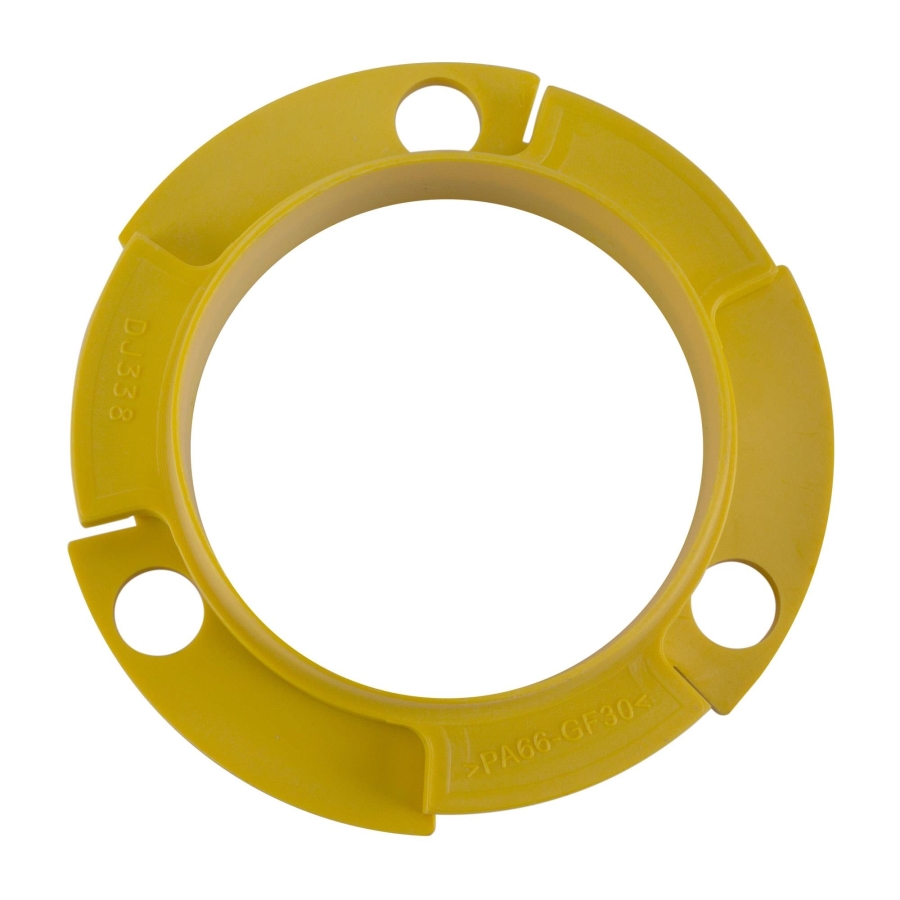

Injection Pump Sprocket Holding Tool for Ford
Injection Pump Sprocket Holding Tool for Ford Injection Pump Sprocket Holding Tool for Ford
Send to friend
Rate this product

This holding tool is designed to securely hold the injection pump sprocket when removing the fuel pump on Ford diesel engines. By locking the sprocket in place, the tool prevents unwanted movement of the timing chain system and allows the pump to be removed safely without disturbing engine timing.

It is an essential tool when servicing or replacing the fuel injection pump on various Ford Duratorq TDCi / TDDi / DI engines.

Compatible Vehicles

Suitable for the following vehicles:

  • Ford Mondeo (10/2000 – 02/2007)

  • Ford Transit (01/2000 – 05/2006)

Compatible Engines

Also suitable for the following Ford diesel engines:

  • Ford 2.0L Duratorq DI / TDCI / TDDI

  • Ford 2.2L Duratorq TDCI

  • Ford 2.4L TDCI / TDDI

  • Ford 3.2L TDCI

Instructions for Use

  1. Remove the sprocket adjustment hole plug using the appropriate special tool (e.g. tool number 106316).

  2. Rotate the engine until the sprocket adjustment hole is positioned at the 1 o’clock position.

  3. Insert a long T45 socket (e.g. tool number 102688) into the 3 o’clock position. If insertion is possible, the base timing position is correct.

  4. Release the fuel pump and disconnect the fuel lines.

  5. Install the sprocket holding tool and lock it clockwise.

  6. Loosen the four sprocket bolts and remove the fuel pump.

Engine Codes

BJFA, BJFB, BJRA, BKFA, BKFB, BKRA, BLFA, BLFB, BLHA, BLRA, CV24, CVF5, CVFF, CVR5, CVRA, CVRB, CVRC, CY14, CY24, CYF4, CYF5, CYFA, CYFB, CYFC, CYFD, CYFF, CYFG, CYR5, CYRA, CYRB, CYRC, D5BA, D6BA, DRF4, DRF5, DRFA, DRFB, DRFC, DRFD, DRFE, DRFF, DRFG, DRR5, DRRA, DRRB, DRRC, FIFA, FMBA, H9FB, H9FD, HJBA, HJBB, HJBC, JXFA, JXFC, N7BA, N7BB, P8FA, P8FB, PGFA, PGFB, PHFA, PHFC, QJBA, QJBB, QJBC, QJBD, QVFA, QWFA, SAFA, SAFB, SDBA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA, UHFB, UHFC, UHR5, USF6, USR6, USRA, USRB, UYR6, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA

OEM Reference

  • Ford 303-1151 / 3031151



OEM numbers are for reference purposes only. This tool is not an original OEM tool.

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 16V DI / TDDi / TDCi (90 HP, 66 kW)

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 16V TDDi / TDCi (115 HP, 85 kW)

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 TDCi (130 HP, 96 kW)

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.2 TDCi (150 HP, 110 kW)

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.2 TDCi (155 hp, 114 kW)

FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 16V TDDi / TDCi (115 hp, 85 kW)

FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 TDCi (130 hp, 96 kW)

FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.2 TDCi (150 hp, 110 kW)

FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.2 TDCi (155 hp, 114 kW)

FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 2.0 16V DI / TDDi / TDCi (90 hp, 66 kW)

FORD MONDEO III Turnier (BWY) (10.2000 - 03.2007) 2.0 16V TDDi / TDCi (115 hp, 85 kW)

FORD MONDEO III Turnier (BWY) (10.2000 - 03.2007) 2.0 TDCi (130 hp, 96 kW)

FORD MONDEO III Turnier (BWY) (10.2000 - 03.2007) 2.2 TDCi (150 hp, 110 kW)

FORD MONDEO III Turnier (BWY) (10.2000 - 03.2007) 2.2 TDCi (155 hp, 114 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (01.2000 - 05.2006) 2.0 TDCi (F_F_, F_E_, F_G_) (125 HP, 92 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (110 HP, 81 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (115 HP, 85 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (130 HP, 96 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (140 hp, 103 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi (85 HP, 63 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (100 HP, 74 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (125 HP, 92 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (135 HP, 100 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.4 TDCi (100 HP, 74 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.4 TDCi (115 HP, 85 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.4 TDCi (140 HP, 103 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 2.4 TDCi 4x4 (140 HP, 103 kW)

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04.2006 - 12.2014) 3.2 TDCi (200 HP, 147 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 HP, 77 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 HP, 96 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 HP, 125 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.2 TDCi (155 HP, 114 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (105 HP, 77 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (130 HP, 96 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (170 HP, 125 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.2 TDCi (155 HP, 114 kW)

FORD TRANSIT Box (FA_ _) (01.2000 - 05.2006) 2.0 TDCi (125 HP, 92 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (110 HP, 81 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (115 HP, 85 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (130 HP, 96 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (140 HP, 103 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi (85 HP, 63 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi 4x4 (125 HP, 92 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (100 HP, 74 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (125 HP, 92 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (136 HP, 100 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.2 TDCi RWD (155 HP, 114 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.4 TDCi 4x4 (140 HP, 103 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.4 TDCi RWD (100 HP, 74 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.4 TDCi RWD (115 HP, 85 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 2.4 TDCi RWD (140 HP, 103 kW)

FORD TRANSIT Box (FA_ _) (04.2006 - 12.2014) 3.2 TDCi RWD (200 hp, 147 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _) (01.2000 - 05.2006) 2.0 TDCi (F_E_, F_F_) (125 hp, 92 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (100 hp, 74 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (110 hp, 81 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (115 hp, 85 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (125 hp, 92 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (130 hp, 96 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (140 hp, 103 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi (85 hp, 63 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi 4x4 (125 hp, 92 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi RWD (100 hp, 74 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.2 TDCi RWD (125 2.2 TDCi RWD (155 hp, 114 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.4 TDCi 4x4 (140 hp, 103 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.4 TDCi RWD (100 hp, 74 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.4 TDCi RWD (115 hp, 85 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 2.4 TDCi RWD (140 hp, 103 kW)

FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _, FF_ _) (04.2006 - 10.2014) 3.2 TDCi RWD (200 hp, 147 kW)

FORD TRANSIT TOURNEO Bus (07.2006 - 08.2014) 2.2 TDCi (110 hp, 81 kW)

FORD TRANSIT TOURNEO Bus (07.2006 - 08.2014) 2.2 TDCi (115 HP, 85 kW)

FORD TRANSIT TOURNEO Bus (07.2006 - 08.2014) 2.2 TDCi (131 HP, 96 kW)

FORD TRANSIT TOURNEO Bus (07.2006 - 08.2014) 2.2 TDCi (140 HP, 103 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (105 HP, 77 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (130 HP, 96 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (170 HP, 125 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi (155 HP, 114 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi 4x4 (125 HP, 92 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi all-wheel drive (155 HP, 114 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi RWD (100 HP, 74 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi RWD (125 HP, 92 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi RWD (135 HP, 99 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.2 TDCi RWD (155 HP, 114 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 3.2 TDCi RWD (188 HP, 138 kW)

FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 3.2 TDCi RWD (193 HP, 142 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (105 HP, 77 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (170 HP, 125 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (130 HP, 96 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (170 HP, 125 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 HP, 77 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 HP, 96 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 HP, 125 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi (100 HP, 74 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi (125 HP, 92 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi (155 HP, 114 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi 4x4 (125 HP, 92 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi 4x4 (155 HP, 114 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi RWD (100 HP, 74 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi RWD (125 HP, 92 kW)

FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.2 TDCi RWD (155 hp, 114 kW)

FORD TRANSIT V363 Panel Van (FCD, FDD) (08.2013 - 11.2017) 3.2 TDCi RWD (188 hp, 138 kW)

FORD TRANSIT V363 Panel Van (FCD, FDD) (08.2013 - 11.2017) 3.2 TDCi RWD (193 hp, 142 kW)

FORD TRANSIT V363 Chassis Cab (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW)

FORD TRANSIT V363 Chassis Cab (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (130 hp, 96 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (170 hp, 125 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi (100 hp, 74 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi (125 hp, 92 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi (155 hp, 114 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi 4x4 (125 hp, 92 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi 4x4 (155 hp, 114 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 2.2 TDCi RWD (100 hp, 74 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi RWD (125 hp, 92 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi RWD (135 hp, 99 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.2 TDCi RWD (155 hp, 114 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 3.2 TDCi RWD (188 hp, 138 kW)

FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 3.2 TDCi RWD (193 hp, 142 kW
