Injection Pump Removal Tool Kit for Ford TDCi Engines (2.0, 2.2, 2.4, 3.2L)

This professional tool kit is designed for the safe and precise removal of the fuel injection pump on Ford Duratorq TDCi diesel engines. The tools allow the pump to be removed without affecting the engine timing settings, which is essential when performing service or replacement work.

The included 3-pin adapter allows the injection pump cover to be easily unlocked and locked during service procedures, ensuring controlled and accurate operation.

Compatible Vehicles

Suitable for the following Ford models:

• Ford Mondeo

• Ford Transit

• Ford Transit VI (2.4L Duratorq TDCi engine, model years 2000–2006)

• Ford Tourneo

• Ford Ranger

Compatible Engines

Designed for Ford Duratorq TDCi diesel engines:

• 2.0L TDCi

• 2.2L TDCi

• 2.4L TDCi

• 3.2L TDCi

Engine Codes

D4FA, D5BA, D6BA, F4FA, FMBA, FMBA/BD2FA, HEFA, HJBA, HJBB, HJBC, N7BA, N7BB, SDBA

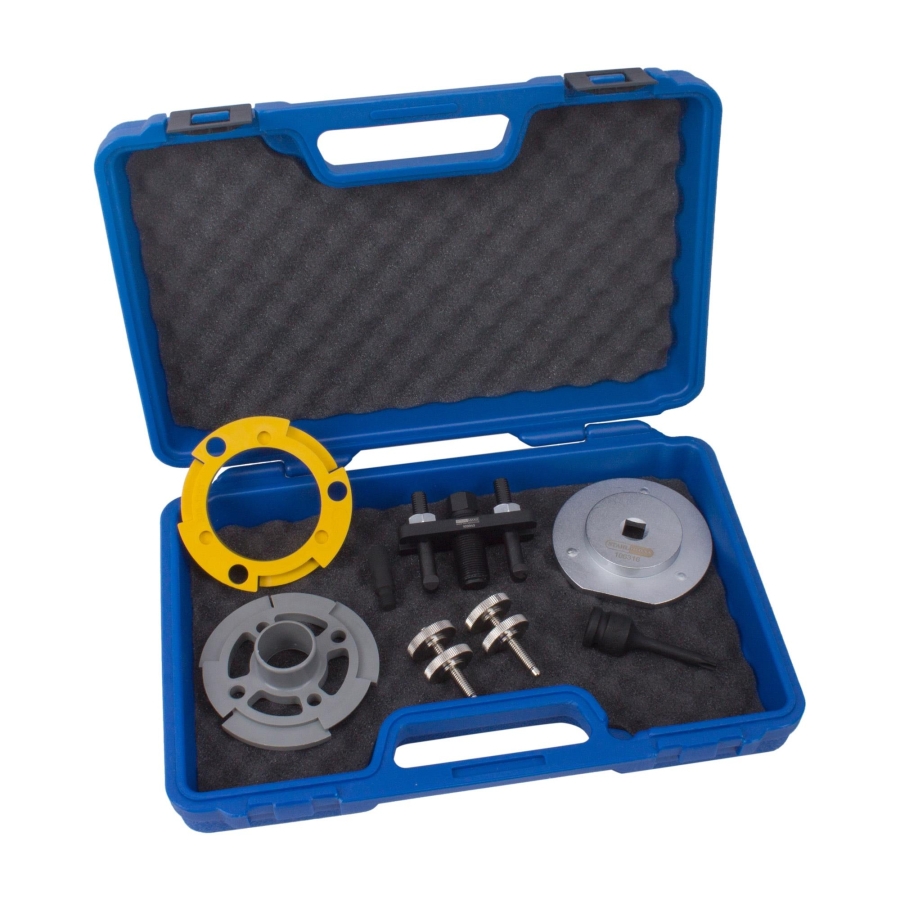

Kit Contents

The tool kit includes:

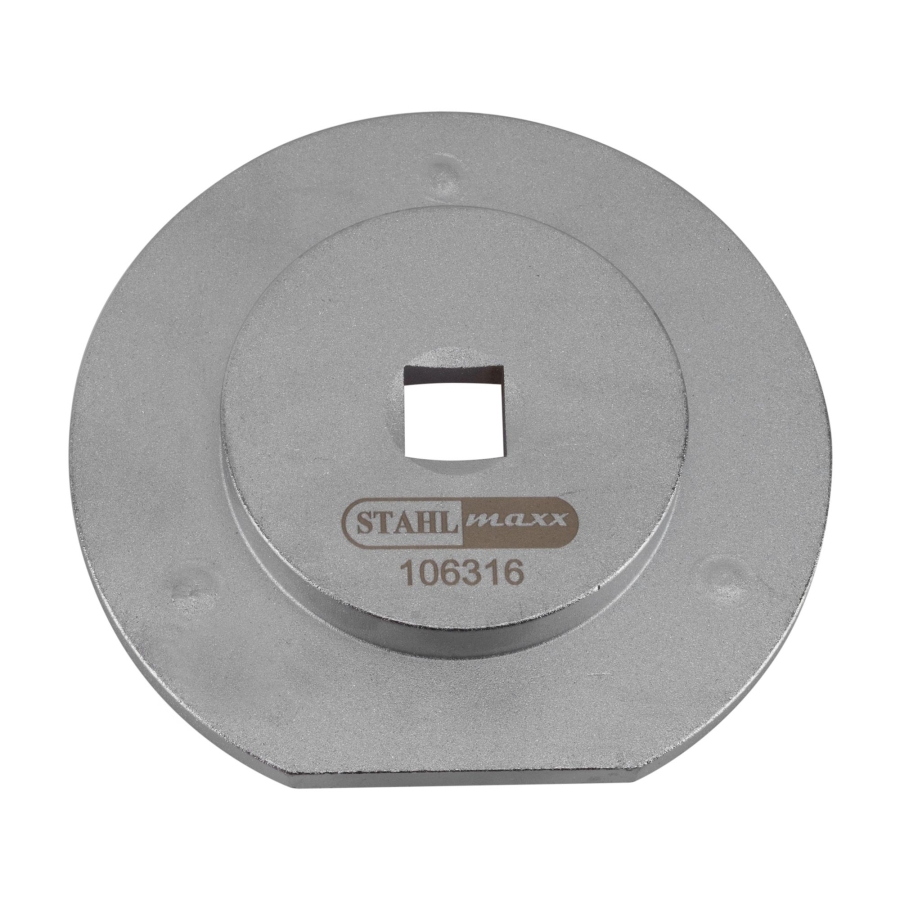

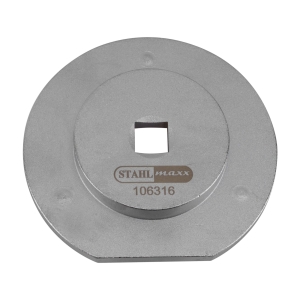

• Injection pump gear locking tool – comparable to Ford 303-1317

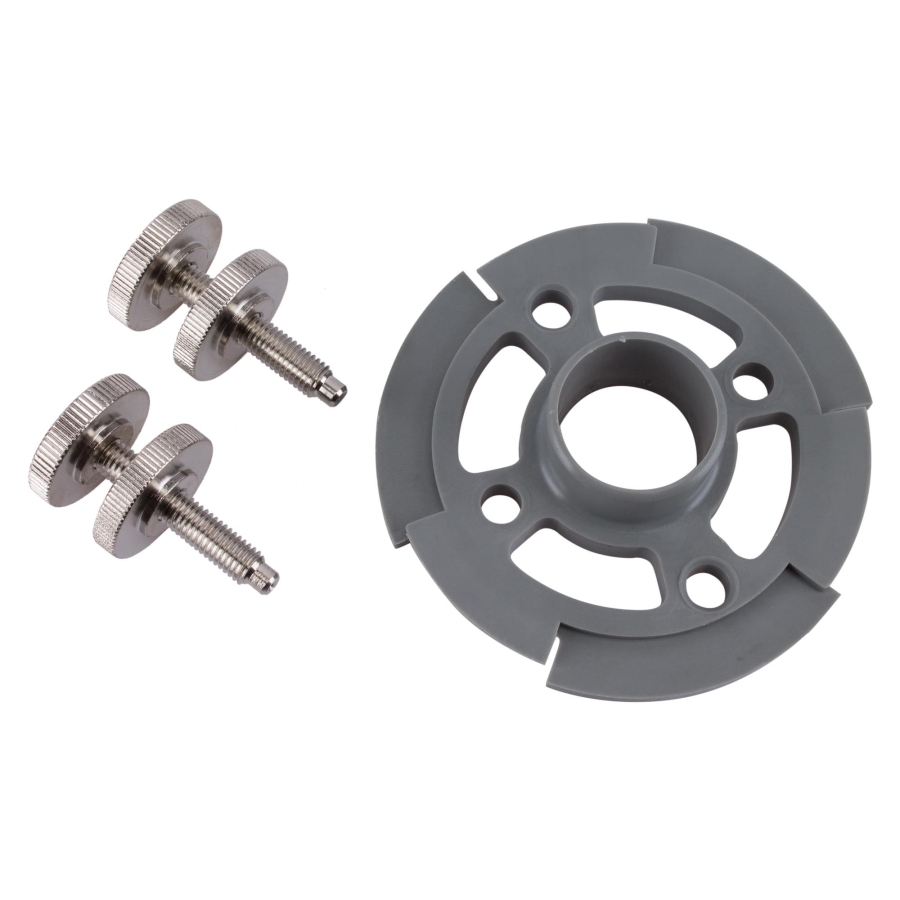

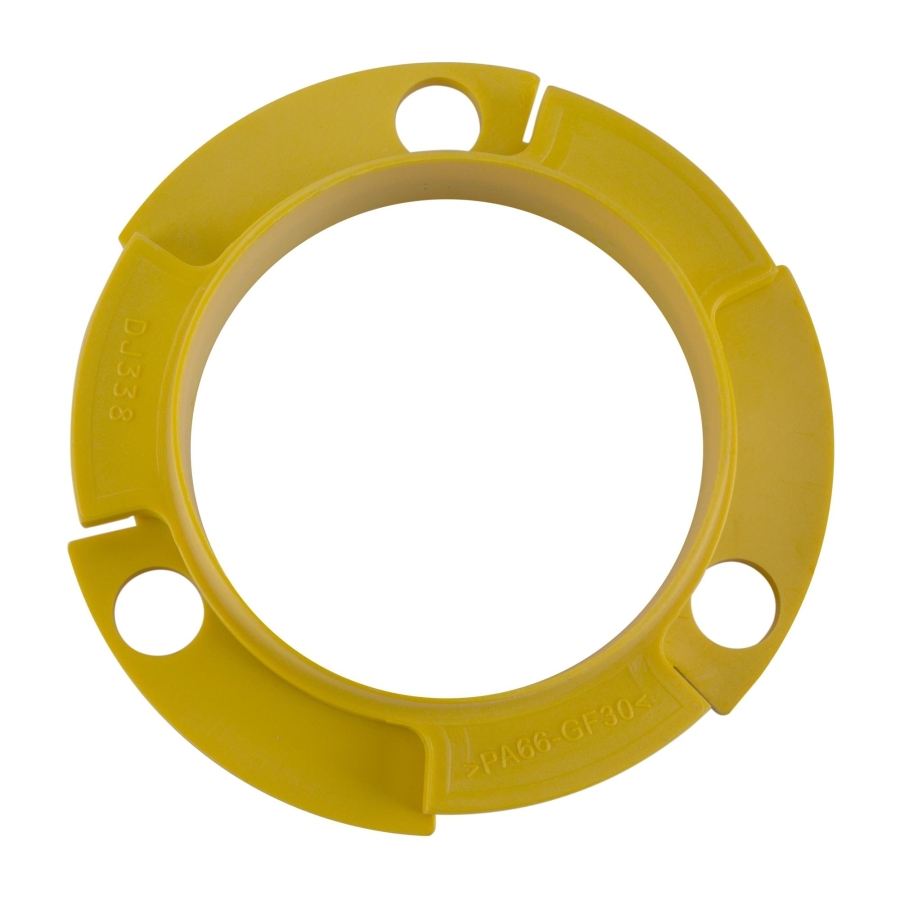

• Crankshaft seal installation and removal tool – comparable to OEM 2000016900, 303-679, 0198D

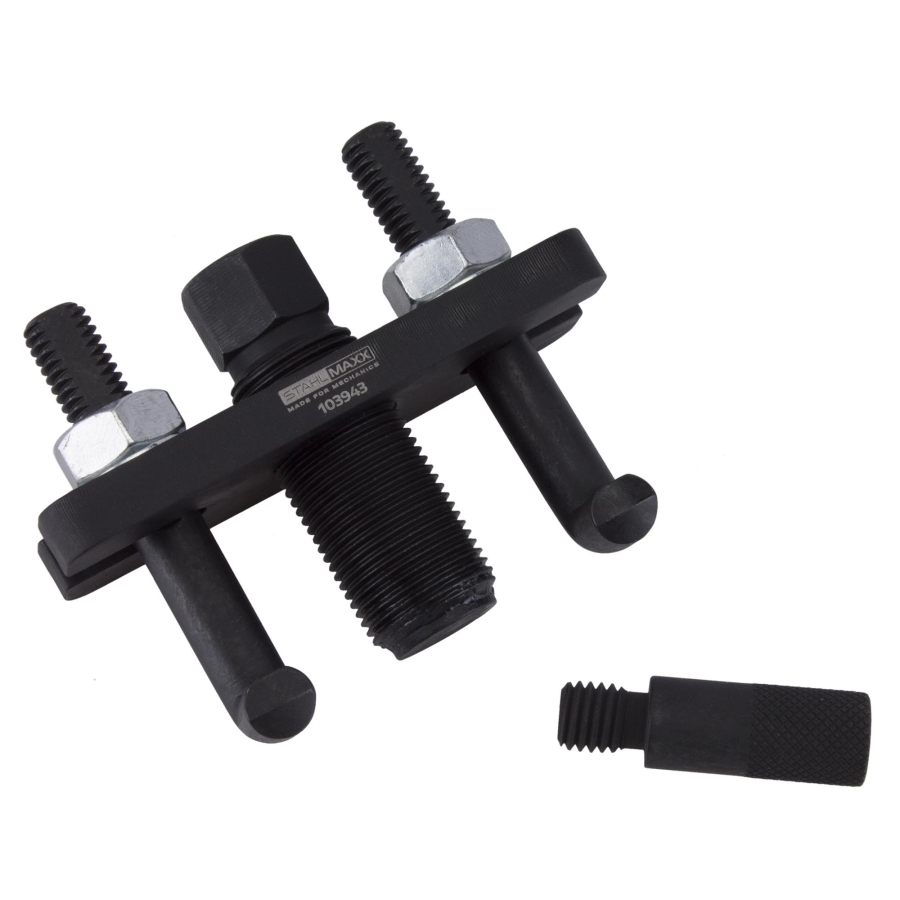

• Crankshaft and injection pump puller – comparable to Ford 303-249-1 / Mazda 49UN30324901

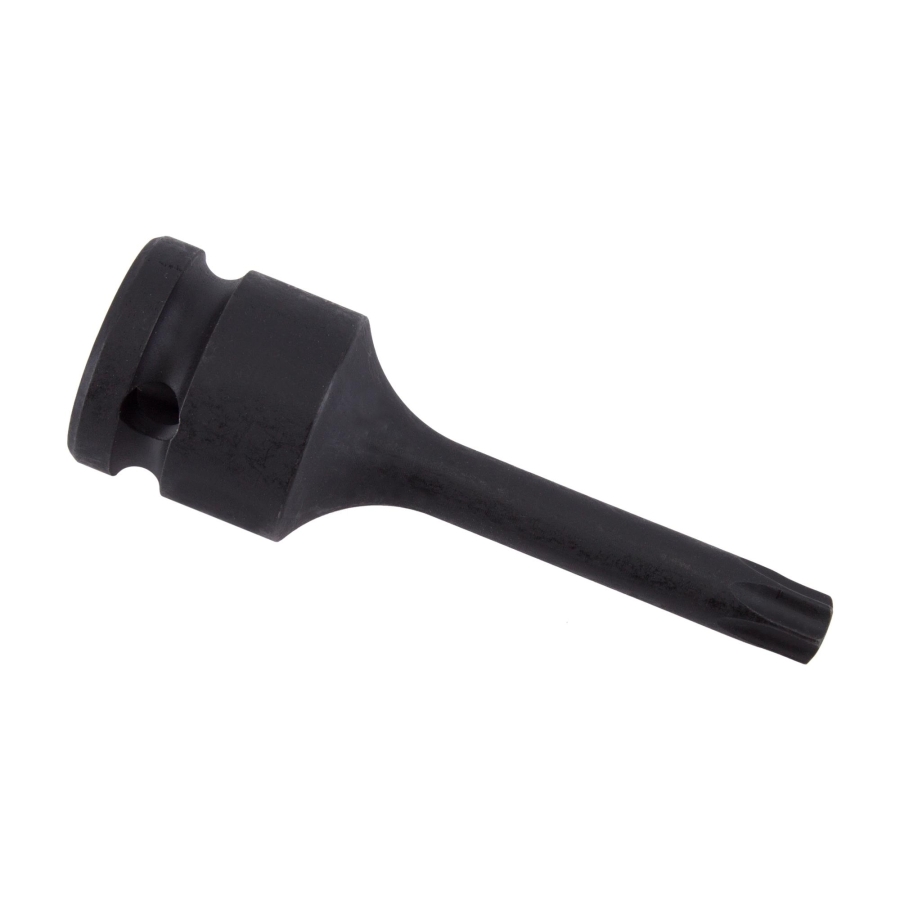

• Bit socket (T-profile T45, 12.5 mm / 1/2")

• Injection pump holding tool – comparable to Ford 303-1151

OEM Reference Numbers

• 303-249-1

• 303-679

• 303-1151

• 303-1317

• 0198D

• 2000016900

• 49UN30324901

OEM numbers are for reference purposes only. These tools are not original OEM tools.

FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 16V DI / TDDi / TDCi (90 hp, 66 kW)
FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 16V TDDi / TDCi (115 hp, 85 kW)
FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 TDCi (130 hp, 96 kW)
FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 16V DI / TDDi / TDCi (90 hp, 66 kW)
FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 16V TDDi / TDCi (115 hp, 85 kW)
FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 TDCi (130 hp, 96 kW)
FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 2.0 16V DI / TDDi / TDCi (90 hp, 66 kW)
FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 2.0 16V TDDi / TDCi (115 hp, 85 kW)
FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 2.0 TDCi (130 hp, 96 kW)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (01.2000 - 05.2006) 2.4 DI RWD (F_B_, F_C_) (75 HP, 55 kW)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (01.2000 - 05.2006) 2.4 DI RWD (F_B_, F_C_, F_A_) (120 HP, 88 kW)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (01.2000 - 05.2006) 2.4 TD (75 HP, 55 kW)
FORD TRANSIT bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (01.2000 - 05.2006) 2.4 TDdi (120 HP, 88 kW)
FORD TRANSIT Box (FA_ _) (01.2000 - 05.2006) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) (120 HP, 88 kW)
FORD TRANSIT Box (FA_ _) (01.2000 - 05.2006) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) (75 HP, 55 kW)
FORD TRANSIT Box (FA_ _) (01.2000 - 05.2006) 2.4 TD (75 HP, 55 kW)
FORD TRANSIT box (FA_ _) (01.2000 - 05.2006) 2.4 TD All-wheel drive (75 hp, 55 kW)
FORD TRANSIT Van (FA_ _) (01.2000 - 05.2006) 2.4 TDdi (120 hp, 88 kW)
FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _) (01.2000 - 05.2006) 2.4 DI (F_A_, F_B_, F_C_, F_D_) (120 hp, 88 kW)
FORD TRANSIT Flatbed/Chassis (FM_ _, FN_ _) (01.2000 - 05.2006) 2.4 DI (F_A_, F_B_, F_C_, F_D_) (75 hp, 55 kW)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) (01.2000 - 05.2006) 2.4 TDdi (120 HP, 88 kW)
HYUNDAI ACCENT III (MC) (11.2005 - 12.2010) 1.5 CRDi GLS (110 HP, 81 kW)
HYUNDAI ACCENT III Saloon (MC) (11.2005 - 12.2012) 1.5 CRDi GLS (110 HP, 81 kW)
HYUNDAI ACCENT IV Saloon (RB) (08.2010 - 12.2017) 1.5 D (110 HP, 81 kW)
HYUNDAI CRETA (SU2_) (03.2020 - ) 1.5 CRDi (SU2I) (116 HP, 85 kW)
HYUNDAI ELANTRA Saloon (XD) (03.2000 - 09.2006) 1.5 D (112 HP, 82 kW)
HYUNDAI GETZ (TB) (06.2001 - 12.2010) 1.5 CRDi (88 HP, 65 kW)
HYUNDAI GETZ (TB) (06.2001 - 12.2010) 1.5 CRDi GLS (102 HP, 75 kW)
HYUNDAI GETZ (TB) (06.2001 - 12.2010) 1.5 CRDi GLS (110 HP, 81 kW)
HYUNDAI MATRIX (FC) (06.2001 - 08.2010) 1.5 CRDi (102 HP, 75 kW)
HYUNDAI MATRIX (FC) (06.2001 - 08.2010) 1.5 CRDi VGT (110 HP, 81 kW)
HYUNDAI VENUE (QX, QXI) (07.2019 - 03.2020) CRDi (QXI) (101 HP, 74 kW)
HYUNDAI i20 (BC3, BI3) (08.2020 - ) CRDi (100 HP, 74 kW)
KIA CERATO I Hatchback (LD) (03.2004 - 12.2009) 1.5 CRDi (102 HP, 75 kW)
KIA CERATO I Hatchback (LD) (03.2004 - 12.2009) 1.5 CRDi (73 HP, 54 kW)
KIA CERATO I Saloon (LD) (04.2004 - 12.2009) 1.5 CRDi (102 HP, 75 kW)
KIA CERATO I Saloon (LD) (04.2004 - 12.2009) 1.5 CRDi (73 HP, 54 kW)
KIA CERATO I Saloon (LD) (04.2004 - 12.2009) 1.5 CRDi (90 HP, 66 kW)
KIA CERATO III Saloon (YD) (09.2012 - 07.2016) 1.6 16V Flex (128 HP, 94 kW)
KIA PRIDE (DA) (01.1990 - 12.2011) 1.5 CRDi LX (110 HP, 81 kW)
KIA RIO II (JB) (03.2005 - 12.2014) 1.5 CRDi (110 HP, 81 kW)
KIA RIO II (JB) (03.2005 - 12.2014) 1.5 CRDi (88 HP, 65 kW)
KIA RIO II Saloon (JB) (03.2005 - 12.2014) 1.5 CRDi (110 HP, 81 kW)
KIA RIO II Saloon (JB) (03.2005 - 12.2014) 1.5 CRDi (88 HP, 65 kW)
KIA RIO IV (YB, SC, FB) (01.2017 - ) 1.6 Flex (131 HP, 96 kW)
KIA SELTOS (SP2, SP2I) (08.2019 - ) 1.5 CRDi VGT (SP2I) (116 HP, 85 kW)
KIA SONET (QY) (09.2020 - ) 1.5 CRDi (100 HP, 74 kW)
KIA SONET (QY) (09.2020 - ) 1.5 CRDi (115 HP, 85 kW)
KIA SOUL I (AM) (02.2009 - 12.2014) 1.6 Flex (130 HP, 96 kW)
KIA SOUL II (PS) (02.2014 - ) 1.6 CVVT Flex (120 HP, 88 kW)
KIA SOUL II (PS) (02.2014 - ) 1.6 CVVT Flex (128 HP, 94 kW)
