High Pressure Pump Tool Set for Nissan Diesel (YD22 / YD25)

This professional tool set is designed to hold the high-pressure pump sprocket and lock the pump position during removal and reinstallation on Nissan diesel engines. It allows replacement of the high-pressure pump without dismantling the front of the engine, saving time and ensuring correct engine timing.

Using the sprocket holding tool equivalent to Nissan KV11106060 ensures the crankshaft position remains unchanged during service.

Working Method

• Use a T70 socket to rotate the shaft until the locking pin aligns and locks the holes.

• The 6 mm hex screws can now be loosened.

• Use the sprocket holding tool to hold the fuel pump sprocket and prevent it from falling.

• The tool must remain installed until the pump is reinstalled.

• Remove the E10-profile mounting bolts and remove the injection pump backwards.

• Ensure the sealing washer is not dropped into the engine during removal.

Important Notes

• Do not loosen the central mounting nut of the high-pressure pump if the pump will be reused, otherwise it must be replaced.

• When replacing the pump, the front drive gear must be rebuilt and the correct spacing set using adjustment shims.

• A low-profile T70 socket is required; if necessary use Art. No. 5103-TB70 and shorten it to approximately 25 mm.

Key Features

✔ High-quality Stahlmaxx professional tool
✔ Special tool based on original design
✔ Enables professional work according to repair procedures
✔ Allows pump replacement without removing the engine front

Vehicle Compatibility

Compatible with Nissan vehicles equipped with YD22DDTI / YD25DDTI engines, including:

• Nissan X-Trail T30

• Nissan Navara D22 / D40

• Nissan Pathfinder R51

• Nissan Cabstar F24

• Nissan Caravan E26

• Nissan Presage U30

• Nissan Serena C24

For 2.2L and 2.5L Di / DDCi diesel engines.

Engine Codes

YD22DDT
YD22DDTI
YD25DDT

OEM Reference

• Nissan KV11106030

• Nissan KV11106060

Scope of Delivery

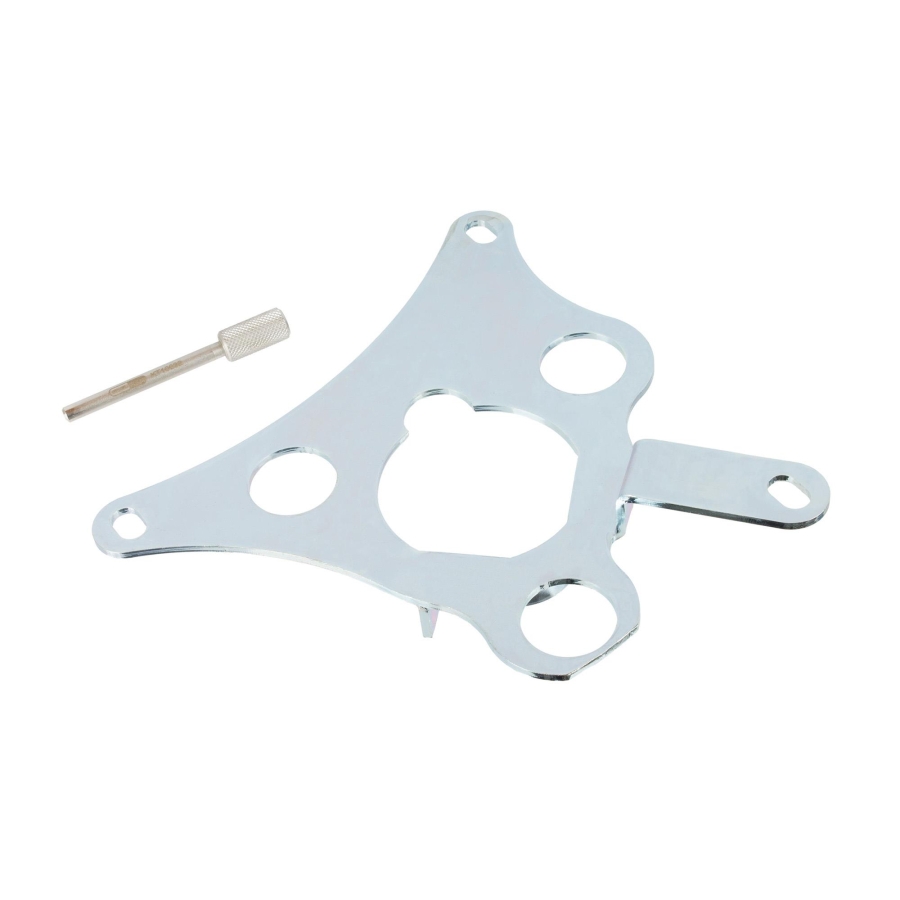

• 1 × High-pressure pump sprocket holding tool (equivalent to KV11106060)

• 1 × High-pressure pump locking pin (equivalent to KV11106030)

Original numbers are for reference only. These are not original manufacturer tools.
