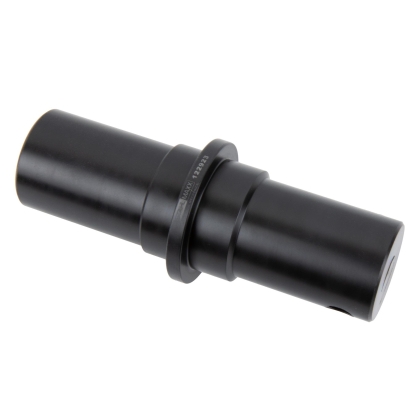

High Pressure Fuel Pump Adjustment Tool for Opel L3T, F14SHT, F14SHL – EN-52443
-
Code:122923
-
Weight:0.120 Kgs
Special tool for precise adjustment and positioning of the high-pressure fuel pump stroke setting on Opel 1.3L and 1.4L L3T-generation engines. Equivalent to OEM tool EN-52443.
Estimated Shipping
outside Varna starts at
€4.13
to Varna starts at
€4.13
This special service tool is required for the correct adjustment and verification of the high-pressure fuel pump stroke setting on Opel 1.3L and 1.4L engines from the L3T engine generation.
The tool ensures accurate positioning during service procedures according to manufacturer repair instructions.
Correct Installation Procedure

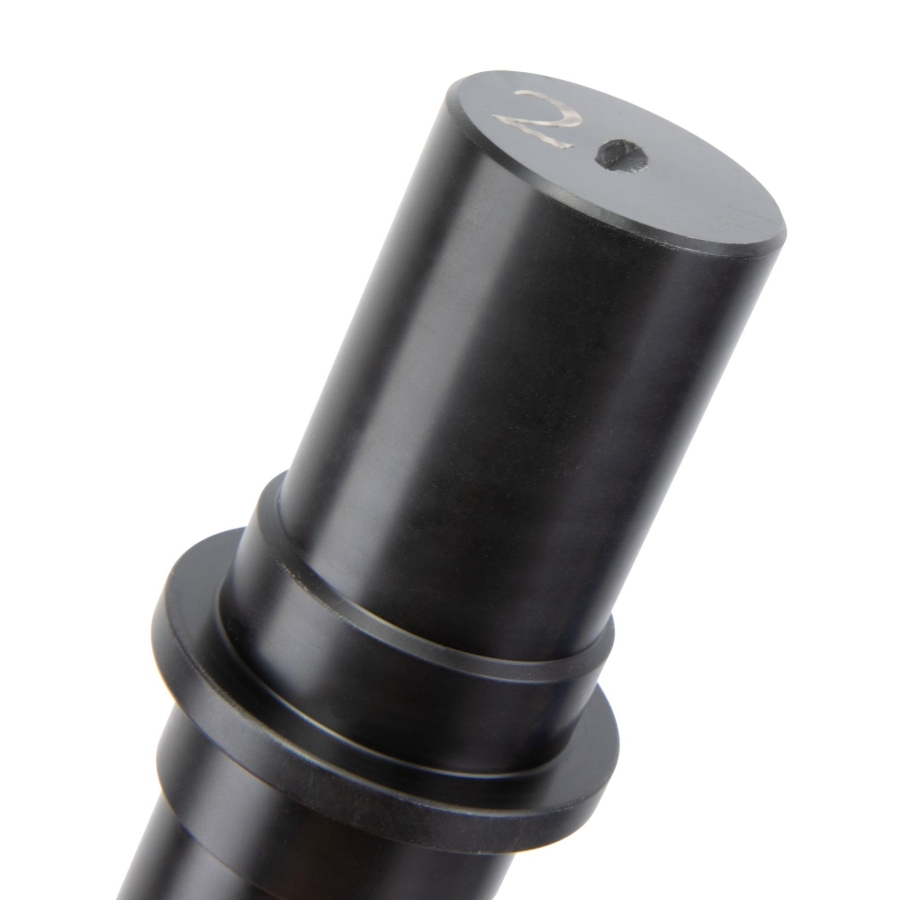

Insert the alignment tool into the opening with the “2” marking facing upward.
If necessary, rotate the crankshaft until the cam lobe is positioned on the base circle.
When the camshaft is in the base circle position, the alignment tool will be perfectly aligned with the cylinder head, allowing the correct pump stroke adjustment to be performed.
Compatible Engine Codes
Suitable for Opel engines with the following codes:
-
L3T
-
F14SHT
-
F14SHL
These engines are typically found in 1.3L and 1.4L petrol engines within the Opel L3T engine family.
OEM Reference Numbers
Comparable with OEM service tool numbers:
-
EN-52443 / EN52443
Key Advantages
✔ Professional automotive special tool
✔ Designed according to OEM specifications for accurate servicing
✔ Allows precise adjustment following manufacturer repair procedures
✔ Individual tool that can be combined with other timing or engine service tools
Additional Information
This tool is also included in the following tool set:
Camshaft Timing Tool Set for Opel 1.3L / 1.4L L3T, F14SHT, F14SHL engines (Art. No. 122929).
OEM numbers are used for comparison purposes only. This product is not an original manufacturer tool.
