High Pressure Pump Locking Tool 3.6 FSI – Equivalent to T10332

This specially developed locking tool is used to safely fix the drive wheel of the high-pressure pump on VAG 3.6L FSI engines.
It is essential for timing chain removal or replacement, ensuring the pump drive is securely held for accurate engine service.

Function and Advantages

Locking the drive wheel in the correct position prevents unwanted movement during service, reducing the risk of incorrect engine timing.

Key advantages:
✔ Secure locking of the high-pressure pump drive wheel
✔ Required for timing chain replacement on 3.6L FSI engines
✔ Prevents incorrect engine timing
✔ Exact fit for professional workshop use
✔ Cost-effective alternative to OEM tool

Compatible Vehicles

• VW Passat (357, 3C2, 3C5) from 2006

• VW Touareg (7L6, 7LA) from 2006

• Audi Q7 (4LB) from 2007

• Porsche Cayenne 3.6L (engine M55.01)

Compatible Engine Codes

• BHK

• BHL

• BLV

• CNNA

OEM Reference

• T10332

OEM numbers are for identification only. This is not an original OEM tool.

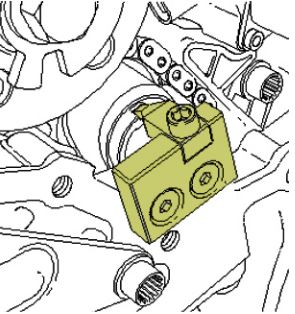

To lock the high-pressure pump drive gear, mount the tool as shown.

If the tool cannot be mounted and the recess in the drive gear is facing downwards, remove all locking and adjusting tools, rotate the motor in its normal direction of rotation until the recess is facing upwards and all locking and adjusting tools can be inserted.
