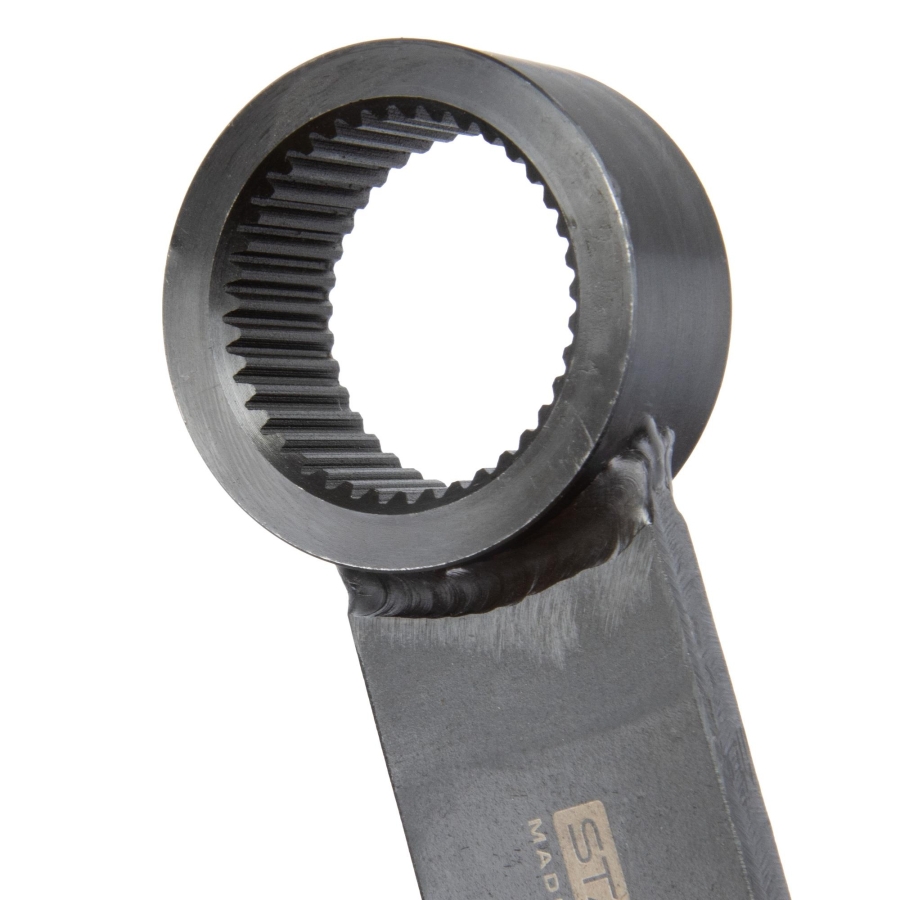

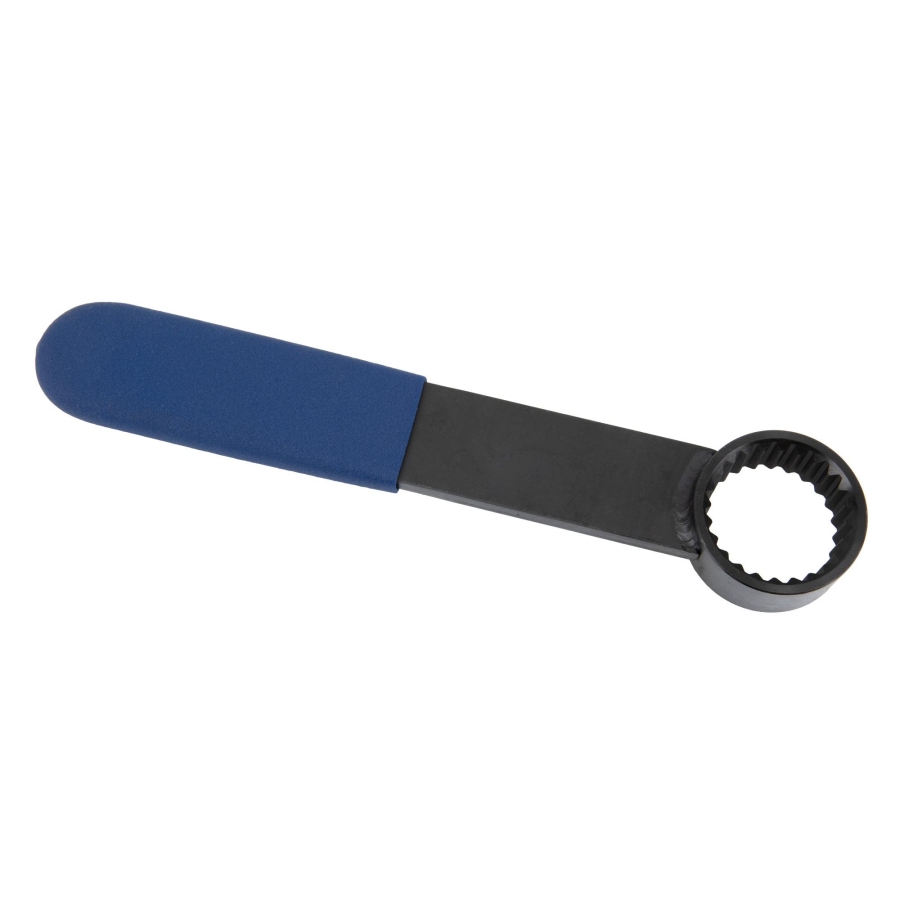

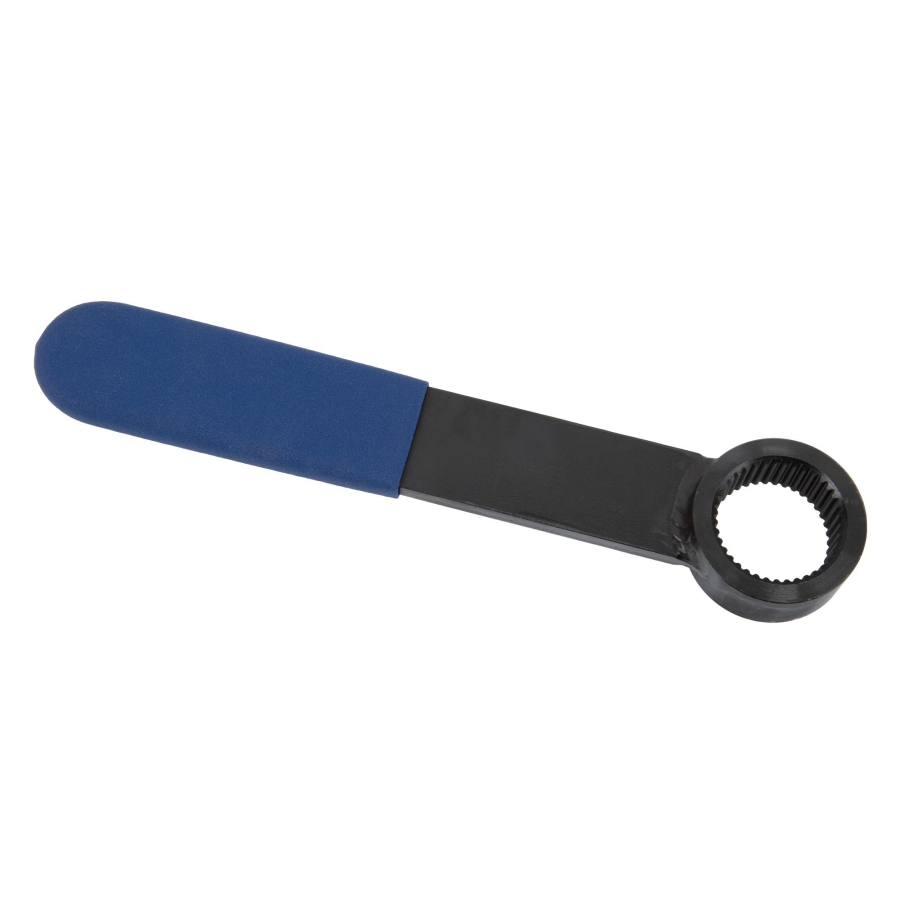

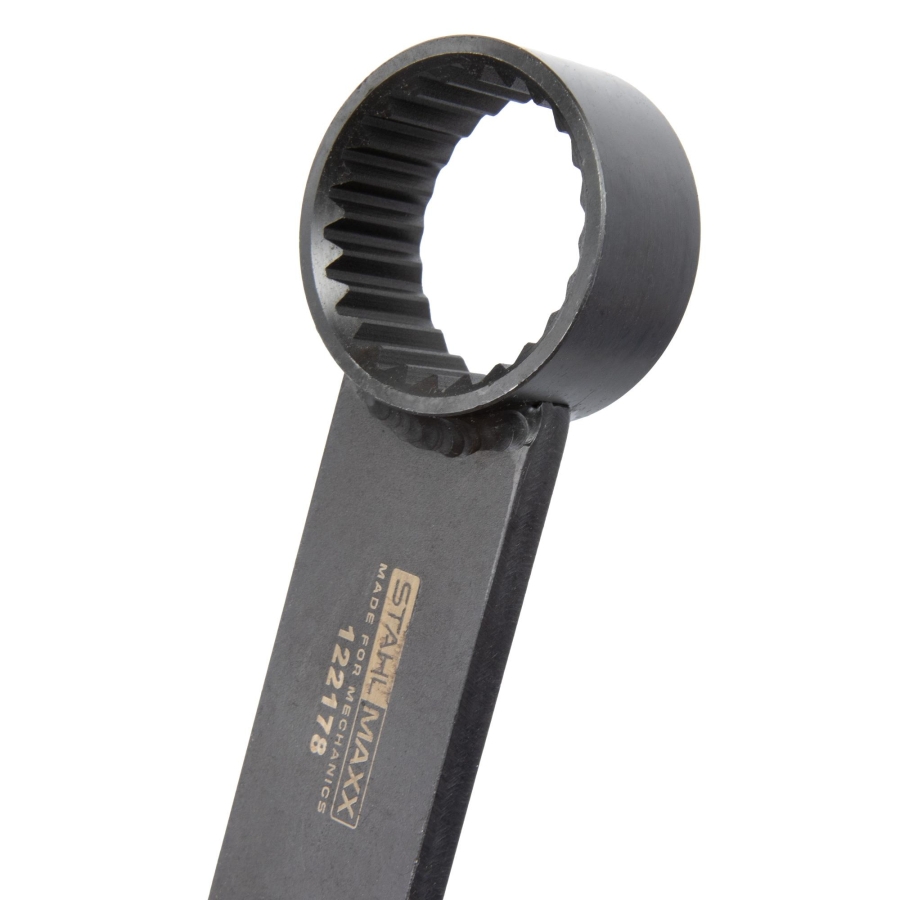

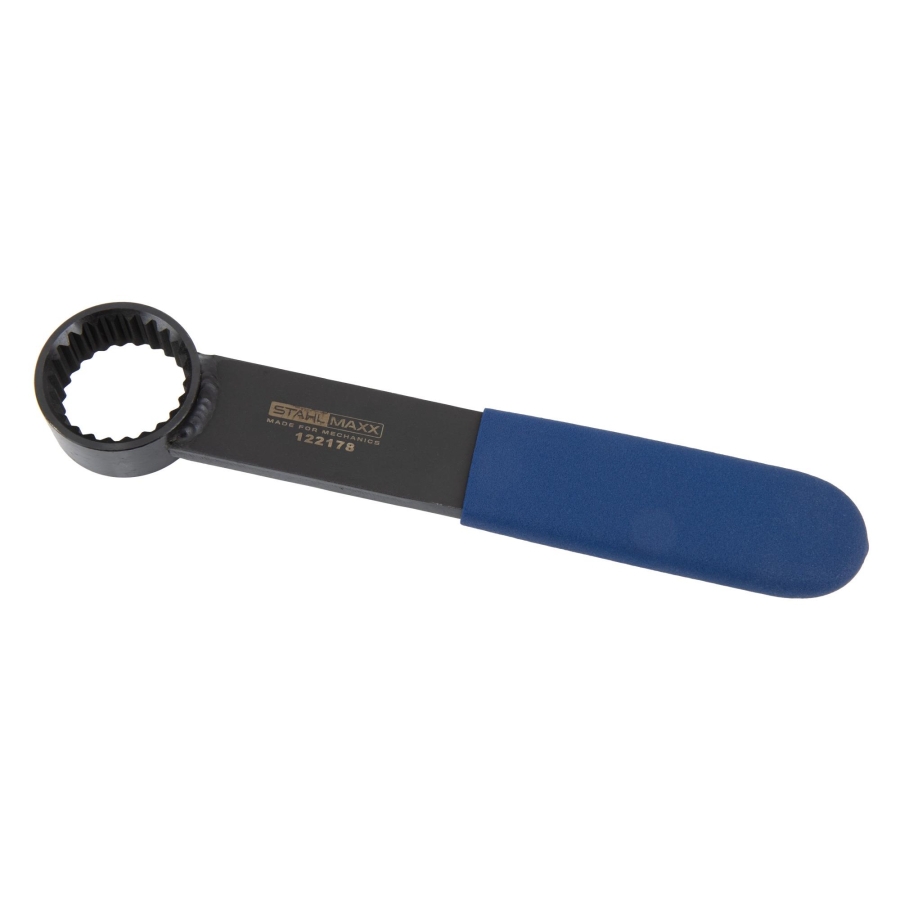

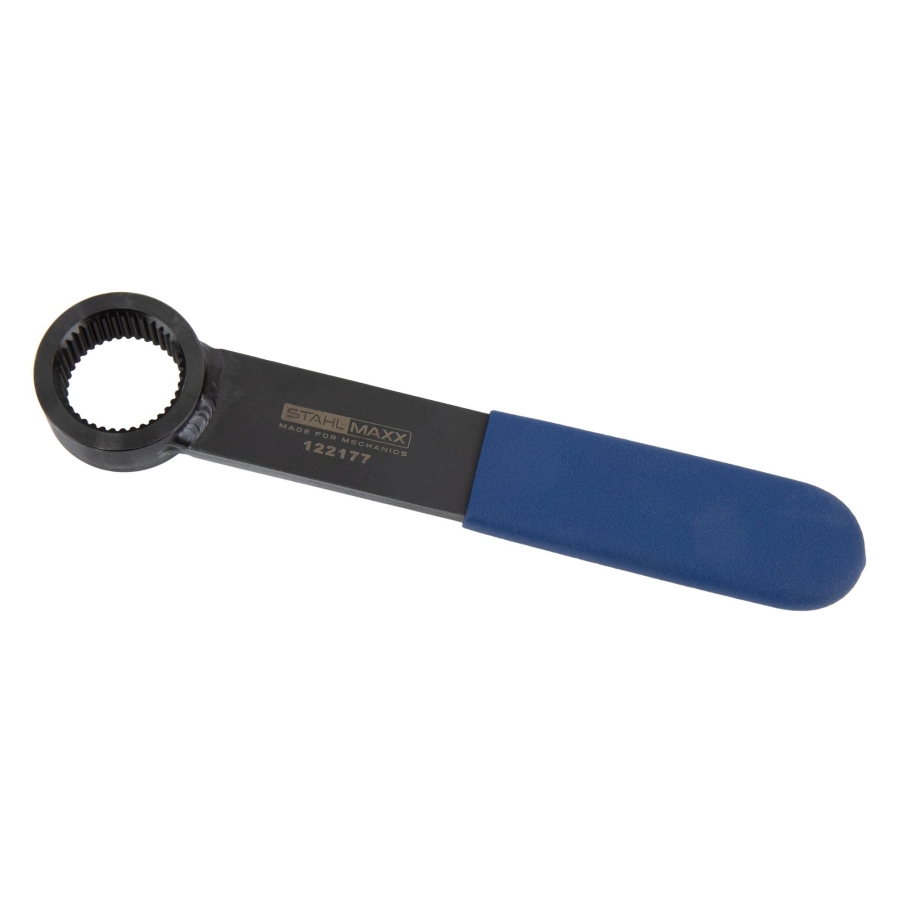

High-Pressure Pump Shaft Holding Tool – VAG T40248 / T40292

Price: €34.50 67.48лв.

Code:

122177
Weight:

0.480 Kgs

Special holding tool for fine-toothed high-pressure pump drive shafts on VW, Audi, and Porsche 3.0 TDI engines, ensuring safe and precise pump replacement.

Estimated Shipping

outside Varna starts at €4.13 to Varna starts at €4.13

Important! Choose version: Fine toothed - T40248Coarse-toothed - T40292

Temporary unavaliable

Add to wishlist

High-Pressure Pump Shaft Holding Tool – VAG T40248 / T40292

Send to friend

Rate this product

High-Pressure Pump Shaft Holding Tool

This specialized tool is designed to hold the high-pressure pump drive shaft securely during service or replacement on 3.0 TDI engines from VW, Audi, and Porsche. Fine-toothed or coarse-toothed adapters may be required depending on engine configuration—always consult the repair guide before use.

Service Method & References

Remove components such as the engine oil cooler, intake manifold, turbocharger, and coolant shut-off valve before removing the high-pressure pump.
Ensure the engine is in the set position with the high-pressure pump pin inserted.
After replacing fuel system components, activate the fuel pre-feed pump via diagnostic tool for at least 120 seconds to ensure proper bleeding.
When replacing the high-pressure pump, high-pressure lines must also be replaced.

Compatible Engine Codes

CASA, CASD, CCMA, CCWA, CDTA, CDTB, CDTC, CDUC, CDUD, CJGA, CJGC, CJGD, CJMA, CKVB, CKVC, CKVD, CLAA, CLAB, CLZB, CMHA, CNRB, CPNB, CRCA, CRCD, CRTC, CRTD, CRTE, CRTF, CSWB, CTBA, CTBB, CTBC, CTBD, CTCB, CTCC, CUEA, CVMD, CVVA, CVWA, CVZA, CZVB, CZVC, CZVD, CZVE, CZVF, CZZA, CZZB, DCPC, DCPE, DDVB, DDVC, DDVE, DDVF, DDXA, DDXB, DDXC, DDXD, DDXE, DENA, DEND, DEWA, DHXA, DHXC, DMGA, DMGK, DPXA, DPXB, DPYC, DPYD, M05.9E, MCN.RB, MCR.C, MCR.CA, MCT.BA, MCT.BB, MCT.BC, MCV.VA, MCV.VB, MCV.VC

Compatible Vehicles

Audi: A4 (from 2009), A5 (from 2007), A6 (from 2010), A7 (from 2010), A8 (from 2011), Q5 (from 2018), Q7 (from 2008)
VW: Amarok (from 2016), Touareg (from 2007)
Porsche: Cayenne (from 2010), Macan (from 2014), Panamera (from 2011)

Reference High-Pressure Pump Numbers

OEM: 059130755AK, 059130755BG, 059130755BJ, 059130755CB, 059130755CD, 059130755CG, 059130755CN, 05913075
Bosch: 0445010813, 0445010867, 0986437435, 0986437456, 0986437480
