Special Engine Timing Tool Set for Alfa Romeo & Lancia 1.75 / 1.8 TBi DI

This high-quality special tool set is designed for precise locking and alignment of the camshaft and crankshaft during timing belt replacement or engine maintenance.

Note: Camshaft tools are installed on the transmission side instead of the seal cover, ensuring correct positioning and accurate timing.

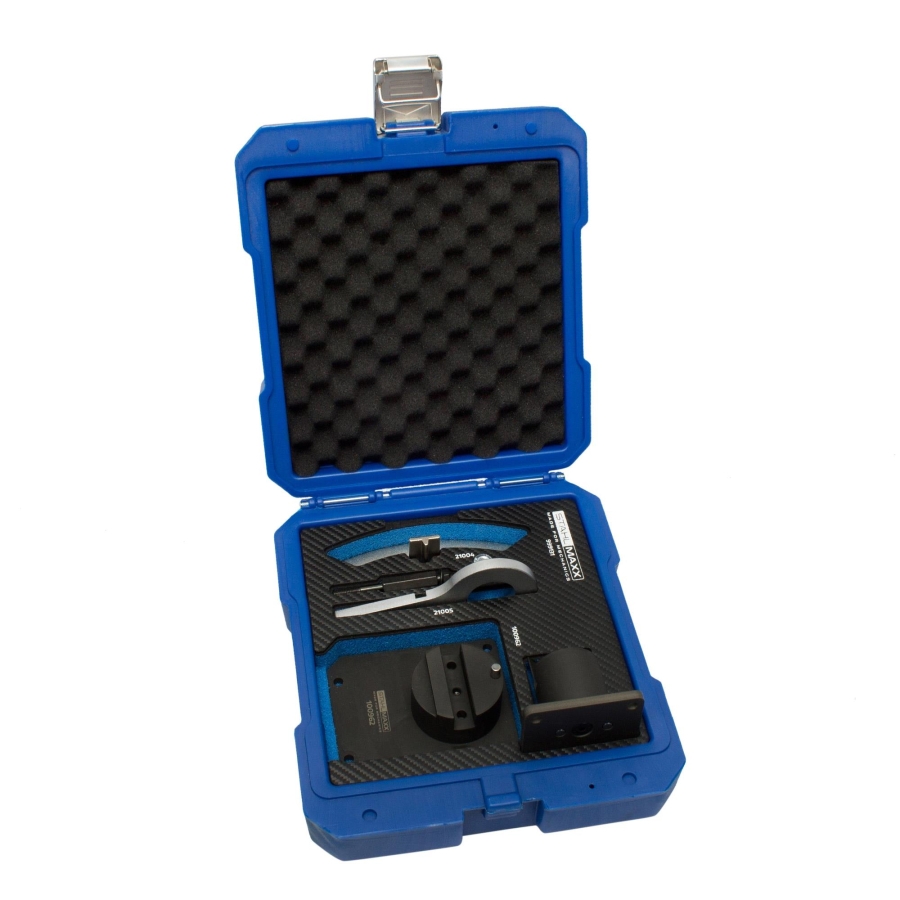

The set comes in a robust 1/6 case with carbon-look foam inserts, suitable for professional workshops and standard tool trolleys.

Recommended Torque Settings

For reference (example: Alfa Romeo Giulietta 1.8 TBi, 940A1.000 engine):

• Camshaft sprockets: 60 Nm + 25°

• Timing belt tensioner: 23–28 Nm

• Crankshaft pulley mounting bolts: 27–33 Nm

Compatible Engine Codes

• 939B1.000

• 940A1.000

• 940B2.000

• 960A1.000

Compatible Vehicles

• Alfa Romeo: Giulietta, 159, Spider, Brera (1.75 TBi, 940A1.000)

• Lancia: Delta 1.75 DI Turbo Jet (939B1.000)

• Other vehicles with 940B2.000 or 960A1.000 engines

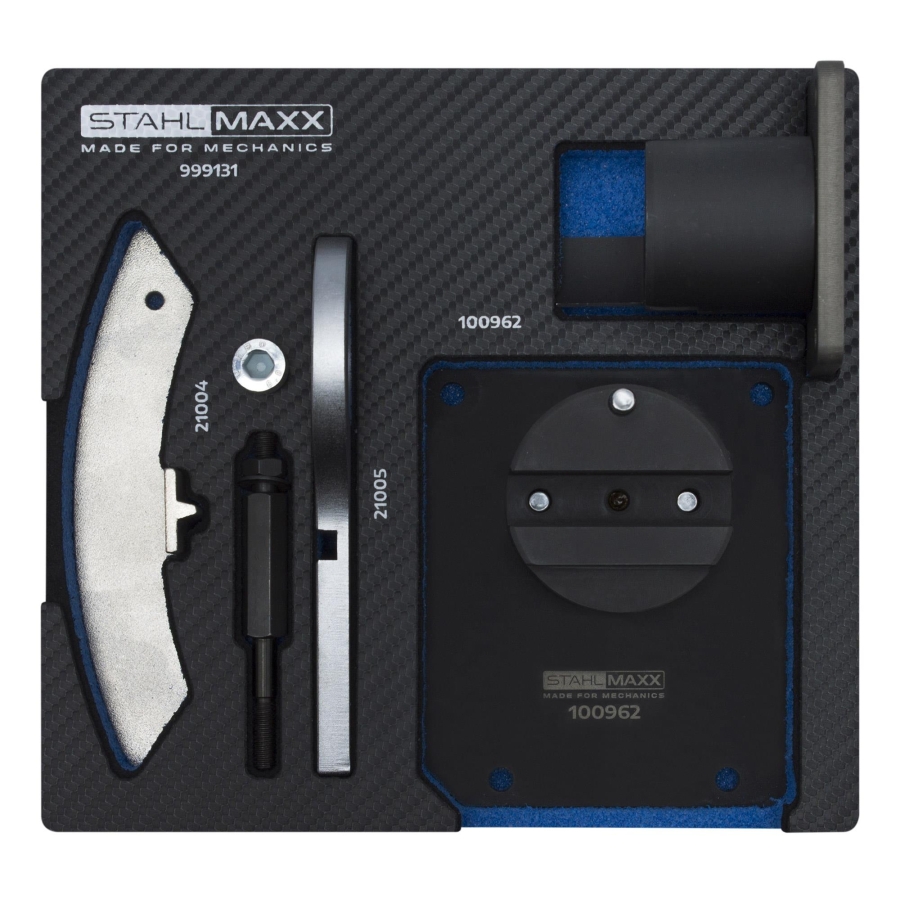

Set Includes

• 1 × Camshaft Locking Tool
  (Comparable to OE: 2000033500, art.nr. 100962)

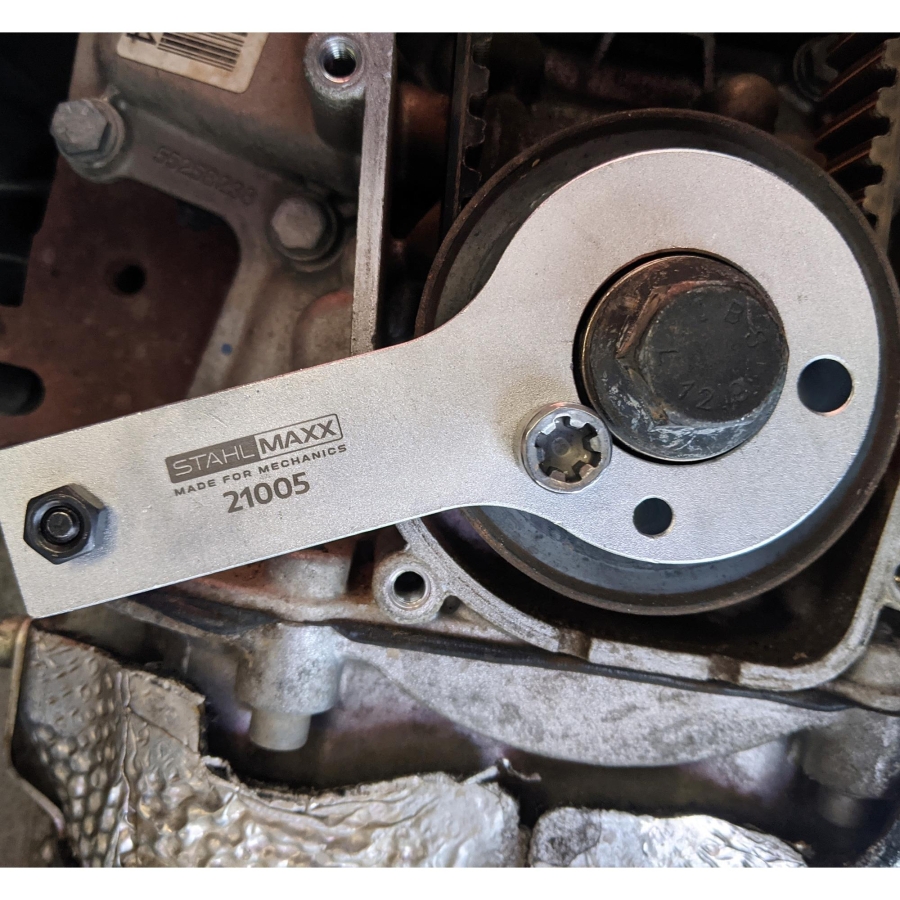

• 1 × Crankshaft Fixing Tool
  (Comparable to OE: 2000003000, EN-46788, 1860771000, 1860905000, 1860905010, 2192543000, art.nr. 21005)

• 1 × Flywheel Fixture
  (Comparable to OE: 2000033600, 1820630000, 1820007000, 1820228000, 1820240000, 1860898000, art.nr. 21004)

The original reference numbers are for identification purposes only. These are not original manufacturer tools.
