Timing Tool Kit for Alfa Romeo, Fiat & Lancia 0.9 TwinAir Engines

This specialized timing tool kit is developed for accurate engine timing adjustment on 0.9 TwinAir BiFuel Natural Power engines. It is essential when replacing the timing chain or performing engine repairs that require precise synchronization of internal components.

Compatibility

Suitable for the following vehicles:

• Alfa Romeo MiTo

• Fiat Panda, Punto, 500

• Lancia Ypsilon

Compatible with engine codes:

• 199 B6000

• 199 B7000

• 312 A2000

• 312 A4000

• 312 A5000

• 312 A6000

• 312 A7000

Functionality

The kit includes all necessary locking and alignment tools required to secure the camshaft and crankshaft in the correct position during maintenance procedures. This ensures accurate timing and prevents engine damage.

Note: The crankshaft pulley bolt features a left-hand thread.

Key Benefits

✔ Complete kit for timing chain replacement
✔ Precision-engineered for exact fit and function
✔ Designed for professional workshop use
✔ Saves time and reduces risk during engine service

OE Reference Numbers

• 2000035100

• 2000035200

• 2000035300

• 2000038300

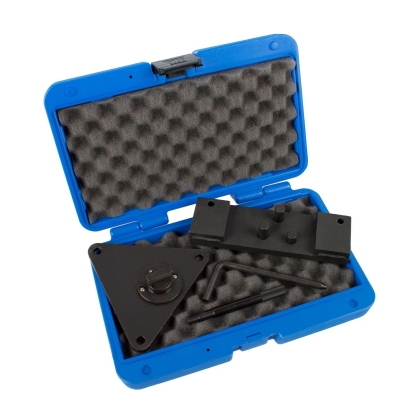

Package Contents

• 1 × Camshaft locking tool (Art. 66001) – equivalent to 2000035100

• 1 × Flywheel locking plate (Art. 100343) – equivalent to 2000035300

• 1 × Crankshaft pulley locking tool (Art. 100199) – equivalent to 2000035200

• (Optional) 1 × Balance shaft alignment tool (Art. 100194) – equivalent to 2000038300

OE numbers are for reference purposes only. This is not an original OEM tool set.

ALFA ROMEO MITO (955_) (08.2008 - 12.2018) 0.9 TwinAir (955.AXW1B) (86 HP, 63 kW)

CHRYSLER YPSILON (05.2011 - ) 0.9 Twinair (86 HP, 63 kW)

FIAT 500 (312_) (07.2007 - 12.2017) 0.9 (312AXG1A, 312.AXG11) (86 HP, 63 kW)

FIAT 500 C (312_) (09.2009 - 12.2015) 0.9 (312AG1A) (86 HP, 63 kW)

FIAT 500L (351_, 352_) (09.2012 - 05.2018) 0.9 Natural Power (199LYC1B) (80 HP, 59 kW)

FIAT 500L (351_, 352_) (09.2012 - 05.2018) 0.9 Natural Power (199LYC1B) (86 HP, 63 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 (312PXG1A) (86 HP, 63 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 (312PXN1A, 312PXN11) (78 HP, 57 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 4x4 (312PXG1A) (86 HP, 63 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 4x4 (312PXR2B) (90 HP, 66 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 Natural Power (312PXG1A) (86 HP, 63 kW)

FIAT PANDA (312_, 319_) (02.2012 - ) 0.9 Natural Power (312PXN1A) (80 HP, 59 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 0.9 (312.PXN1A) (80 HP, 59 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 0.9 (312DXG1A) (86 HP, 63 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 0.9 4x4 (312CXG2B) (86 HP, 63 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 0.9 Natural Power (312CXG1A) (80 HP, 59 kW)

FIAT PANDA VAN (312_, 519_) (02.2012 - ) 0.9 Natural Power (312DXG1A) (86 HP, 63 kW)

FIAT PUNTO (199_) (01.2012 - 04.2018) 0.9 Bifuel (86 HP, 63 kW)

FIAT PUNTO (199_) (01.2012 - 04.2018) 0.9 Twinair Turbo (86 HP, 63 kW)

FIAT PUNTO Box Body/Hatchback (199_) (04.2008 - ) 0.9 Twinair Turbo (86 HP, 63 kW)

LANCIA YPSILON (312_) (05.2011 - ) 0.9 CNG (312.YXG1A) (86 HP, 63 kW)

LANCIA YPSILON (312_) (05.2011 - ) 0.9 TwinAir (312.PXG11, 312.PXG1A, 312.YXG11, 312.YXG1A) (86 HP, 63 kW)

LANCIA YPSILON (312_) (05.2011 - ) 0.9 TwinAir (312.YXN11, 312.YXN1A) (80 HP, 59 kW)
