Engine Timing Tool Set for Citroën, Fiat, Ford, Opel, Peugeot, Toyota, Volvo 1.4 / 1.6 Petrol & 2.0 / 2.2 Diesel

This professional timing tool set is designed for precise adjustment of engine timing during timing belt replacement, cylinder head service, and full engine repair.

It is suitable for a wide range of petrol and diesel engines used across multiple manufacturers including Citroën, Peugeot, Ford, Opel, Fiat, Volvo, Toyota, Mitsubishi and Land Rover.

The set ensures correct locking and positioning of camshaft, crankshaft and flywheel components, preventing misalignment and potential engine damage.

Engine Coverage

This complete set is suitable for:

✔ Petrol engines: TU3, TU5 (1.4L / 1.6L)
✔ Diesel engines: DW10, DW12 (2.0L / 2.2L)

The kit (item.no. 999159) includes all tools from both variant -1 and variant -2.

Important Note

For Ford 2.0L TDCi engines, a flywheel holding tool (item.no. 50017) is required according to OEM repair procedures for use at the starter opening.

For these engines, kit item.no. 999136 is also suitable.

Engine Compatibility

1.4L Petrol

EC5, ET3J4, ET3JP4, ETJP4, K1H, K6E, KDX, KFT, KFU, KFV, KFW, KFX
NFP, NFS, NFU, NFV, NFW, NFX, NFY, NFZ
TU3A, TU3AE5, TU3JP, TU3MC

1.6L Petrol

TU5J2, TU5J4, TU5JP, TU5JP4, TU5JP4S, TU32, TUD5, VJX, VJY

2.0L Diesel

4WZ-FHV, 4WZ-FTV
AHH, AHJ, AHK, AHM, AHN, AHP, AHR, AHS, AHV, AHW, AHX
AZBA, AZBC, AZWA, AZWC
D20DTL, D420T, D4204T
DW10 (all variants including DW10ATED, DW10BTED, DW10CB, DW10CTED, DW10F series, etc.)
EHY, EHZ
G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG
IXDA, KLBA, KLWA, LPBA
Q4BA, Q4WA, QXBA, QXBB, QXWA, QXWB, QXWC
RH series: RH02, RHA, RHC, RHD, RHE, RHF, RHH, RHK, RHM, RHR, RHS, RHT, RHV, RHW, RHX, RHY, RHZ
T7, T8, T9 series (all variants listed)
UF series, UK series

2.2L Diesel

4HH, 4HJ, 4HK
224DT
DW12ME5, DW12MTED4, DW12RUC, DW12RUD, DW12RUE

OEM Tool References

Fiat:
1.860.863.000, 1.867.030.000, 1.871.000.400, 2.000.020.300, 2.000.023.200, 2.000.028.500

Ford:
21-262, 21-263, 21-168
303-393, 303-393-01, 303-393-02
303-735, 303-1059, 303-1270, 303-1272, 303-1277

Opel:
EN-52137, EN-52334, EN-52333, EN-52336

PSA (Citroën / Peugeot):
0132-AJ2, 0132-QY, 0132-RZ
0153-AL
0187-B, 0188-AH, 0188-D, 0188-F, 0188-K, 0188-M, 0188-P, 0188-X, 0188-Y
0189-B, 0189-X
0194-A, 0194-B
0198-B2
4200-TH, 4507-TA
4533-TAD, 4533T-AC1, 4533T-AC2, 4533T-AD

Volvo:
999-7119, 999-7120, 999-7121, 999-7122

Note: Mitsubishi, Toyota and Land Rover use PSA-equivalent tool references for these engines.

Key Features

✔ Stahlmaxx quality tool set
✔ Covers multiple engine families
✔ Includes data sheet with application and compatibility table
✔ Professional foam storage system

Scope of Delivery

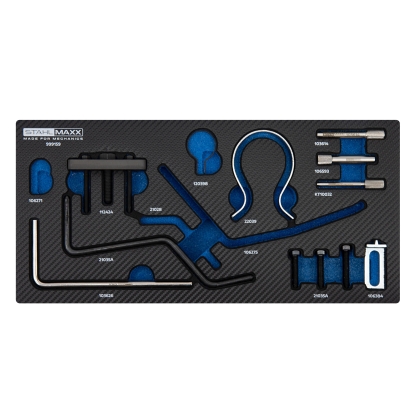

✔ item.no. 22039 Timing belt clamp – as 0188K, 4533TAD
✔ item.no. 21028 Flywheel locking tool – as 4507TA
✔ item.no. 21035A Locking pin set (crankshaft & camshaft) – as 0188D, 0188Y, 4533TAC1, EN52334, 1860863000
✔ item.no. KT10032 Locking pin – as 0194A, 0198B2
✔ item.no. 106593 Camshaft locking pin – as 0189B, 0187B, 0188M
✔ item.no. 106384 Flywheel locking tool – as 0188F, EN52333
✔ item.no. 106275 Flywheel locking tool – as 0132QY
✔ item.no. 112424 Crankshaft pulley puller – as 0188P
✔ item.no. 103626 Flywheel locking tool – as 0188X, 0189X, 3031059, 9997121
✔ item.no. 106271 Timing belt tensioning tool Ø3 mm – as 4200TH, 0153AL
✔ item.no. 120398 Crankshaft gear alignment tool – as 0188AH, 2000020300, EN52336
✔ item.no. 103614 Camshaft locking pin – as multiple OEM references
✔ item.no. 999159S Foam insert (1/3)
✔ item.no. 115269 Storage case

Variants Available

This tool set is also available in engine-specific configurations:

✔ Variant 1 – for Citroën / Peugeot 1.4L & 1.6L (TU3, TU5)
✔ Variant 2 – for Citroën, Fiat, Ford, Opel, Peugeot, Toyota, Volvo 2.0L & 2.2L (DW10, DW12)

Original numbers are for comparison purposes only. This is not an original tool.
