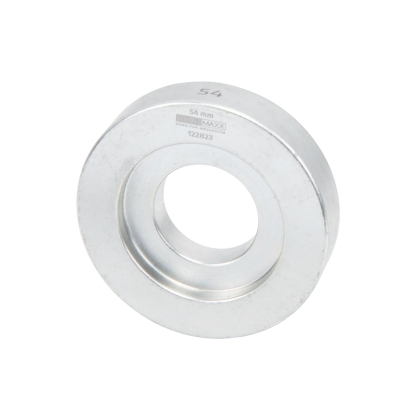

Round Flat Press Block Individual Size Selection

The round flat press block is designed for universal installation and removal work involving bearings, bushings, seals and similar components.

The flat design enables controlled and even force distribution during pressing operations. The integrated center hole and centering recess help ensure proper alignment and positioning during use.

All press blocks are available individually, allowing workshops to select only the required sizes or replace frequently used components.

Important Information

All press blocks and pressure plates are also available as a complete set:

Item no. 123213

Complete press block set in foam insert
Suitable for workshop carts and tool trolleys
Filled insert height: 92 mm

Available Sizes

Item no.	Outer Ø	Height	Center Hole	Centering Recess
122815	38 mm	12 mm	21 mm	35 mm
122816	40 mm	12 mm	21 mm	35 mm
122817	42 mm	12 mm	21 mm	35 mm
122818	44 mm	12 mm	21 mm	35 mm
122819	46 mm	12 mm	21 mm	35 mm
122820	48 mm	12 mm	21 mm	35 mm
122821	50 mm	12 mm	21 mm	35 mm
122822	52 mm	12 mm	21 mm	35 mm
122823	54 mm	12 mm	21 mm	35 mm
122824	56 mm	12 mm	21 mm	35 mm
