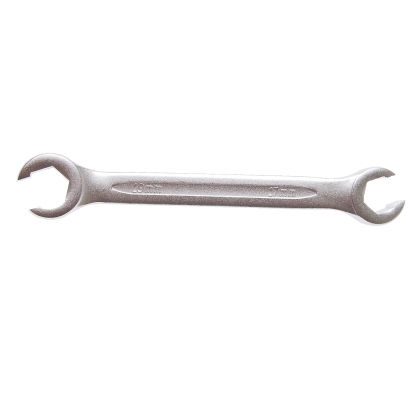

Brake Line Spanner Open Ring Type

This brake line spanner combines an open ring end and a ring spanner in one tool, making it specially designed for servicing brake lines, hydraulic systems and pipe fittings.

The open ring end is angled at 15°, allowing easier access to fittings located in confined and hard-to-reach areas. The design enables the tool to be positioned around pipes and lines without disconnecting them, making it ideal for brake and hydraulic service work.

Manufactured from high-quality Chrome Vanadium steel using a hot forging process, the spanner offers excellent strength, durability and resistance to wear. The matt chrome-plated finish provides corrosion protection while improving grip during use.

6-Point and 12-Point Profiles

Depending on the size, the spanner is available with either a 6-point or a 12-point profile, ensuring optimal engagement and flexibility for various fittings and nuts.

The combination of different profiles allows secure torque transmission while improving accessibility in restricted working areas.

Technical Specifications

• Item type: Brake line spanner with open ring end
• Applications: Brake lines, hydraulic systems and pipe fittings
• Material: Chrome Vanadium steel (Cr-V)
• Manufacturing method: Hot forged
• Surface finish: Matt chrome-plated
• Profiles: 6-point and 12-point
• Open ring angle: 15°

Available Sizes

6-point versions

• 8 × 10 mm
• 9 × 11 mm
• 12 × 13 mm
• 14 × 15 mm
• 16 × 18 mm
• 17 × 19 mm

12-point versions

• 17 × 22 mm
• 19 × 22 mm
• 24 × 27 mm
• 30 × 32 mm
