Rear Trailing Arm and Control Arm Bush Press Tool Set for Ford and Volvo

Price: €125.00 244.48лв.

Code:

120450
Weight:

6.100 Kgs

Overview:
✔ Special tool set for removing and installing rear trailing arm and control arm bushes
✔ Includes press frame and dedicated press adapters
✔ Suitable for selected Ford and Volvo rear suspension systems
✔ Enables efficient bush replacement directly on the vehicle
✔ Designed for professional workshop use
✔ Reduces repair time during suspension servicing

Rear Trailing Arm and Control Arm Bush Press Tool Set for Ford and Volvo

Send to friend

Rate this product

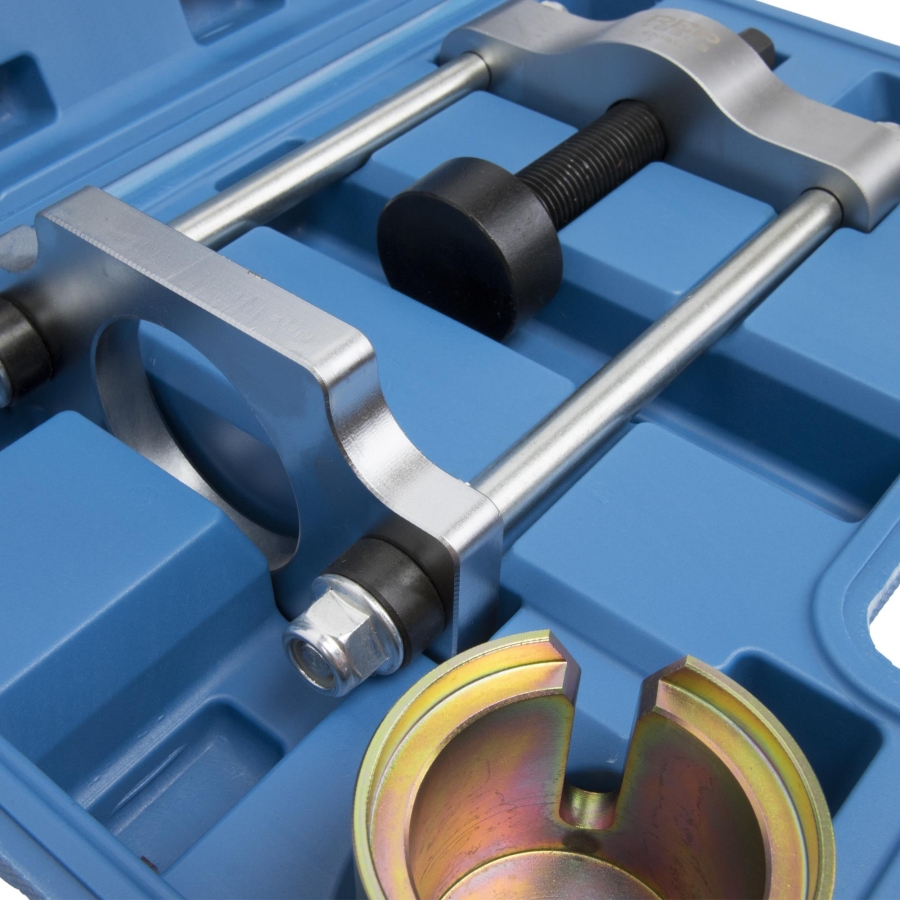

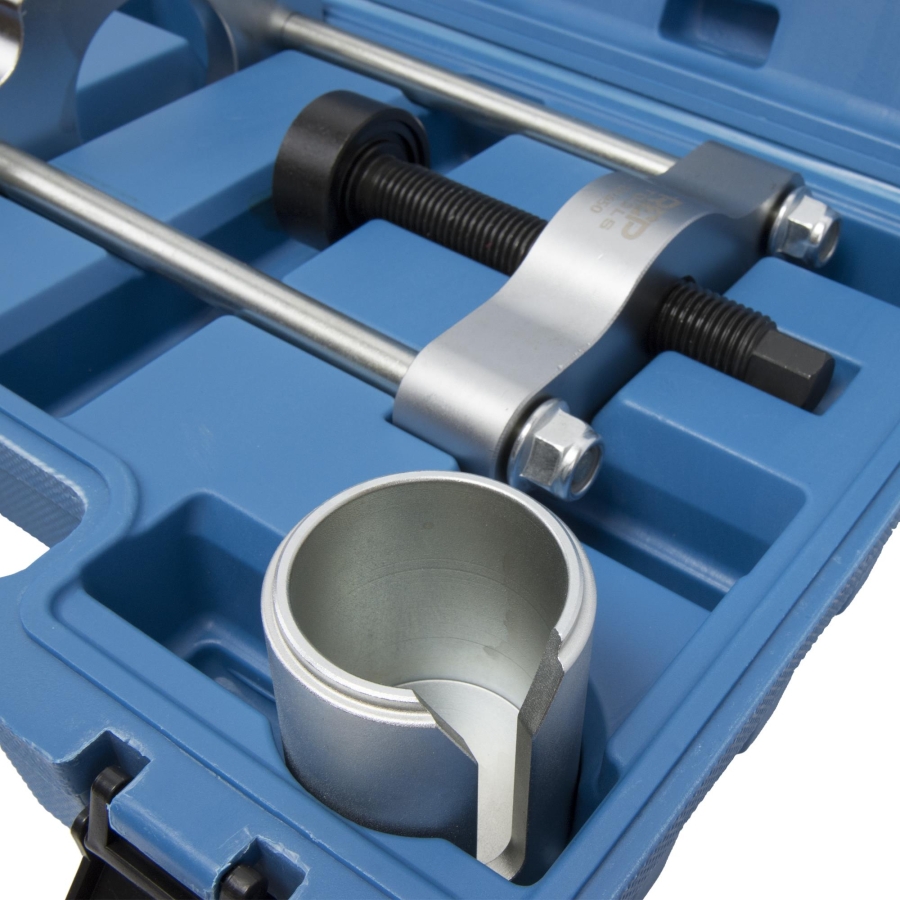

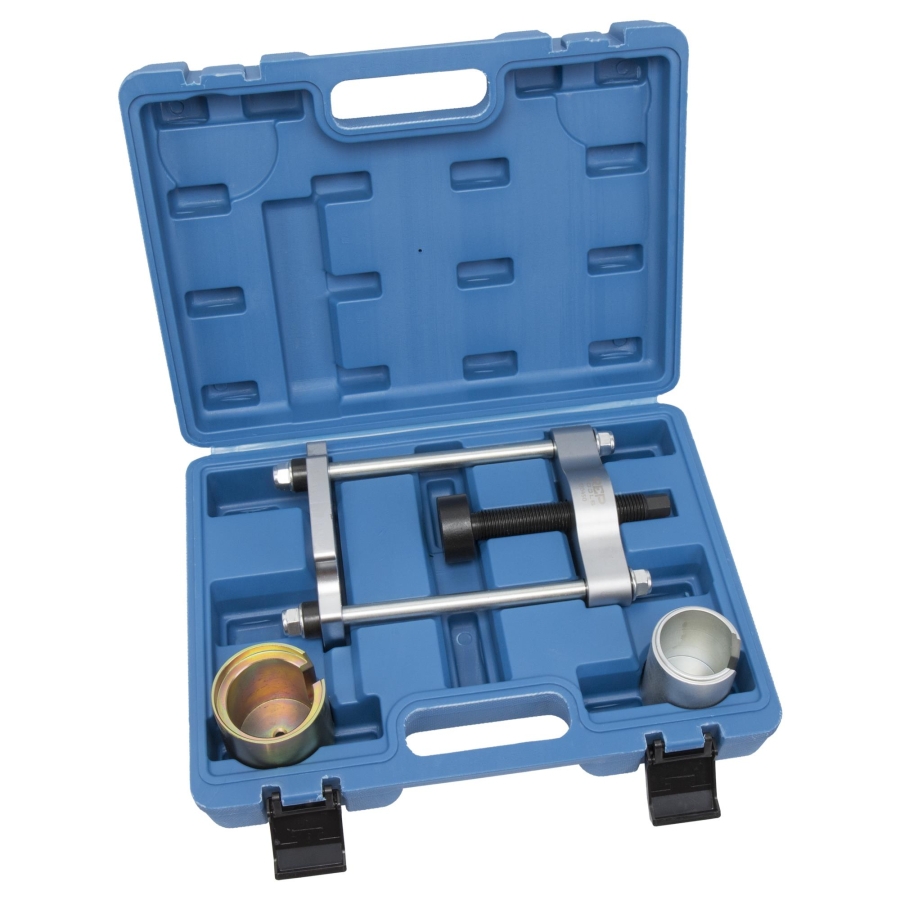

This professional tool set consists of a press frame and specially designed press adapters for the removal and installation of rear trailing arm and control arm bushes on selected Ford and Volvo vehicles.

The system allows controlled extraction and installation of suspension bushes while reducing the risk of damage to surrounding suspension components. Its design provides a practical solution for rear axle servicing and suspension repairs in professional workshop environments.

For optimum performance and reduced wear, the spindle thread should be thoroughly lubricated with grease before use.

Applications

Suitable for:

Rear trailing arm bushes
Rear control arm bushes
Rear suspension bush replacement
Rear axle repairs
Suspension maintenance and servicing

Technical Specifications

Press Frame

Spindle drive: External hexagon SW16
Spindle length: 165 mm
Spindle thrust plate diameter: Ø48 mm

Slotted Press Adapters

Adapter 1

Outer diameter: 58 mm
Inner diameter: 47 mm

Adapter 2

Outer diameter: 72 mm
Inner diameter: 54 mm

Vehicle Compatibility

Ford

C-Max (DM2) (02/1997–09/2010)
Focus C-Max (10/2003–03/2007)
Focus II (DA_) (07/2004–09/2012)
Focus II Estate (DA_) (07/2004–09/2012)
Focus II Convertible (10/2006–07/2011)
Focus (DAW, DBW) (10/1998–12/2007)
Focus Saloon (DFW) (02/1999–12/2007)
Focus Estate (DNW) (02/1999–12/2007)
Kuga I (from 03/2008)

Volvo

C30 (10/2006–12/2012)
C70 II Convertible (03/2006–06/2013)
S40 II (MS) (01/2004–12/2012)
V50 (MW) (12/2003–12/2012)

Features

Complete bush press tool set
Includes press frame and slotted press adapters
Suitable for trailing arm and control arm bushes
Professional workshop quality
Designed for Ford and Volvo applications

Usage Note

Before use, thoroughly lubricate the spindle thread with grease to ensure smooth operation and reduce tool wear.

OEM numbers and reference numbers are provided for identification and comparison purposes only. This product is not an original manufacturer tool.

Bushing Removal

Remove the shock absorber lower mounting bolt, ABS sensor, and any other components necessary to gain access to the bushing. Secure the lower control arm in position.
To ensure correct installation alignment, mark the position of the inner bushing wing on the trailing arm.
Lubricate the spindle and bearing before and during the removal process.

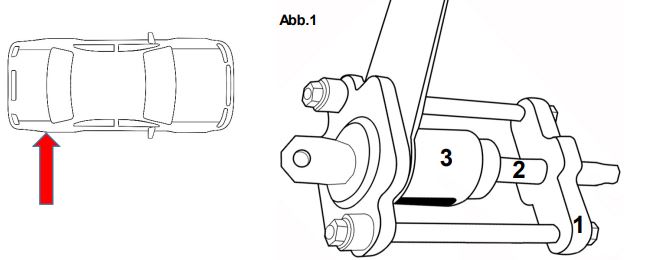

Install the tool for removal as shown in Figure 1.
The bushing must be removed from the outer side toward the center of the vehicle (Figure 1).
Turn the spindle until the pressure piece contacts the bushing.
Check the alignment of the bushing and continue turning the spindle slowly.
If the bushing binds during removal, apply grease to the bushing and try again.

Bushing Installation

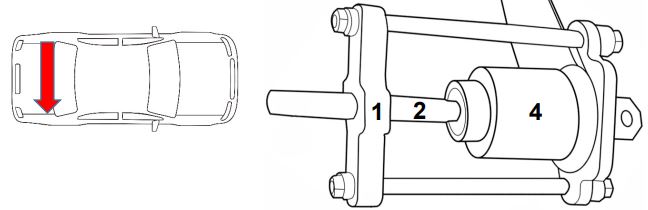

Install the tool with the installation sleeve as shown in Figure 2.
Clean and lubricate the bore in the trailing arm.
Position the slot in the installation tool so that it faces the rear of the vehicle. The bushing must be installed from the center of the vehicle outward (Figure 2).
Align the bushing so that the bushing wings match the marks previously made on the trailing arm.
Turn the spindle until the pressure piece contacts the bushing.
Check the position of both the bushing and the tool, then continue turning the spindle slowly.
Throughout the installation process, regularly check the alignment of both the bushing and the tool.
Reinstall the trailing arm, ensuring correct alignment.
Clean and re-lubricate the tool after use.

FORD C-MAX (DM2) (02.2007 - 09.2010) 1.6 (116 HP, 85 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 1.6 TDCi (101 HP, 74 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 1.8 (122 HP, 90 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 1.8 Flexifuel (125 HP, 92 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 2.0 CNG (145 HP, 107 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 2.0 LPG (145 HP, 107 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 2.0 TDCi (110 HP, 81 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.4 16V (75 HP, 55 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.6 16V (100 HP, 74 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 16V (115 HP, 85 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 DI / TDDi (75 HP, 55 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 TDCi (100 HP, 74 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 TDCi (115 HP, 85 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 Turbo DI / TDDi (90 HP, 66 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 2.0 16V (131 HP, 96 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) RS (215 HP, 158 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) ST170 (173 HP, 127 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 (100 HP, 74 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 TDCi (109 HP, 80 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 TDCi (90 HP, 66 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 Ti (115 HP, 85 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 (120 HP, 88 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 (122 HP, 90 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 (125 HP, 92 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 TDCi (115 HP, 85 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 2.0 (145 hp, 107 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 2.0 TDCi (136 HP, 100 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.4 (80 HP, 59 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 (100 HP, 74 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 LPG (115 HP, 85 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 TDCi (100 HP, 74 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 TDCi (109 HP, 80 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 TDCi (90 HP, 66 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 Ti (115 HP, 85 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.8 (125 HP, 92 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.8 Flexifuel (125 HP, 92 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.8 TDCi (115 HP, 85 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 (145 HP, 107 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 CNG (145 HP, 107 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 LPG (145 HP, 107 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 TDCi (110 HP, 81 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 TDCi (133 HP, 98 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 TDCi (136 HP, 100 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.5 RS (305 HP, 224 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.5 RS 500 (350 HP, 257 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.5 ST (225 HP, 166 kW) FORD FOCUS II Cabriolet (10.2006 - 09.2010) 1.6 (100 HP, 74 kW) FORD FOCUS II Cabriolet (10.2006 - 09.2010) 2.0 (145 HP, 107 kW) FORD FOCUS II Cabriolet (10.2006 - 09.2010) 2.0 TDCi (136 HP, 100 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.4 (80 hp, 59 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 (100 hp, 74 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 TDCi (100 hp, 74 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 TDCi (109 hp, 80 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 TDCi (90 hp, 66 kW) FORD Ford Focus II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 Ti (115 hp, 85 kW) Ford Focus II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.8 (125 hp, 92 kW) Ford Focus II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.8 Flexifuel (125 hp, 92 kW) Ford Focus II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.8 TDCi (115 hp, 85 kW) Ford Focus II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 2.0 (145 hp, 107 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 2.0 TDCi (110 hp, 81 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 2.0 TDCi (136 hp, 100 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 1.4 (80 hp, 59 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 (100 hp, 74 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 LPG (115 hp, 85 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 TDCi (100 hp, 74 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 TDCi (109 hp, 80 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 TDCi (90 hp, 66 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 Ti (115 hp, 85 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.8 (125 hp, 92 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.8 Flexifuel (125 hp, 92 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 1.8 TDCi (115 hp, 85 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 (145 hp, 107 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 LPG (145 hp, 107 kW) kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 TDCi (110 hp, 81 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 TDCi (133 hp, 98 kW) FORD FOCUS II Turnier (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 TDCi (136 hp, 100 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.4 16V (75 hp, 55 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.6 16V (100 hp, 74 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 16V (115 hp, 85 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 TDCi (100 hp, 74 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 TDCi (115 hp, 85 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 Turbo DI / TDDi (75 hp, 55 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 Turbo DI / TDDi (90 hp, 66 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 2.0 16V (131 hp, 96 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.4 16V (75 hp, 55 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.6 16V (100 hp, 74 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.8 16V (115 hp, 85 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.8 DI / TDDi (75 hp, 55 kW) FORD FOCUS Turnier (DNW) (02.1999 - 12.2007) 1.8 TDCi (100 hp, 74 kW) FORD FOCUS Turnier (DNW) (02.1999 - 12.2007) 1.8 TDCi (115 hp, 85 kW) FORD FOCUS Turnier (DNW) (02.1999 - 12.2007) 1.8 Turbo DI / TDDi (90 hp, 66 kW) FORD FOCUS Turnier (DNW) (02.1999 - 12.2007) 2.0 16V (131 hp, 96 kW) FORD FOCUS Turnier (DNW) (02.1999 - 12.2007) ST170 (173 hp, 127 kW) FORD KUGA I (02.2008 - 11.2012) 2.0 TDCi (140 HP, 103 kW) FORD KUGA I (02.2008 - 11.2012) 2.0 TDCi 4x4 (140 HP, 103 kW) FORD KUGA I (02.2008 - 11.2012) 2.0 TDCi 4x4 (163 HP, 120 kW) FORD KUGA I (02.2008 - 11.2012) 2.5 4x4 (200 HP, 147 kW) FORD KUGA II (DM2) (05.2012 - 12.2019) 2.0 TDCi (136 HP, 100 kW) FORD KUGA II (DM2) (05.2012 - 12.2019) 2.0 TDCi 4x4 (136 HP, 100 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 1.3 (BK14) (84 HP, 62 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 1.6 (BK14) (105 HP, 77 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 1.6 DI Turbo (109 HP, 80 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 2.0 (150 HP, 110 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 2.0 MZR-CD (BK14) (143 HP, 105 kW) MAZDA 3 (BK) (10.2003 - 12.2009) 2.3 MPS Turbo (BK14) (260 HP, 191 kW) MAZDA 3 Saloon (BK) (09.1999 - 12.2009) 1.6 (105 HP, 77 kW) MAZDA 3 Saloon (BK) (09.1999 - 12.2009) 1.6 DI Turbo (BK12Y) (109 HP, 80 kW) MAZDA 3 Saloon (BK) (09.1999 - 12.2009) 2.0 (150 HP, 110 kW) MAZDA 3 Saloon (BK) (09.1999 - 12.2009) 2.0 MZR-CD (BK12) (143 HP, 105 kW) MAZDA 5 (CR19) (02.2005 - 12.2010) 1.8 (116 HP, 85 kW) MAZDA 5 (CR19) (02.2005 - 12.2010) 2.0 (146 HP, 107 kW) MAZDA 5 (CR19) (02.2005 - 12.2010) 2.0 CD (110 HP, 81 kW) MAZDA 5 (CR19) (02.2005 - 12.2010) 2.0 CD (143 HP, 105 kW) MAZDA 5 (CW) (06.2010 - ) 1.6 CD (116 HP, 85 kW) MAZDA 5 (CW) (06.2010 - ) 1.8 MZR (116 HP, 85 kW) MAZDA 5 (CW) (06.2010 - ) 2.0 (144 HP, 106 kW) MAZDA 5 (CW) (06.2010 - ) 2.0 (150 HP, 110 kW) VOLVO C30 (533) (10.2006 - 12.2013) 1.6 (100 HP, 74 kW) VOLVO C30 (533) (10.2006 - 12.2013) 1.6 D (109 HP, 80 kW) VOLVO C30 (533) (10.2006 - 12.2013) 1.6 D2 (115 HP, 84 kW) VOLVO C30 (533) (10.2006 - 12.2013) 1.8 (125 HP, 92 kW) VOLVO C30 (533) (10.2006 - 12.2013) 1.8 FlexFuel (125 HP, 92 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 (145 HP, 107 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 D (136 HP, 100 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 FlexFuel (146 HP, 107 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.4 i (170 HP, 125 kW) VOLVO C30 (533) (10.2006 - 12.2013) D3 (150 HP, 110 kW) VOLVO C30 (533) (10.2006 - 12.2013) D4 (177 HP, 130 kW) VOLVO C30 (533) (10.2006 - 12.2013) D5 (163 HP, 120 kW) VOLVO C30 (533) (10.2006 - 12.2013) D5 (180 HP, 132 kW) VOLVO C30 (533) (10.2006 - 12.2013) Electric (112 HP, 82 kW) VOLVO C30 (533) (10.2006 - 12.2013) Electric (120 HP, 89 kW) VOLVO C30 (533) (10.2006 - 12.2013) T5 (220 HP, 162 kW) VOLVO C30 (533) (10.2006 - 12.2013) T5 (230 HP, 169 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) 2.0 D (136 HP, 100 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) 2.4 (140 HP, 103 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) 2.4 D (163 HP, 120 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) 2.4 i (170 HP, 125 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) D3 (150 HP, 110 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) D4 (177 HP, 130 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) D5 (180 HP, 132 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) T5 (220 HP, 162 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) T5 (230 HP, 169 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.6 (101 HP, 74 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.6 D (110 HP, 81 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.6 D2 (115 HP, 84 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.8 (125 HP, 92 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.8 FlexFuel (125 HP, 92 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 (146 HP, 107 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 CDI (133 HP, 98 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 D (136 HP, 100 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 F (146 HP, 107 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.4 (140 HP, 103 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.4 (170 HP, 125 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.4 CDI (163 HP, 120 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.4 D5 (179 hp, 132 kW) VOLVO S40 II (544) (01.2004 - 12.2012) D3 (150 HP, 110 kW) VOLVO S40 II (544) (01.2004 - 12.2012) D4 (177 HP, 130 kW) VOLVO S40 II (544) (01.2004 - 12.2012) T5 (220 HP, 162 kW) VOLVO S40 II (544) (01.2004 - 12.2012) T5 (230 HP, 169 kW) VOLVO S40 II (544) (01.2004 - 12.2012) T5 AWD (220 HP, 162 kW) VOLVO S40 II (544) (01.2004 - 12.2012) T5 AWD (230 HP, 169 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.6 (101 HP, 74 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.6 D (109 HP, 80 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.6 D (110 HP, 81 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.6 D2 (114 HP, 84 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.8 (125 HP, 92 kW) VOLVO V50 (545) (12.2003 - 12.2012) 1.8 FlexFuel (125 HP, 92 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 (146 HP, 107 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 CDI (133 HP, 98 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 D (136 HP, 100 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.4 (140 HP, 103 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.4 (170 HP, 125 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.4 D5 (179 HP, 132 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.4 Tdi (163 HP, 120 kW) VOLVO V50 (545) (12.2003 - 12.2012) D3 (150 HP, 110 kW) VOLVO V50 (545) (12.2003 - 12.2012) D4 (177 HP, 130 kW) VOLVO V50 (545) (12.2003 - 12.2012) T5 (220 hp, 162 kW) VOLVO V50 (545) (12.2003 - 12.2012) T5 (230 hp, 169 kW) VOLVO V50 (545) (12.2003 - 12.2012) T5 AWD (220 hp, 162 kW) VOLVO V50 (545) (12.2003 - 12.2012) T5 AWD (230 hp, 169 kW)
