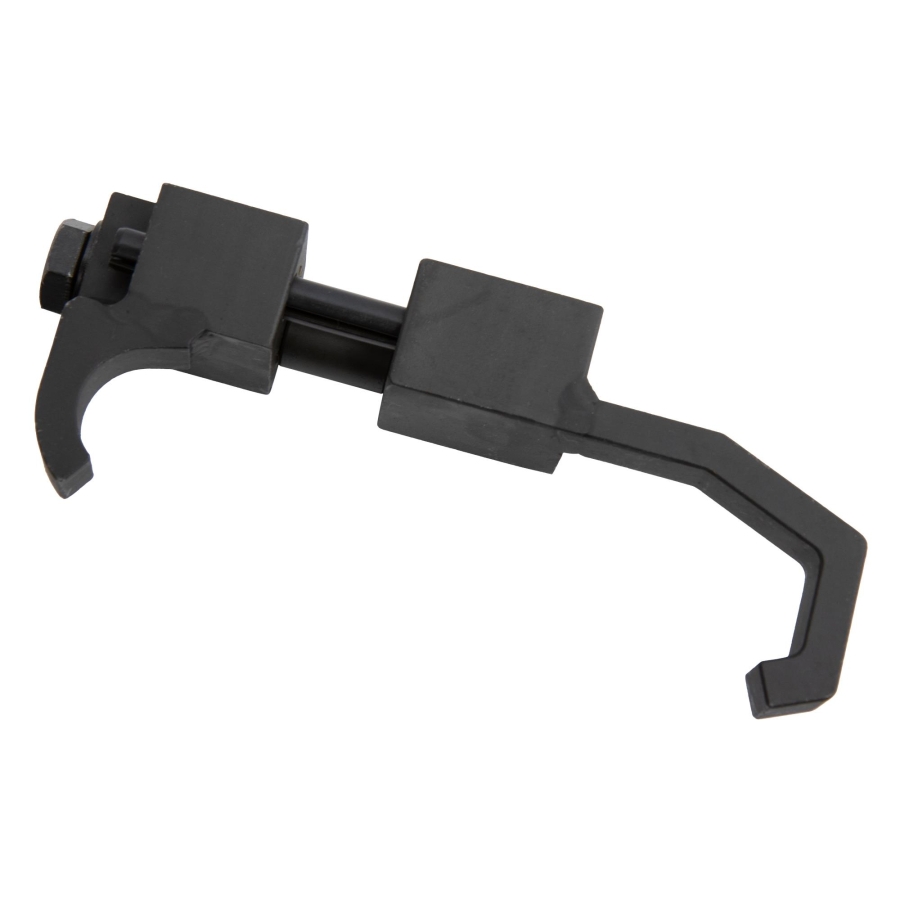

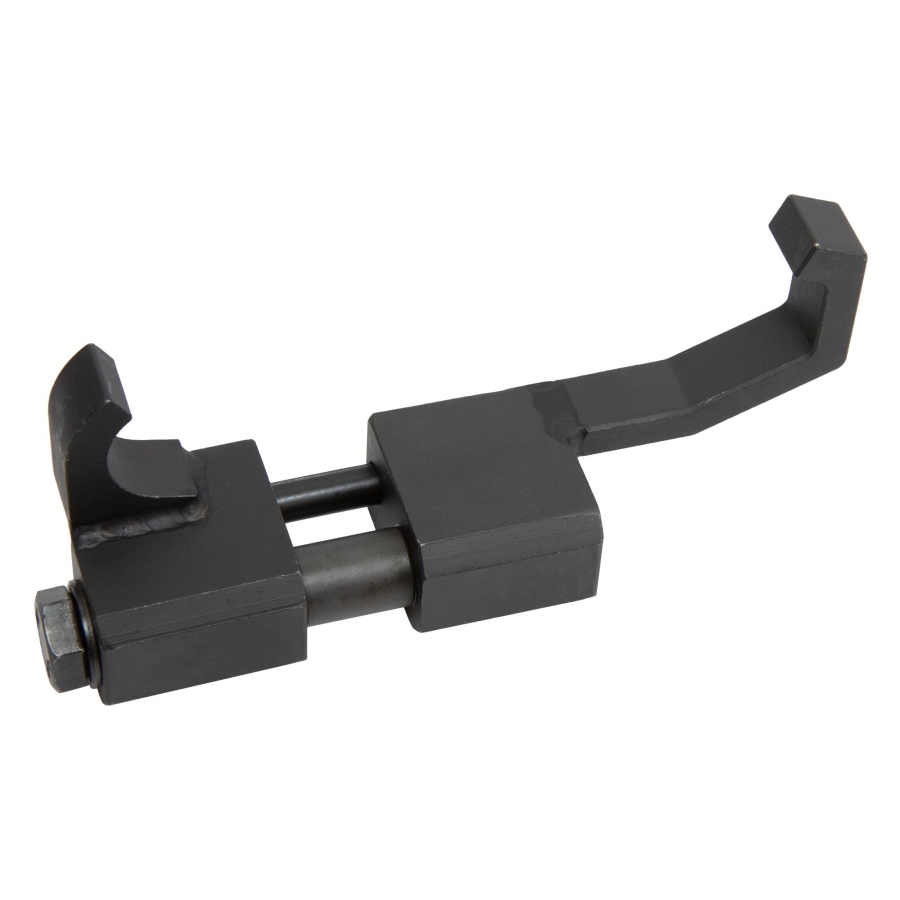

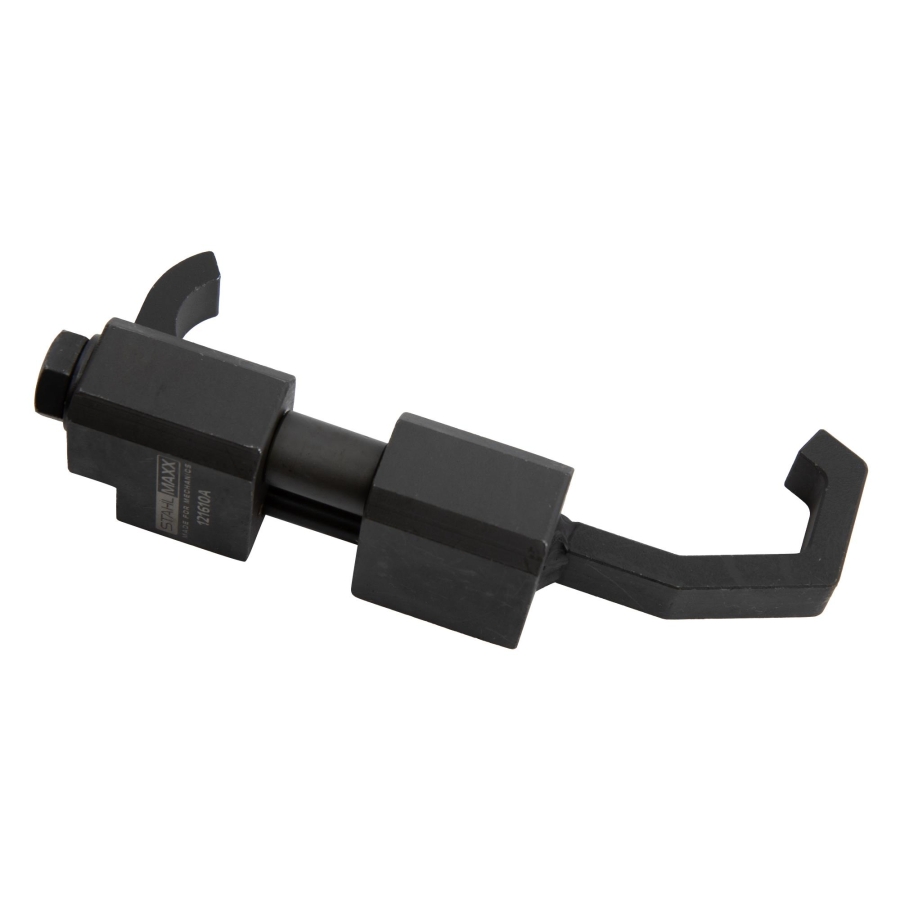

Serpentine Belt Tension Tool for Hybrid Starter Generator Hyundai, Kia & GM – as 09244-G2100

Specialized tool for compressing the hydraulic automatic belt tensioner on hybrid and plug-in hybrid vehicles equipped with hybrid starter generator systems.

These drive systems operate under significantly higher belt tension compared to conventional setups, making controlled compression essential during service procedures.

Functionality

The tool allows safe and controlled compression of the belt tensioner, enabling:

• Removal and installation of the serpentine belt
• Servicing or replacement of the tensioning unit

Due to the high spring force within the system, improper handling can result in component damage or personal injury. This tool ensures controlled operation and reduces risk during maintenance.

Safety Feature

Equipped with an integrated stop sleeve, which:

• Prevents over-tensioning
• Protects the tensioning unit from damage
• Ensures correct working range during compression

Technical Specifications

Compatible engines:

• Hyundai / Kia: G4LE, 1.6L GDi Hybrid, 2.0L GDi Hybrid
• GM: 2.4L EcoTec Hybrid

Engine codes:

• G4LE
• G4NG

Vehicle Compatibility

Hyundai:

• Sonata
• Ioniq
• Kona

Kia:

• Niro
• Optima
• Ceed
• XCeed

Buick:

• Regal
• LaCrosse

Chevrolet:

• Malibu
• Impala
• Captiva

OEM Reference

To be used as:

• as 09244-G2100
• as 09252-2E100
• as EN-48932

OEM numbers are for comparison purposes only. This product is not an original tool.

HYUNDAI IONIQ (AE) (03.2016 - ) 1.6 GDI Hybrid (105 HP, 77 kW)

HYUNDAI IONIQ (AE) (03.2016 - ) 1.6 GDI Hybrid (141 HP, 104 kW)

HYUNDAI KONA (OS, OSE, OSI) (06.2017 - ) 1.6 GDi Hybrid (105 HP, 77 kW)

HYUNDAI KONA (OS, OSE, OSI) (06.2017 - ) 1.6 GDi Hybrid (141 HP, 104 kW)

HYUNDAI KONA Box Body/SUV (OS, OSE, OSI) (07.2017 - ) 1.6 GDi Hybrid (105 HP, 77 kW)

HYUNDAI KONA Box Body/SUV (OS, OSE, OSI) (07.2017 - ) 1.6 GDi Hybrid (141 HP, 104 kW)

HYUNDAI SONATA VII (LF) (06.2014 - ) 2.0 Hybrid (156 HP, 115 kW)

KIA CEED Combi Van (CD) (04.2018 - ) GDI Hybrid (105 HP, 77 kW)

KIA CEED Combi Van (CD) (04.2018 - ) GDI Hybrid (141 HP, 104 kW)

KIA CEED Sportswagon (CD) (04.2018 - ) 1.6 GDI Hybrid (105 HP, 77 kW)

KIA CEED Sportswagon (CD) (04.2018 - ) 1.6 GDI Hybrid (141 HP, 104 kW)

KIA NIRO (DE) (09.2016 - ) 1.6 GDI Hybrid (105 HP, 77 kW)

KIA NIRO (DE) (09.2016 - ) 1.6 GDI Hybrid (141 HP, 104 kW)

KIA NIRO (DE) (09.2016 - ) 1.6 GDI Hybrid (145 HP, 107 kW)

KIA NIRO VAN (DE) (09.2016 - ) GDI Hybrid (105 HP, 77 kW)

KIA OPTIMA (JF) (09.2015 - ) 2.0 GDI Hybrid (156 HP, 115 kW)

KIA OPTIMA (JF) (09.2015 - ) 2.0 GDI Hybrid (205 HP, 151 kW)

KIA OPTIMA Sportswagon (JF) (09.2016 - ) 2.0 GDI Hybrid (205 HP, 151 kW)

KIA OPTIMA Sportswagon (JF) (09.2016 - ) 2.0 GDi Hybrid (156 HP, 115 kW)

KIA XCEED (CD) (06.2019 - ) 1.6 GDI Hybrid (105 HP, 77 kW)

KIA XCEED (CD) (06.2019 - ) 1.6 GDI Hybrid (141 HP, 104 kW)

KIA XCEED Van (CD) (06.2019 - ) 1.6 GDI Hybrid (105 HP, 77 kW)

KIA XCEED Van (CD) (06.2019 - ) 1.6 GDI Hybrid (141 HP, 104 kW)
