Smoke Leak Detector 12V Compact – Pro Gen. 2 Automotive Smoke Tester

The Pro Gen. 2 smoke leak detector is a compact and efficient diagnostic solution designed to quickly locate leaks in automotive systems. It provides mechanics with a reliable method to identify leak-related faults across a wide range of vehicle applications.

The second generation has been specifically optimized to work with professional, non-harmful smoke oil as item.no. 122776, ensuring dense and consistent smoke output for improved leak visibility.

Improved Performance with Optimized Internal Design

Compared to the previous generation, the internal components have been redesigned to enhance smoke density and performance. These improvements also resulted in an updated housing design, maintaining durability while improving efficiency.

The device features a robust powder-coated metal housing and is equipped with high-quality internal components built for professional workshop use.

Precision Control & Easy Operation

The unit is designed for intuitive operation and accurate diagnostics:

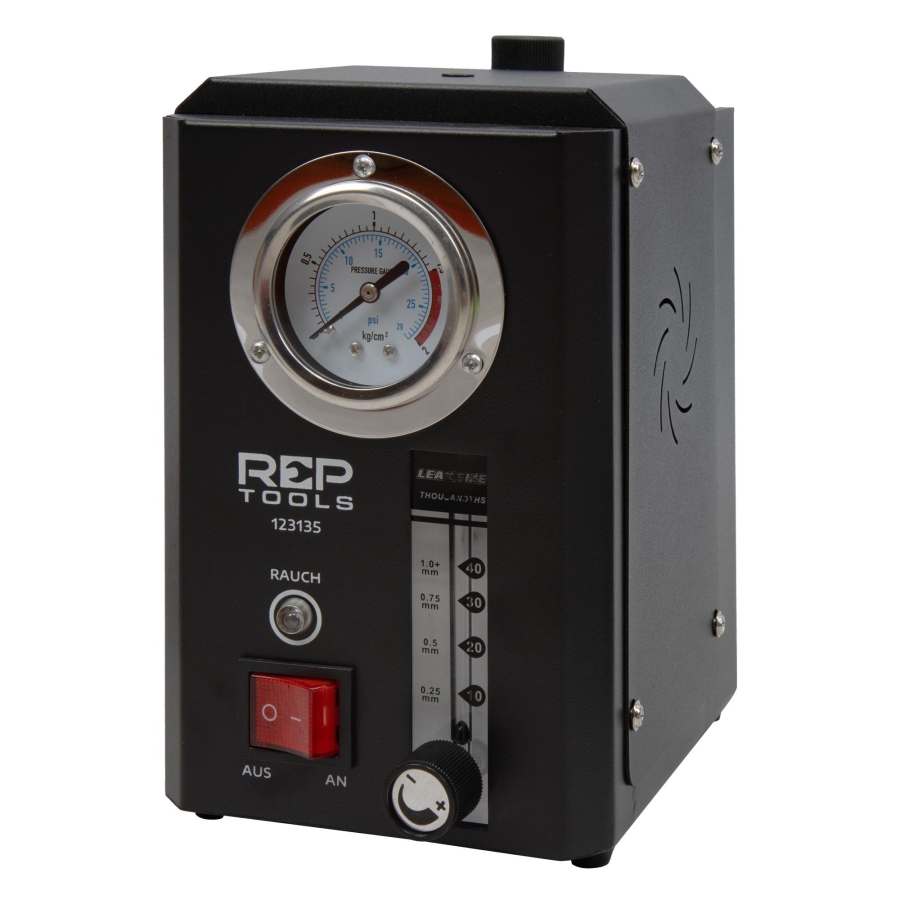

• Adjustable airflow control
• Integrated pressure gauge with 0.1 bar increments
• Quick setup and operation
• Suitable for both quick checks and detailed diagnostics

Wide Range of Diagnostic Applications

Suitable for leak testing of:

• Intake system
• Exhaust and EGR system
• Crankcase and charge air system
• Fuel, tank, and charcoal canister system
• AdBlue® and additive systems
• Vacuum systems and control lines
• Air conditioning system (low-pressure side, empty)
• Cooling system
• Washer system
• Body and window sealing (water ingress & wind noise detection)

Technical Specifications

• Flow rate: 5 L/min
• Smoke output: approx. 30 ml/min
• Working pressure: approx. 1.2 bar
• Voltage: 12V DC
• Power: 55 W
• Weight: 2.5 kg
• Dimensions (W × H × D): 150 × 190 × 120 mm
• Overheat protection: 85°C
• Anti-freeze protection: -20°C

Scope of Delivery

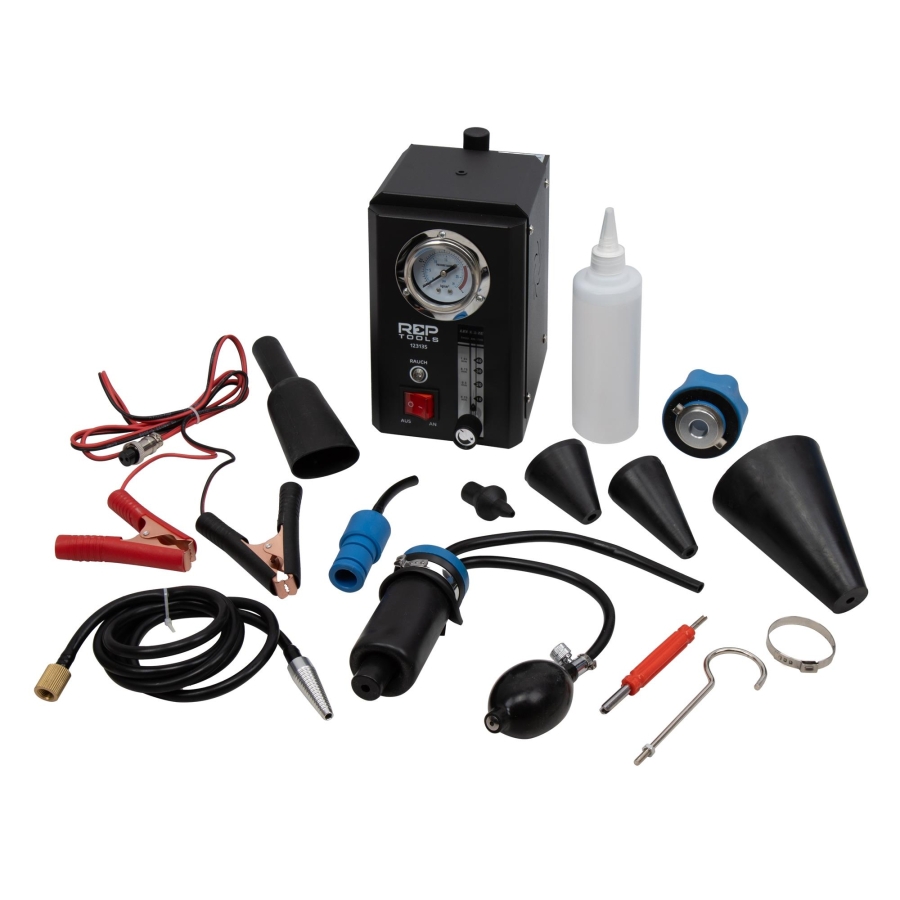

• 1 x Smoke leak detector
• 1 x Hook
• 1 x Smoke hose (1.4 m)

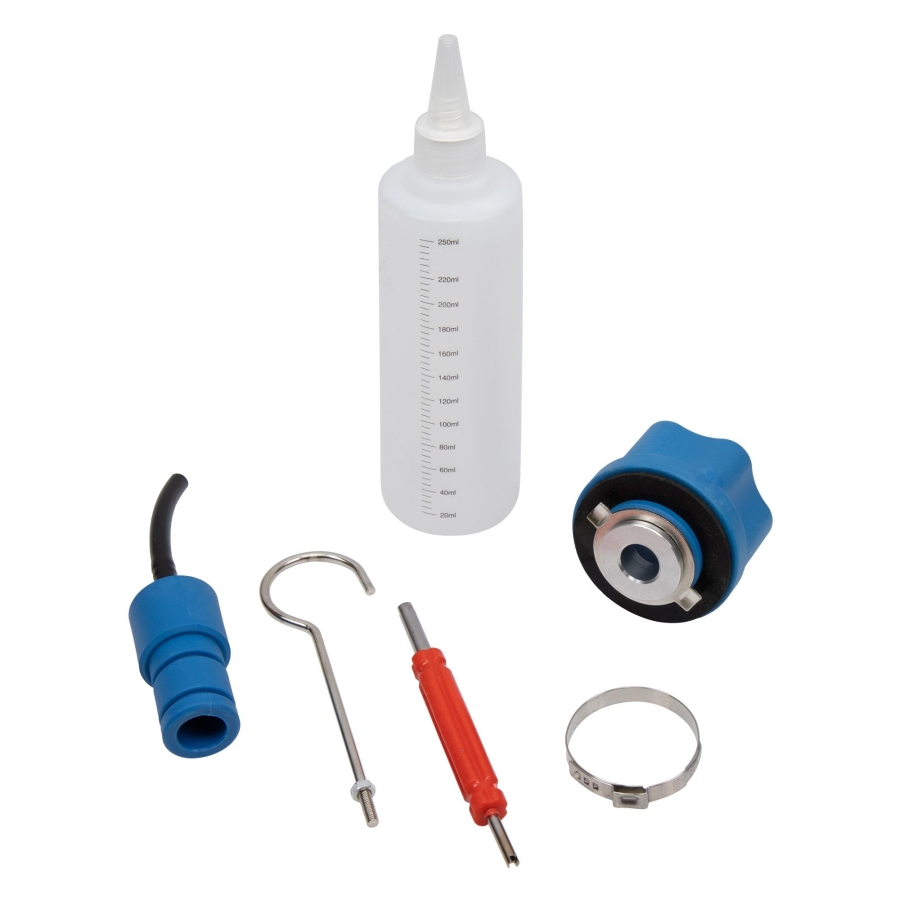

• 1 x Smoke oil bottle (for mixing e.g. UV leak detection fluid)
• 1 x Universal oil filler cap adapter (compatible with VAG, Mercedes, BMW, Porsche, Volvo)
• 1 x Crankcase sealing adapter (e.g. for BMW)

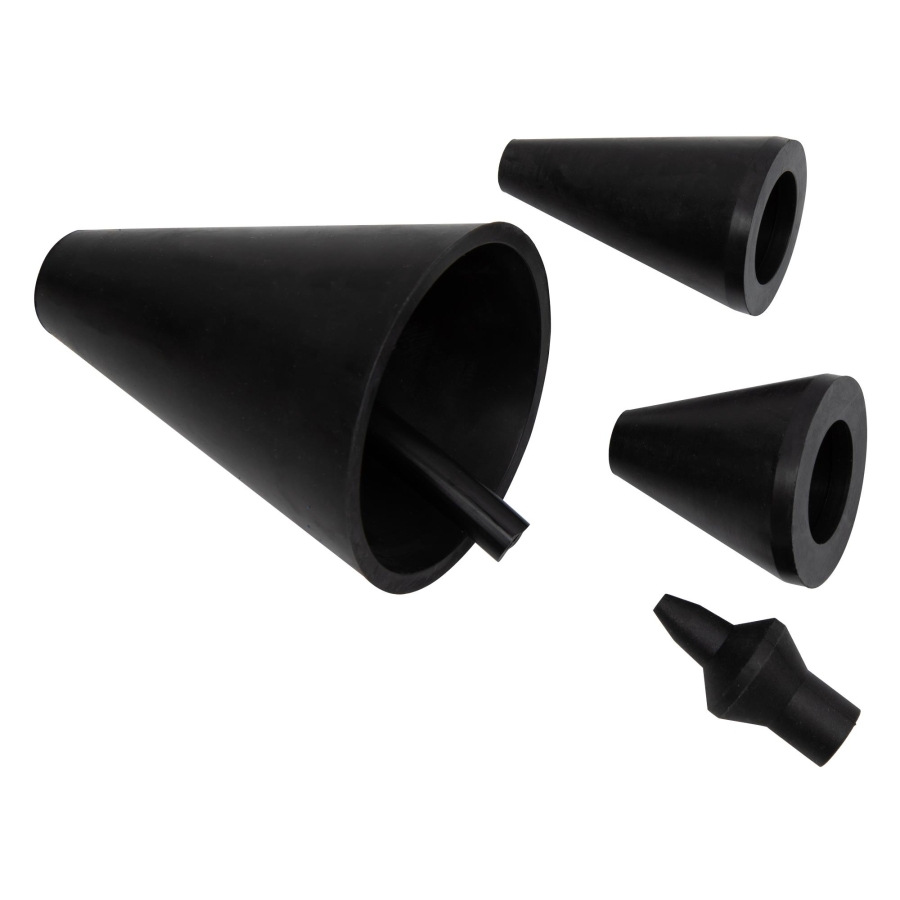

• 1 x Conical adapter 5–15 mm (length 55 mm)
• 1 x Conical sealing adapter 5–25 mm (length 50 mm)
• 1 x Conical sealing adapter 14–45 mm (length 75 mm)
• 1 x Conical sealing adapter 16–50 mm (length 55 mm)
• 1 x Conical sealing adapter 28–85 mm (length 110 mm)

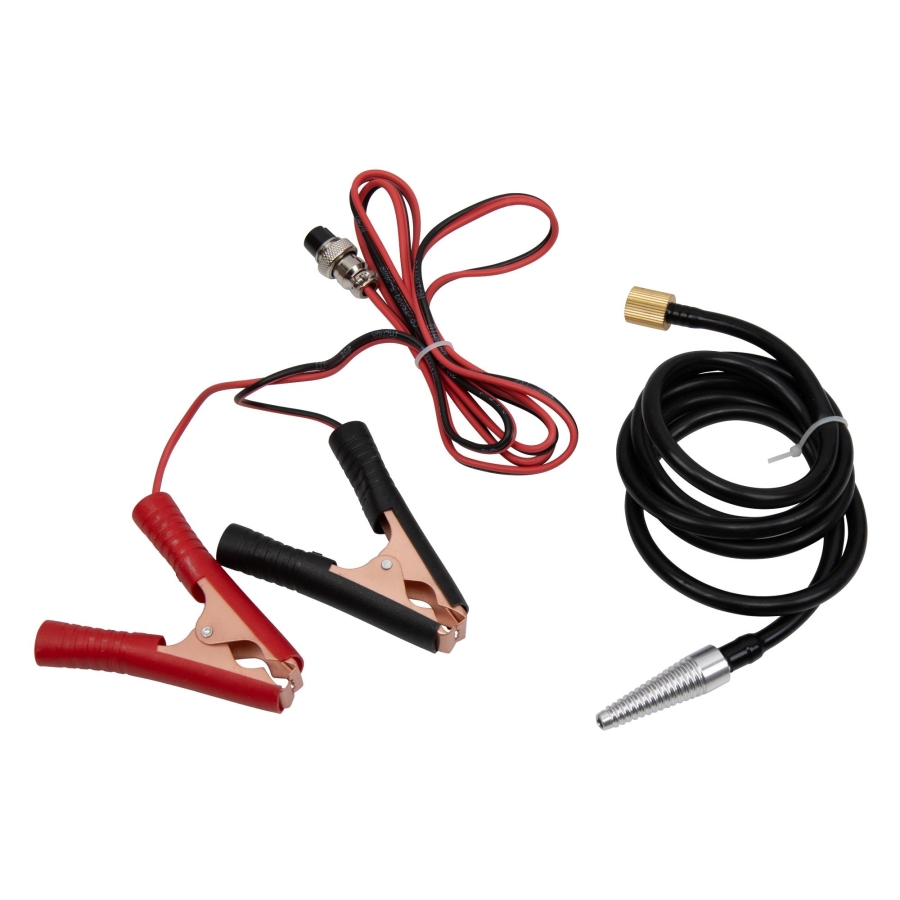

• 1 x 12V power cable with insulated clamps (1.5 m)

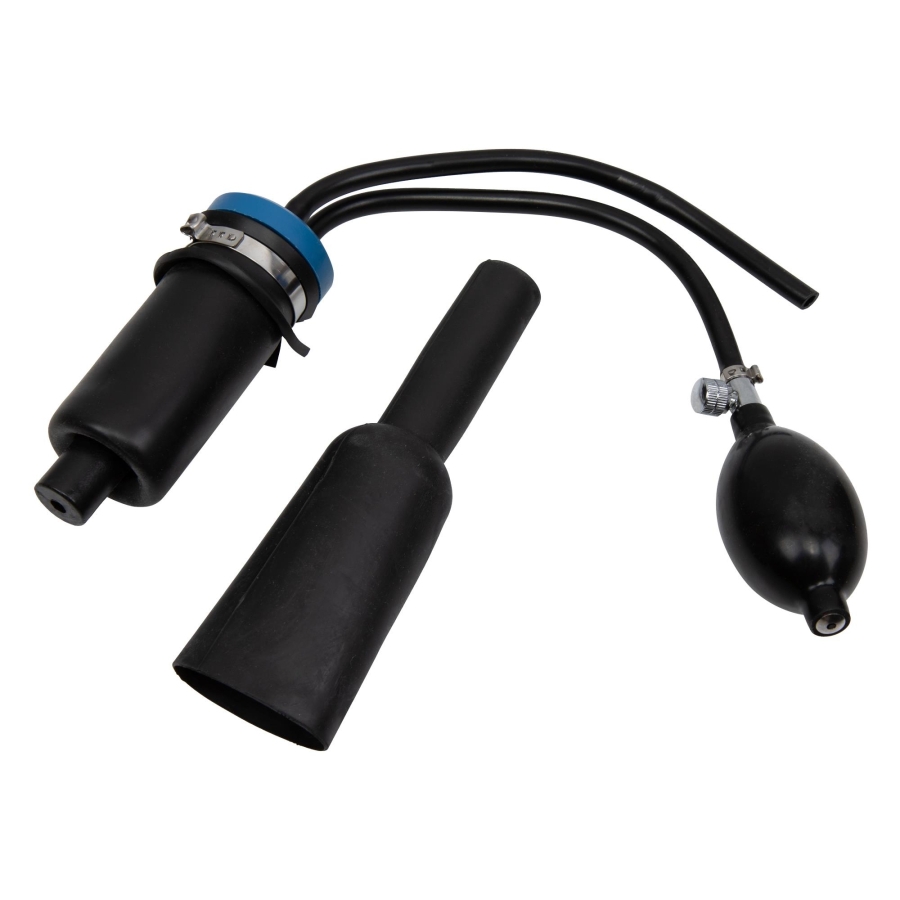

• 1 x Universal sealing bladder for larger lines
• 1 x Repair kit for sealing bladder
• 1 x Valve core remover (2-stage)

Important Notice

✔ Requires special smoke oil as item.no. 122776 (not included)
✔ Compatible with UV leak detection fluid (recommended mix ratio approx. 1:100)

Safety Information

✔ Electrical device – use only by trained personnel
✔ Use appropriate protective equipment (e.g. respiratory mask)
✔ Follow manufacturer instructions and safety data sheet

AdBlue® is a registered trademark of the VDA (German Association of the Automotive Industry).

Warning

• The device must only be used by properly trained personnel.
• Ensure appropriate personal protective equipment (PPE) is worn, such as a respirator mask.
• Do not use the smoke generator while the engine is running.
• Replace the oil regularly and do not overfill.
• Do not operate the device continuously for more than 5 minutes. The unit will shut off automatically.
  Allow a short cooling period before restarting.
• Caution: The device may become hot during operation.

Application

1. Fill the device with 20–30 ml of smoke oil (Part No. 122776).

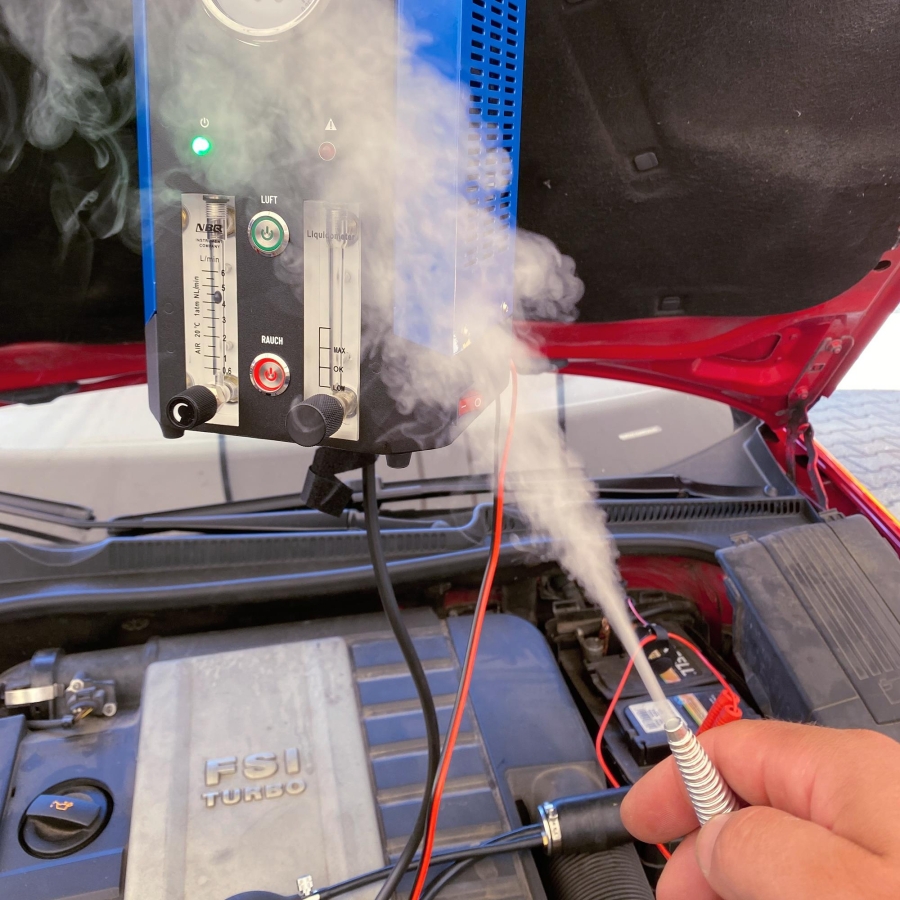

2. Hang the smoke generator in the engine bay using the hook and open the system/line to be tested.
3. Connect the smoke generator hose to the system using a suitable adapter plug (or rubber bulb).
4. Connect the red clamp to the positive terminal and the black clamp to the negative terminal of the vehicle battery.
   The compressor will start immediately and the device is ready for operation.
5. Press the ON/OFF switch. After approximately 30 seconds, sufficient smoke will be generated and the system can be checked for leaks.
   If necessary, use a headlamp to better detect escaping smoke.
   The smoke output can be adjusted using the rotary control.

Tip

• The built-in pressure gauge can also be used to detect pressure drops and identify even very small leaks.
• If the gauge reads 0, the leak is larger than 0.3 mm and must be located visually via escaping smoke.
• The use of a UV leak detection fluid is possible. This allows leak detection using a UV lamp and glasses, even in hard-to-see areas.
  The recommended mixing ratio is approximately 1:100.

Maintenance

• Before refilling with new oil, drain the old oil (remove the cap and invert the device) and dispose of it properly.
• Replace the oil if water droplets are observed coming from the smoke generator hose.
• Change the oil regularly, especially if the device has not been used for an extended period.
