Stretch-Fit Belt Installation Guide for Mercedes, Renault, Dacia and Nissan 1.0/1.3L TCe and DIG-T

Price: €29.95

Code:

125020
Weight:

0.350 Kgs

Overview:
✔ Supports damage-free installation of elastic multi-rib belts
✔ For M200, H4D, H5H, HR10 and HR13DDT engine series
✔ Prevents the belt from slipping off the water-pump pulley
✔ Bolts directly to the water-pump pulley
✔ Integrated 13 mm hexagon for counterholding
✔ Suitable for Mercedes, Renault, Dacia and Nissan applications

Stretch-Fit Belt Installation Guide for Mercedes, Renault, Dacia and Nissan 1.0/1.3L TCe and DIG-T

Send to friend

Rate this product

This specially designed installation guide simplifies the fitting of elastic multi-rib belts, also known as stretch-fit or self-tensioning belts, on M200, H4D, H5H, HR10 and HR13DDT engines.

The guide plate prevents the belt from slipping off the water-pump pulley during installation, reducing the risk of belt damage and injury.

Important Information

Installing an elastic multi-rib belt can be difficult even when using the specified manufacturer tools because the belt may jump off the water-pump pulley.

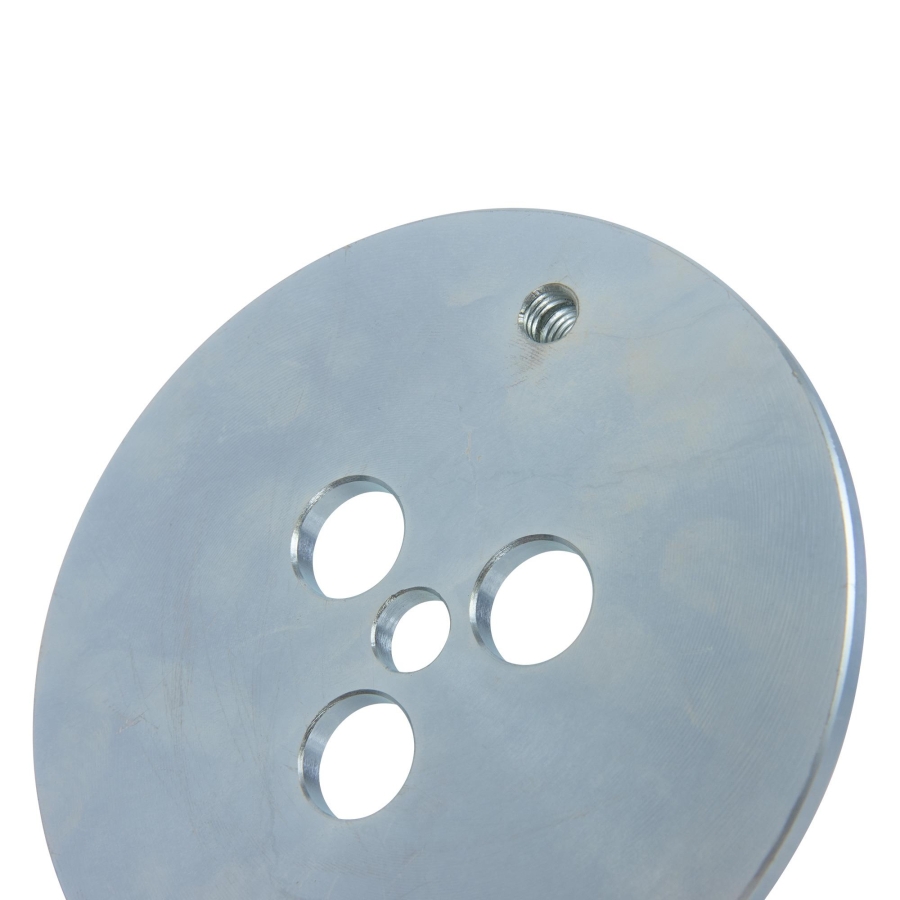

The Stahlmaxx guide plate is bolted directly to the water-pump pulley and holds the belt axially in position until installation is complete.

Application

Loosen two bolts on the water-pump pulley.

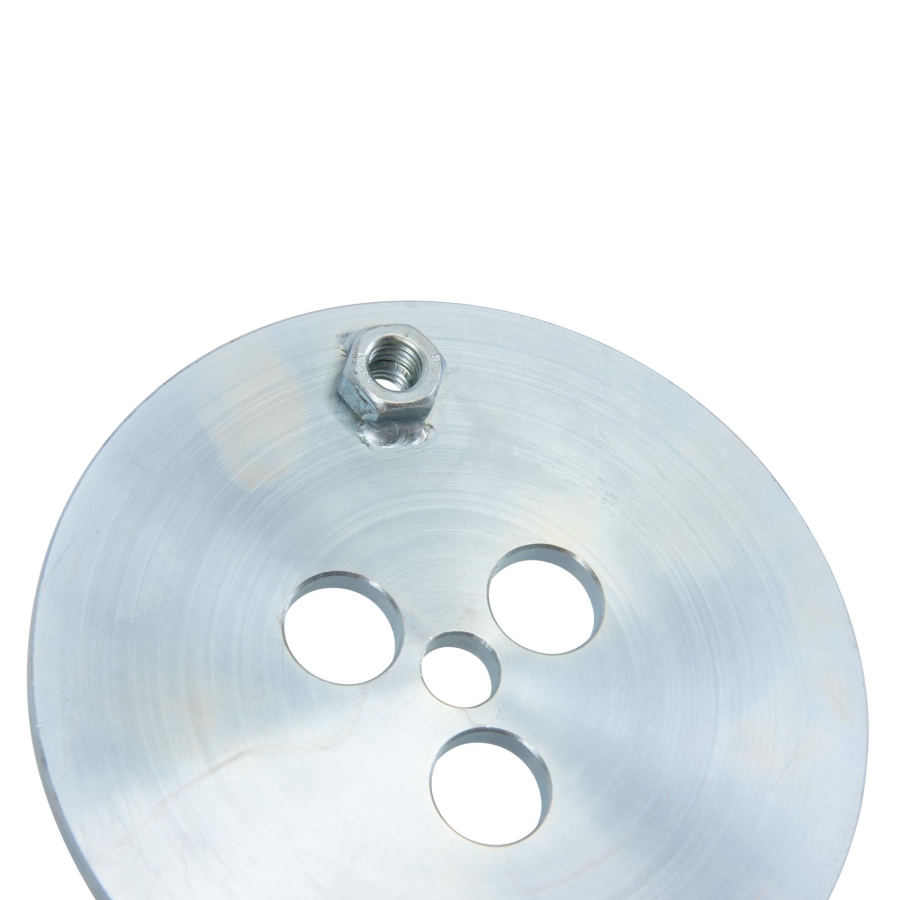

Use the integrated 13 mm hexagon on the guide plate for counterholding while loosening and subsequently tightening the bolts.

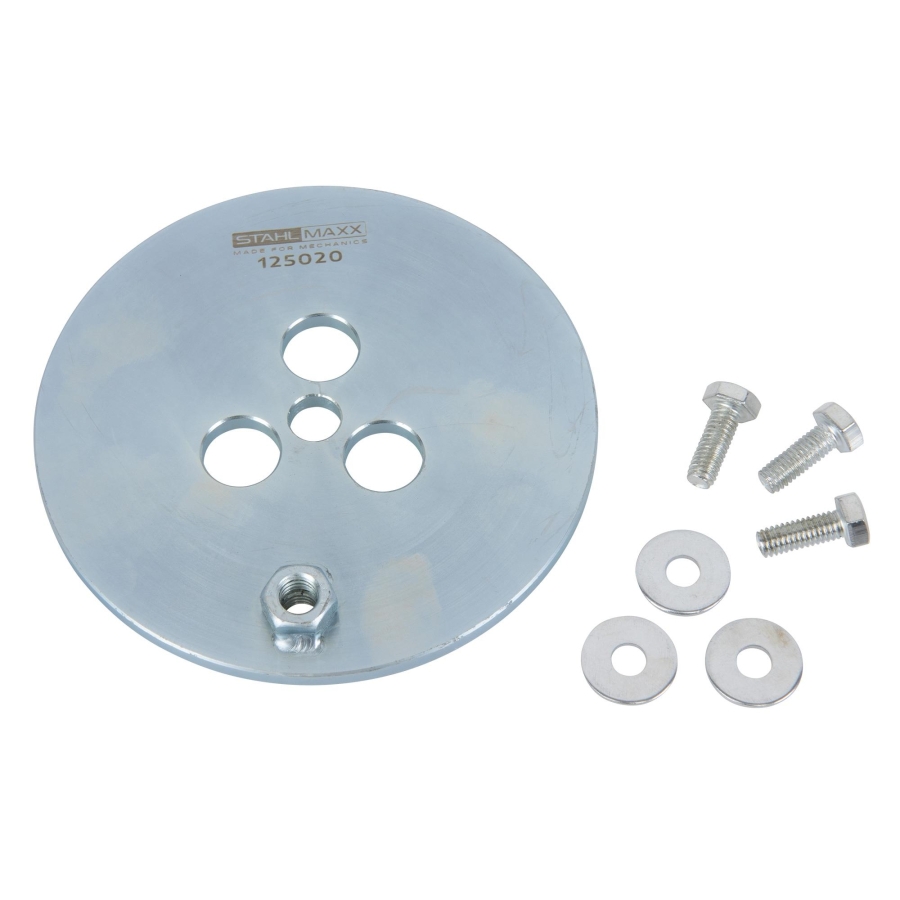

Position the adapter plate and secure it using the original bolts and washers.
Install the elastic multi-rib belt over the crankshaft pulley using a suitable special tool, such as item no. 115148 or item no. 113839.
After installing the belt, remove the bolts one at a time, remove the guide plate and reinstall the original bolts to the specified torque.

Reference Tightening Torque

Reference application: Mercedes Citan W420 with engine M200.731.

Coolant-pump pulley: 8 Nm

Always verify the tightening torque using the applicable manufacturer repair instructions.

Suitable Vehicles

Dacia:

Dokker, Duster, Jogger, Lodgy, Logan II–III, Sandero II–III

Renault:

Arkana I, Austral, Captur I–II, Clio V, Dokker, Express, Grand Kangoo III, Grand Scénic IV, Kadjar, Kangoo III, Koleos II, Megane IV, Scénic IV, Talisman

Mercedes:

Citan Box Body, Citan Tourer, T-Class Van (W420)

Nissan:

Juke, Micra V, Qashqai II, Townstar, X-Trail III

Compatible Engine Codes

Renault:

H4D 450, H4D 452, H4D 460, H4D 472
H5H 450, H5H 470, H5H 480

Nissan:

HR10DDT, HR13DDT

Mercedes:

M200.731

To Be Used as

Dacia, Renault and Nissan:

Mot.2966, Mot.2101

Mercedes:

Installation guide for the elastic multi-rib belt on M200 engines. This tool is mentioned in the repair instructions, but no comparison number is provided.

Original numbers are provided for comparison purposes only. This is not an original tool.

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

DACIA DOKKER Express Box Body/MPV (11.2012 - ) 1.3 TCe 100 (FENU) (102 hp, 75 kW) DACIA DOKKER Express Box Body/MPV (11.2012 - ) 1.3 TCe 130 (FENE) (131 hp, 96 kW) DACIA DOKKER MPV (KE_) (11.2012 - ) 1.3 TCe 100 (KENU) (102 hp, 75 kW) DACIA DOKKER MPV (KE_) (11.2012 - ) 1.3 TCe 130 (KENE) (131 hp, 96 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.0 TCe 100 (HMMT) (101 hp, 74 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.0 TCe 100 AWD (HMMT) (101 hp, 74 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.3 TCe 130 (HMMF) (131 hp, 96 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.3 TCe 130 AWD (HMMF) (131 hp, 96 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.3 TCe 150 (HMM3) (150 hp, 110 kW) DACIA DUSTER (HM_) (10.2017 - ) 1.3 TCe 150 AWD (HMM3) (150 hp, 110 kW) DACIA LODGY (JS_) (03.2012 - ) 1.3 TCe 100 (JSNU) (102 hp, 75 kW) DACIA LODGY (JS_) (03.2012 - ) 1.3 TCe 130 (JSNE) (131 hp, 96 kW) DACIA LOGAN II (10.2012 - 08.2016) 1.0 LPG (101 hp, 74 kW) DACIA LOGAN II (10.2012 - 08.2016) 1.0 TCe 100 (101 hp, 74 kW) DACIA LOGAN MCV II (02.2013 - ) 1.0 LPG (101 hp, 74 kW) DACIA LOGAN MCV II (02.2013 - ) 1.0 TCe 100 (101 hp, 74 kW) DACIA SANDERO II (10.2012 - ) 1.0 LPG (101 hp, 74 kW) DACIA SANDERO II (10.2012 - ) 1.0 TCe 100 (101 hp, 74 kW) NISSAN JUKE (F16_) (08.2019 - ) 1.0 (114 hp, 84 kW) NISSAN JUKE (F16_) (08.2019 - ) DIG-T 117 (117 hp, 86 kW) NISSAN MICRA V (K14) (12.2016 - ) 1.0 DIG-T 117 (117 hp, 86 kW) NISSAN QASHQAI II SUV (J11, J11_) (11.2013 - ) 1.3 DIG-T (140 hp, 103 kW) NISSAN QASHQAI II SUV (J11, J11_) (11.2013 - ) 1.3 DIG-T (158 hp, 116 kW) NISSAN QASHQAI II SUV (J11, J11_) (11.2013 - ) 1.3 DIG-T (160 hp, 118 kW) NISSAN X-TRAIL (T32_) (10.2013 - ) 1.3 DIG-T (160 hp, 118 kW) RENAULT ARKANA I (LCM_) (08.2019 - ) 1.3 TCe 150 (LCM3) (150 hp, 110 kW) RENAULT CAPTUR I (J5_, H5_) (06.2013 - 06.2020) 1.3 TCe 130 (J5NJ) (131 hp, 96 kW) RENAULT CAPTUR I (J5_, H5_) (06.2013 - 06.2020) 1.3 TCe 150 (J5NK) (150 hp, 110 kW) RENAULT CAPTUR II (01.2020 - ) LPG (HFMT) (101 hp, 74 kW) RENAULT CAPTUR II (01.2020 - ) TCe 100 (HFMT) (101 hp, 74 kW) RENAULT CAPTUR II (01.2020 - ) TCe 130 (HFMF) (131 hp, 96 kW) RENAULT CAPTUR II (01.2020 - ) TCe 155 (HFMN) (154 hp, 113 kW) RENAULT CLIO V (B7_) (06.2019 - ) 1.0 LPG (B7MT) (101 hp, 74 kW) RENAULT CLIO V (B7_) (06.2019 - ) 1.0 TCe 100 (B7MT) (101 hp, 74 kW) RENAULT CLIO V (B7_) (06.2019 - ) 1.3 TCe 130 (B7MF) (131 hp, 96 kW) RENAULT GRAND SCÉNIC IV (R9_) (09.2016 - ) 1.3 TCe 115 (R9N9) (115 hp, 85 kW) RENAULT GRAND SCÉNIC IV (R9_) (09.2016 - ) 1.3 TCe 140 (140 hp, 103 kW) RENAULT GRAND SCÉNIC IV (R9_) (09.2016 - ) 1.3 TCe 160 (163 hp, 120 kW) RENAULT GRAND SCÉNIC IV (R9_) (09.2016 - ) 1.3 TCe 160 (R9NC) (159 hp, 117 kW) RENAULT KADJAR (HA_, HL_) (06.2015 - ) 1.3 TCe 140 (140 hp, 103 kW) RENAULT KADJAR (HA_, HL_) (06.2015 - ) 1.3 TCe 160 (HLNC) (160 hp, 117 kW) RENAULT KOLEOS II (HC_) (08.2016 - ) 1.3 TCe 160 (158 hp, 116 kW) RENAULT MEGANE IV Grandtour (K9A/M/N_) (04.2016 - ) 1.3 TCe 100 (K9N8) (100 hp, 75 kW) RENAULT MEGANE IV Grandtour (K9A/M/N_) (04.2016 - ) 1.3 TCe 115 (K9N9) (116 hp, 85 kW) RENAULT MEGANE IV Grandtour (K9A/M/N_) (04.2016 - ) 1.3 TCe 140 (K9NB) (140 hp, 103 kW) RENAULT MEGANE IV Grandtour (K9A/M/N_) (04.2016 - ) 1.3 TCe 160 (K9NC) (159 hp, 117 kW) RENAULT MEGANE IV Grandtour (K9A/M/N_) (04.2016 - ) 1.3 TCe 160 (K9NC) (163 hp, 120 kW) RENAULT MEGANE IV Hatchback (B9A/M/N_) (11.2015 - ) 1.3 TCe 100 (B9N8) (102 hp, 75 kW) RENAULT MEGANE IV Hatchback (B9A/M/N_) (11.2015 - ) 1.3 TCe 115 (B9N9) (116 hp, 85 kW) RENAULT MEGANE IV Hatchback (B9A/M/N_) (11.2015 - ) 1.3 TCe 140 (B9NB) (140 hp, 103 kW) RENAULT MEGANE IV Hatchback (B9A/M/N_) (11.2015 - ) 1.3 TCe 160 (B9NC) (159 hp, 117 kW) RENAULT MEGANE IV Hatchback (B9A/M/N_) (11.2015 - ) 1.3 TCe 160 (B9NC) (163 hp, 120 kW) RENAULT MEGANE IV Saloon (10.2016 - ) 1.3 TCe 115 (LVN9) (116 hp, 85 kW) RENAULT MEGANE IV Saloon (10.2016 - ) 1.3 TCe 140 (LVNB) (140 hp, 103 kW) RENAULT SCÉNIC IV (J9_) (09.2016 - ) 1.3 TCe 115 (J9N9) (115 hp, 85 kW) RENAULT SCÉNIC IV (J9_) (09.2016 - ) 1.3 TCe 140 (140 hp, 103 kW) RENAULT SCÉNIC IV (J9_) (09.2016 - ) 1.3 TCe 160 (163 hp, 120 kW) RENAULT SCÉNIC IV (J9_) (09.2016 - ) 1.3 TCe 160 (J9NC) (159 hp, 117 kW) RENAULT TALISMAN (LP_) (06.2015 - ) 1.3 TCe 160 (LPNC) (160 hp, 117 kW) RENAULT TALISMAN Grandtour (KP_) (03.2016 - ) 1.3 TCe 160 (KPNC) (160 hp, 117 kW)
