Subframe Alignment Pin Set for Ford, Jaguar and Land Rover
-
Code:70957
-
Weight:0.704 Kgs
Overview:
✔ Special alignment pin set for precise subframe positioning
✔ Ensures correct alignment of suspension and steering components
✔ Suitable for Ford, Jaguar and Land Rover vehicles
✔ Ideal after subframe, engine cradle or steering component removal
✔ Helps maintain proper wheel alignment geometry
✔ Compatible with OEM references Ford 205-316A and JLR 502-012
This professional alignment pin set is designed for the accurate positioning of subframes and engine cradles on a wide range of Ford, Jaguar and Land Rover vehicles.
Whenever a subframe or engine cradle is loosened, lowered or removed during repairs such as transmission replacement, engine work, steering repairs, catalytic converter replacement or bush servicing, correct repositioning is essential to maintain the vehicle's suspension geometry and steering alignment.
The alignment pins are inserted into the designated locating holes and secured using the supplied retaining plates. This ensures the subframe is returned to its original position before final tightening of the mounting bolts.
Using the correct alignment procedure helps reduce the risk of suspension misalignment and unnecessary wheel alignment adjustments after repair.
Applications
Suitable for:
- Subframe alignment
- Engine cradle positioning
- Suspension repairs
- Steering system repairs
- Transmission removal and installation
- Engine removal and installation
- Bush replacement procedures
Vehicle Compatibility
Ford
- C-Max
- Cougar
- Fiesta
- Focus
- Fusion
- Galaxy
- Kuga
- Mondeo
- Puma
- S-Max
- Transit
- Transit Connect
Jaguar
- E-Pace (X540)
Land Rover
- Discovery Sport (L550)
- Freelander 2 (L359)
- Range Rover Evoque (L538)
Tool References
Designed for use as:
- Ford 205-316A
- Ford 15-097B
- JLR 502-012
Usage Instructions
When reinstalling the subframe:
- Tighten the mounting bolts only enough to allow the subframe to remain movable.
- Insert the alignment pins into the designated locating holes.
- Position the retaining plates above the subframe and engage them in the alignment pin grooves.
- Rotate the retaining plates clockwise to secure the alignment pins.
- Align the subframe with the locating holes in the vehicle body.
- Tighten the subframe mounting bolts according to the manufacturer's specifications.
Features
- Precision-machined alignment pins
- Ensures accurate subframe positioning
- Helps maintain correct suspension geometry
- Suitable for professional workshop use
- Designed according to OEM specifications
Package Contents
Item No. included:

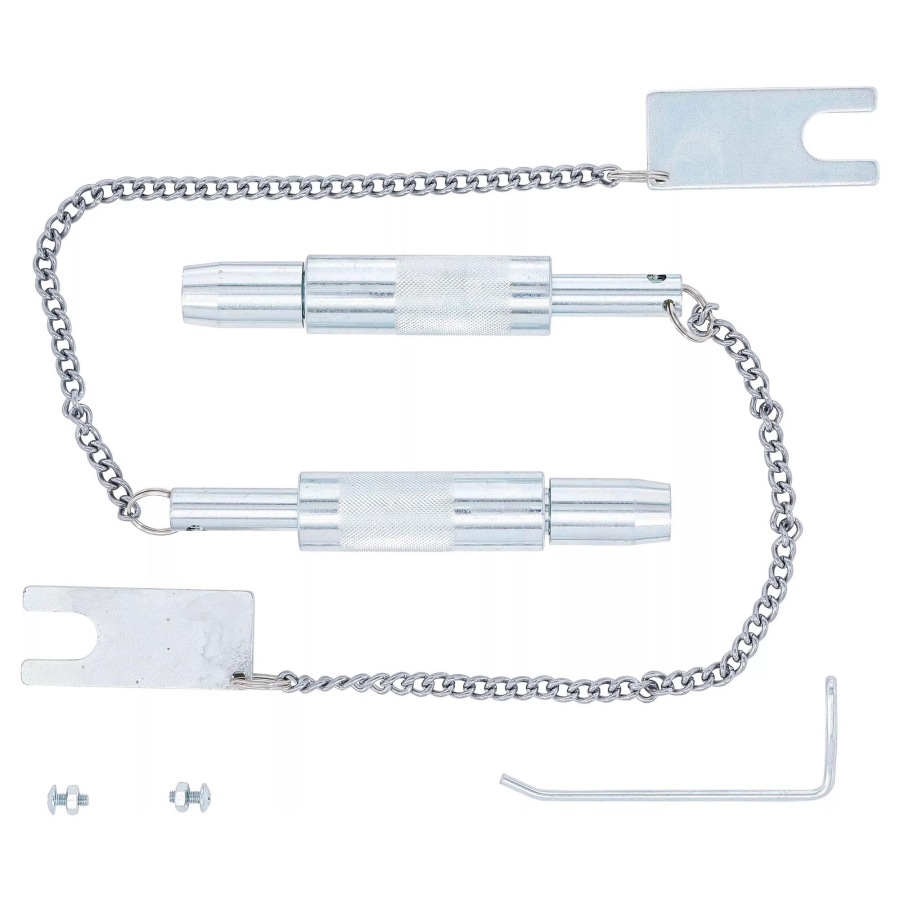

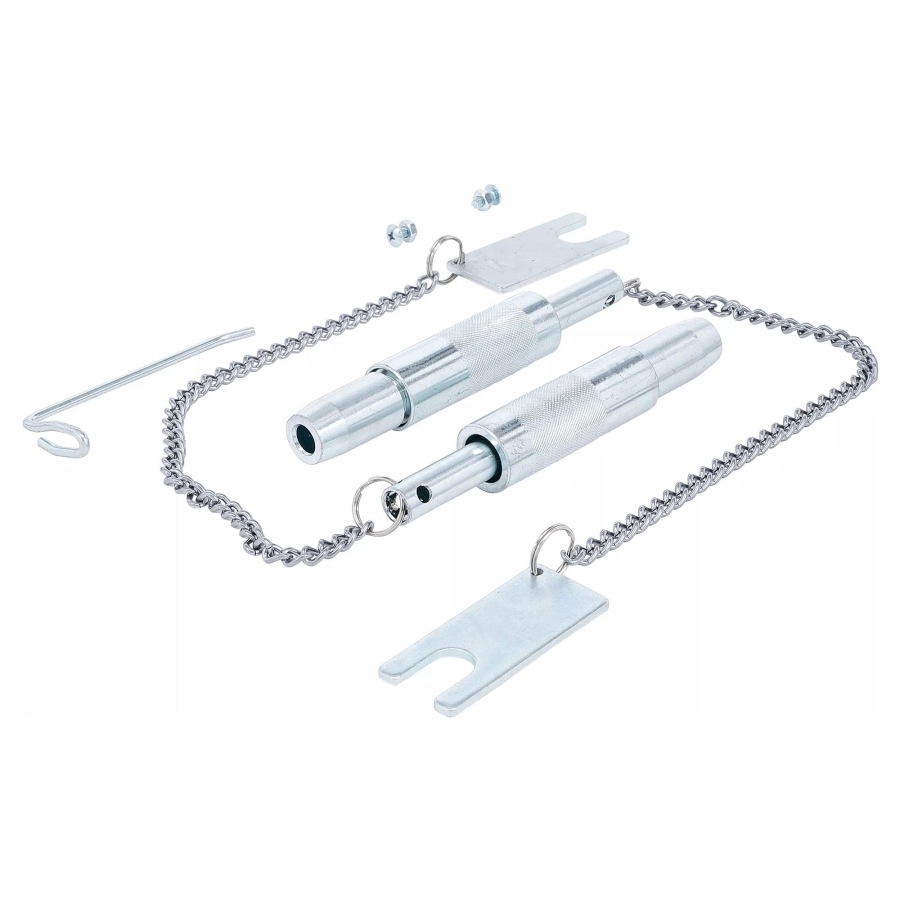

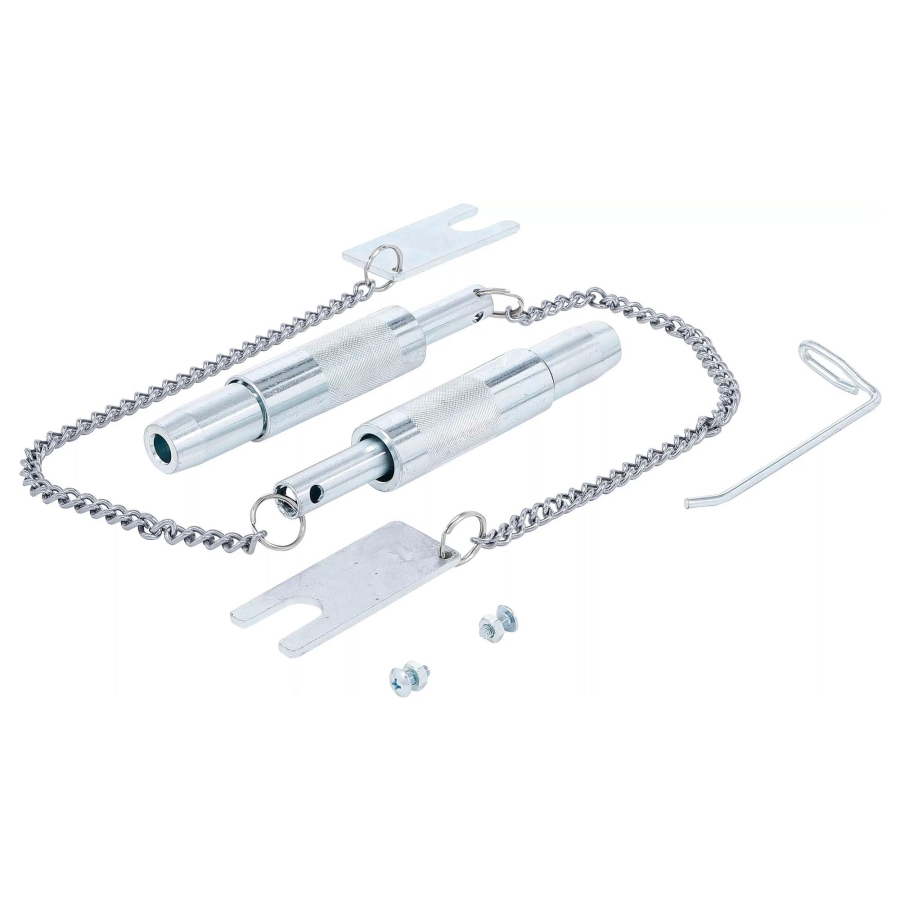

- 2 × Subframe alignment pins with retaining plates
Suitable for use as Ford 205-316A (15-097B) and JLR 502-012.
OEM numbers and reference numbers are provided for identification and comparison purposes only. This product is not an original Ford, Jaguar or Land Rover tool.
