Subframe Bushing Press Tool Set for Audi Q7, VW Touareg and Porsche Cayenne

Price: €145.00 283.60лв.

Code:

123481
Weight:

3.980 Kgs

Overview:
✔ Designed for removal and installation of subframe bushings at the front and rear axle
✔ Suitable for Audi Q7, VW Touareg and Porsche Cayenne
✔ Can be used directly on the vehicle without complete subframe removal
✔ Compatible with both hydraulic and mechanical applications
✔ Suitable for front and rear subframe bushings with similar diameters
✔ Professional workshop tool set comparable to VAG T10301 components

Subframe Bushing Press Tool Set for Audi Q7, VW Touareg and Porsche Cayenne

Send to friend

Rate this product

This specialized tool set is designed for the removal and installation of subframe mounting bushings in the front and rear subframe assemblies of selected Audi, Volkswagen and Porsche vehicles.

Because the front and rear bushings have nearly identical diameters, the same tool components can be used for both applications.

The bushings can be serviced directly on the vehicle after lowering the subframe, reducing repair time and avoiding unnecessary disassembly.

Vehicle Compatibility

Suitable for:

Audi

Audi Q7 (4LB) 2006–2016

Volkswagen

VW Touareg (7LA, 7L6, 7L7) 2002–2013
VW Touareg (7P5, 7P6) 2010–2019

Porsche

Porsche Cayenne (9PA) 2002–2011
Porsche Cayenne (92A) from 2010

Compatible Bushing References

Suitable for bushings such as:

Lemförder

36661 01
35950 01
35951 01

Meyle

100 610 0053

VAG

OEM 7L0 499 035 A
OEM 7L0 499 035 B
OEM 7L0 499 035 C

Porsche

OEM 955 341 133 01

Features

Removal and installation of front and rear subframe bushings
Service possible directly on the vehicle
Suitable for hydraulic or mechanical operation
Designed for professional workshop use
Precise alignment during installation
Heavy-duty construction

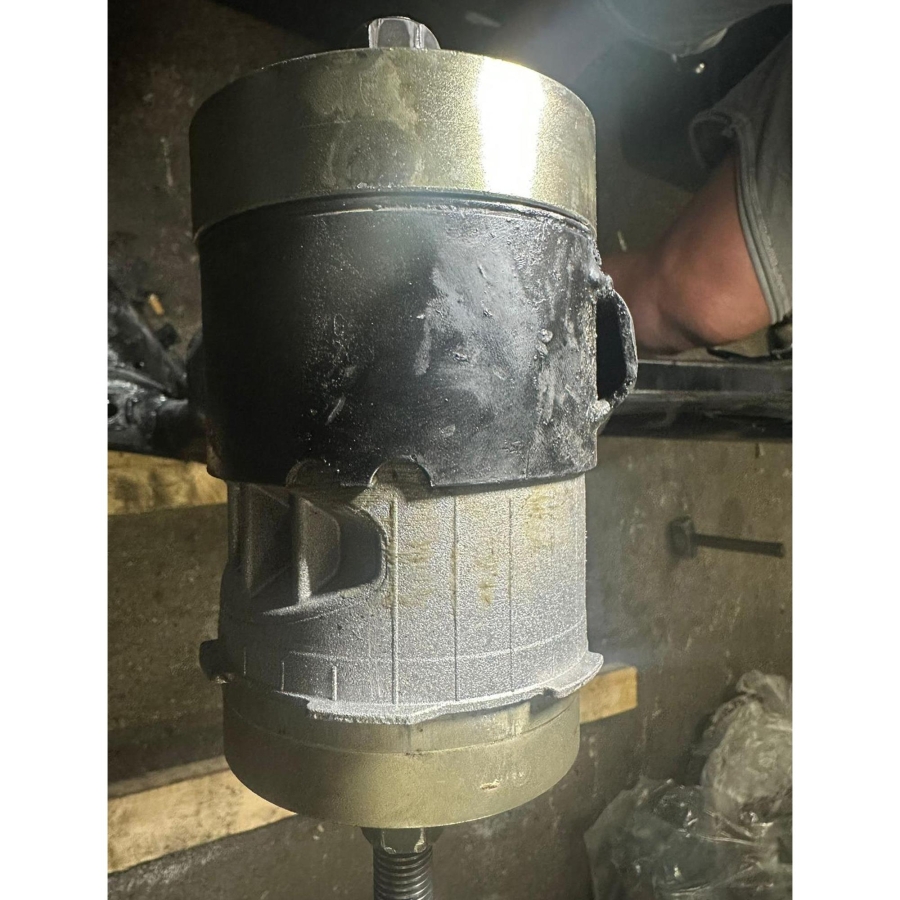

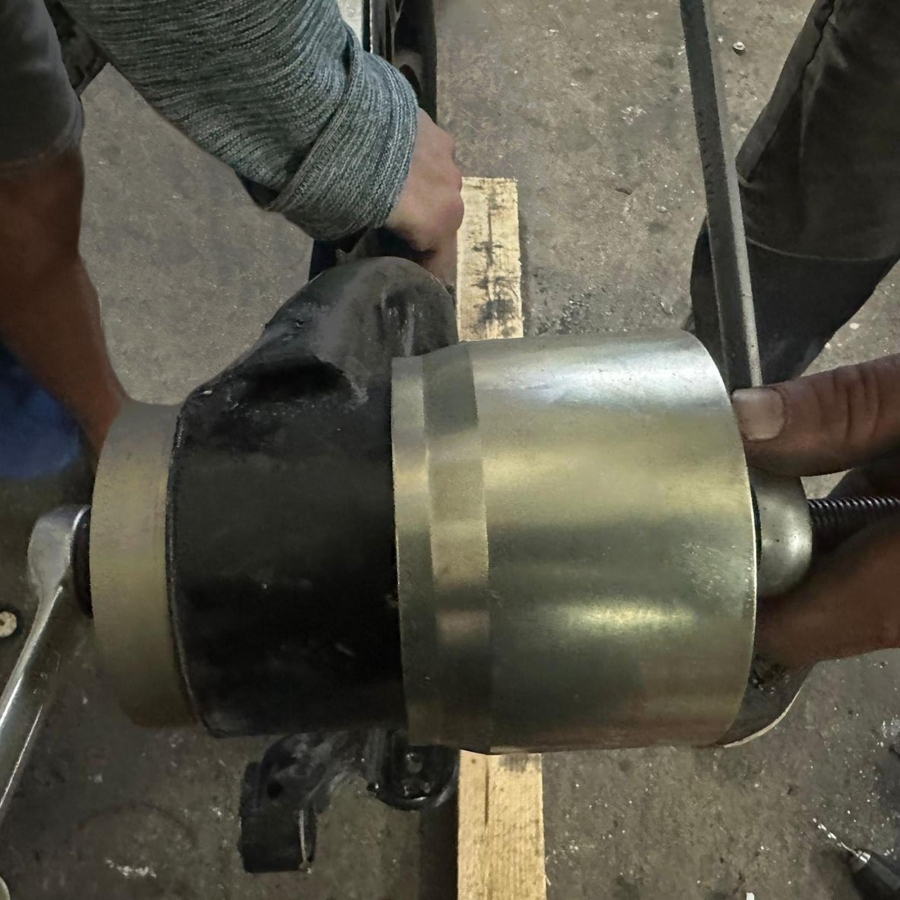

Installation and Removal

The procedure for front and rear axle bushings is identical.

Before removal:

Mark the original bushing position and transfer the markings to the replacement bushing
Apply sufficient lubricant to the spindle and bushing surfaces
Lower the subframe approximately 30–40 mm

For vehicles equipped with air suspension, activate the vehicle's jack mode before beginning work.

For V8 TDI models from 2011 onwards, the thrust washer must be counter-held during installation.

Technical Notes

This set does not include a spindle.

For hydraulic operation:

Hydraulic cylinder with M20 pull spindle required

For mechanical operation:

Pull and pressure spindle with minimum M16 thread required

Recommended tightening torques:

Subframe bolts: 120 Nm + 180°
Control arm nuts: 180 Nm

Reference Tool

Can be used in the same manner as:

VAG T10301/3
VAG T10301/4
VAG T10301/5
VAG T10301/6
VAG T10301/7
VAG T10301/15

(Components of VAG T10301)

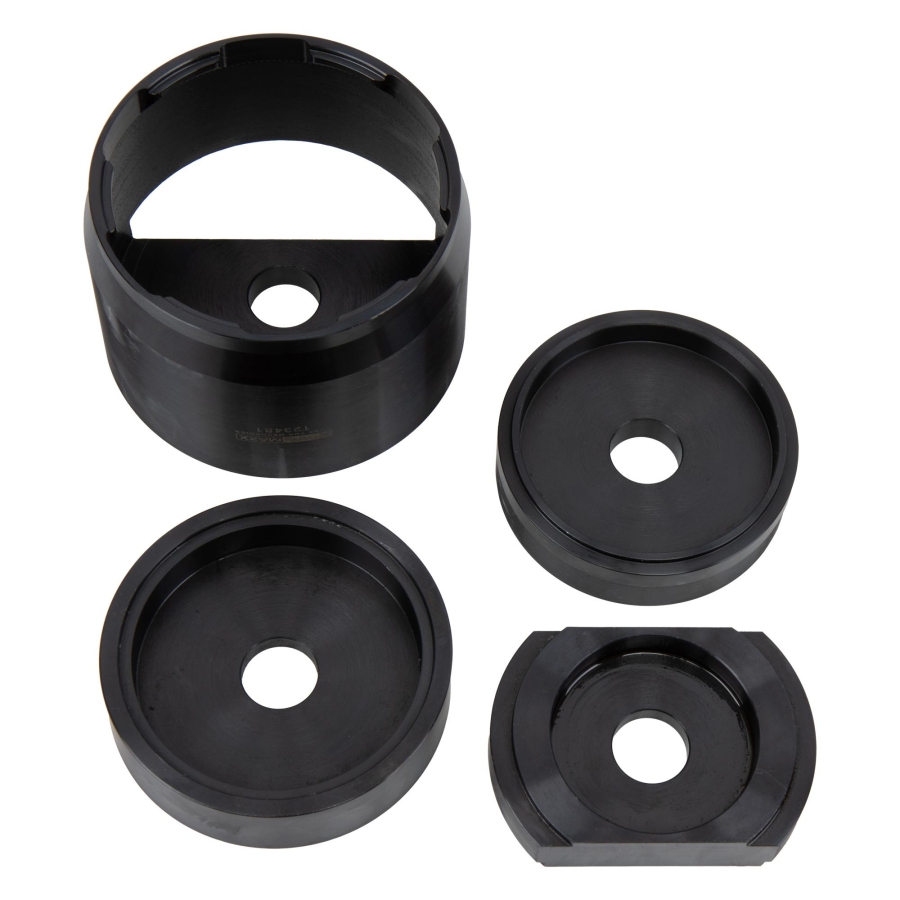

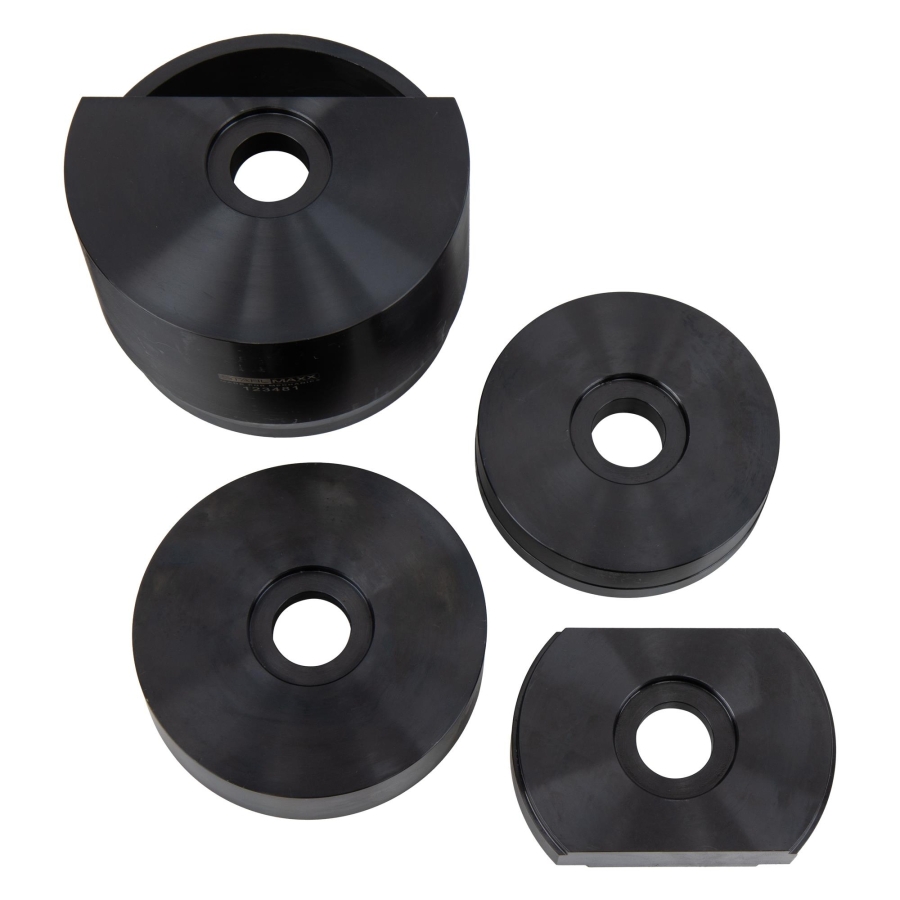

Package Contents

1 × Pressure adapter No. 1 for removal, Ø 91 mm (as T10301/5)

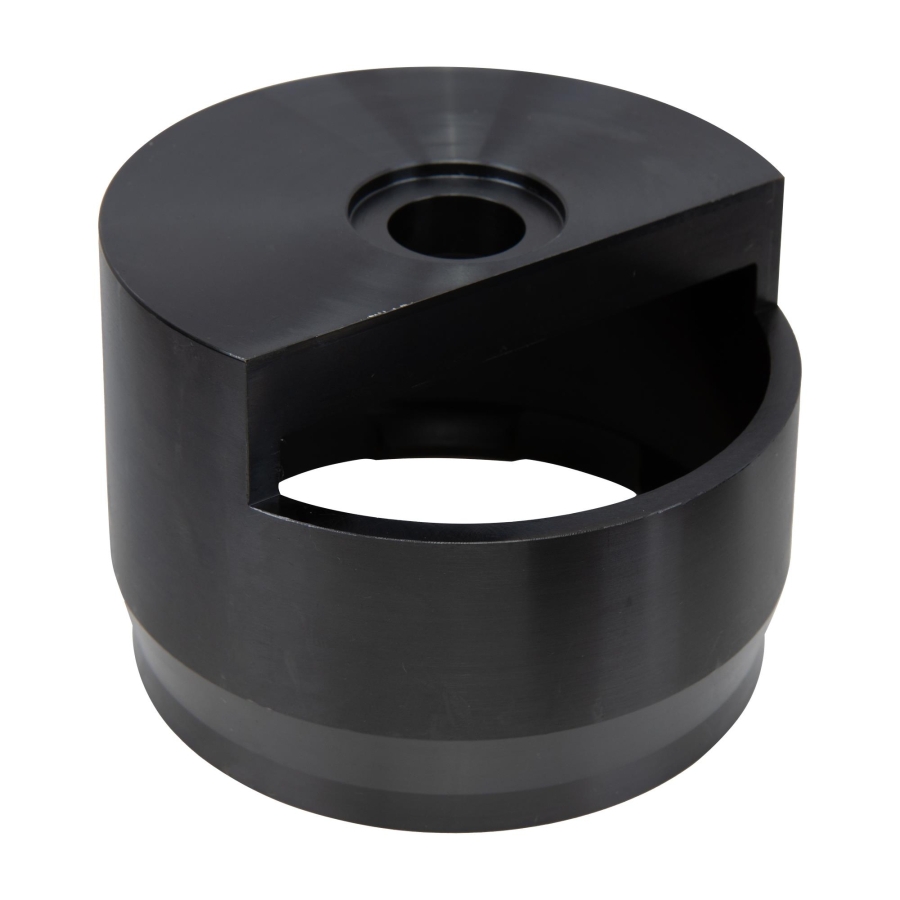

1 × Removal pressure sleeve No. 2 (as T10301/3, T10301/4)
1 × Installation pressure adapter No. 3, Ø 100 mm (as T10301/7)
1 × Installation pressure adapter No. 4, cut design (as T10301/6, T10301/15)

OEM and reference numbers are provided for identification purposes only. This product is not an original VAG or Porsche tool.

AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI (272 HP, 200 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (204 HP, 150 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (211 HP, 155 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (224 HP, 165 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (233 HP, 171 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (240 hp, 176 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (245 HP, 180 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TDI quattro (284 HP, 209 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TFSI quattro (272 HP, 200 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TFSI quattro (280 HP, 206 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.0 TFSI quattro (333 HP, 245 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 3.6 FSI quattro (280 HP, 206 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 4.2 FSI quattro (350 HP, 257 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 4.2 TDI quattro (326 HP, 240 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 4.2 TDI quattro (340 HP, 250 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 4.2 quattro (314 HP, 231 kW) AUDI Q7 (4LB) (03.2006 - 01.2016) 6.0 TDI quattro (500 HP, 368 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TDI quattro (204 HP, 150 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TDI quattro (211 HP, 155 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TDI quattro (232 HP, 171 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TDI quattro (240 hp, 176 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TDI quattro (245 HP, 180 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.0 TFSI quattro (333 HP, 245 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 3.6 FSI quattro (280 HP, 206 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 4.2 FSI quattro (350 HP, 257 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 4.2 TDI quattro (326 HP, 240 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 4.2 TDI quattro (340 HP, 250 kW) AUDI Q7 Van (4LB) (03.2006 - 08.2015) 6.0 TDI quattro (500 HP, 368 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (211 HP, 155 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (239 HP, 176 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (245 hp, 180 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (250 hp, 184 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (262 hp, 193 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 Diesel (333 hp, 245 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 S (333 hp, 245 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 S E-Hybrid (333 hp, 245 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.0 S E-Hybrid (416 hp, 306 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 (300 hp, 220 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 (305 hp, 224 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 GTS (440 hp, 324 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 GTS (446 hp, 328 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 S (420 hp, 309 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 3.6 S (426 HP, 313 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.2 S Diesel (382 HP, 281 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.2 S Diesel (385 HP, 283 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 GTS (420 HP, 309 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 S (400 HP, 294 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo (500 HP, 368 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo (520 HP, 382 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo (540 hp, 397 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo S (550 hp, 405 kW) PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo S (570 hp, 419 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) 3.0 TDI (240 hp, 176 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) 3.2 (241 hp, 177 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) 3.2 (250 hp, 184 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) 3.6 (290 hp, 213 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) GTS 4.8 (405 hp, 298 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) S 4.5 (250 hp, 184 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) S 4.5 (340 hp, 250 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) S 4.8 (385 hp, 283 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo 4.5 (450 hp, 331 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo 4.8 (507 hp, 373 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo S 4.5 (500 hp, 368 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo S 4.5 (521 hp, 383 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo S 4.8 (500 HP, 368 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo S 4.8 (540 HP, 397 kW) PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo S 4.8 (550 HP, 404 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 2.5 R5 TDI (163 HP, 120 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 2.5 R5 TDI (174 HP, 128 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.0 TDI (211 HP, 155 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.0 V6 TDI (225 HP, 165 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.0 V6 TDI (240 HP, 176 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.0 V6 TDI 4motion (284 HP, 209 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.2 V6 (220 HP, 162 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.2 V6 (241 HP, 177 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 3.6 V6 FSI (280 HP, 206 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 4.2 FSI (314 HP, 231 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 4.2 V8 (310 HP, 228 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 4.2 V8 FSI (350 HP, 257 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 5.0 R50 TDI (350 HP, 257 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 5.0 V10 TDI (313 HP, 230 kW) VW TOUAREG (7LA, 7L6, 7L7) (12.2002 - 01.2013) 6.0 W12 (450 HP, 331 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (204 HP, 150 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (225 HP, 165 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (240 HP, 176 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (245 HP, 180 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (262 HP, 193 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TDI (284 HP, 209 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TSI (290 HP, 213 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TSI (320 HP, 235 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TSI Hybrid (333 HP, 245 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.0 V6 TSI Hybrid (385 HP, 283 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.6 V6 FSI (249 HP, 183 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 3.6 V6 FSI (280 HP, 206 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 4.2 V8 FSI (360 HP, 265 kW) VW TOUAREG (7P5, 7P6) (01.2010 - 12.2018) 4.2 V8 TDI (340 HP, 250 kW) VW TOUAREG VAN (7P5) (05.2011 - 12.2014) 3.0 TDI 4motion (245 HP, 180 kW)
