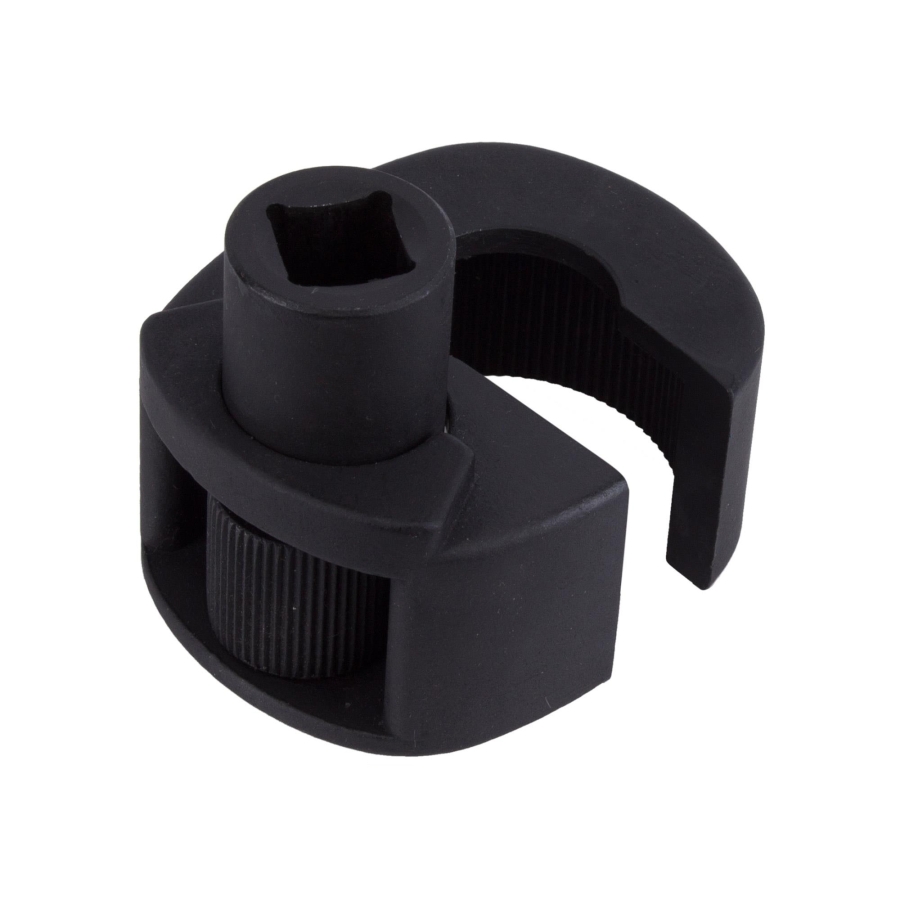

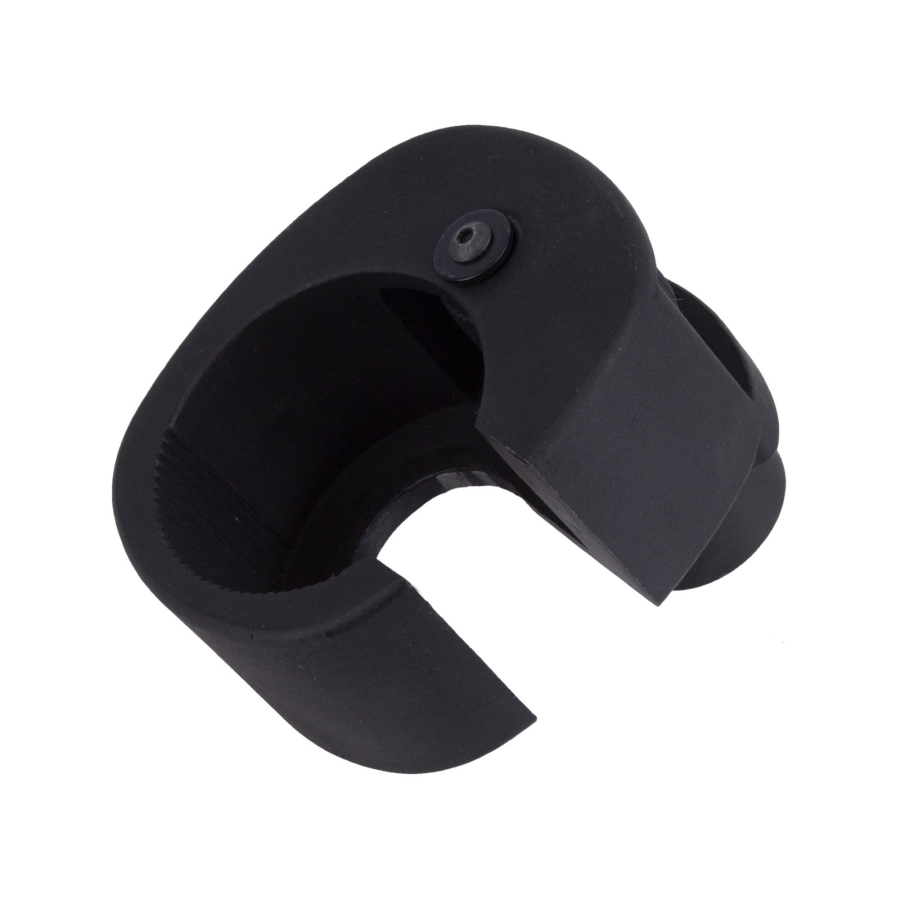

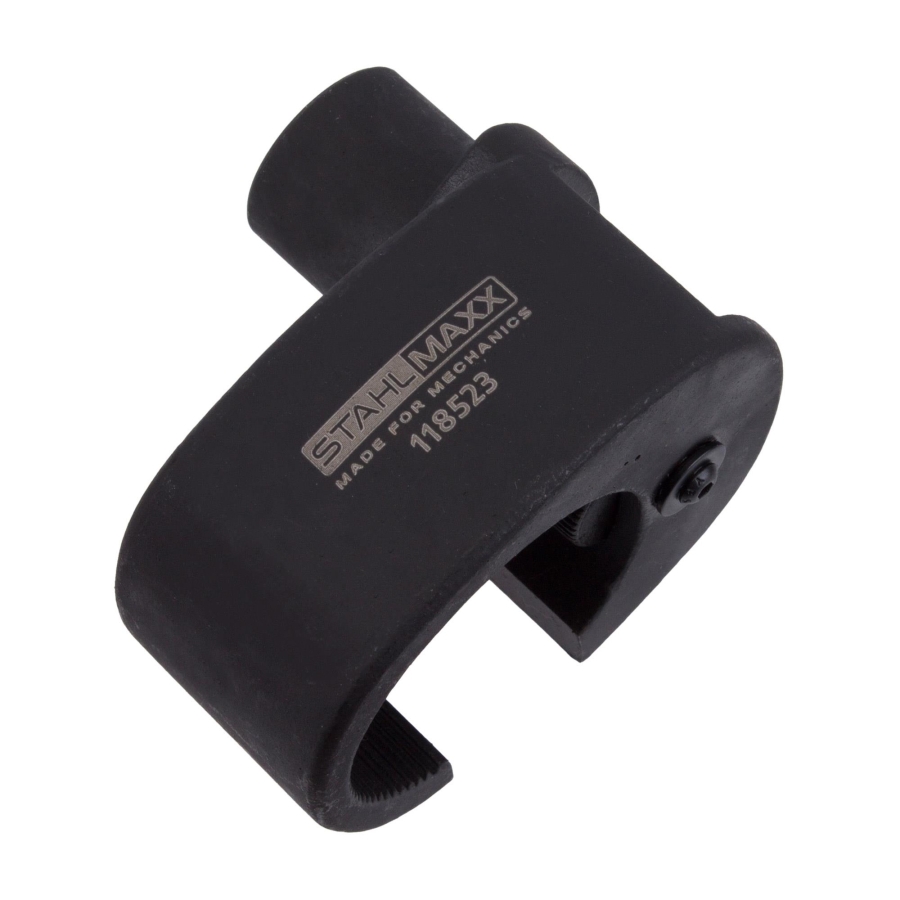

Tie Rod and Axial Joint Tool 33–42 mm Without Tie Rod End Removal
-
Code:118523
-
Weight:0.300 Kgs
Overview:
✔ Removes and installs tie rods without removing the tie rod end
✔ Suitable for tie rods and axial joints with diameters from 33–42 mm
✔ Open design allows quick installation directly onto the tie rod
✔ Operates with any 1/2" extension outside the wheel arch
✔ Eliminates the need to remove the lock nut and tie rod end
✔ Secure grip without slipping, even at torque levels exceeding 120 Nm

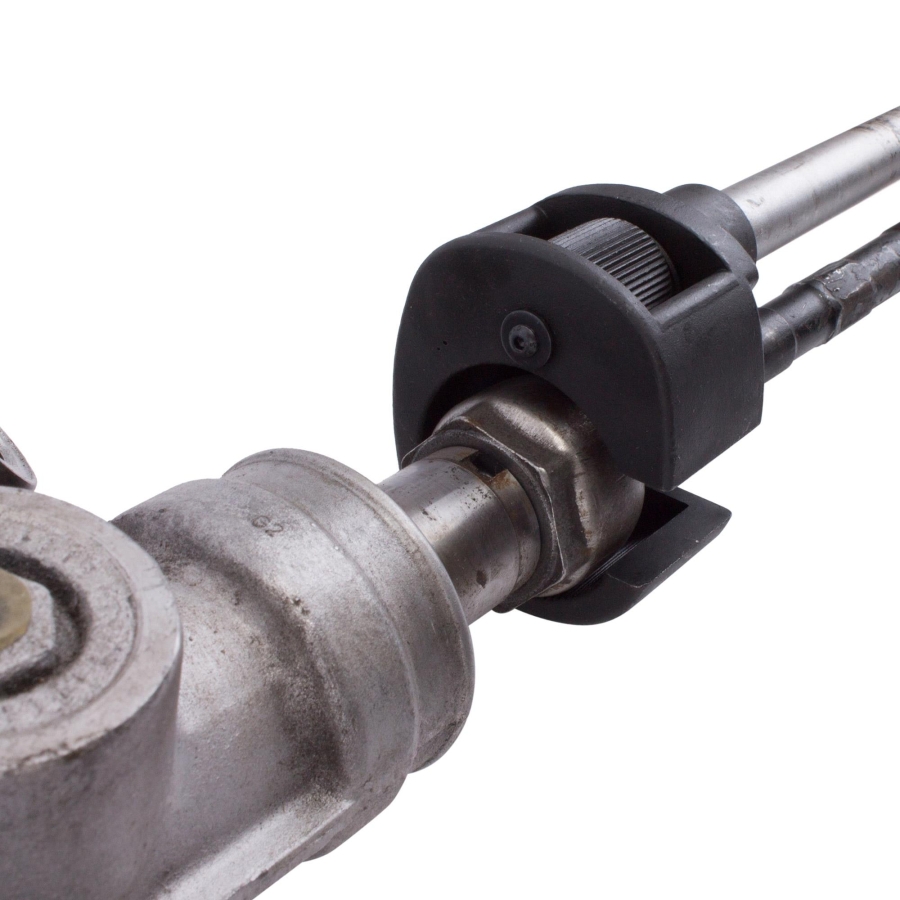

This special tool is designed for loosening and tightening tie rods and axial joints with diameters ranging from 33 mm to 42 mm without removing the tie rod end.
Its unique open design allows the tool to be quickly positioned directly onto the tie rod, significantly reducing service time compared to conventional methods.
No Tie Rod End Removal Required
Unlike traditional tie rod tools, this design eliminates the need to remove:
- The tie rod end
- The lock nut
To remove the complete tie rod assembly, only the steering rack boot needs to be moved forward, simplifying the repair process and reducing labor time.
Maintains Steering Geometry Settings
Because the tie rod length remains unchanged during removal and installation, there is no adjustment of the steering geometry.
This helps:
- Preserve the original alignment settings
- Reduce wheel alignment correction time
- Minimize workshop downtime
- Improve repair efficiency
In cases where tie rod ends are seized, further disassembly can be performed more easily in a bench vise after removal.

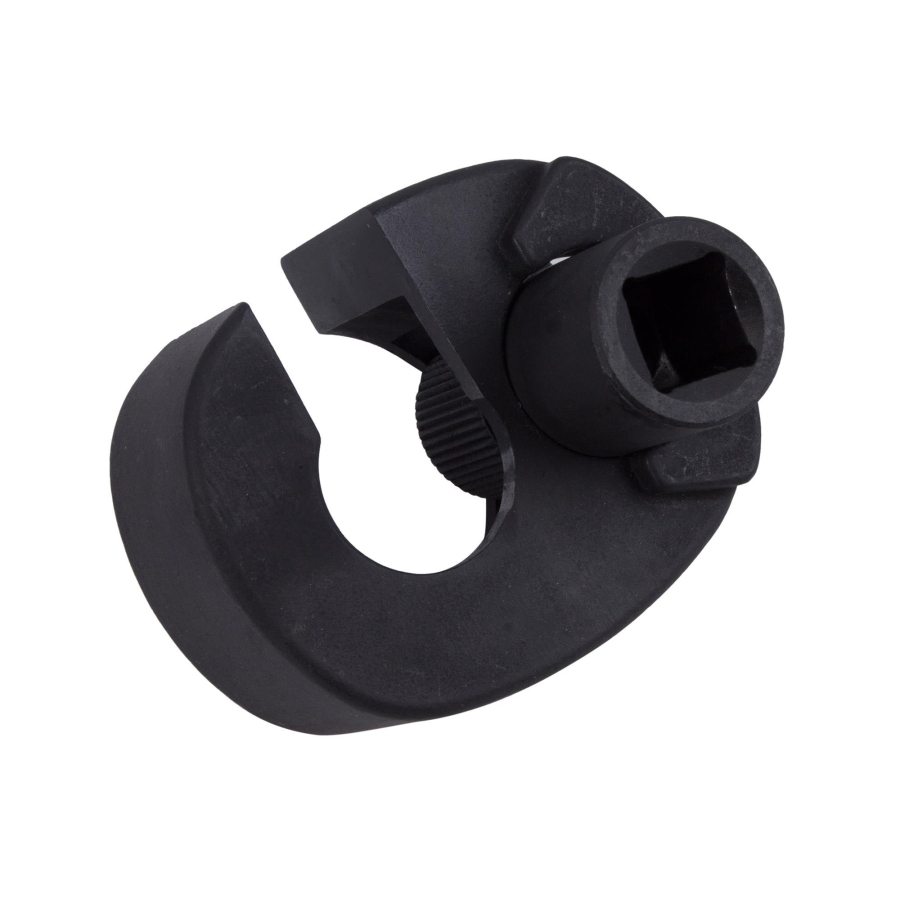

Open Design for Fast Installation
The specially designed open housing enables quick and easy positioning on the tie rod without requiring access from the end of the assembly.
The tool can be operated using any standard 1/2" extension outside the wheel arch, providing improved access and convenience during service work.
Secure Grip Under High Torque
The tool provides a secure hold on the tie rod and helps prevent slipping, even when working with heavily tightened components.
Suitable for applications exceeding:
- 120 Nm tightening torque
Technical Specifications
- Tool type: Tie rod and axial joint tool
- Application: Removal and installation of tie rods and axial joints
- Tie rod diameter range: 33–42 mm
- Drive: 1/2" extension
- Design: Open-body construction
- Slip-resistant design for high-torque applications
Technical Information
- Suitable for loosening and tightening tie rods
- No tie rod end removal required
- Reduces repair and wheel alignment time
- Suitable for professional workshop use
- Compatible with tie rods and axial joints from 33–42 mm diameter
