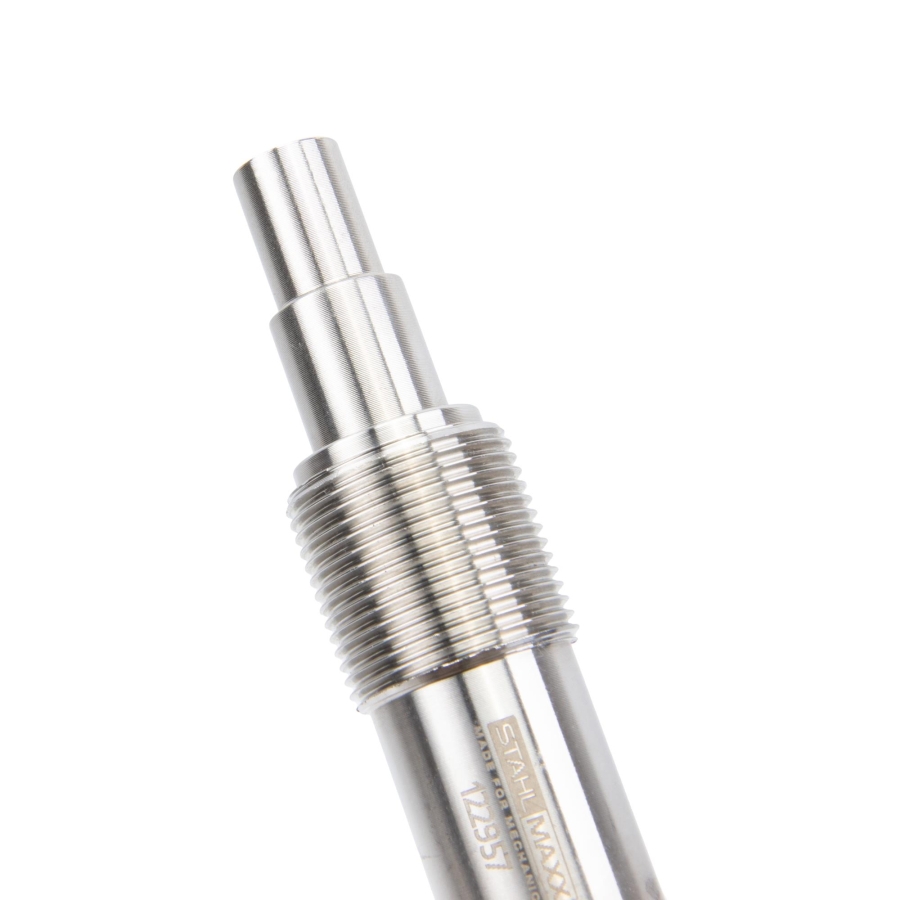

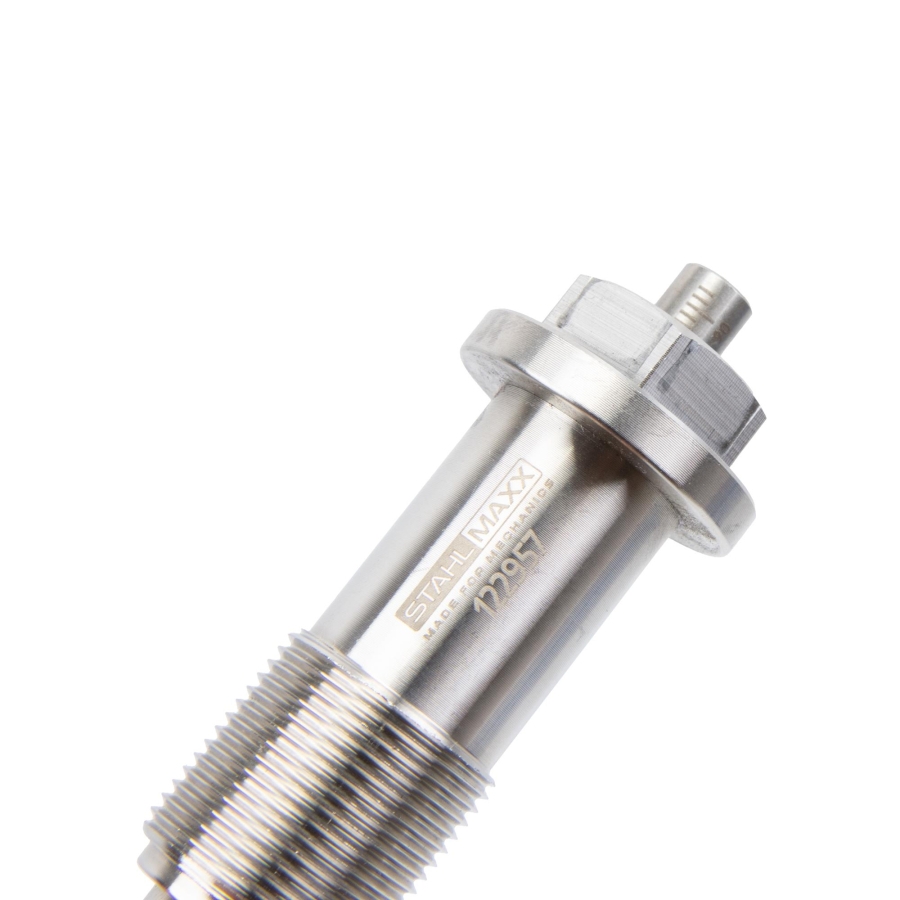

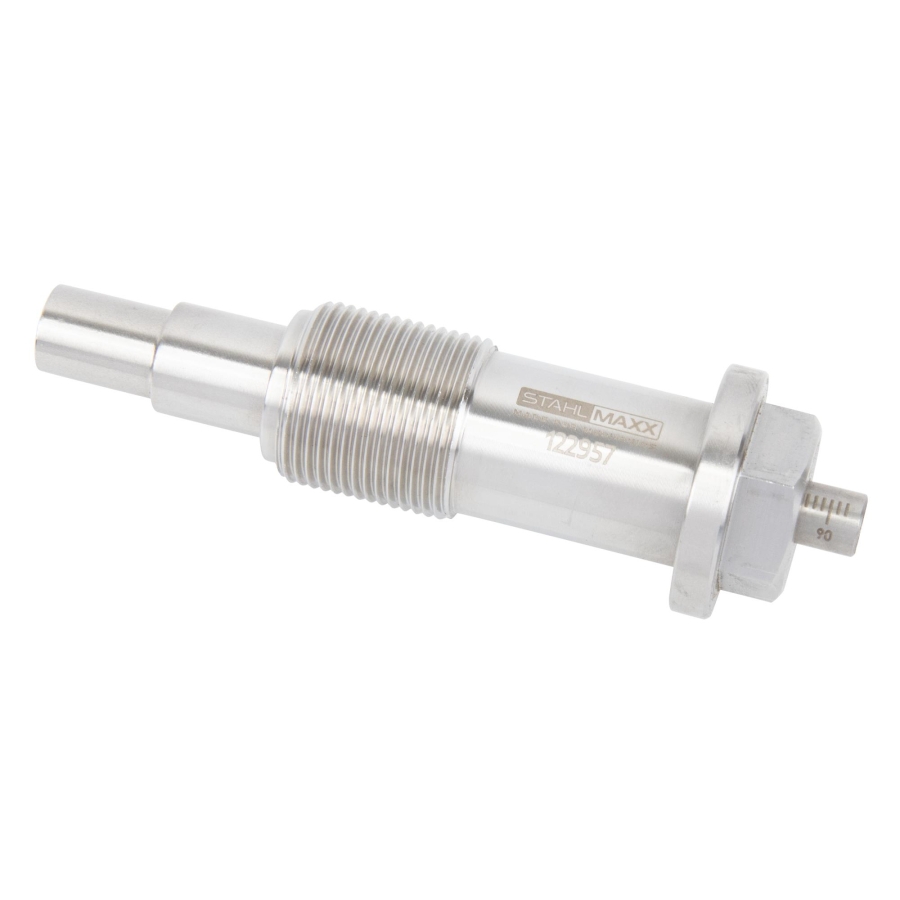

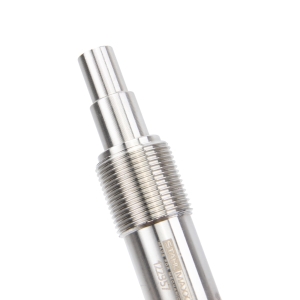

Timing Chain Measurement Tensioner / Wear Indicator – Mercedes OM642 – as W642589036300

This tool is used for measuring timing chain elongation and wear condition on Mercedes OM642 engines.

It enables early diagnosis of chain stretch without dismantling the engine, allowing condition assessment of the timing chain system.

---

Application Procedure

Remove the original chain tensioner.

Install the measuring tensioner with 20 Nm torque without gasket.

Rotate the engine manually for 2 full revolutions.
Record the highest reading value, typically at ignition TDC of cylinder 1.

For improved readability, place a rubber O-ring on the scale.
The O-ring will move along the scale and indicate the maximum reading.

---

Measurement Evaluation

A reading above 81 mm indicates excessive chain elongation and requires timing chain replacement.

---

Important Safety Notes

The engine must only be started with the original Mercedes chain tensioner installed.

This measuring tool is intended only for manual rotation of the engine in the correct direction.

Failure to follow these instructions may result in chain skipping, incorrect timing, and severe engine damage.

---

Torque Specifications

Original chain tensioner: 80 Nm (replace sealing ring)
Measuring tensioner: 20 Nm (install without sealing ring)

---

Compatibility – Reference Tensioners

Compatible with Mercedes chain tensioners as:
A6420500211, A6420500311

---

Engine Compatibility

Suitable for Mercedes engines:

• OM642

---

Reference and Notes

• Can be used as Mercedes tool as W642589036300



OEM numbers are for reference purposes only. This product is not an original tool.

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 320 CDI (203.020) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 300 CDI 4-matic (204.092) (231 HP, 170 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 320 CDI (204.022) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 320 CDI 4-matic (204,089) (224 hp, 165 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.022) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.023) (265 HP, 195 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.025) (231 HP, 170 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI 4-matic (204.089) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI 4-matic (204.092) (231 HP, 170 kW)

MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 320 CDI (203.220) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 300 CDI 4-matic (204.292) (231 HP, 170kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 320 CDI (204.222) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 320 CDI 4-matic (204.289) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.223) (265 HP, 195 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.225) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.225) (231 HP, 170 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI 4-matic (204.289) (224 HP, 165 kW)

MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI 4-matic (204.292) (231 HP, 170kW)

MERCEDES-BENZ CLK (C209) (05.2002 - 03.2010) 320 CDI (209.320) (224 HP, 165 kW)

MERCEDES-BENZ CLK Cabriolet (A209) (06.2002 - 03.2010) CLK 320 CDI (209.420) (224 HP, 165 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d (218.326) (252 HP, 185 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d (218,326) (258 hp, 190 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d 4-matic (218.394) (252 HP, 185 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 CDI / d (218.323) (265 HP, 195 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 CDI / d 4-matic (218.393) (265 HP, 195 kW)

MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 d 4-matic (218.394) (258 HP, 190 kW)

MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 320 CDI (211 HP, 155 kW)

MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 320 CDI (219.322) (224 HP, 165 kW)

MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 350 CDI (219.322) (224 HP, 165 kW)

MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 350 CDI (272 HP, 200 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d (218.926) (252 HP, 185 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d (218.926) (258 HP, 190 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d 4-matic (218.994) (252 HP, 185 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 CDI / d (218.923) (265 HP, 195 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 CDI / d 4-matic (218.993) (265 HP, 195 kW)

MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 d 4-matic (218.994) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 280 CDI (211.020) (190 HP, 140 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 280 CDI 4-matic (211.084) (190 HP, 140 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 300 BlueTEC (211.024) (211 HP, 155 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 BlueTEC (211.022) (212 HP, 156 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 CDI (211.022) (224 HP, 165 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 CDI 4-matic (211.089) (224 HP, 165 kW)

MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E320 CDI (211.022) (212 HP, 156 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 300 CDI (212.020) (204 HP, 150 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 300 CDI / BlueTEC (212.020, 212.021, 212.027) (231 HP, 170 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (212.024) (211 HP, 155 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (212.026) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC 4-matic (212.094) (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC 4-matic (212.094) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (212.023) (265 HP, 195 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (212,025) (231 hp, 170 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (214 HP, 157 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (265 HP, 195 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI 4-matic (212.089) (231 HP, 170 kW)

MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI 4-matic (212,093) (265 hp, 195 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 350 d (213.033) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 350 d 4-matic (213.034) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 350 d 4-matic (213.237) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 BlueTEC (207.426) (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 BlueTEC/ d (207.426) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 CDI (207.422) (231 HP, 170 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 CDI (207.423) (265 HP, 195 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 350 d 4-matic (238.434) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 BlueTEC (207.326) (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 BlueTEC / d (207.326) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 CDI (207.322) (231 hp, 170 kW)

MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 CDI (207.323) (265 hp, 195 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 350 d 4-matic (238.334) (258 hp, 190 kW)

MERCEDES-BENZ E-CLASS Flatbed/Chassis (VF211) (03.2003 - 07.2009) E 280 CDI (211.620) (190 hp, 140 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 280 T CDI (211.220) (190 HP, 140 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 280 T CDI 4-matic (211.284) (190 HP, 140 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI (211.222) (211 HP, 155 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI (211.222) (224 HP, 165 kW)

MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI 4-matic (211.289) (224 HP, 165 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 300 CDI (212.220) (204 HP, 150 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 300 CDI / BlueTEC (212.227, 212,221) (231 hp, 170 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (212.224) (211 HP, 155 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (212.226) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC 4-matic (212.294) (252 HP, 185 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC 4-matic (212.294) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI (212.223) (265 HP, 195 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI (212.225) (231 HP, 170kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI 4-matic (212.289) (231 HP, 170 kW)

MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI 4-matic (212.293) (265 HP, 195 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 350 d (213.233) (258 HP, 190 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 350 d 4-matic (213.234) (258 HP, 190 kW)

MERCEDES-BENZ G-CLASS (W461) (09.1989 - 07.2000) G 280 CDI (461.304, 461.346, 461.370, 461.334, 461.339,... (184 HP, 135 kW)

MERCEDES-BENZ G-CLASS (W461) (09.1989 - 07.2000) G 300 CDI (461.333) (184 HP, 135 kW)

MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 320 CDI (463.340, 463.341, 463.343) (224 HP, 165 kW)

MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 CDI (211 HP, 155 kW)

MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 CDI (463.306) (224 HP, 165 kW)

MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 d (463.348) (245 HP, 180 kW)

MERCEDES-BENZ G-CLASS Cabrio (W463) (09.1989 - 12.2011) G 320 CDI (463.303) (224 HP, 165 kW)

MERCEDES-BENZ G-CLASS Convertible (W463) (09.1989 - 12.2011) G 350 CDI (211 HP, 155 kW)

MERCEDES-BENZ G-CLASS Cabrio (W463) (09.1989 - 12.2011) G 350 CDI (463.306) (224 HP, 165 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) (211 HP, 155 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI 4-matic (164.822) (224 HP, 165 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI 4-matic (218 HP, 160 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4-matic (164.822) (224 HP, 165 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4-matic (164.823) (265 HP, 195 kW)

MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4-matic (231 HP, 170 kW)

MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTEC 4-matic (166.824) (243 HP, 179 kW)

MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTEC 4-matic (166.824) (249 HP, 183 kW)

MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTec 4-matic (166.823, 166.824) (258 HP, 190 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 350 d 4-matic (253.925) (258 HP, 190 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 350 d 4-matic (253.325) (258 HP, 190 kW)

MERCEDES-BENZ GLE (W166) (04.2015 - 10.2018) 350 d 4-matic (166.024) (249 HP, 183 kW)

MERCEDES-BENZ GLE (W166) (04.2015 - 10.2018) 350 d 4-matic (166.024) (258 HP, 190 kW)

MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4-matic (292.323, 292.324) (258 HP, 190 kW)

MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4-matic (292.324) (243 HP, 179kW)

MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4-matic (292.324) (249 HP, 183 kW)

MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 320 CDI 4-matic (204.983) (224 HP, 165 kW)

MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4-matic (204.992) (224 HP, 165 kW)

MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4-matic (204.992) (231 HP, 170 kW)

MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4-matic (204.993) (265 HP, 195 kW)

MERCEDES-BENZ GLS (X166) (11.2015 - 04.2019) 350 d 4-matic (166.824) (249 HP, 183 kW)

MERCEDES-BENZ GLS (X166) (11.2015 - 04.2019) 350 d 4-matic (166.824) (258 HP, 190 kW)

MERCEDES BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 280 CDI 4-matic (164.120) (190 HP, 140 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 300 CDI 4-matic (164.120) (190 HP, 140 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 300 CDI 4-matic (164.121) (204 HP, 150 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4-matic (164.122) (224 HP, 165 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4-matic (164.124, 164.125, 164.122) (211 HP, 155 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4-matic (218 HP, 160 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4-matic (164.122) (224 HP, 165 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4-matic (164.125, 164.124) (211 HP, 155 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4-matic (164.125, 164.124) (231 HP, 170 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4-matic (214 HP, 157 kW)

MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4-matic (258 HP, 190 kW)

MERCEDES-BENZ M-CLASS (W166) (06.2011 - 12.2015) ML 350 BlueTEC 4-matic (166.024) (258 HP, 190 kW)

MERCEDES-BENZ M-CLASS (W166) (06.2011 - 12.2015) ML 350 CDI 4-matic (166.023) (231 HP, 170 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 280 CDI (251.121, 251.026, 251.126) (190 HP, 140 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 280 CDI 4-matic (251.020) (190 HP, 140 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 300 CDI (251.021, 251.121, 251.026, 251.126) (190 HP, 140 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 300 CDI 4-matic (251.020) (190 HP, 140 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4-matic (214 HP, 157 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4-matic (218 HP, 160 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4-matic (251.022, 251.122) (224 HP, 165 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4-matic (251.125) (211 HP, 155 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4-matic (214 HP, 157 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4-matic (251.022, 251.122) (224 HP, 165 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4-matic (251.023, 251.123) (265 HP, 195 kW)

MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4-matic (251.124, 251.125) (211 HP, 155 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI (211 HP, 155 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI (221.022, 221.122) (235 HP, 173 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI 4-matic (221.080, 221.180) (211 HP, 155 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI 4-matic (221.080, 221,180) (235 hp, 173 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 BlueTEC 4-matic (221.083, 221.183) (258 HP, 190 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 BlueTec (221.026, 221.126) (258 HP, 190 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI (211 HP, 155 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI (235 HP, 173 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI 4-matic (221.080, 221.081) (211 HP, 155 kW)

MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI 4-matic (221.080, 221.180) (235 HP, 173 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 BlueTEC / d (222.132, 222.032, 222.123) (258 HP, 190 kW)

MERCEDES-BENZ S-CLASS (W222, V222,

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 BlueTEC 4-matic (222.133) (252 HP, 185 kW)

MERCEDES-BENZ SPRINTER 3.5-t bus (906) (06.2006 - 05.2016) 318 CDI (906.731, 906.733, 906.735) (184 HP, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 318 CDI 4x4 (906.731, 906.733, 906.735) (184 HP, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 319 CDI / BlueTEC (906.731, 906.733, 906.735) (190 HP, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t bus (906) (06.2006 - 05.2016) 319 CDI / BlueTEC 4x4 (906.731, 906.733, 906.735) (190 HP, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 318 CDI (906.631, 906.633, 906.635, 906.637) (184 HP, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 318 CDI 4x4 (906.631, 906.633, 906.635, 906.637) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) (190 HP, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 319 CDI / BlueTEC 4x4 (906.631, 906.633, 906.635,... (190 HP, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t box (907, 910) (02.2018 - ) 319 CDI All-wheel drive (907.633, 907.635, 907.637) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Panel Van (907, 910) (02.2018 - ) 319 CDI RWD (907.633, 907.635, 907.637) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Flatbed/Chassis (906) (06.2006 - 12.2016) 318 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 318 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 319 CDI / BlueTEC (906.131, 906.133, 906.135, 906.231,... (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 319 CDI / BlueTEC 4x4 (906.131, 906.133, 906.135,... (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (907, 910) (02.2018 - ) 319 CDI all-wheel drive (907.133, 907.135, 907.233) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (907, 910) (02.2018 - ) 319 CDI RWD (907.133, 907.135, 907.233, 907.235) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Tourer Bus (907) (02.2018 - ) 319 CDI (907.733, 907.735) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3.5-t Tourer Bus (907) (02.2018 - ) 319 CDI All-wheel drive (907.733) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3-t Panel Van (906) (06.2006 - 12.2009) 218 ​​CDI (906.611, 906.613) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 3-t Panel Van (906) (06.2006 - 12.2009) 219 CDI / BlueTEC (906.611, 906.613) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 3-t Flatbed/Chassis (906) (06.2006 - 05.2016) 218 ​​CDI (906.111, 906.113, 906.211, 906.213) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 3-t Flatbed/Chassis (906) (06.2006 - 05.2016) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4.6-t Van (906) (06.2006 - 12.2018) 418 CDI (906.653, 906.655, 906.657) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 4.6-t Panel Van (906) (06.2006 - 12.2018) 419 CDI (906.653, 906.655, 906.657) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4.6-t Platform/Chassis (906) (06.2006 - 12.2018) 418 CDI (906.153, 906.155, 906.253, 906.255) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 4.6-t Platform/Chassis (906) (06.2006 - 12.2018) 419 CDI (906.153, 906.155, 906.253, 906.255) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4-t Panel Van (907, 910) (02.2018 - ) 419 CDI All-Wheel Drive (907.643, 907.645, 907.647) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4-t Panel Van (907, 910) (02.2018 - ) 419 CDI RWD (907.643, 907.645, 907.647) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4-t Flatbed/Chassis (907, 910) (02.2018 - ) 419 CDI All-wheel drive (907.143, 907.145, 907.243, 907.245) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 4-t flatbed/chassis (907, 910) (02.2018 - ) 419 CDI RWD (907.143, 907.145, 907.243, 907.245) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t bus (906) (06.2006 - ) 519 CDI (906.755, 906.757) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t Van (906) (06.2006 - 05.2016) 518 CDI (906.653, 906.655, 906.657) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 5-t Van (906) (06.2006 - 05.2016) 518 CDI 4x4 (906.653, 906.655, 906.657) (184 hp, 135 kW)

MERCEDES-BENZ SPRINTER 5-t Van (906) (06.2006 - 05.2016) 519 CDI / BlueTEC (906.653, 906.655, 906.657) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t Van (906) (06.2006 - 05.2016) 519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t Van (907) (02.2018 - ) 519 CDI (907.653, 907.655, 907.657) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t Van (907) (02.2018 - ) 519 CDI All-wheel drive (907.653, 907.655, 907.657) (190 PS, 140 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 518 CDI (906.153, 906.155, 906.253, 906.255) (184 PS, 135 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 518 CDI 4x4 (906.153, 906.155, 906.253, 906.255) (184 PS, 135 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 519 CDI / BlueTEC 4x4 (906.153, 906.155, 906.253,... (190 hp, 140 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (907) (02.2018 - ) 519 CDI (907.153, 907.155, 907.253, 907.255) (190 PS, 140 kW)

MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (907) (02.2018 - ) 519 CDI all-wheel drive (907.153, 907.155, 907.253, 907.255) (190 hp, 140 kW)

MERCEDES-BENZ VIANO (W639) (09.2003 - 07.2007) CDI 3.0 (639.811, 639.813, 639.815) (204 hp, 150 kW)

MERCEDES-BENZ VIANO (W639) (09.2003 - 07.2007) CDI 3.0 (639.811, 639.813, 639.815) (224 hp, 165 kW)

MERCEDES-BENZ VITO / MIXTO Panel Van (W639) (09.2003 - 02.2015) 120 CDI (639.601, 639.603, 639.605) (204 hp, 150 kW)

MERCEDES-BENZ VITO / MIXTO Panel Van (W639) (09.2003 - 02.2015) 122 CDI (639.601, 639.603, 639.605) (224 hp, 165 kW)

MERCEDES-BENZ VITO Bus (W639) (09.2003 - 02.2015) 120 CDI (639.701, 639.703, 639.705) (204 HP, 150 kW)

MERCEDES-BENZ VITO Bus (W639) (09.2003 - 02.2015) 122 CDI (639.701, 639.703, 639.705) (224 HP, 165 kW)

MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 350 d 4-matic (470.252) (258 HP 190 kW)
