Trailing Arm Bushing Tool for Honda and Acura

This specialized tool set is designed for the removal and installation of the bushing in the rear trailing arm on selected Honda and Acura vehicles.

The tool enables efficient replacement of the trailing arm bushing while the trailing arm remains installed on the vehicle, reducing repair time and minimizing unnecessary disassembly.

Features

The tool is engineered to provide secure mounting and controlled force during bushing replacement operations.

Key benefits include:

• Replacement of rear trailing arm bushings directly on the vehicle
• No need to remove the complete trailing arm assembly
• Safe and precise installation and removal process
• Reduced repair time
• Suitable for professional workshop use

Adjustable Hook Foot Design

The tool is equipped with adjustable hook feet that allow the distance between the hooks to be adjusted according to the trailing arm design.

This ensures secure attachment of the tool to the trailing arm during service procedures and improves stability throughout the operation.

Component Protection

The specially designed construction helps prevent damage to:

• ABS sensor wiring
• Rear trailing arm
• Suspension components near the bushing
• Other surrounding vehicle components

This allows safe servicing without affecting adjacent parts.

Vehicle Compatibility

Suitable for:

• Honda Civic (1988–2000)
• Honda Del Sol (1993–1997)
• Honda CR-V (1997–2002)
• Acura Integra (1994–2001)

Package Contents

• Trailing arm bushing removal and installation tool set
• Adjustable hook foot system
• Installation and extraction components for rear trailing arm bushings

Application

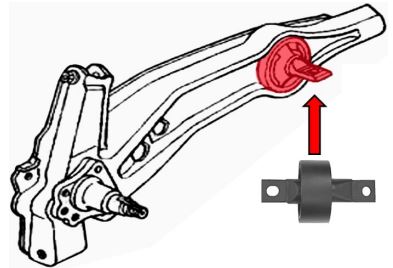

This tool is designed for installing the illustrated bushing in the trailing arm.

Tool Assembly

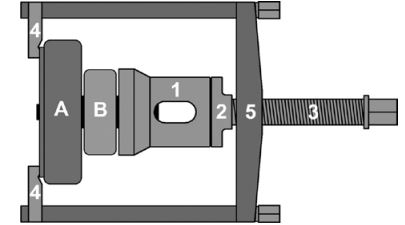

• Slide the press sleeve (1) over the O-ring onto the pressure plate (2).
• Once installed, the press sleeve (1) is held in position by the O-ring on the pressure plate (2).

Tool Positioning

• When aligning the holding claws (4), ensure that both claw arms are positioned at an equal distance from the center of the bridge (5).
• Use the scale markings on the bridge as a reference for correct alignment.
• Position the trailing arm bushing (B) inside the press sleeve.
• Place the holding claws (4) behind the trailing arm (A).

Bushing Installation

• Pre-load the tool as shown in the illustration.
• Verify that all tool components are correctly seated and securely positioned.
• Press the bushing into the trailing arm (A) by turning the spindle (3) clockwise until the installation is complete.
