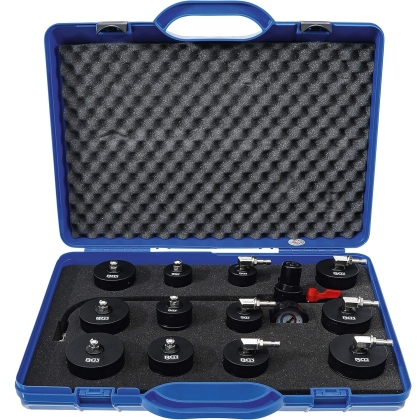

Turbo System Pressure Test Kit with Bayonet Connection – 12 pcs
-
Code:6933
-
Weight:3.088 Kgs
Overview:
✔ Professional turbo system pressure test kit with bayonet adapters
✔ Suitable for charge air systems with bayonet connections
✔ Includes 12 adapters (straight & angled) for flexible access
✔ Covers diameters: 31, 38, 46, 51, 56, 61 mm
✔ Equipped with hose and overpressure safety valve
✔ Enables leak detection without disassembly
✔ Ideal for workshop diagnostics on petrol and diesel engines
This professional pressure testing kit is designed for detecting leaks in turbocharged intake systems equipped with bayonet connections. It allows efficient and accurate diagnostics of charge air components such as boost hoses and intercoolers.
Application & Function
The system is used with the engine switched off and components installed. By connecting to a standard tire inflator, the intake system is pressurized and leaks can be detected through:
- Pressure loss observation
- Manual airflow detection
- Leak detection spray for precise localization
Designed for Tight Engine Bays
The kit includes extra short test plugs with side connections, making it especially suitable for use in confined engine compartments.
Wide Vehicle Compatibility
Suitable for many vehicles equipped with bayonet-type charge air connections, including brands such as:
- VW
- Mercedes-Benz
- Renault
- Nissan
Additional Applications
Depending on the vehicle, the kit can also be used for testing EGR (exhaust gas recirculation) systems.
Safety & Control
- Connection hose with integrated overpressure valve
- Protects components from excessive test pressure
- Ensures safe and controlled diagnostics

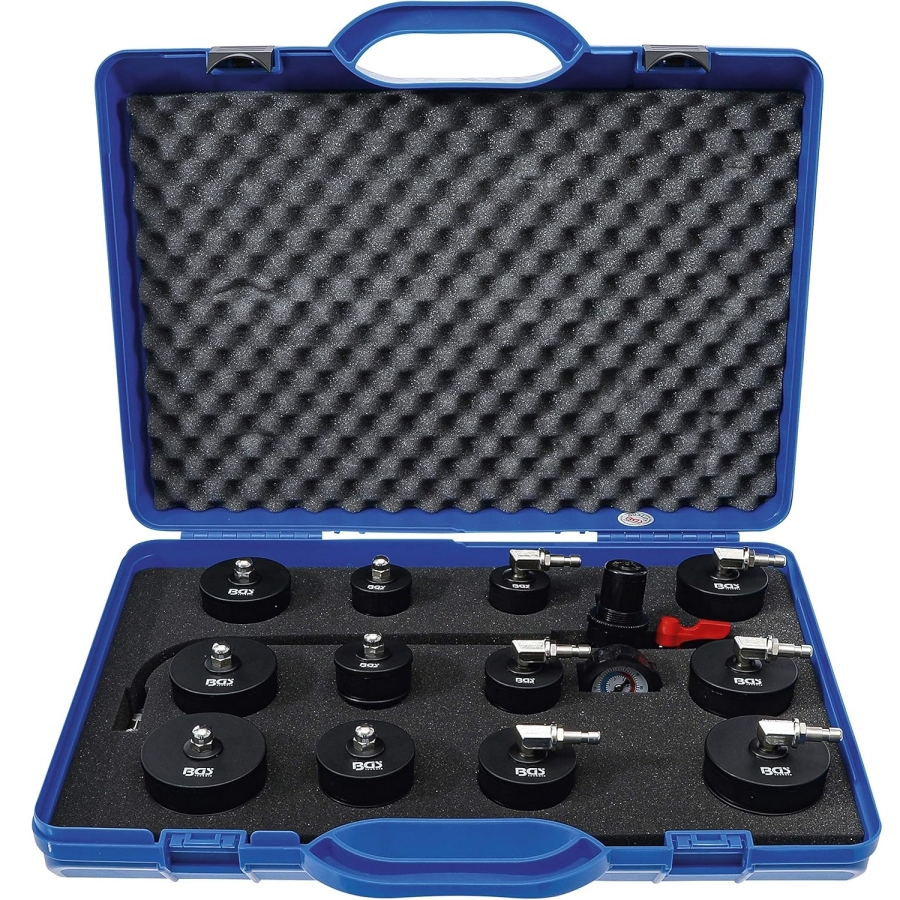

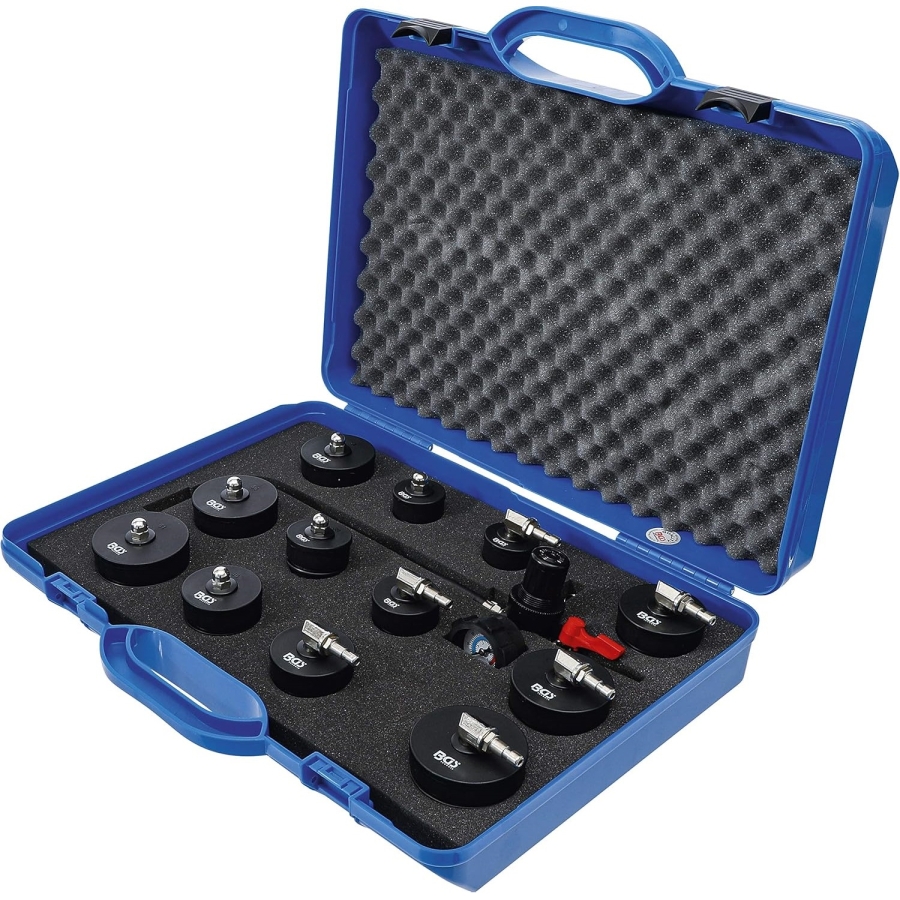

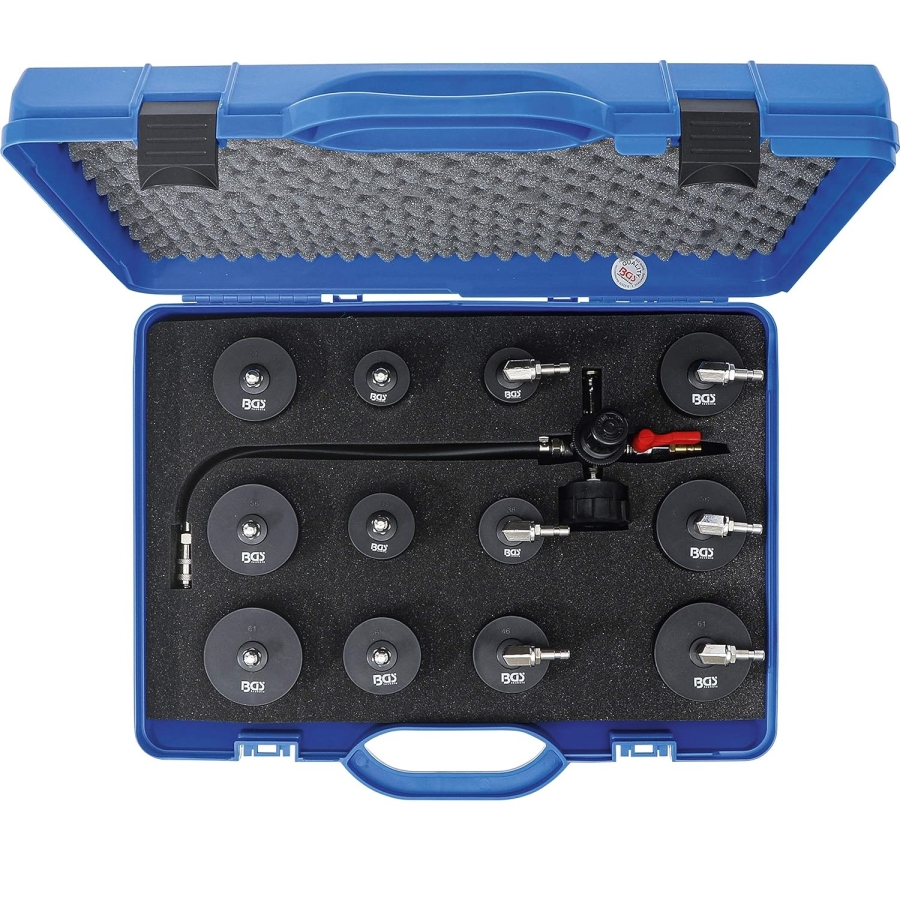

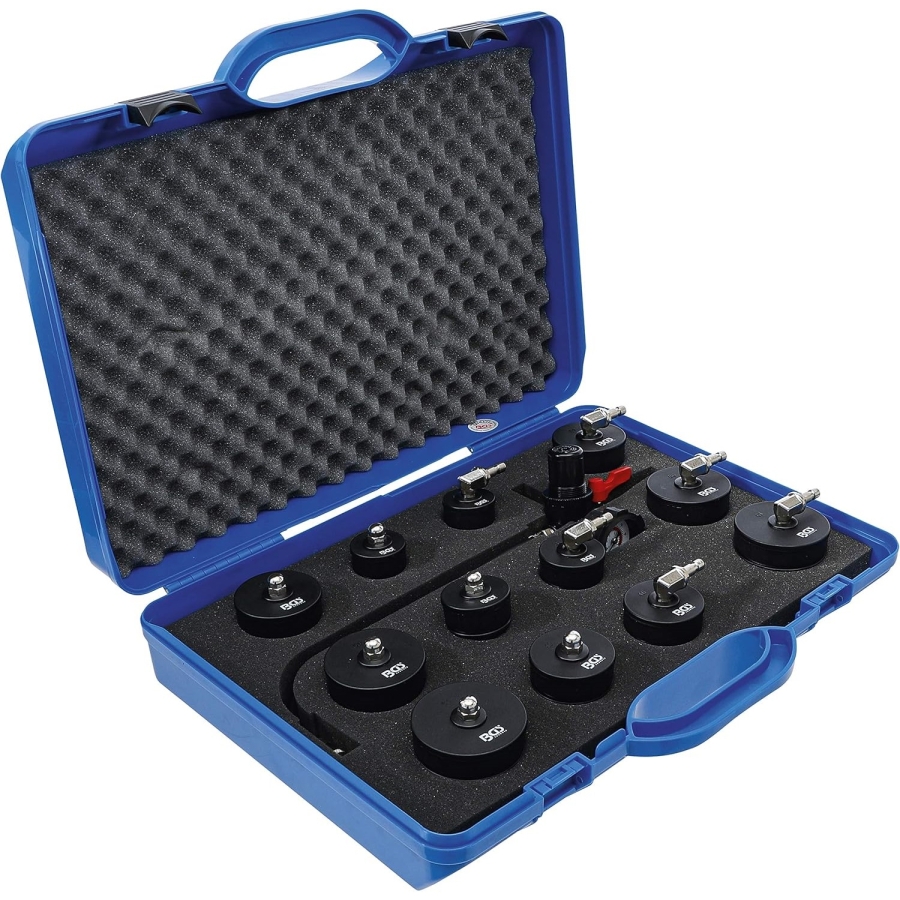

Scope of Delivery
-
12 x Test adapters (bayonet type):
Each size includes:- 1 x Straight connector
- 1 x Angled connector
Sizes:
- 31 mm
- 38 mm
- 46 mm
- 51 mm
- 56 mm
- 61 mm
- 1 x Connection hose with overpressure safety valve
- 1 x Storage case with foam insert
