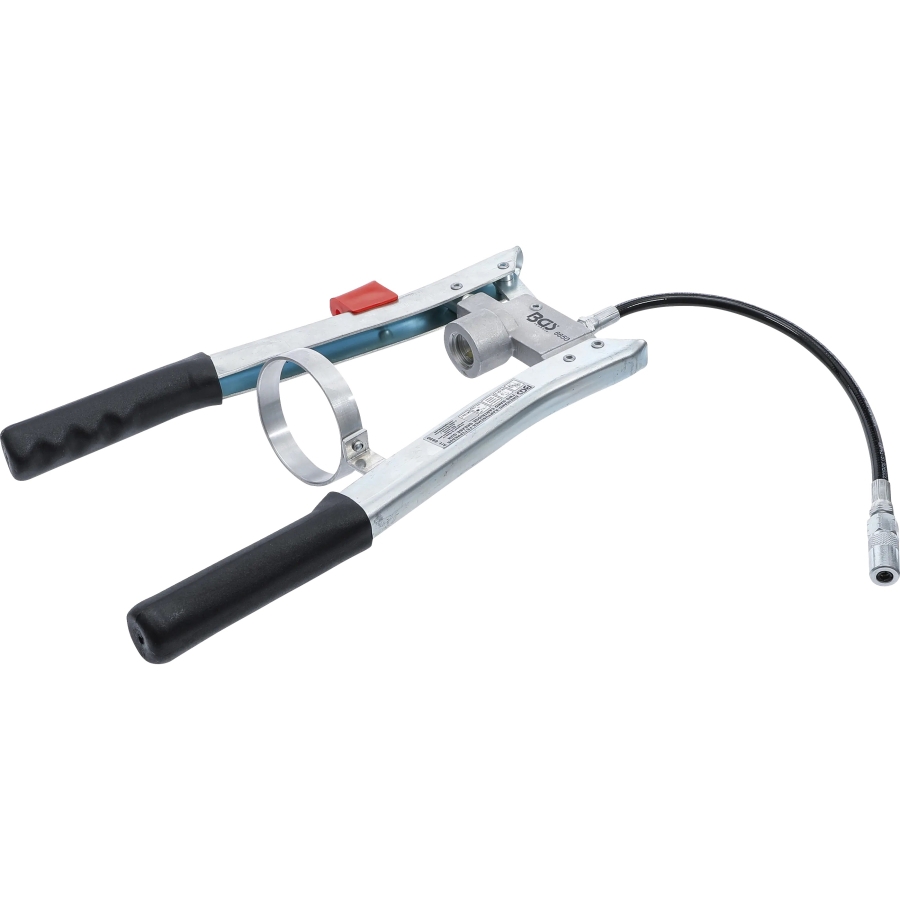

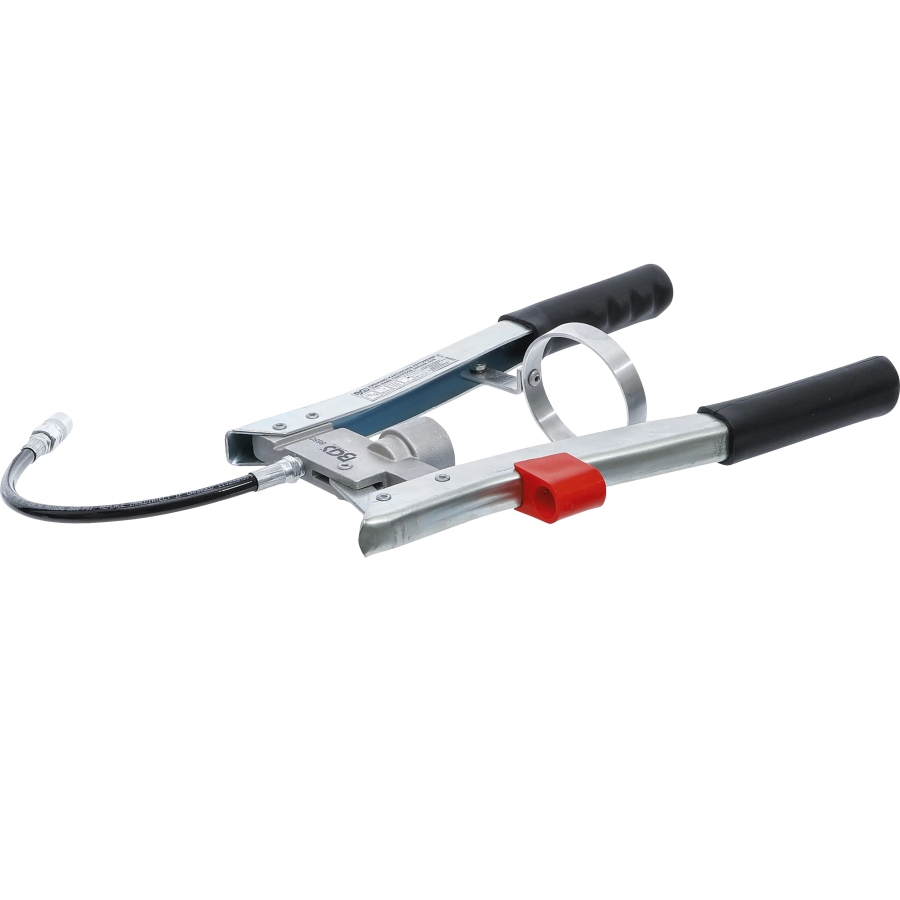

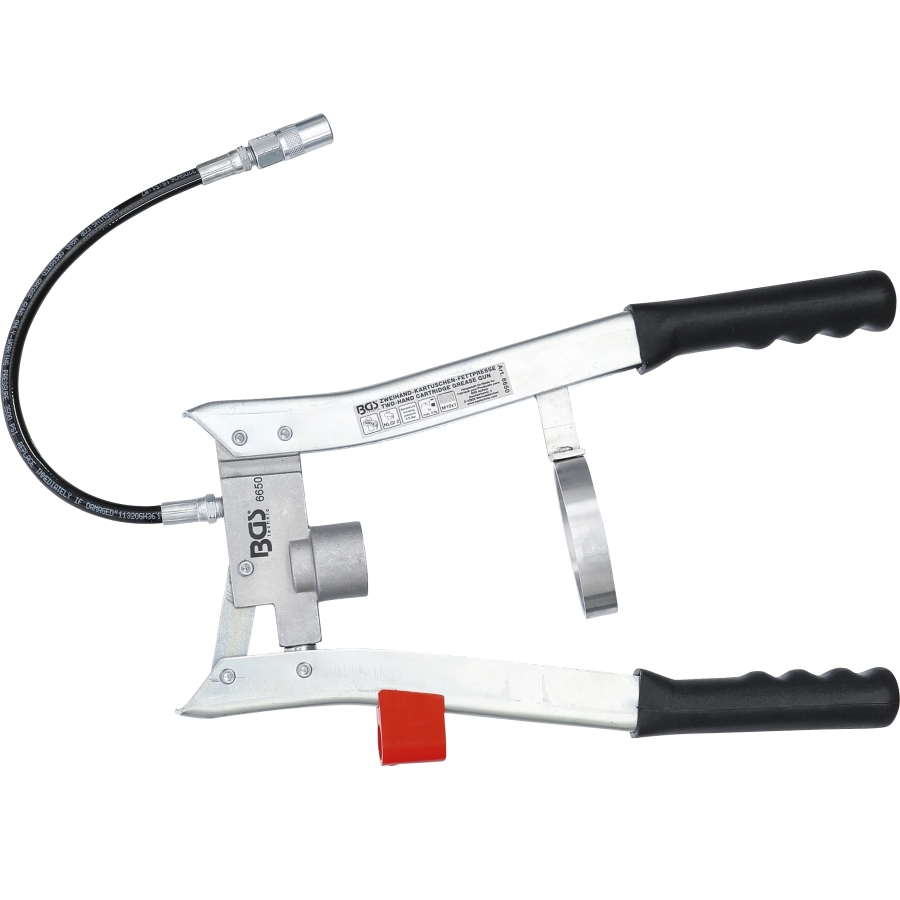

Two-Hand Cartridge Grease Gun 500 g
-
Code:6650
-
Weight:1.224 Kgs
Overview:
✔ For 500 g screw-in grease cartridges
✔ Maximum working pressure: 500 bar
✔ Suitable for grease up to NLGI 2
✔ Maximum delivery rate: 0.8 g per stroke
✔ Clean and quick cartridge replacement
✔ Allows visual checking of the cartridge fill level
✔ Includes flexible reinforced grease hose
✔ Ergonomic, non-slip handles
✔ Optional reinforced hose, Item no. 3066-1
Two-hand grease gun for lubricating bearings, shafts, joints, axles, bushes and other lubrication points on machinery, vehicles, agricultural equipment and similar applications.
Designed for use with 500 g screw-in grease cartridges, allowing clean, safe and convenient lubrication without manually filling the grease gun.
Cartridge System
The screw-in cartridge system allows the grease cartridge to be replaced quickly and cleanly.
The design helps ensure complete emptying of the cartridge, while the remaining grease level can be checked at any time.
Ergonomic Operation
The two-hand design provides controlled operation during high-pressure lubrication work.
Ergonomic, non-slip handles provide a secure grip and comfortable handling during use.
Technical Data
-
Cartridge type: 500 g screw-in grease cartridge
-
Grease consistency: up to NLGI 2
-
Maximum working pressure: 500 bar
-
Grease gun burst pressure: 675 bar
-
Hose burst pressure: 675 bar
-
System burst pressure: 850 bar
-
Maximum delivery rate: 0.8 g per stroke
-
Pump piston diameter: 8.5 mm
-
Hose connection thread: M10 x 1
-
Length: 675 mm
-
Hose length: 300 mm
Scope of Delivery
-
Two-hand cartridge grease gun
-
Flexible reinforced grease hose
Optional Accessories
-
Reinforced grease hose, Item no. 3066-1
