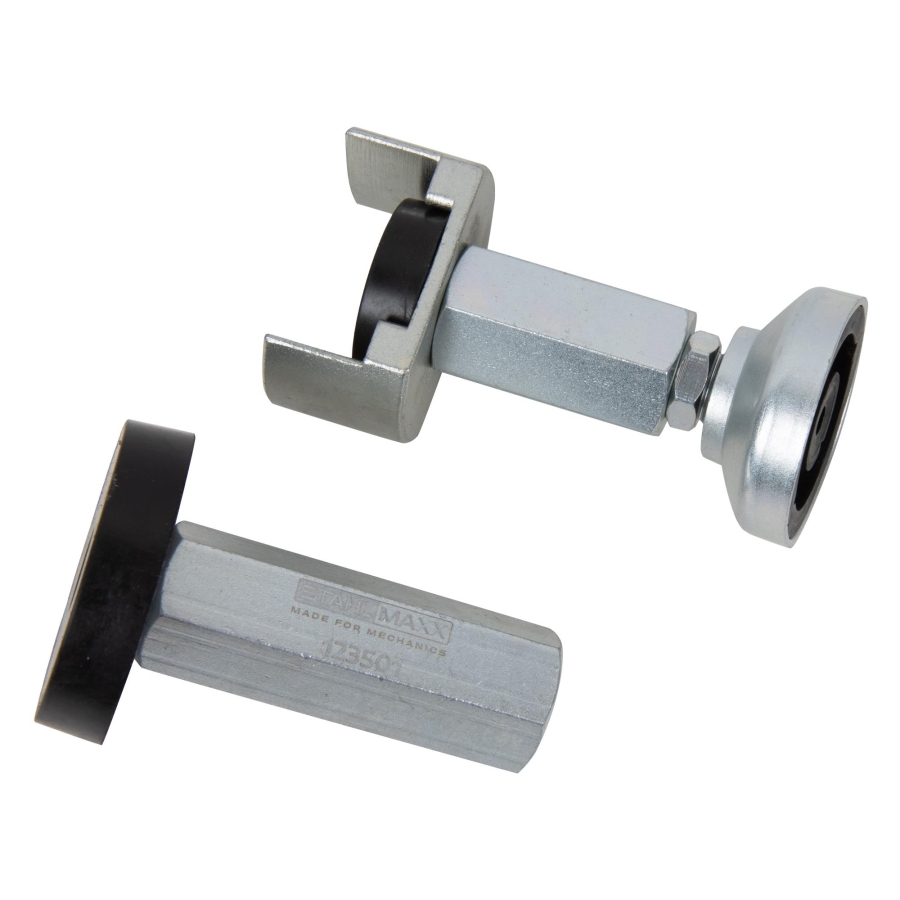

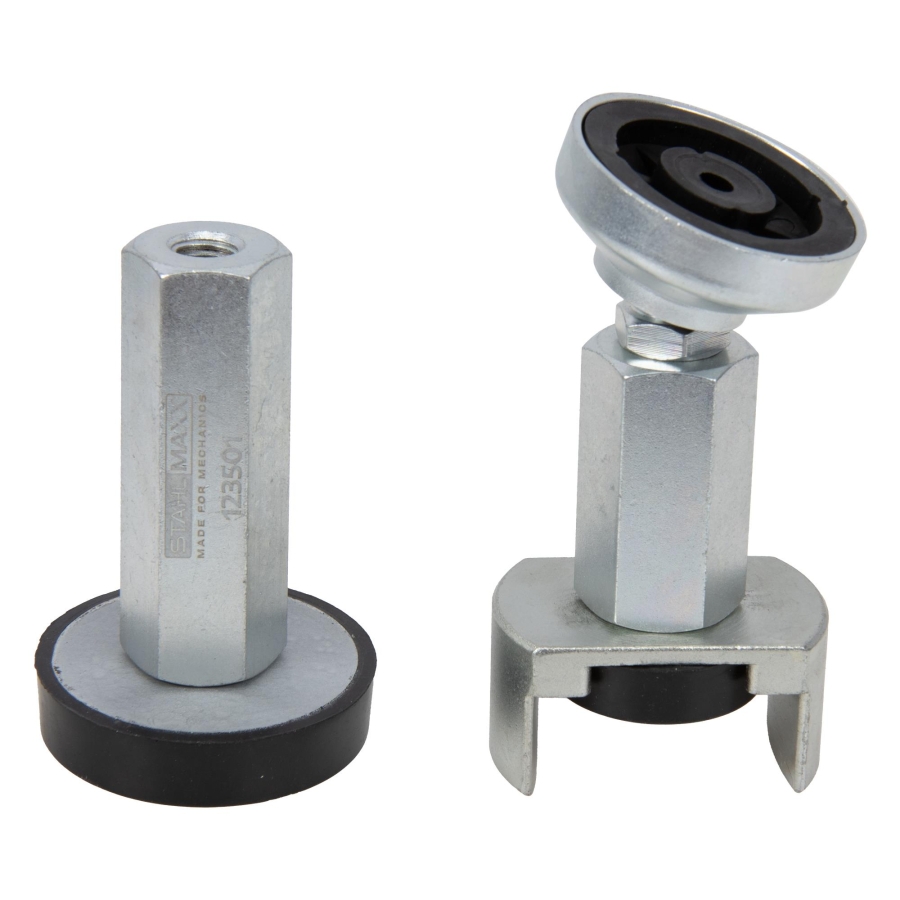

Universal Suspension Arm Depressor and Holder Tool Set

This universal suspension depressor and holder tool is designed for lowering and holding suspension components during maintenance and repair work on vehicle chassis and axle systems.

Many suspension repairs, such as replacing springs, shock absorbers, axle bushings, driveshafts, CV boots, or ball joints, require force to be applied to suspension arms or links. This tool allows a single technician to safely push down and hold suspension components in position without requiring assistance from a second mechanic using pry bars or levers.

Benefits

The tool significantly simplifies work involving:

• Suspension springs
• Shock absorbers
• Axle carrier bushings
• Driveshafts
• CV boots
• Ball joints
• Suspension control arms
• Trailing arms and suspension links

The controlled application of force helps reduce both repair time and the risk of injury or damage to surrounding components.

Flexible Configuration

Depending on the suspension arm design, body shape, and required working range, the tool can be assembled in different configurations to suit a wide variety of vehicle suspension systems.

Its universal design makes it suitable for use on numerous front and rear axle constructions.

Technical Specifications

• Support plate diameter: Ø 40 mm and Ø 50 mm
• Working range: 80–140 mm
• Drive size: 22 mm hexagon

Package Contents

• 1 × Round support plate Ø 40 mm
• 1 × Round support plate Ø 50 mm

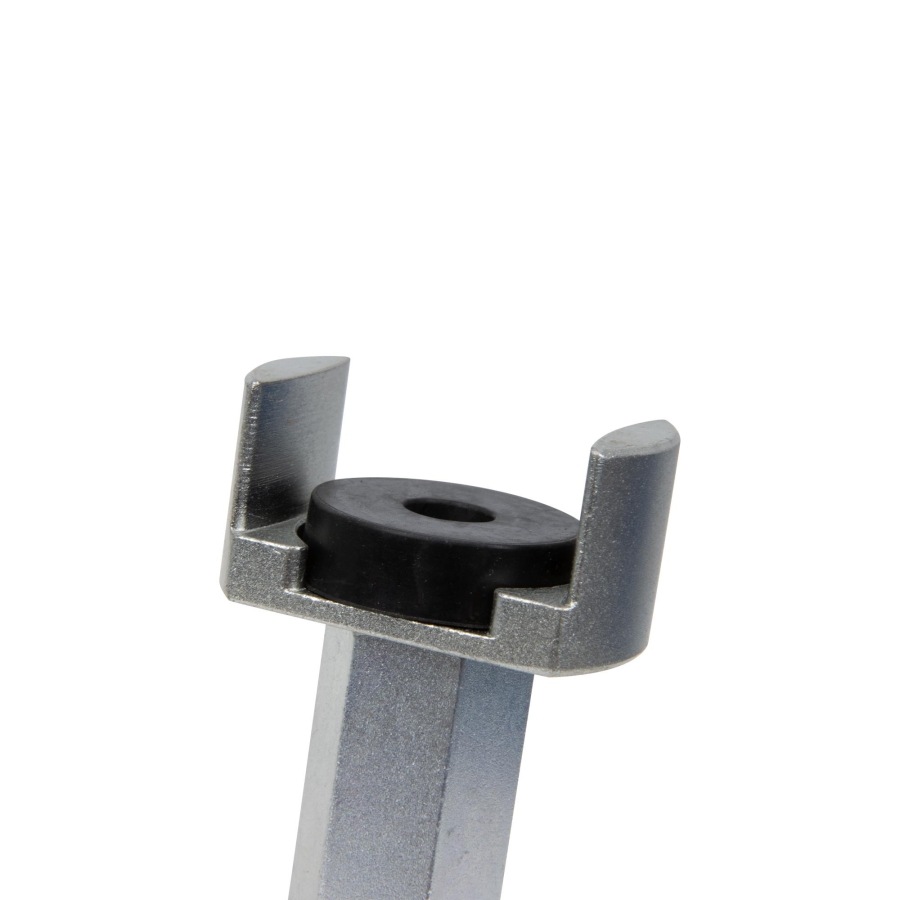

• 1 × Support fork
• 1 × Short expansion nut
• 1 × Long expansion nut

Quality Features

• Professional-grade workshop tool
• Universal application
• Significant reduction in required effort
• Time-saving during suspension repairs
• Designed for professional automotive service use
