Upper Ball Joint Puller & Installation Tool Set for VW T4 Front Axle

Price: €139.00 271.86лв.

Code:

117926
Weight:

3.800 Kgs

Overview:
✔ Designed for removal and installation of upper ball joints on the front axle
✔ Suitable for VW T4 Transporter, Multivan, California and Pickup models
✔ No need to remove the control arm during service
✔ Hardened components for high durability and resistance to deformation
✔ Optimized for precise ball joint installation and removal
✔ Suitable for Volkswagen T4 Generation I and II

Upper Ball Joint Puller & Installation Tool Set for VW T4 Front Axle

Send to friend

Rate this product

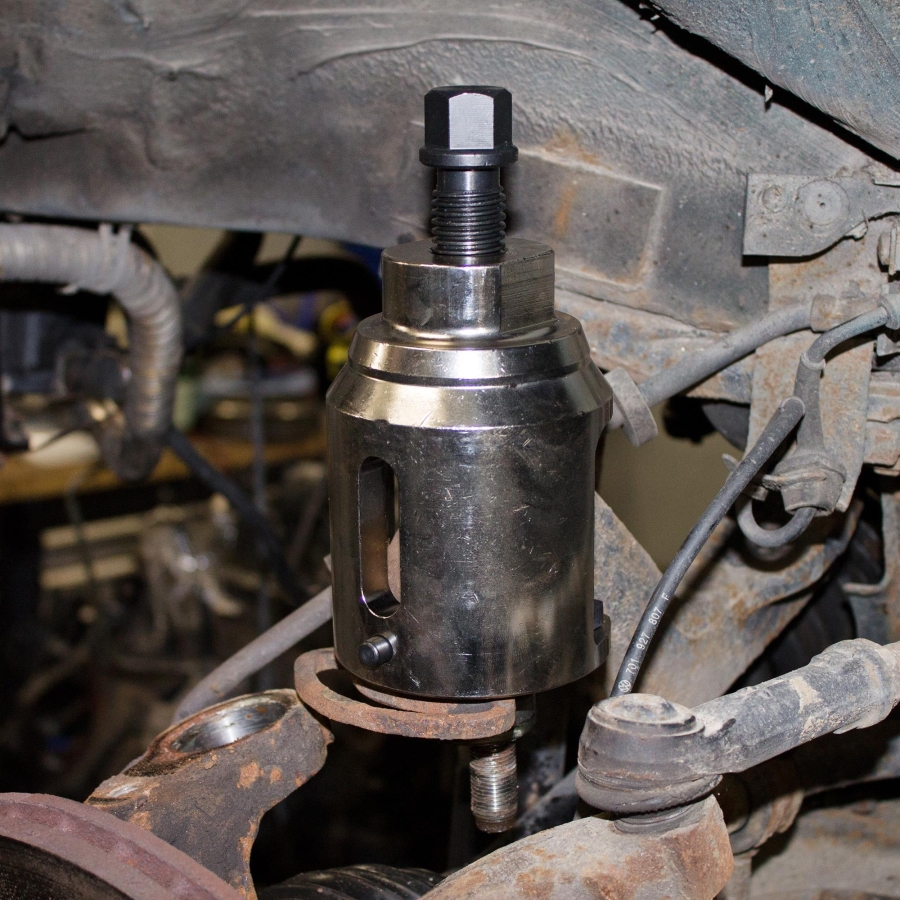

This specialized tool set is designed for the professional removal and installation of upper ball joints (guide joints) on the front axle of Volkswagen T4 vehicles. The design allows the work to be carried out directly on the vehicle without removing the control arm, significantly reducing repair time and labor.

The optimized tool geometry ensures accurate alignment during installation while simplifying the removal of worn ball joints.

Robust Hardened Construction

All critical components are manufactured from hardened materials to withstand the high forces involved in ball joint service. This minimizes the risk of tool deformation and ensures reliable operation in demanding workshop environments.

Vehicle Compatibility

Suitable for:

VW T4 Transporter
VW T4 Multivan
VW T4 California
VW T4 Pickup
Other Volkswagen T4 derivatives

Optimized and tested for:

Volkswagen T4 Generation I
Volkswagen T4 Generation II

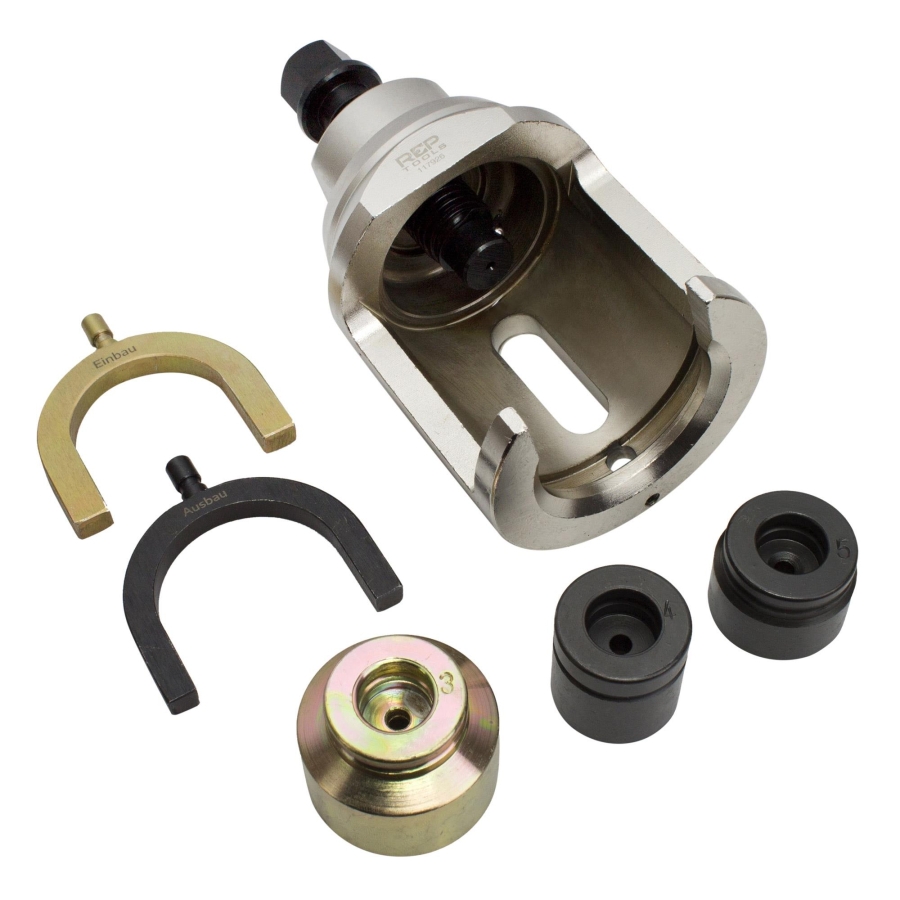

Package Contents

Puller and installation frame with hardened spindle
- 24 mm hex drive
- Opening width: 55.2 mm
- Internal height: 75 mm

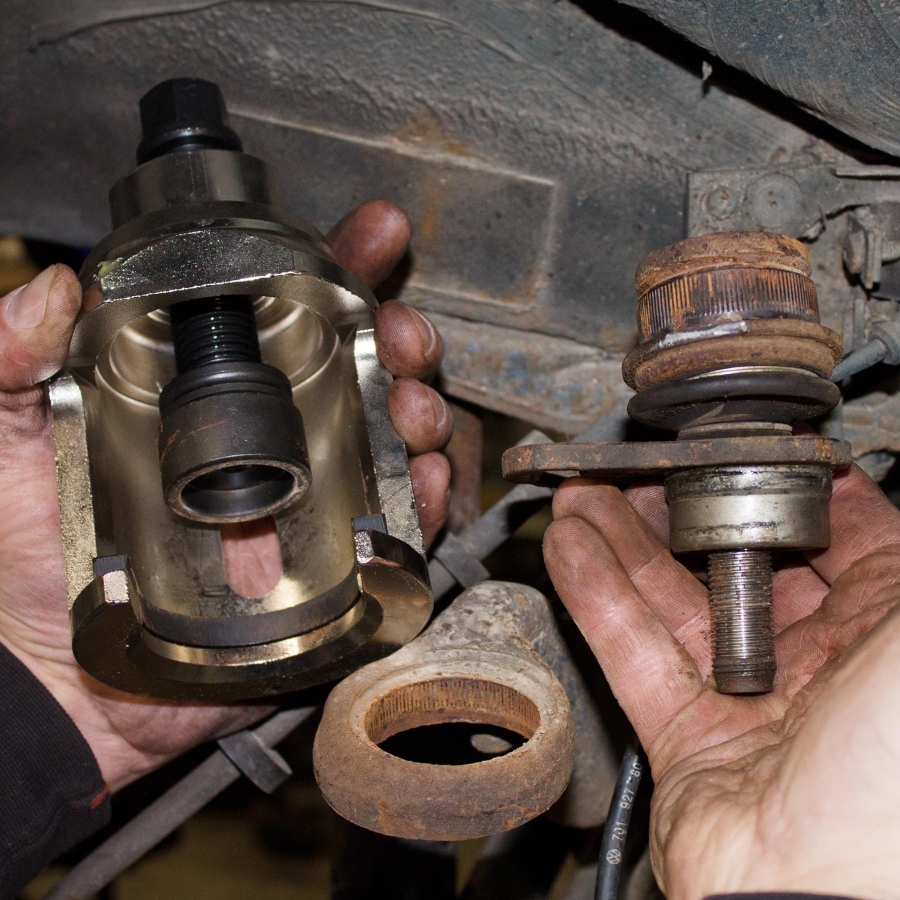

1 hardened fork for pressing out the old ball joint

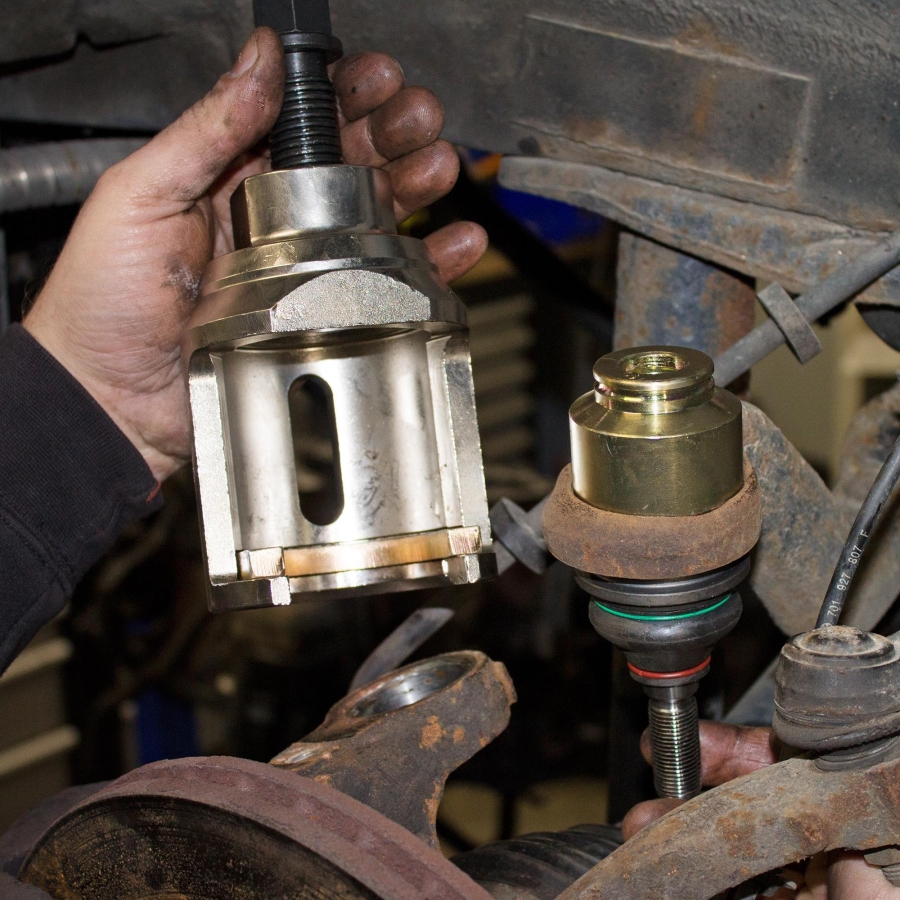

1 hardened fork for pressing in the new ball joint
2 press adapters for removal
1 press adapter for installation

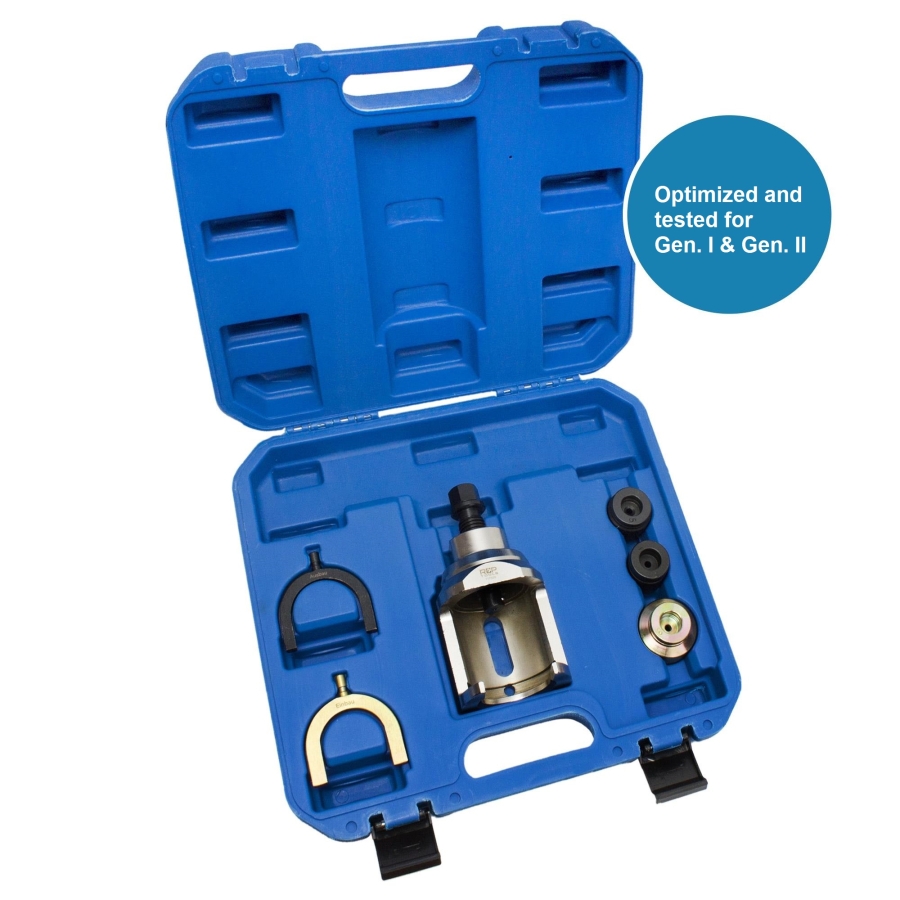

1 durable storage case

VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.8 (67 HP, 49 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.8 (84 HP, 62 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 D (60 HP, 44 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 D (61 HP, 45 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 TD (68 HP, 50 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.0 (84 HP, 62 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D (75 HP, 55 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D (78 HP, 57 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D Syncro (78 HP, 57 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 TDI (177 HP, 130 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 (108 HP, 80 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 (110 HP, 81 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 (115 HP, 85 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 Syncro (110 HP, 81 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 Syncro (115 HP, 85 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (102 HP, 75 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (151 HP, 111 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (88 HP, 65 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI Syncro (102 HP, 75 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR 6 (140 HP, 103 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR6 (204 HP, 150 kW) VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR6 Syncro (140 HP, 103 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.8 (67 HP, 49 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.8 (86 HP, 63 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 D (60 HP, 44 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 D (61 HP, 45 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 TD (68 HP, 50 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.0 (84 HP, 62 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D (75 HP, 55 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D (78 HP, 57 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D Syncro (78 HP, 57 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 TDI (78 HP, 57 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 (108 HP, 80 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 (110 HP, 81 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 (115 HP, 85 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 Syncro (110 HP, 81 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 Syncro (115 HP, 85 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (102 HP, 75 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (151 HP, 111 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (88 HP, 65 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI Syncro (102 HP, 75 kW) VW TRANSPORTER T4 Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.8 VR6 (140 hp, 103 kW) VW TRANSPORTER T4 Panel Van (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.8 VR6 (204 hp, 150 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 1.8 (67 hp, 49 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 1.9 D (60 hp, 44 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 1.9 D (61 hp, 45 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 1.9 TD (68 hp, 50 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.0 (84 hp, 62 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D (75 hp, 55 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D (78 hp, 57 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D Syncro (78 hp, 57 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 (110 hp, 81 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.5 (115 hp, 85 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.5 Syncro (110 hp, 81 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.5 Syncro (115 hp, 85 kW) VW TRANSPORTER T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.5 TDI (102 hp, 75 kW) VW VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI (88 hp, 65 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI Syncro (102 hp, 75 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.8 (140 hp, 103 kW) VW Transporter T4 Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.8 VR6 (204 HP, 150 kW)
