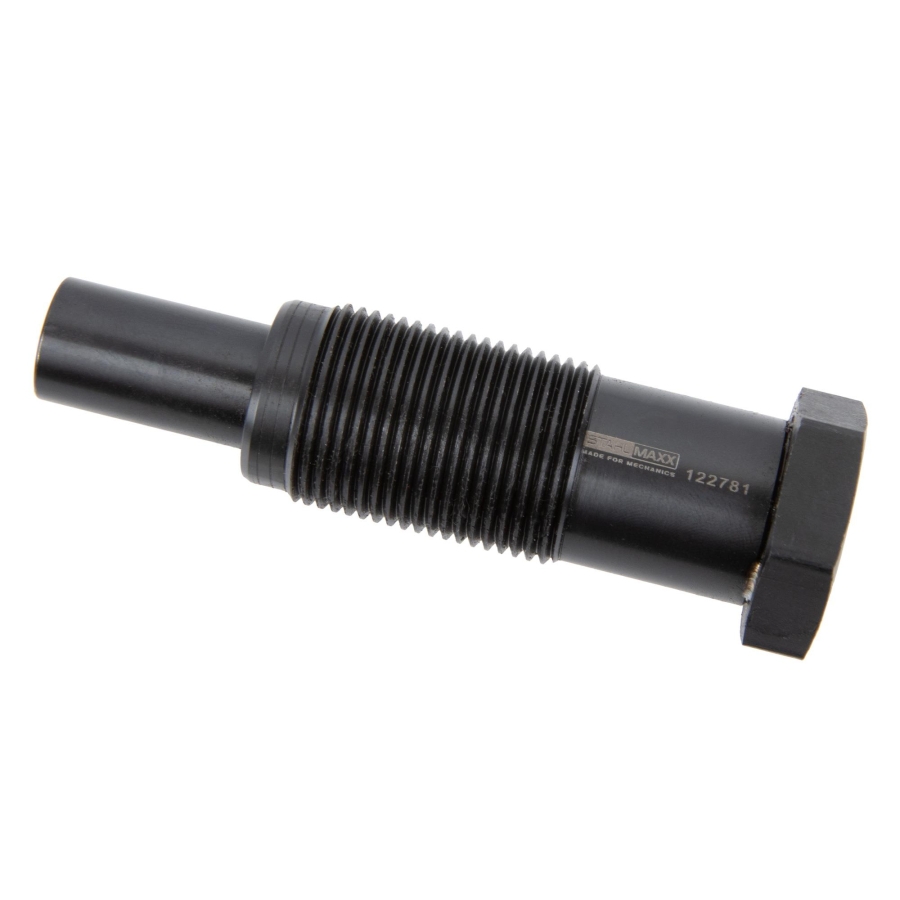

Timing Chain Wear Indicator Tool VAG 1.2 TSI as T30121

Special tool for determining timing chain elongation and wear on VAG 1.2L TSI engines. Enables professional diagnostics of chain condition without full disassembly.

Cold start rattling noises may indicate timing chain elongation. This tool allows quick and reliable verification of chain condition following manufacturer procedure (TPI 2033258).

---

Diagnostic Principle

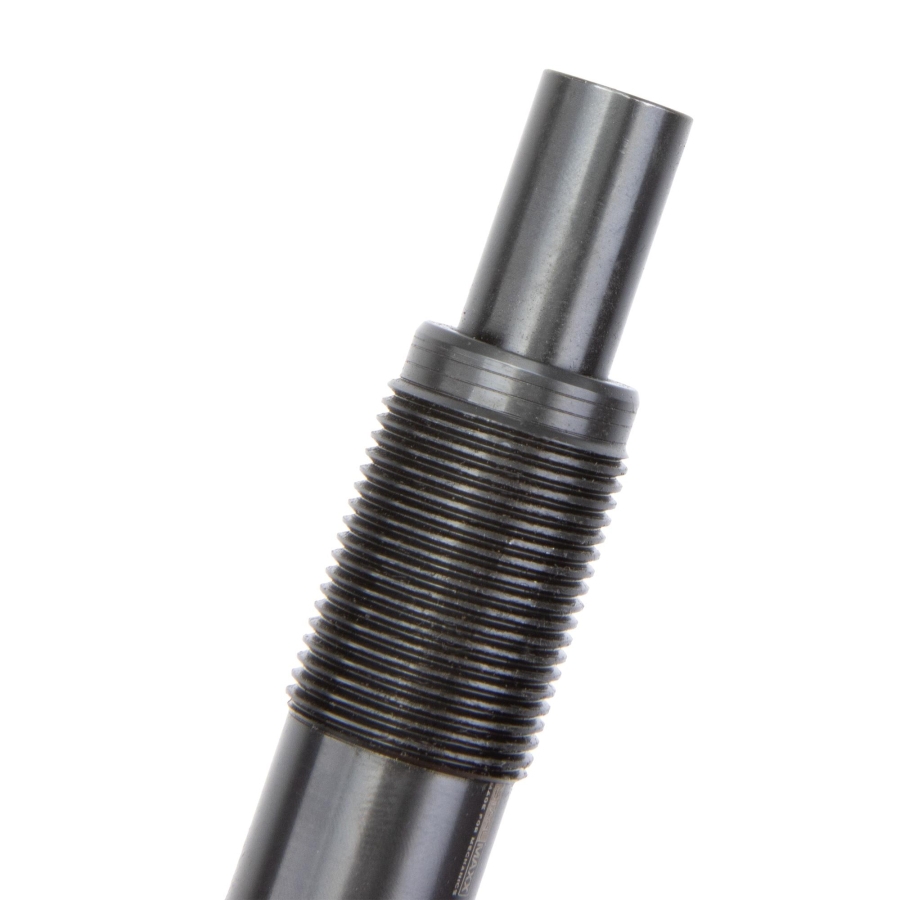

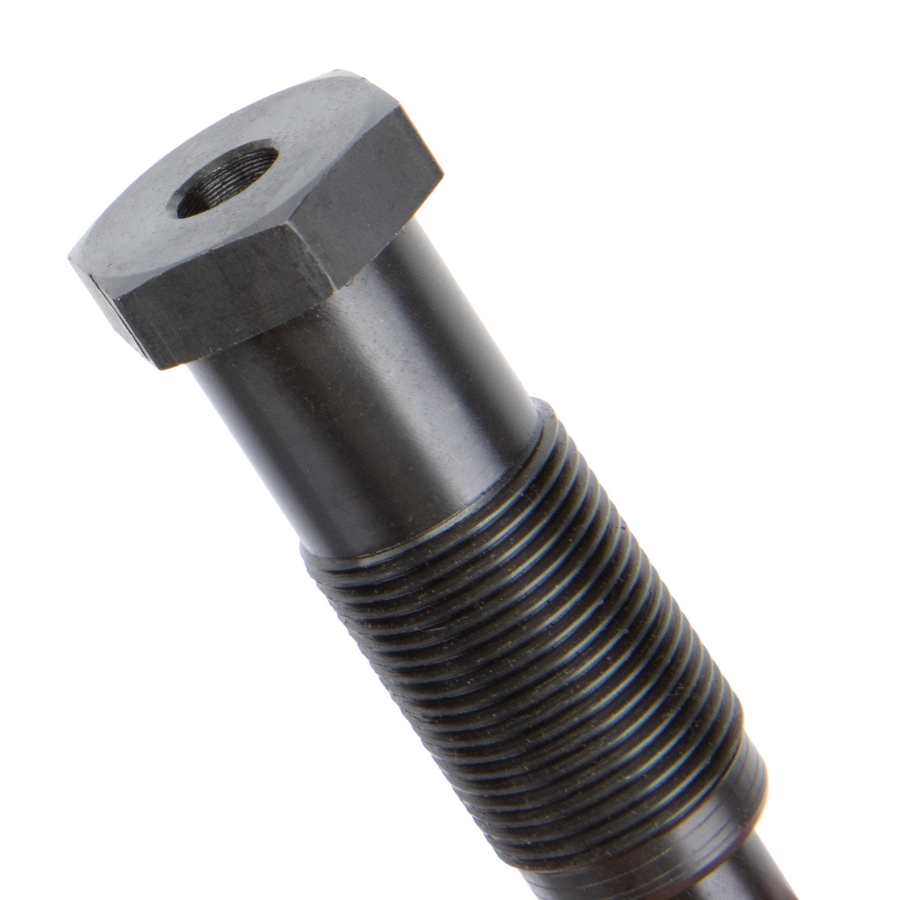

The tool replaces the original chain tensioner and uses a control pin to indicate chain wear condition.

At top dead center (TDC):

• If the control pin is flush or protruding → timing chain is within tolerance
• If the control pin remains inside the housing → timing chain must be replaced

---

Important Notes

The engine must NOT be started with the test tensioner installed. Engine operation is only permitted with the original hydraulic chain tensioner.

---

Procedure

• Set engine to TDC and lock camshaft using special tool (e.g. T10414)
• Do NOT lock the crankshaft
• Remove installed chain tensioner including sealing ring (measurement without sealing ring)
• Install test tensioner and tighten to 20 Nm
• Remove camshaft locking tool
• Rotate engine manually two crankshaft revolutions
• Reinstall camshaft locking tool
• Check control pin position at TDC

---

Post-Diagnosis Recommendations

If timing chain is OK:

• Inspect oil filter seal for damage or disintegration
• Check for possible blockage in oil channels
• Verify no double installation of sealing rings after service
• If noise persists, inspect chain tensioner

Replace tensioner:
03F109507D → 03F109507F

Do NOT replace if already equipped with:
03F0109507B or 03F109507F

---

Compatibility

Engine codes:
CBZA, CBZB, CBZC, CYVD

---

Application Note

According to repair guidelines, this diagnostic method is officially specified for Seat and Skoda. However, it is technically applicable to identical engines used in Volkswagen and Audi vehicles.

---

OEM Reference

T30121



OEM numbers are for reference purposes only and do not imply original tools.

Procedure

• Set the engine to Top Dead Center (TDC).
• Lock the camshaft using special tool Art. No. 104925 (equivalent to T10414).
  Note: The crankshaft must NOT be locked during this procedure.
• Remove the installed timing chain tensioner, including the sealing ring.
  The measurement must be carried out without the sealing ring.
• Install the test timing chain tensioner and tighten to 20 Nm.
• Remove the camshaft locking tool.
• Rotate the engine two full crankshaft revolutions.
• Reinstall the camshaft locking tool.
• At TDC, with a correctly functioning timing chain:
  • The inspection pin of the tensioner must be flush with or protruding from the housing.
• If the inspection pin is recessed inside the tensioner housing, the timing chain must be replaced.

---

Actions if Diagnosis is Positive (Timing Chain OK)

• Inspect the oil filter seal for damage.
  • The seal may have degraded and obstructed oil passages within the housing.
  • A double-installed sealing ring after servicing may also cause issues.
• If timing chain noise is suspected and the chain is confirmed to be in good condition:
  • Inspect the timing chain tensioner.
• Replace part number 03F109507D with 03F109507F.
  • If a tensioner with part number 03F0109507B or 03F109507F is already installed, it should NOT be replaced.

---

Note

This diagnostic method is officially specified in the repair guidelines only for SEAT and Škoda vehicles.

However, from a technical standpoint, it can also be applied to Volkswagen and Audi vehicles equipped with identical engine codes.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.2 TFSI (86 HP, 63 kW)

AUDI A3 (8P1) (05.2003 - 08.2012) 1.2 TSI (105 HP, 77 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Cabriolet (8P7) (04.2008 - 05.2013) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 1.2 TSI (105 HP, 77 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (105 HP, 77 kW)

SEAT ALTEA (5P1) (03.2004 - 08.2011) 1.2 TSI (105 HP, 77 kW)

SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (105 HP, 77 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (86 HP, 63 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (90 HP, 66 kW)

SEAT LEON (1P1) (05.2005 - 12.2013) 1.2 TSI (105 HP, 77 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (105 HP, 77 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (105 HP, 77 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (86 HP, 63 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II (542) (12.2006 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (105 HP, 77 kW)

SKODA FABIA II Combi (545) (10.2007 - 12.2014) 1.2 TSI (86 HP, 63 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA OCTAVIA III (1Z3) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 LPG (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (105 HP, 77 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (86 HP, 63 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (105 HP, 77 kW)

SKODA ROOMSTER (5J7) (03.2006 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA ROOMSTER Praktik (5J) (03.2007 - 05.2015) 1.2 TSI (86 HP, 63 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI 16V (105 HP, 77 kW)

VW BEETLE Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI (105 hp, 77 kW)

VW Beetle Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Caddy III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (105 hp, 77 kW)

VW Caddy III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW Caddy III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (105 hp, 77 kW)

VW Caddy III Panel Van/MPV (2KA, 2KH, 2CA, 2CH) (03.2004 - 05.2015) 1.2 TSI (86 hp, 63 kW)

VW Golf Plus V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (105 hp, 77 kW) kW)

VW GOLF PLUS V (5M1, 521) (12.2004 - 12.2013) 1.2 TSI (86 HP, 63 kW)

VW GOLF PLUS Van (521) (01.2009 - 08.2014) 1.2 TSi (105 HP, 77 kW)

VW GOLF VAN VI Variant (AJ5) (07.2009 - 05.2014) 1.2 TSi (105 HP, 77 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VI (5K1) (10.2008 - 12.2014) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI (5K1) (10.2008 - 12.2014) 1.2 TSI (86 HP, 63 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI 16V (105 HP, 77 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi (86 HP, 63 kW)

VW GOLF VI Van (5K1_) (10.2008 - 11.2012) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (105 HP, 77 kW)

VW GOLF VI Variant (AJ5) (07.2009 - 07.2014) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI 16V (105 HP, 77 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (86 HP, 63 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (90 HP, 66 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI 16V (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW TOURAN (1T3) (05.2010 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW TOURAN VAN (1T3) (05.2010 - 05.2015) 1.2 TSI (105 HP, 77 kW)

VW VENTO (01.2010 - 05.2016) 1.2 (105 HP, 77 kW)
