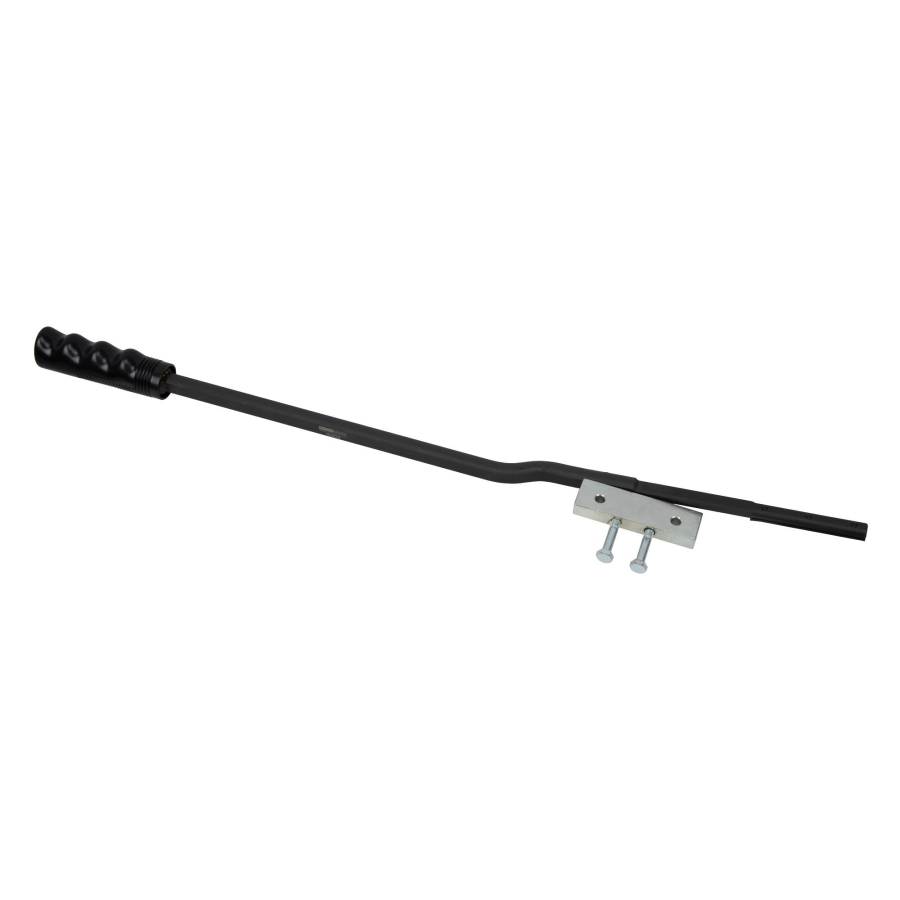

Timing Chain Tension Lever VAG 1.8 / 2.0 TFSI as T40243

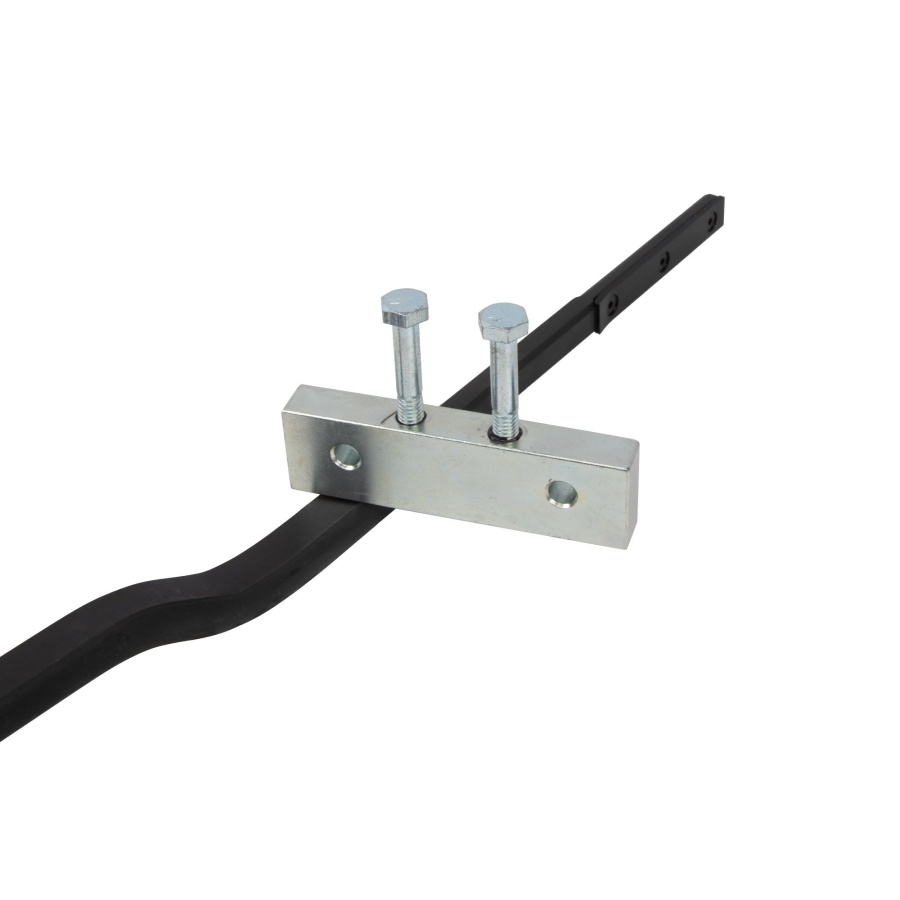

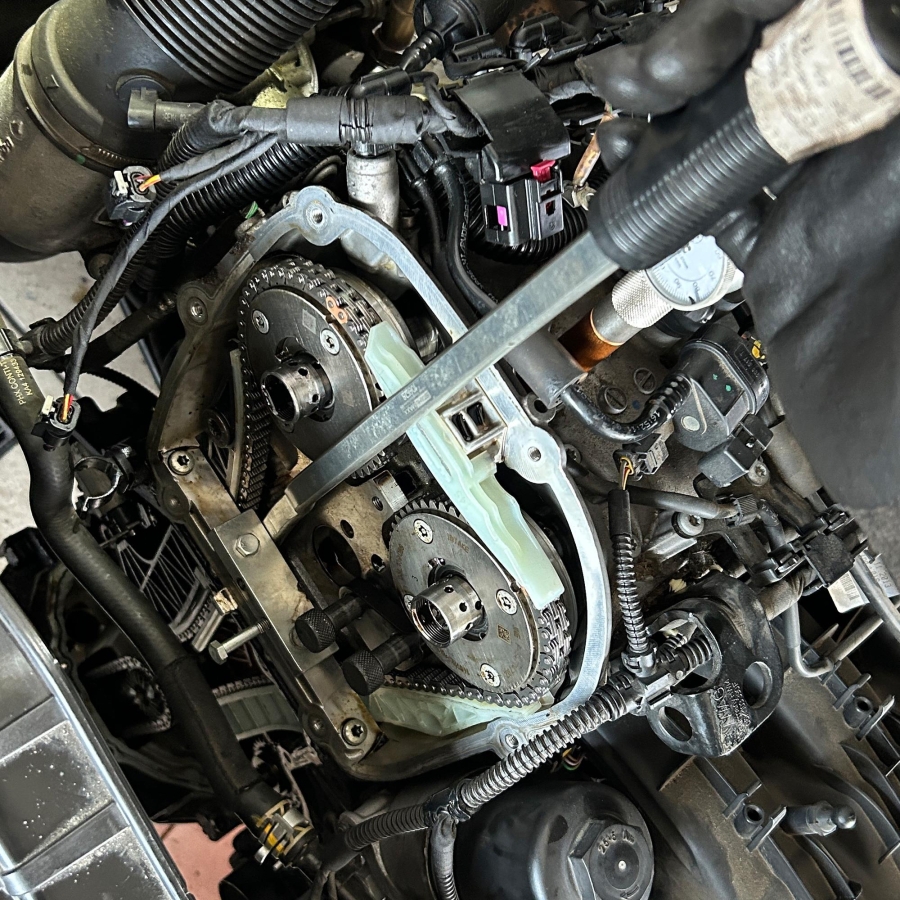

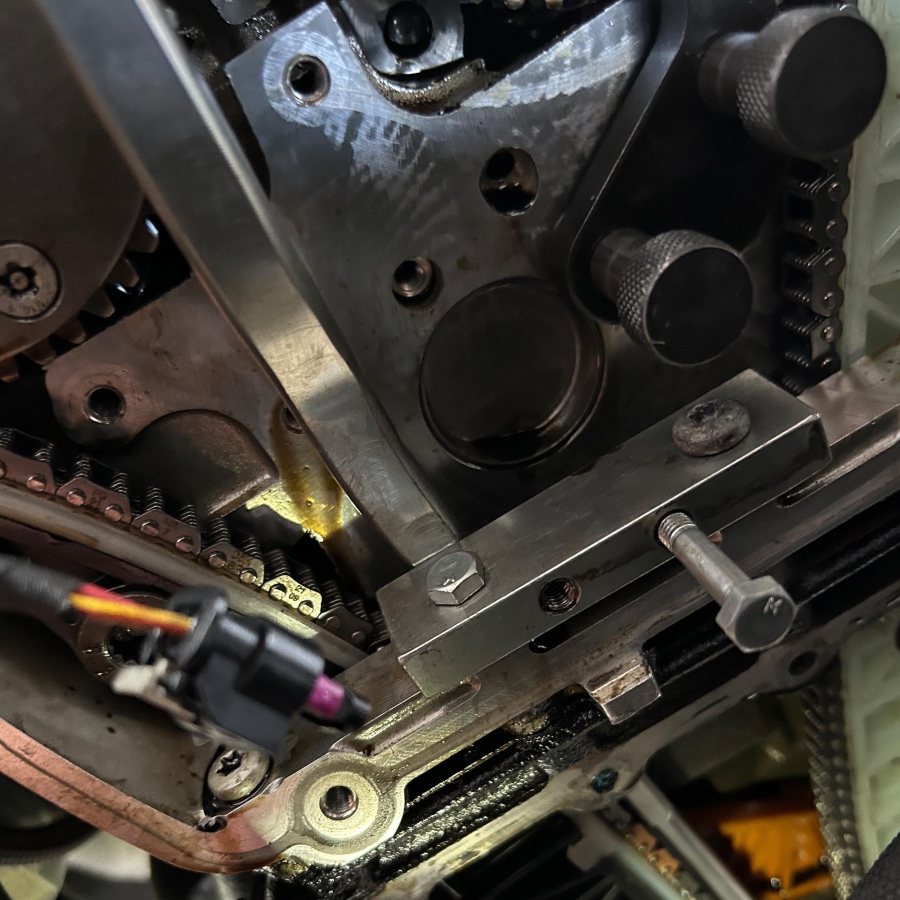

Timing chain tension lever designed for use during timing chain replacement on VAG 1.8 and 2.0 TFSI 4-valve engines. The tool is mounted onto the cylinder head bridge and used to press back the tensioning rail.

Operation

Once installed, the tool applies controlled pressure to retract the tensioning rail. This allows the chain tensioner to be safely locked or released during service operations.

Important Note

Releasing the chain tensioner without this special tool may cause damage to the mounting bores of the tensioning rail and lead to premature failure.

Compatibility

Compatible with a wide range of VAG 1.8 / 2.0 TFSI engines, including engine codes:
AXX, BGB, BPG, BPJ, BPY, BUL, BWA, BWE, BWT, BYK, CADA, CAEA, CAEB, CAED, CAWA, CAWB, CBFA, CCTA, CCTB, CCZA, CCZB, CCZC, CDAA, CDNB, CDNC, CESA, CFKA, CHHB, CHHC, CNCD, CNCE, CNTC, CULB, CULC, CVKB, CYMC, CYNB, CYPA, CYRB, CYRC, CZPB, CZRA, DBPA, DDWA, DEMA, DKYA, DKZA

OEM Reference

T40243

OEM numbers are for reference purposes only and do not imply original tools.

AUDI A3 (8P1) (05.2003 - 08.2012) 2.0 TFSI (200 HP, 147 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 Cabriolet (8P7) (04.2008 - 05.2013) 2.0 TFSI (200 HP, 147 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (186 HP, 137 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 2.0 TFSI (211 HP, 155 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (186 HP, 137 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (190 HP, 140 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 2.0 TFSI (220 HP, 162 kW)

AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 2.0 TFSI (200 HP, 147 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 2.0 45 TFSI (220 HP, 162 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 2.0 TFSI (190 HP, 140 kW)

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 2.0 TFSI (170 HP, 125 kW)

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 2.0 TFSI (200 HP, 147 kW)

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 2.0 TFSI (203 HP, 149 kW)

AUDI A4 B7 (8EC) (11.2004 - 06.2008) 2.0 TFSI (220 HP, 162 kW)

AUDI A4 B7 Avant (8ED) (11.2004 - 06.2008) 2.0 TFSI (170 HP, 125 kW)

AUDI A4 B7 Avant (8ED) (11.2004 - 06.2008) 2.0 TFSI (200 HP, 147 kW)

AUDI A4 B7 Avant (8ED) (11.2004 - 06.2008) 2.0 TFSI (220 HP, 162 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (180 HP, 132 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (211 HP, 155 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (220 HP, 162 kW)

AUDI A4 B8 (8K2) (08.2007 - 12.2015) 2.0 TFSI (224 HP, 165 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 2.0 TFSI (180 HP, 132 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 2.0 TFSI (211 HP, 155 kW)

AUDI A4 B8 Avant (8K5) (11.2007 - 12.2015) 2.0 TFSI (224 HP, 165 kW)

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI (190 HP, 140 kW)

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI (249 HP, 183 kW)

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI (252 HP, 185 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI (190 HP, 140 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI (249 HP, 183 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI (252 HP, 185 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (180 HP, 132 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (211 HP, 155 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (224 HP, 165 kW)

AUDI A5 (8T3) (06.2007 - 01.2017) 2.0 TFSI (230 HP, 169 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI (190 HP, 140 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI (252 HP, 185 kW)

AUDI A5 Cabriolet (8F7) (02.2009 - 01.2017) 2.0 TFSI (180 HP, 132 kW)

AUDI A5 Cabriolet (8F7) (02.2009 - 01.2017) 2.0 TFSI (211 HP, 155 kW)

AUDI A5 Cabriolet (8F7) (02.2009 - 01.2017) 2.0 TFSI (220 HP, 162 kW)

AUDI A5 Cabriolet (8F7) (02.2009 - 01.2017) 2.0 TFSI (224 HP, 165 kW)

AUDI A5 Cabriolet (8F7) (02.2009 - 01.2017) 2.0 TFSI (230 HP, 169 kW)

AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI (190 HP, 140 kW)

AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI (252 HP, 185 kW)

AUDI A5 Sportback (8TA) (09.2009 - 01.2017) 2.0 TFSI (180 HP, 132 kW)

AUDI A5 Sportback (8TA) (09.2009 - 01.2017) 2.0 TFSI (211 HP, 155 kW)

AUDI A5 Sportback (8TA) (09.2009 - 01.2017) 2.0 TFSI (224 HP, 165 kW)

AUDI A5 Sportback (8TA) (09.2009 - 01.2017) 2.0 TFSI (230 HP, 169 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI (190 HP, 140 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI (252 HP, 185 kW)

AUDI A6 C6 (4F2) (04.2004 - 08.2011) 2.0 TFSI (170 HP, 125 kW)

AUDI A6 C6 Avant (4F5) (11.2004 - 08.2011) 2.0 TFSI (170 HP, 125 kW)

AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI (180 HP, 132 kW)

AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI (211 HP, 155 kW)

AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI (220 HP, 162 kW)

AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI (252 HP, 185 kW)

AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TFSI (180 HP, 132 kW)

AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TFSI (252 HP, 185 kW)

AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 2.0 TFSI (252 HP, 185 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 2.0 TFSI (180 HP, 132 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 2.0 TFSI (200 HP, 147 kW)

AUDI TT (8J3) (07.2006 - 01.2015) 2.0 TFSI (200 HP, 147 kW)

AUDI TT (8J3) (07.2006 - 01.2015) 2.0 TFSI (203 HP, 149 kW)

AUDI TT (8J3) (07.2006 - 01.2015) 2.0 TFSI (211 HP, 155 kW)

AUDI TT (FV3, FVP) (07.2014 - 08.2018) 2.0 TFSI (230 HP, 169 kW)

AUDI TT Roadster (8J9) (05.2008 - 06.2014) 2.0 TFSI (200 HP, 147 kW)

AUDI TT Roadster (8J9) (05.2008 - 06.2014) 2.0 TFSI (211 HP, 155 kW)

AUDI TT Roadster (FV9, FVR) (11.2014 - 08.2018) 2.0 TFSI (230 HP, 169 kW)

VW EOS (1F7, 1F8) (03.2006 - 08.2015) 2.0 TFSI (200 HP, 147 kW)

VW EOS (1F7, 1F8) (03.2006 - 08.2015) 2.0 TFSI (220 HP, 162 kW)

VW JETTA III (1K2) (09.2004 - 12.2013) 2.0 TFSI (170 HP, 125 kW)

VW JETTA III (1K2) (09.2004 - 12.2013) 2.0 TFSI (200 HP, 147 kW)

VW PASSAT B7 Box Body/Estate (365) (08.2010 - 12.2014) 1.8 TFSi (160 HP, 118 kW)

VW PASSAT B7 Box Body/Estate (365) (08.2010 - 12.2014) 2.0 TFSI (211 HP, 155 kW)

VW SCIROCCO Van (137) (06.2008 - 05.2014) 2.0 TFSi (211 HP, 155 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 2.0 TFSI (170 HP, 125 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 2.0 TFSI (200 HP, 147 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 2.0 TFSI 4motion (170 HP, 125 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 2.0 TFSI 4motion (200 HP, 147 kW)
