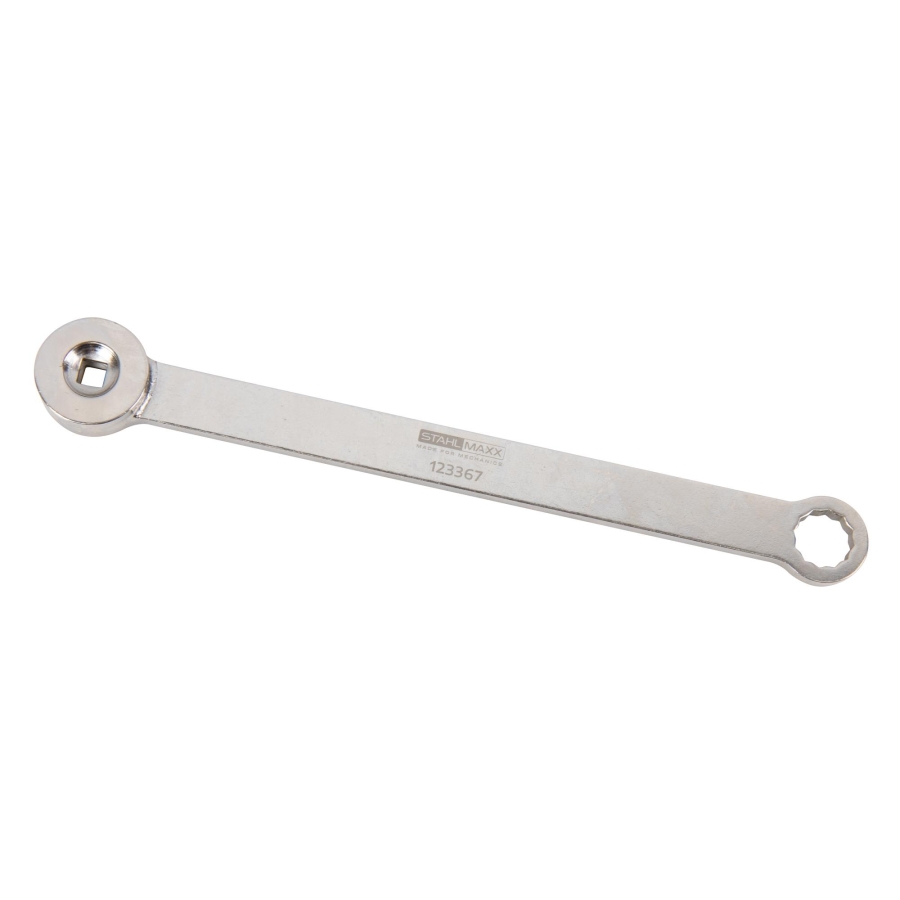

Timing Belt Tensioner Wrench 13 mm VAG 1.0 / 1.2 / 1.4 / 1.5 TSI TFSI as T10500

Special socket wrench designed for controlled tightening of the timing belt tensioner pulley according to manufacturer torque specifications. Enables accurate torque application without the need for insert-type torque tools (e.g. 6583).

---

Design Advantage

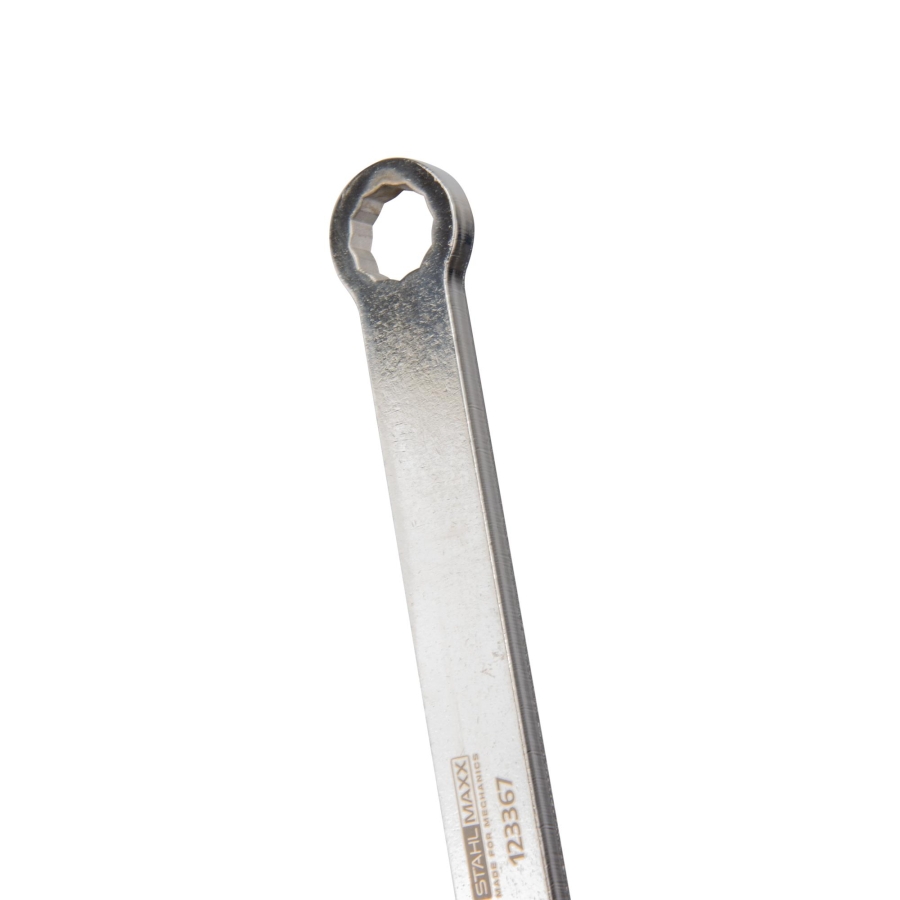

Unlike the OEM insert-style tool, this ring wrench design allows use with standard 1/2" torque wrenches or adapters. This simplifies operation and reduces the need for specialized torque equipment.

---

Service Application

On VAG 1.0L, 1.2L, 1.4L and 1.5L TSI / TFSI engines, the timing belt tensioner must be tensioned and tightened with the belt cover already installed. This tool enables correct access and adjustment under these conditions.

It also allows easier re-adjustment of timing if required after installation.

---

Torque Adjustment Note

Due to the extended length of the tool, torque values must be recalculated.

Example:
Base torque: 25 Nm (1.0 TSI CHZA engine)
Torque wrench length: 320 mm
With tool extension: 509 mm

Correction formula:
(320 ÷ 509) × 25 Nm ≈ 16 Nm

Always adjust torque settings accordingly.

---

Compatibility

Engine types:
1.0, 1.2, 1.4, 1.5 TSI / TFSI petrol engines

Engine codes (selection):
CAVF, CBZB, CHPA, CHPB, CHYA, CHYB, CHYC, CHYE, CHZA, CHZB, CHZC, CHZD, CHZE, CHZG, CHZJ, CHZK, CHZL, CJZA, CJZB, CJZC, CJZD, CMBA, CNLA, CNUB, CPGA, CPTA, CPVA, CPVB, CPWA, CRJA, CTHF, CTJB, CUKB, CUKC, CVNA, CWLA, CWRA, CXSA, CXSB, CYVA, CYVB, CYVC, CYVD, CZBA, CZCA, CZCB, CZCC, CZDA, CZDB, CZDD, CZEA, CZTA, DACA, DACB, DADA, DAFA, DBYA, DFNB, DFYA, DGEA, DGEB, DGXA, DJKA, DJKD, DJVA, DKJA, DKLA, DKLB, DKLC, DKLD, DKRA, DKRB, DKRC, DKRD, DKRE, DKRF, DLAA, DLAC, DPBA, DPCA

---

Additional Information

Used together with tensioner wrench as T10499A.

Drive:

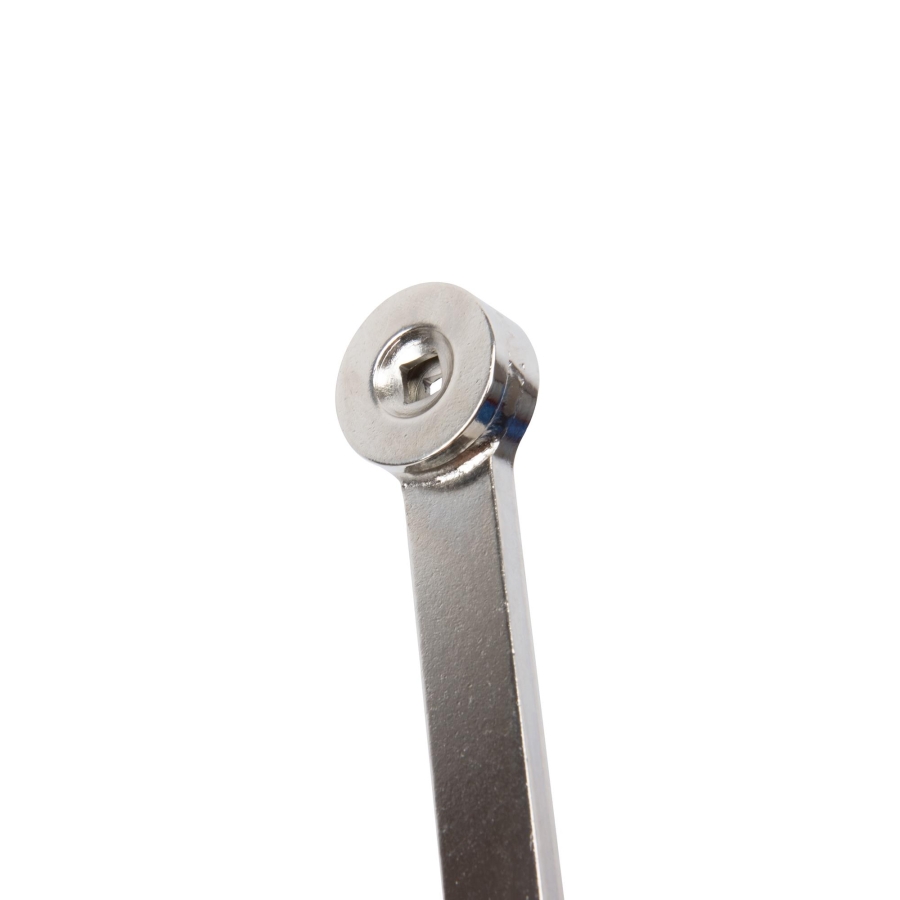

1/4" drive

---

OEM Reference

T10500



OEM numbers are for reference purposes only and do not imply original tools.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (82 HP, 60 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (95 HP, 70 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A1 CITY CARVER (GBH) (07.2019 - ) 25 TFSI (95 HP, 70 kW)

AUDI A1 CITY CARVER (GBH) (07.2019 - ) 30 TFSI (116 HP, 85 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (82 HP, 60 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (95 HP, 70 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 25 TFSI (95 HP, 70 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 30 TFSI (116 HP, 85 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 35 TFSI (150 HP, 110 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TSI (150 HP, 110 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.5 TFSI (150 HP, 110 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (115 HP, 85 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.5 TFSI (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI Flex (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.5 TFSI (150 HP, 110 kW)

AUDI A3 Sedan (8YS) (04.2020 - ) 35 TFSI (150 HP, 110 kW)

AUDI A3 Sedan (8YS) (04.2020 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.0 TFSI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI g-tron (110 hp, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.5 TFSI (150 HP, 110 kW)

AUDI A3 Sportback (8YA) (11.2019 - ) 30 TFSI (110 HP, 81 kW)

AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI (150 HP, 110 kW)

AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW)

AUDI A3 Sportback (8YA) (11.2019 - ) 40 TFSIe (150 HP, 110 kW)

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 1.4 TFSI (150 HP, 110 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.0 TFSI (115 HP, 85 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.4 TFSI (150 HP, 110 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 35 TFSI (150 HP, 110 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 1.4 TSI (150 HP, 110 kW)

AUDI Q3 (F3B) (07.2018 - ) 35 TFSI (150 HP, 110 kW)

AUDI Q3 (F3B) (07.2018 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW)

AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI (150 HP, 110 kW)

AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW)

SEAT ALHAMBRA (710, 711) (06.2010 - 05.2011) 1.4 TSI (150 HP, 110 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TGi (90 HP, 66 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.5 TSI (150 HP, 110 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.0 TSI (115 HP, 85 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.4 TSI (150 HP, 110 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.4 TSI 4Drive (150 HP, 110 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.5 TSI (150 HP, 110kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 (65 HP, 48 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 (75 HP, 55 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TGI (90 HP, 66 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.5 TSI (150 HP, 110 kW)

SEAT LEON (5F1) (09.2012 - ) 1.0 TSI (115 HP, 85 kW)

SEAT LEON (5F1) (09.2012 - ) 1.0 TSi (86 HP, 63 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (125 HP, 92 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (140 HP, 103 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (150 HP, 110 kW)

SEAT LEON (5F1) (09.2012 - ) 1.5 TSI (130 HP, 96 kW)

SEAT LEON (5F1) (09.2012 - ) 1.5 TSI (150 HP, 110 kW)

SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (131 HP, 96 kW)

SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (150 HP, 110 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (122 HP, 90 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (150 HP, 110 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.0 TSI (115 HP, 85 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (105 HP, 77 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (110 HP, 81 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (86 HP, 63 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (122 HP, 90 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (125 HP, 92 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (140 HP, 103 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (150 HP, 110 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSI (115 HP, 85 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSi (86 HP, 63 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (125 HP, 92 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (140 HP, 103 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (150 HP, 110 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.5 TSI (150 HP, 110 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.4 TSI (150 HP, 110 kW)

SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.5 TSI (131 HP, 96 kW)

SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.5 TSI (150 HP, 110 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (60 HP, 44 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (75 HP, 55 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 EcoFuel (68 HP, 50 kW)

SEAT TARRACO (KN2) (09.2018 - ) 1.5 TSI ACT (150 HP, 110kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (110 HP, 81 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (95 HP, 70 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (110 HP, 81 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (90 HP, 66 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.4 TSI (125 HP, 92 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (60 HP, 44 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (75 HP, 55 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 CNG (68 HP, 50 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (95 HP, 70 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.4 TSI R5 (125 HP, 92 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III station wagon (NJ5) (08.2014 - ) 1.0 TSI (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 TSI (95 HP, 70 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TGI CNG (90 HP, 66 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (115 HP, 85 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (95 HP, 70 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.5 TSI (150 HP, 110 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.4 TSI (150 HP, 110 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.5 TSI (150 HP, 110 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI (125 HP, 92 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI (150 HP, 110 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.5 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.5 TSI (150 HP, 110 kW)

SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI (150 HP, 110 kW)

SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.5 TSI (150 HP, 110 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.4 TSI (125 HP, 92 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.4 TSI (125 HP, 92 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TGI CNG (90 HP, 66 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (116 HP, 85 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (95 HP, 70 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.5 TSI (150 HP, 110 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI (125 HP, 92 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI (150 HP, 110 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI (125 HP, 92 kW)

SKODA SUPERB III station wagon (3V5) (03.2015 - ) 1.4 TSI (150 HP, 110 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI iV (156 HP, 115 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.4 TSI (125 HP, 92 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.4 TSI 4x4 (150 HP, 110 kW)

VW ARTEON (3H7, 3H8) (03.2017 - 07.2020) 1.5 TSI (150 HP, 110 kW)

VW ARTEON SHOOTING BRAKE (3H9) (06.2020 - ) 1.5 TSi (150 HP, 110 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW BEETLE Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Beetle Convertible (5C7, 5C8) (12.2011 - 07.2019) 1.4 TSI (150 hp, 110 kW)

VW Caddy IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW)

VW Caddy IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (84 hp, 62 kW)

VW Caddy IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.2 TSI (84 PS, 62 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.4 TSI (125 hp, 92 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.4 TSI (131 hp, 96 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.4 TSI (125 hp, 92 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.4 TSI (131 hp, 96 kW)

VW CC (358) (11.2011 - 12.2016) 1.4 TSI (150 hp, 110 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (110 HP, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (115 HP, 85 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (86 HP, 63 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.2 TSI (110 HP, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.2 TSI (86 HP, 63 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.5 TSI (130 HP, 96 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI 16V (105 HP, 77 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.4 TSI (125 HP, 92 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 GTE Hybrid (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (140 HP, 103 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.5 TSI (130 HP, 96 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.5 TSI (150 HP, 110 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (86 HP, 63 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (140 HP, 103 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VIII (CD1) (07.2019 - ) 1.5 TSI (131 HP, 96 kW)

VW GOLF VIII (CD1) (07.2019 - ) 1.5 eTSI (150 HP, 110 kW)

VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 TSI (131 HP, 96 kW)

VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 TSI (150 HP, 110 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI 16V (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI (125 HP, 92 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI (150 HP, 110 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI Hybrid (150 HP, 110 kW)

VW PASSAT ALLTRACK B8 Variant (3G5, CB5) (05.2015 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.4 TSi (125 HP, 92 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (60 HP, 44 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (75 HP, 55 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (95 HP, 70 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI 16V (90 HP, 66 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TSI (140 HP, 103 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TSI (150 HP, 110 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 (75 HP, 55 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TGI (90 HP, 66 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (115 HP, 85 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (95 HP, 70 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.5 TSI (150 HP, 110 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (60 HP, 44 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (75 HP, 55 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 TSI (95 HP, 70 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSI (110 HP, 81 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.4 TSI (150 HP, 110 kW)

VW SCIROCCO III (137, 138) (05.2008 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW SCIROCCO III (137, 138) (05.2008 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW SHARAN (7N1, 7N2) (05.2010 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (116 HP, 85 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (95 HP, 70 kW)

VW T-CROSS (C11) (12.2018 - ) 1.5 TSI (150 HP, 110 kW)

VW T-ROC (A11) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

VW T-ROC (A11) (07.2017 - ) 1.5 TSI (150 HP, 110 kW)

VW T-ROC (A11) (07.2017 - ) 1.5 TSI 4motion (150 HP, 110 kW)

VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.0 TSI (116 HP, 85 kW)

VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.5 TSI (150 HP, 110 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 1.4 TSI (125 HP, 92 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 1.4 TSI (150 HP, 110 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI (125 HP, 92 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI (150 HP, 110 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI 4motion (150 HP, 110 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.5 TSI (131 HP, 96 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.5 TSI (150 HP, 110 kW)

VW TIGUAN ALLSPACE (BW2) (03.2017 - ) 1.4 TSI (150 HP, 110 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.0 TSI (116 HP, 85 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.2 TSI (110 HP, 81 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (60 HP, 44 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (75 HP, 55 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 EcoFuel (68 HP, 50 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 GTI (115 HP, 85 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 TSI (90 HP, 66 kW)
