VANOS Sensor Wheel Alignment Gauge for BMW N40 N45, as OEM 117260 / 83300494306

Price: €69.95 136.81лв.

Code:

121117
Weight:

0.368 Kgs

Overview:
✔ Professional alignment gauge for VANOS sensor wheels
✔ Designed for BMW N40, N45, N45T engines
✔ Ensures precise TDC positioning of sensor wheels
✔ Mounted directly to cylinder head during operation
✔ Remains installed during camshaft central bolt tightening
✔ Essential for accurate engine timing procedures

VANOS Sensor Wheel Alignment Gauge for BMW N40 N45, as OEM 117260 / 83300494306

Send to friend

Rate this product

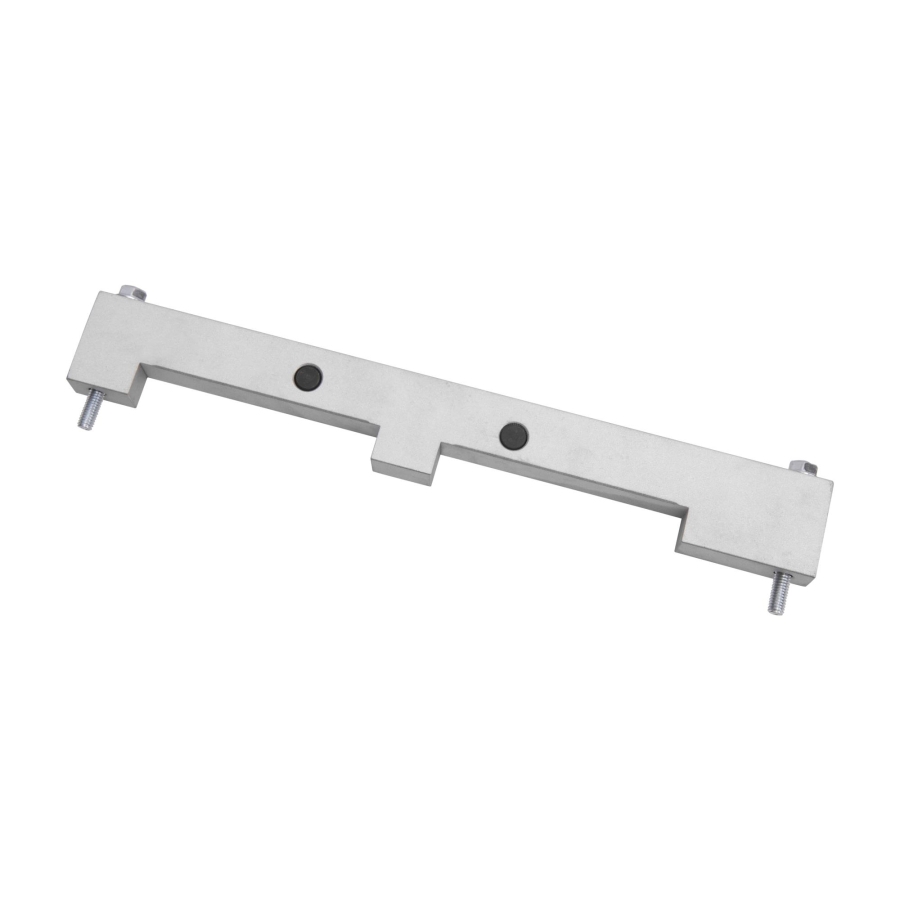

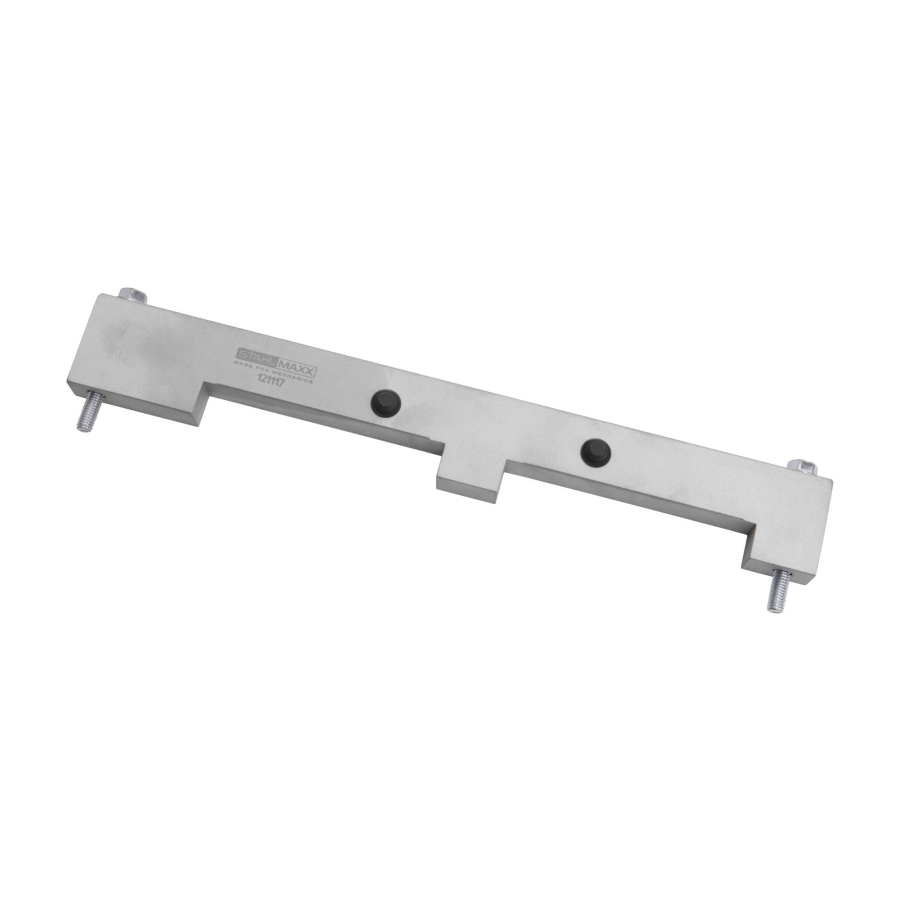

This specialized alignment gauge is used to set the VANOS sensor wheels to the correct top dead center (TDC) position on BMW N40 and N45 engine series.

The tool is securely mounted to the cylinder head and remains in place during the tightening of the camshaft central bolts, ensuring precise and stable alignment throughout the procedure.

Compatibility

Engine series:

BMW N40
BMW N45
BMW N45T

Design & Operation

Precision-machined gauge for accurate sensor wheel positioning
Fixed directly to cylinder head for stability
Maintains alignment during critical tightening procedures
Ensures correct VANOS timing setup
Suitable for professional workshop use

OEM Reference

To be used as:

BMW as 117260, 117 260
BMW as 83300494306, 8330 0494306

Additional Tools (Not Included)

(Available as set under Item No. 999155)

Item No. 106650 – Torque screwdriver 0.4–2 Nm, 1/4", as 119340, 8330009460
Item No. 116738 – Flywheel locking pin, as 119190, 115120
Item No. 101259 – Chain tensioner locking pins, as 113340, 83300490973
Item No. 120406 – Balance shaft locking tool (Version 3), as 118700, 83300496102
Item No. 121112 – Balance shaft locking tool (Version 2), as 115140, 83300494885
Item No. 121113 – Balance shaft locking tool (Version 1), as 119330, 83300493970
Item No. 121114 – Crankshaft counter holder, as 119280, 83300493940
Item No. 121116 – Camshaft locking tool N40 N45, as 117250, 83300494307
Item No. 112483 – Front crankshaft seal tool, as 119220, 83300493934, 119230, 83300493935
Item No. 101180 – Rear crankshaft seal tool set, as 119180, 83300494029
Item No. 115555 – Special socket T60, as 114180, 83300491018
