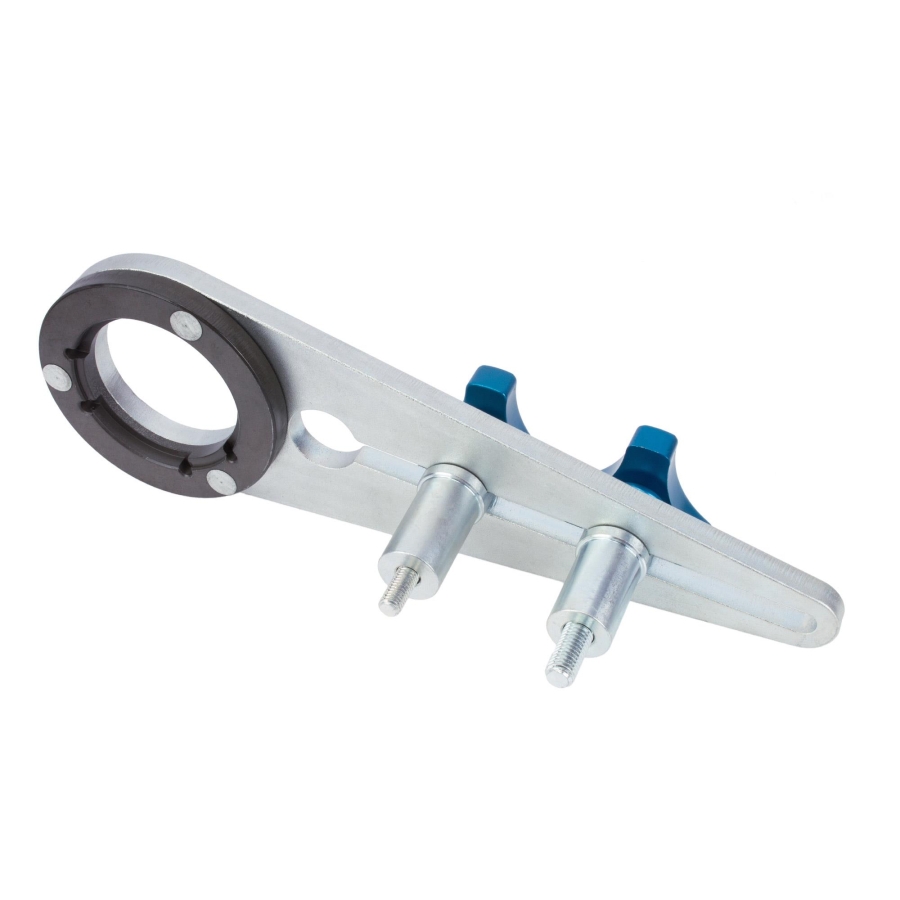

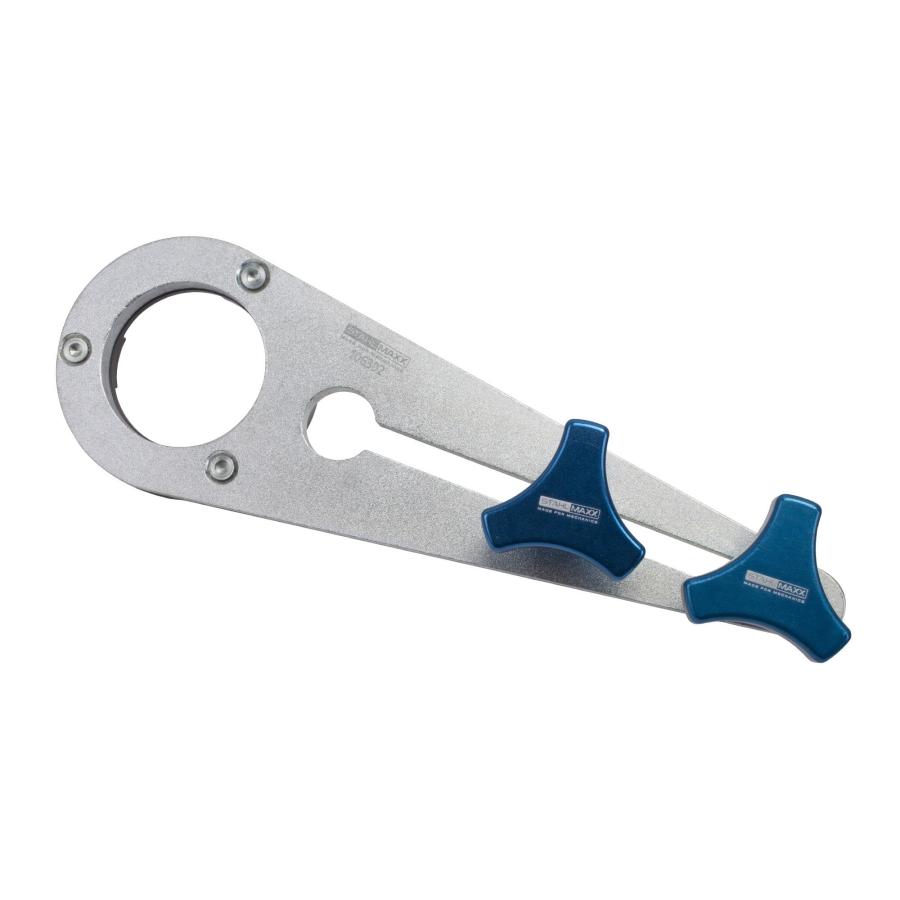

Vibration Damper Holding Tool for BMW / Mini N47 N57 – as 117220

This holding tool is designed to counter-hold the vibration damper (crankshaft pulley) during removal and installation of the mounting bolts on BMW and Mini N47 and N57 engines.

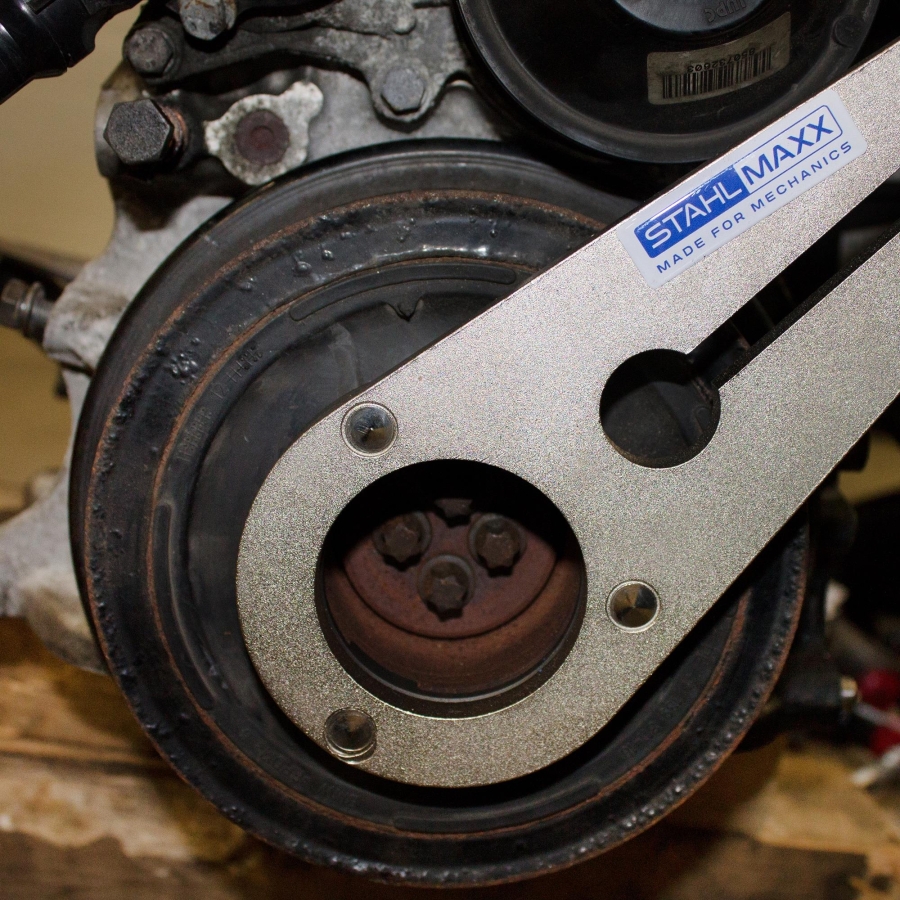

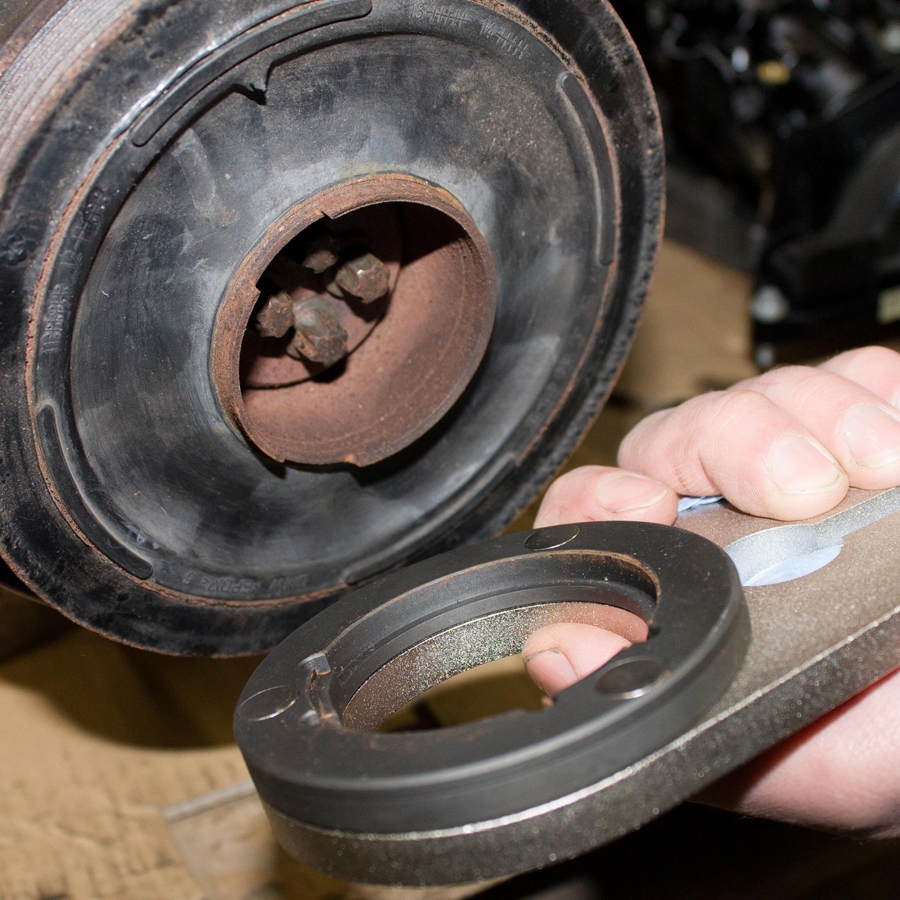

It engages with the toothed profile of the crankshaft pulley and is mounted at the idler pulley fixing point, ensuring a secure and stable hold during high-torque operations.

---

Working Principle

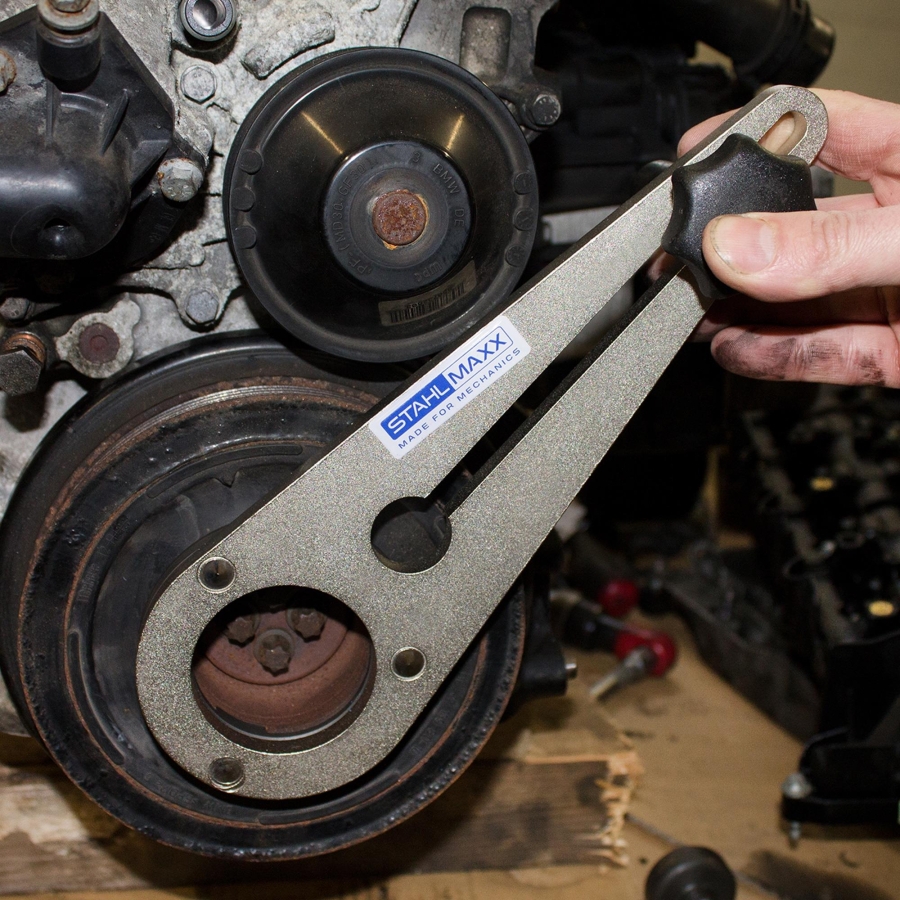

The tool is fixed to the mounting point of the idler pulley and simultaneously engages with the teeth of the crankshaft pulley. This setup allows controlled loosening and tightening of the vibration damper bolts.

---

Important Notes

• Do not run the engine without the serpentine belt installed, as this may damage the vibration damper
• For N47 / N47S engines:
  • Torsional damper bolts (4 × M10 × 65) must be replaced
  • Tightening torque: 40 Nm + 120°

---

Preparation (Before Use)

Depending on vehicle model, the following components must be removed:

• E60 / E61: upper serpentine belt cover
• E81–E93: intake hose, acoustic cover, and if necessary fan shroud
• Serpentine belt and idler pulley must always be removed

---

Key Features

• Secure holding of crankshaft pulley during service
• Designed for E-profile bolt applications

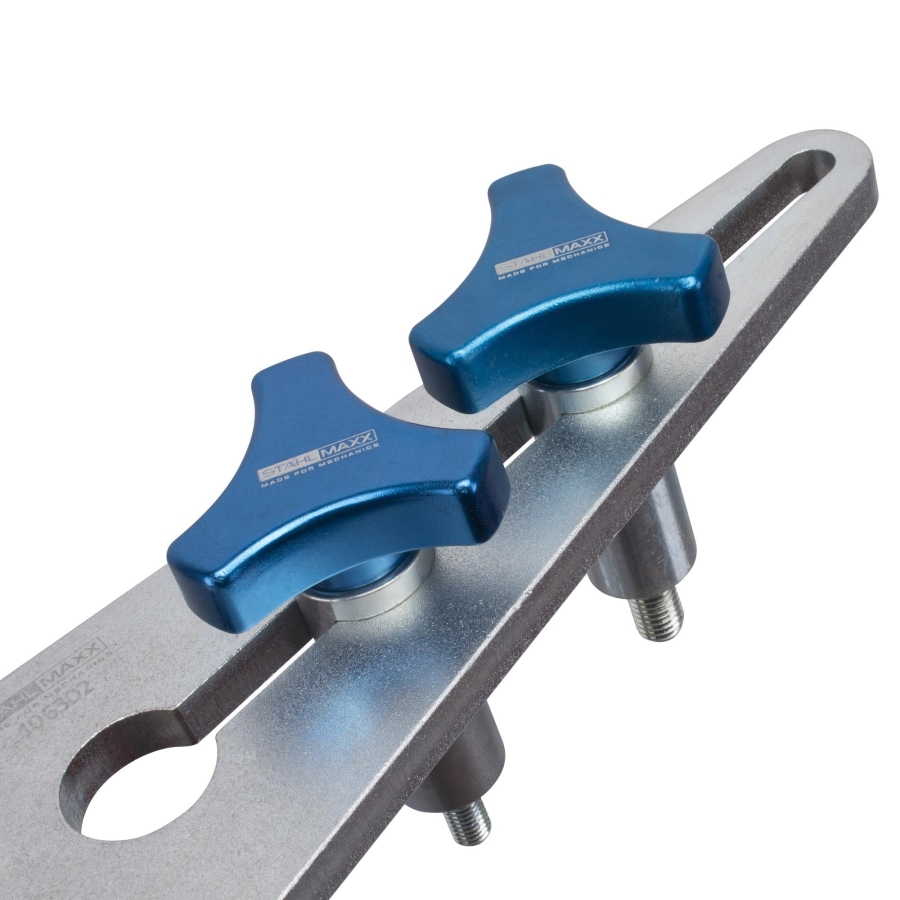

• Mounts using existing engine fixing points
• Enables safe high-torque operations
• Durable construction for workshop use

---

Vehicle Compatibility

Compatible with BMW models:
E60, E61, E81, E82, E84, E87, E88, E90, E91, E92, E93

---

Engine Compatibility

Compatible with engines:

• N47
• N47S
• N57

---

Detailed Engine Codes

B47D20A, B47D20B
M47D20 (204D4), M57D30 (306D3)
N47C16A, N47C20A
N47D16A, N47D20A, N47D20B, N47D20C, N47D20D, N47SD20D
N57D30A, N57D30B, N57D30C

---

OEM Reference Compatibility

Compatible with vibration dampers as:
11237797995
11237799153
11237823191

---

Reference Tool

To be used as:
117220 / 221 (83 30 0 496 796)
117220 / 222 (83 30 0 496 811)
117220 / 223 (83 30 0 496 812)
117220 / 224 (83 30 0 496 813)
117220 / 225 (83 30 0 496 814)

---

Recommended Additional Tools (Not Included)

• Crankshaft turning tool (item.no. KT10066) as 116480 / 83300493380
• Socket E12 (item.no. KT03030) for vibration damper bolts



OEM numbers are for comparison purposes only. This product is not an original manufacturer tool.
