Viscous Fan Clutch Hex Key for Mercedes-Benz as W103589010900 & W120589140700

Price: €39.95 78.14лв.

Code:

118738
Weight:

0.760 Kgs

Overview:
✔ Extra-long hex key for removing and installing Mercedes-Benz viscous fan clutches
✔ Suitable for 8 mm and 10 mm internal hex fan clutch bolts
✔ Also suitable for releasing the serpentine belt tensioner on many Mercedes-Benz engines
✔ 1/2" square drive for use with standard ratchets and breaker bars
✔ Includes 8 mm and 10 mm hex adapters
✔ Designed for use as Mercedes-Benz W103589010900 and W120589140700

Viscous Fan Clutch Hex Key for Mercedes-Benz as W103589010900 & W120589140700

Send to friend

Rate this product

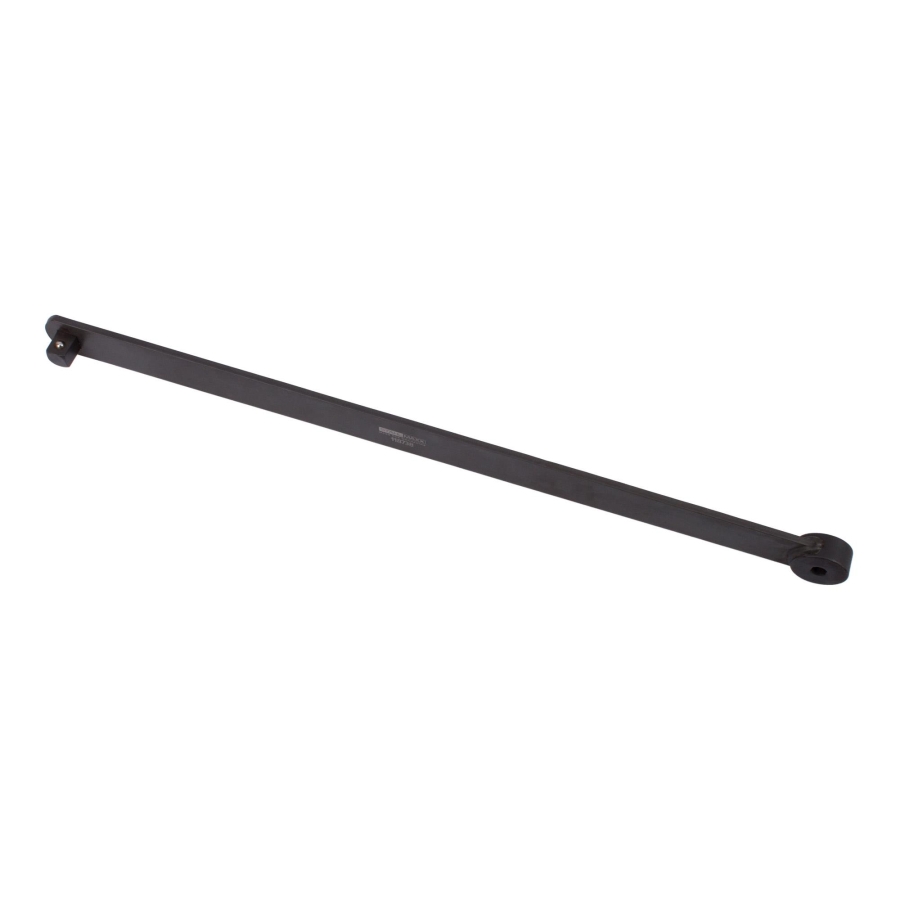

This extra-long and slim fan clutch hex key is designed for loosening and tightening the internal hex bolts used on Mercedes-Benz viscous fan clutches.

Its slim design allows access where conventional tools cannot be used due to limited space. The integrated 1/2" square drive also enables the tool to be used for releasing the serpentine belt tensioner on many Mercedes-Benz engines.

By combining several special tools into one design, it covers a wide range of petrol and diesel engines.

Compatible Engine Codes

Petrol

M102
M103
M104
M110
M116
M117
M119
M120

Diesel

OM602
OM605
OM606
OM612
OM646
OM647
OM651

Technical Specifications

Material: Surface-treated steel
Welded adapter holders and 1/2" square drive
Overall length: 490 mm
Width: 32 mm
Material thickness: 5 mm
Drive: 1/2" square drive
Bit holder: 8 mm
Hex adapters: Hardened and heat-treated SC45 steel

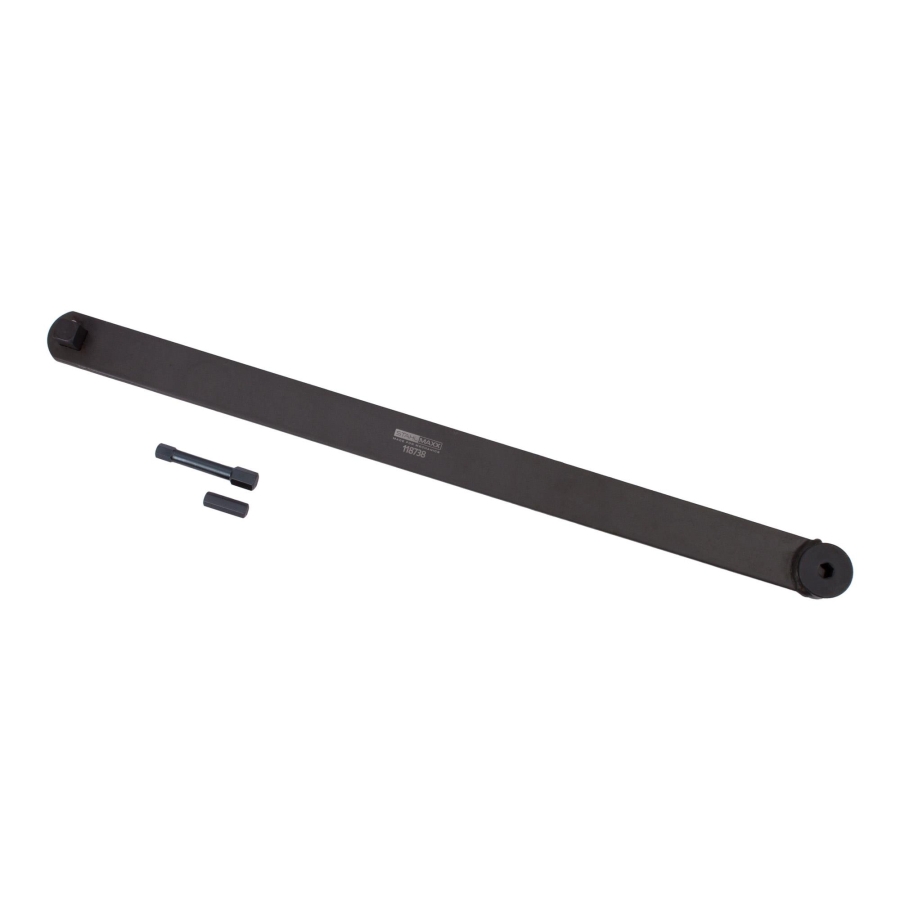

Scope of Delivery

Item No. – Fan clutch and serpentine belt tensioner wrench
Item No. – 8 mm hex adapter, 25 mm long
Item No. – 10 mm hex adapter, 60 mm long

Usage

Example: Mercedes-Benz OM602.982 (W210)

Remove the fan shroud and fan shroud ring.
Leave the serpentine belt installed.
Lock the water pump pulley using a suitable holding tool (Item No. 20017).
Loosen and remove the central bolt of the viscous fan clutch together with the cooling fan.

Recommended tightening torques (refer to the manufacturer's repair information):
