Front Camshaft Oil Seal Installation Tool for Volvo 2.0L D420T2 and D420T8, as 9997766

Special two-piece tool set for the correct and damage-free installation of the front camshaft oil seal on Volvo 2.0L D420T2 and D420T8 engines.

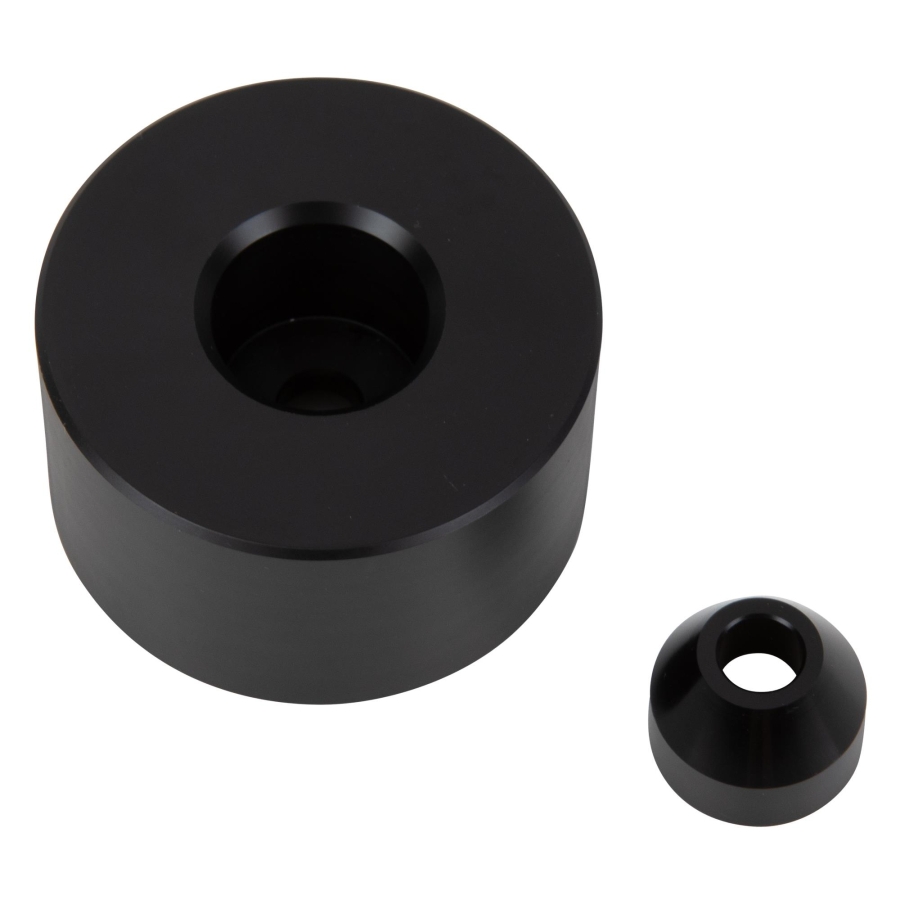

The set consists of a tapered guide sleeve and a press sleeve. Together, they protect the sealing lip and ensure that the oil seal is guided onto the camshaft and pressed evenly into its correct installation position.

Suitable Engine Codes

• D420T2, D420T8

Reference Tightening Torques

Reference application: Volvo V90 II with D420T8 engine

• Crankshaft central bolt: 90 Nm + 110°
• Camshaft central bolt: 50 Nm + 60°
• Small idler pulley: 17 Nm
• Large idler pulley: 24 Nm
• Timing-belt tensioner pulley: 30 Nm

Always verify the tightening torques and repair procedure for the exact vehicle and engine variant using current manufacturer documentation.

Scope of Delivery

• 1 x tapered guide sleeve for protecting the front camshaft oil seal during installation
• 1 x press sleeve for the correct installation of the front camshaft oil seal

To Be Used As

• Volvo 9997766

Original numbers are for comparison purposes only; this is not an original tool!
