Wheel Hub and Drive Shaft Puller Flange Ø160 mm 3, 4, 5, 6 Hole PCD 98–135 mm

This professional universal wheel hub adapter with Ø160 mm diameter is designed for removal of drive shafts, wheel hubs and wheel bearings in various automotive applications.

The integrated universal bolt pattern allows use with wheel hubs having PCD sizes from 98 mm to 135 mm, supporting 3, 4, 5 and 6-hole wheel hub configurations.

Manufactured from hardened high-strength SC45 steel, the adapter provides excellent durability and reliability for professional workshop environments.

The universal design allows flexible use with various impact, hydraulic and mechanical systems to maximize workshop versatility.

Universal Application Range

Suitable for:

• Passenger vehicles
• SUVs
• Vans
• Off-road vehicles
• Workshop service applications

Compatible with:

• 3-hole wheel hubs
• 4-hole wheel hubs
• 5-hole wheel hubs
• 6-hole wheel hubs

PCD range:

• 98 mm – 135 mm

High-Strength SC45 Steel Construction

Manufactured from hardened SC45 steel for demanding workshop applications.

Benefits:

• High durability
• Increased resistance under heavy loads
• Suitable for hydraulic applications
• Suitable for impact applications
• Long service life

Expandable Workshop System

For maximum flexibility the wheel hub adapter flange can be expanded with additional accessories and tools.

Compatible with:

• Slide hammers
• Hydraulic pulling systems
• Mechanical spindle systems
• Pulling tools
• Press tools
• Additional adapters

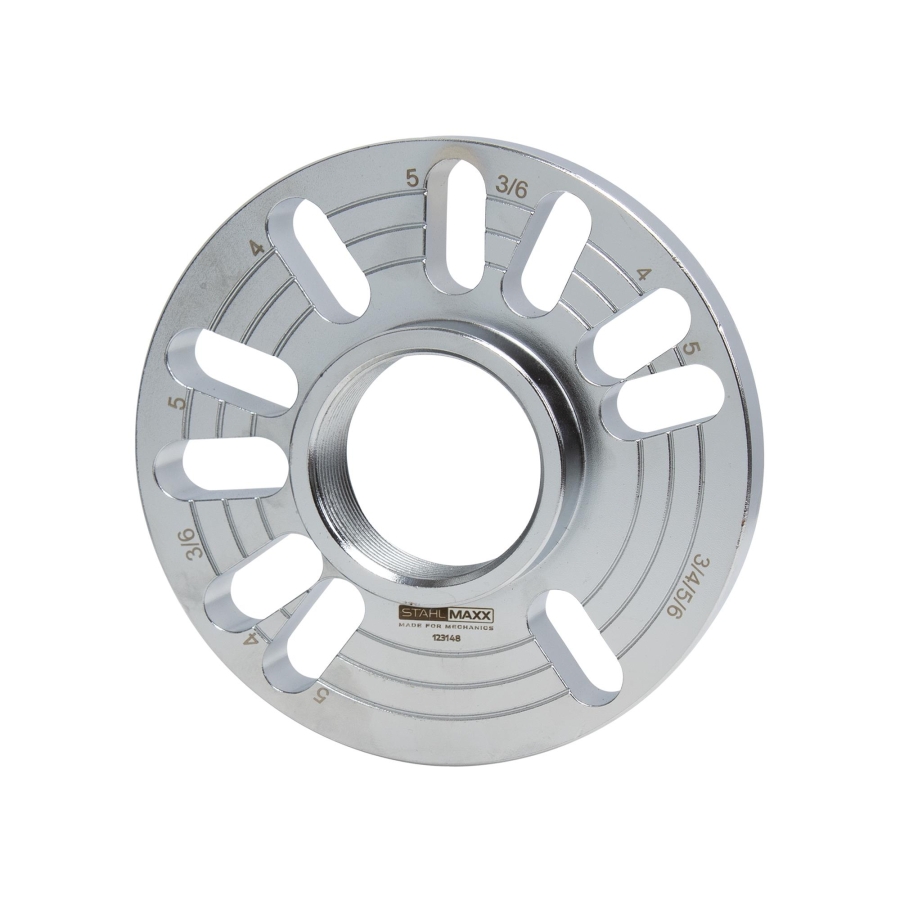

Integrated laser markings and bolt pattern indicators simplify positioning and reduce setup time.

Package Contents

• Item no. 123148 — Wheel hub and drive shaft puller flange for 3, 4, 5 and 6-hole wheel hubs with PCD 98–135 mm, internal thread 2 1/4"-14UNS

Important Information

Compatible with multiple optional accessories and expansion components for additional workshop applications.

OEM numbers and manufacturer references are used only for identification and comparison purposes. This is not an original manufacturer tool
