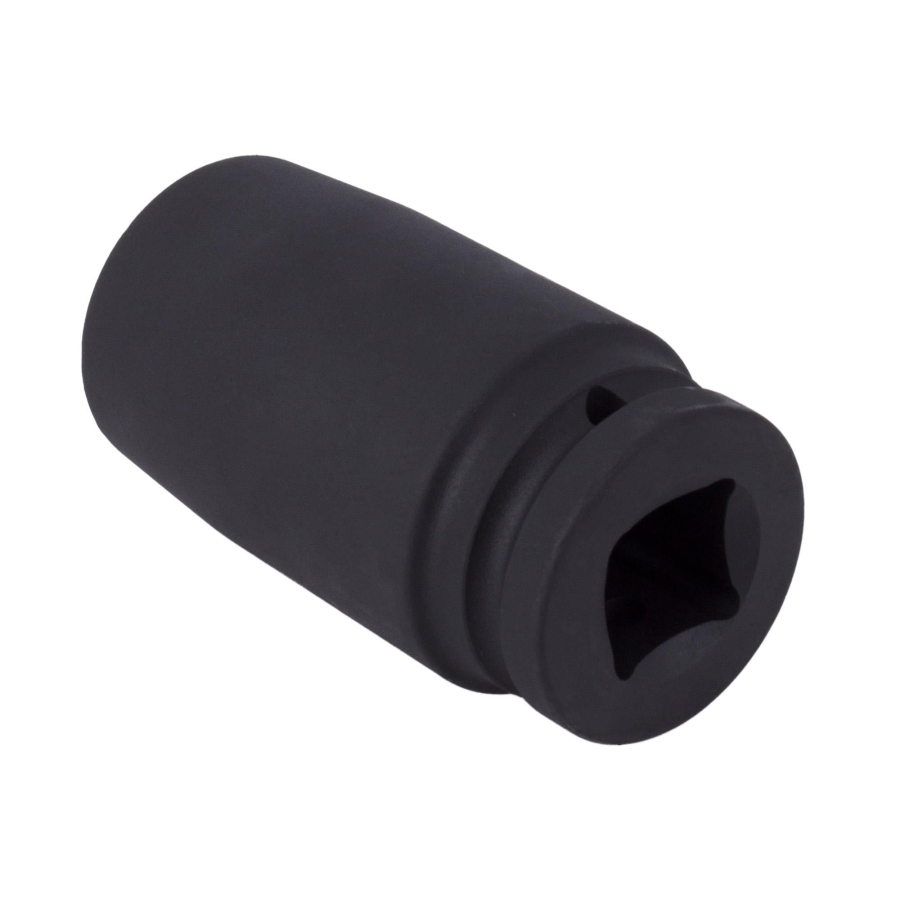

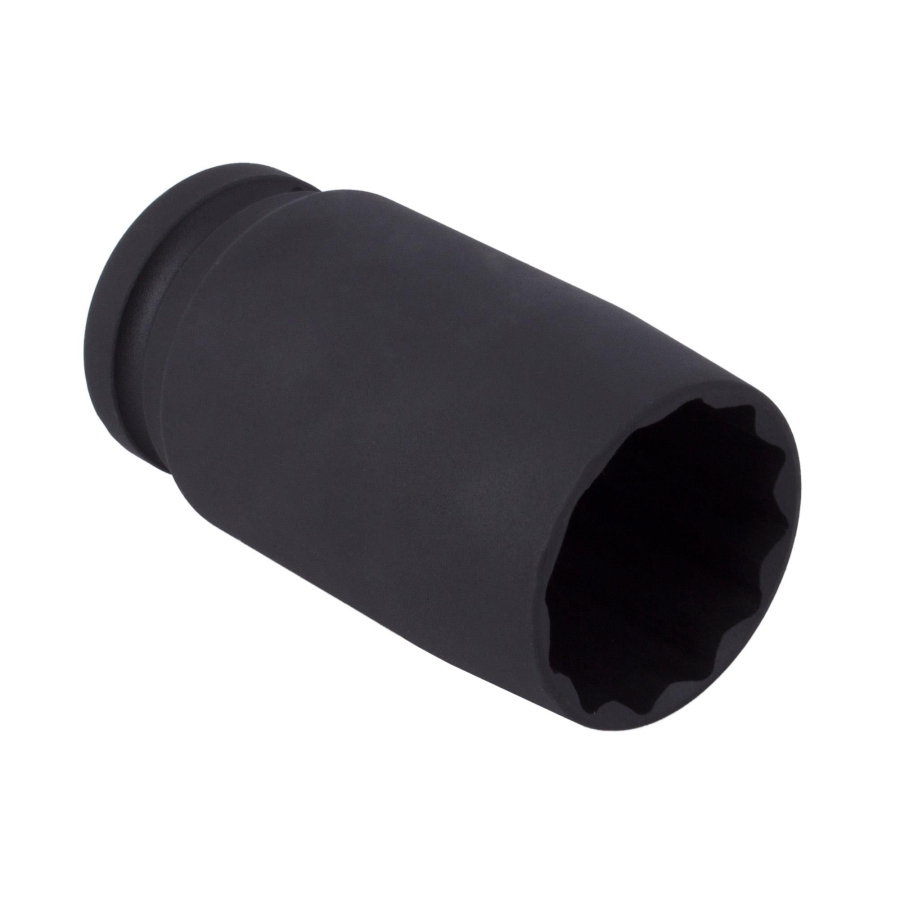

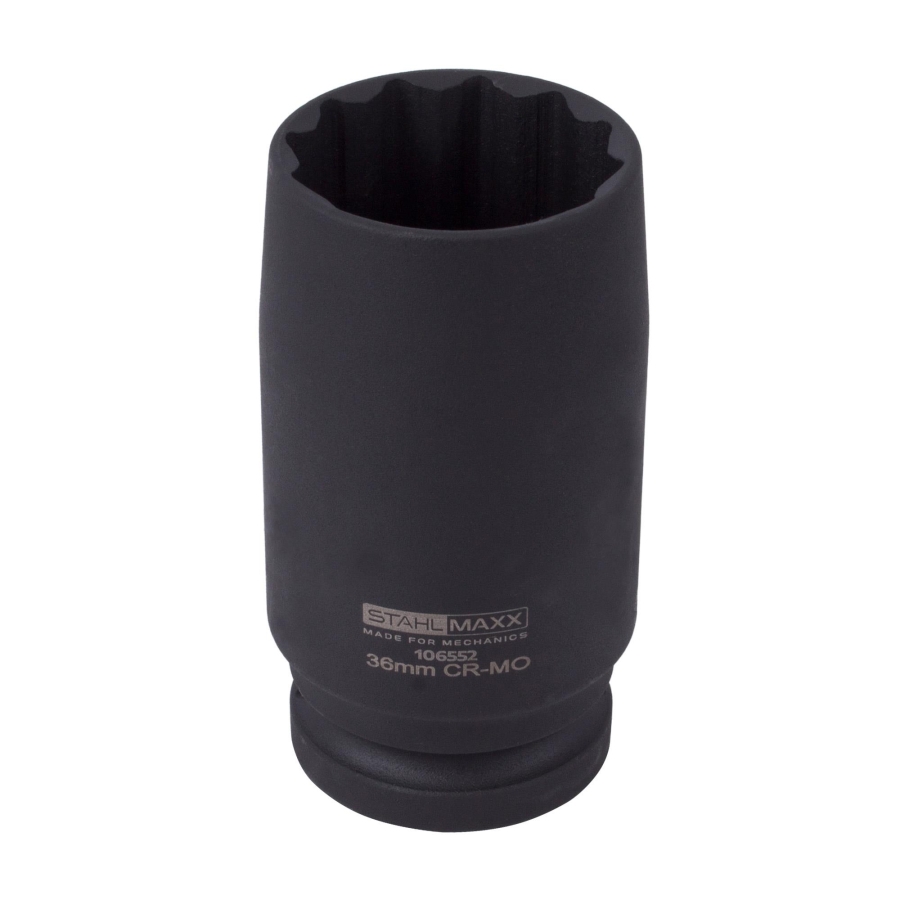

12-Point Slim Drive Shaft Socket 36 mm, 3/4", for Drive Shafts, Rear Axle Flanges & Differentials
-
Code:106552
-
Weight:0.600 Kgs
Overview:
✔ Extra-slim 36 mm 12-point socket for drive shaft and drivetrain applications
✔ Designed for confined access around wheel hubs and axle nuts
✔ Suitable for drive shafts, CV shafts, rear axle flanges and differential components
✔ Thin-wall design for improved accessibility in restricted spaces
✔ 3/4" square drive for high-torque applications
✔ Suitable for selected BMW, Mercedes-Benz, Jaguar, VAG, Opel, Fiat and other vehicles
✔ Used as VAG T10204, Opel DT-48489 and Mercedes-Benz W220589010900
This special 36 mm socket is designed for servicing drive shafts, CV shafts, rear axle flanges and differential components where standard sockets cannot provide sufficient clearance.
Its extra-slim construction allows access to fasteners located deep inside wheel hubs, axle assemblies and drivetrain housings.
Extra-Slim Design for Restricted Access
On many vehicle applications, the clearance between the wheel hub and the drive shaft nut is extremely limited. Standard sockets are often too large to fit through the hub centering bore or reach recessed fasteners.
The thin-wall design of this socket provides the necessary access for servicing axle shaft nuts and drivetrain components without damaging surrounding parts.
For these applications, the use of Item no. 106552 is strongly recommended.
Suitable for Jaguar Differential Applications
For Jaguar XJ40 and XJ81 models, the socket can also be used on the differential input shaft and propeller shaft drive connection.
Vehicle Compatibility
Suitable for selected vehicles including:
- BMW
- Chevrolet Trax (from 2013)
- Citroën Nemo
- Fiat 500, Grande Punto, Punto Evo (from 2005)
- Ford Ka
- Jaguar XJ40, XJ81
- Mercedes-Benz 197, 215, 216, 220, 221, 240
- Opel Adam, Corsa D, Mokka
- Peugeot Bipper
- VAG Group vehicles
Technical Specifications
- Profile: 12-point
- Socket size: 36 mm
- Drive: 3/4"
- Inner diameter: 36 mm
- Outer diameter: 46 mm
- Internal depth: 65 mm
- Extra-slim design
- Thin-wall construction
OEM Reference Numbers
Suitable for use as:
- VAG T10204 – Socket for loosening the drive flange nut on the transfer case
- Opel DT-48489
- Mercedes-Benz W220589010900
- Mercedes-Benz 220 589 01 09 00
Applications
Suitable for:
- Drive shaft nuts
- CV shaft fasteners
- Rear axle flange nuts
- Differential service
- Transfer case service
- Drivetrain repairs
Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.
