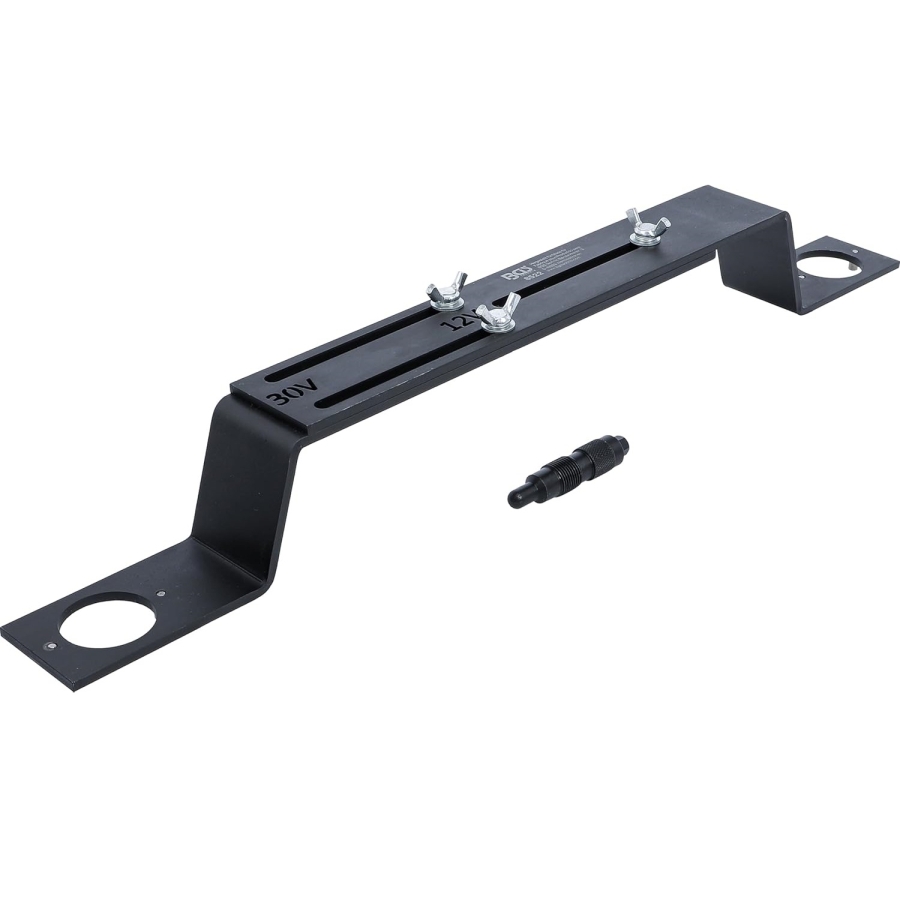

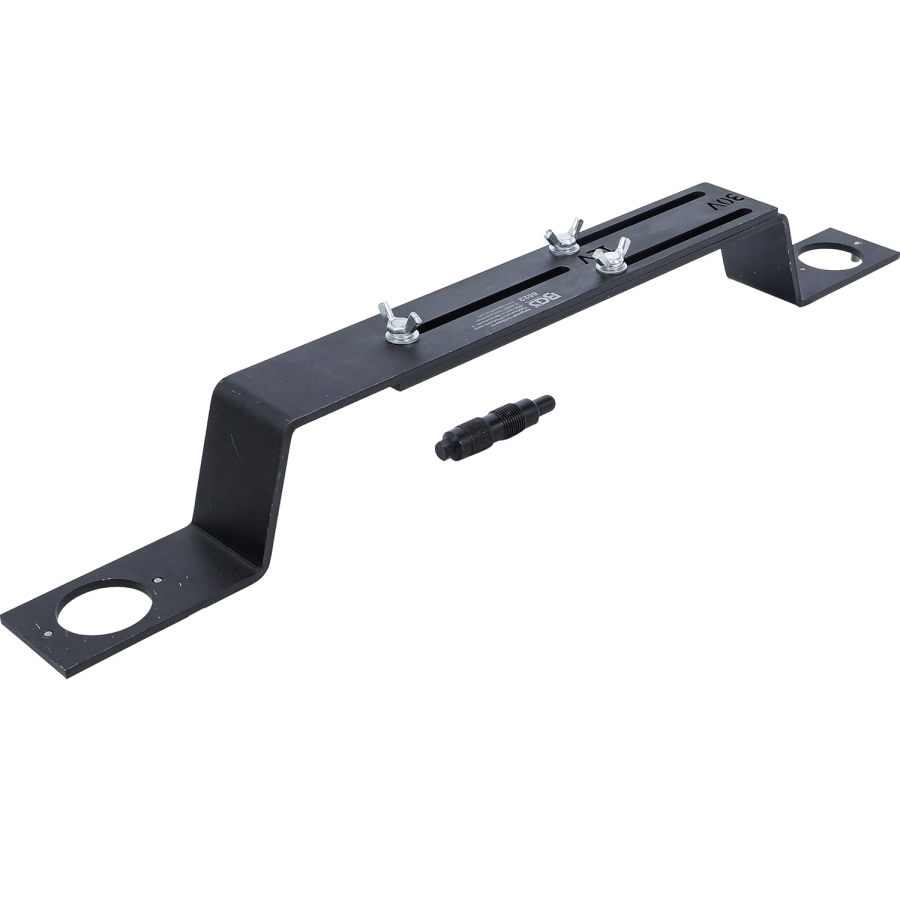

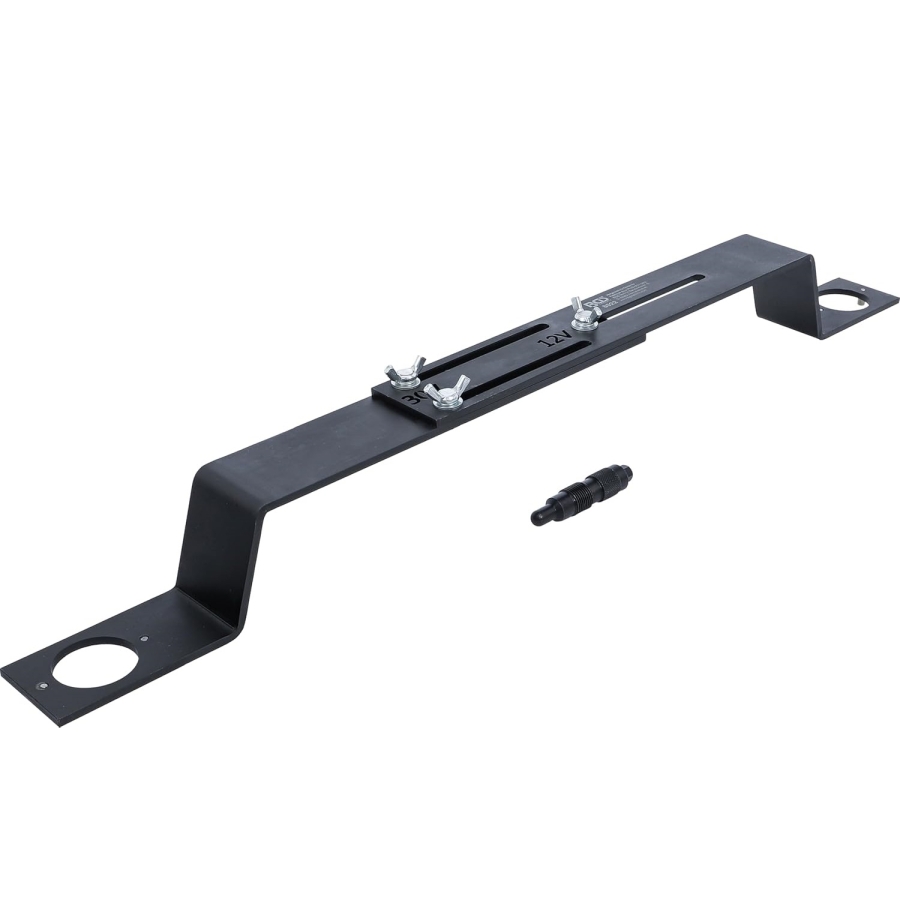

Adjustable Camshaft Locking Tool for Audi VW V6 12V 30V as 3391 3243

This adjustable camshaft locking tool is designed for use during timing belt replacement and engine service on VAG V6 petrol engines. It allows secure locking and accurate positioning of the camshafts during maintenance procedures.

Compatibility

Suitable for Audi and VW V6 engines with 12V and 30V configurations.

Compatible with the following models:
Audi A4 2.4 / 2.8 (1997–2002)
Audi A6 2.4 / 2.8 (1997–2002)
Audi A8 2.8 (1997–2002)
Audi S4 2.7 Turbo (1997–2001)
VW Passat 2.4 (1996–2002)
VW Passat 2.8 30V (1996–2001)

Also suitable for vehicles with engine codes:
ACK, ALG, APR, AQD

Applicable for 2-valve V6 engines such as:
Audi 80, 90, A4, A6 (1994–1997) with engine codes ABC, AFC

Function

The tool provides adjustable locking of camshafts, ensuring precise timing alignment during timing belt replacement. Its flexible design allows compatibility across multiple engine variants and reduces the risk of incorrect timing setup.

OEM Reference

To be used as OEM tool as:
3391, 3243

Crankshaft bolt to be used as:
3242

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.

Mount the crankshaft locking tool (2) in the engine block.

When installing the crankshaft locking tool (2), the marking on the belt pulley must align with the marking on the engine block.

Position both sides of the camshaft locking tool (1) on the camshaft sprockets and tighten the adjustment wing screws.

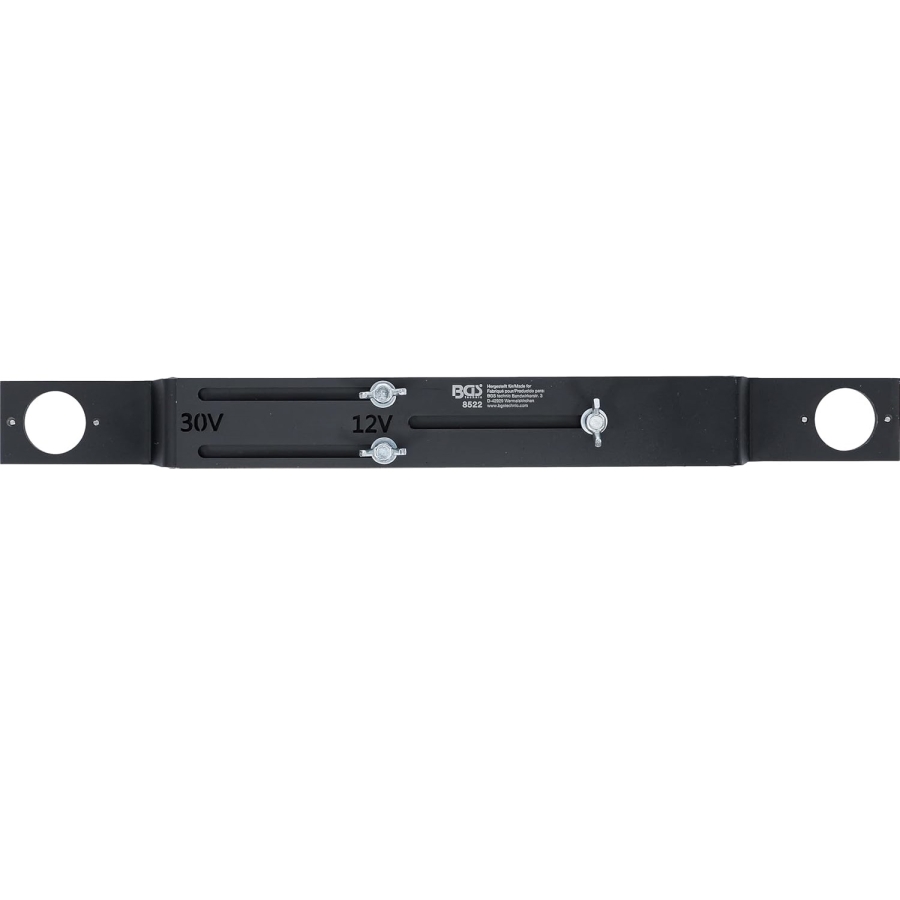

The marking in the illustration indicates the position of the wing screws for 12V and 30V engines.

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.
