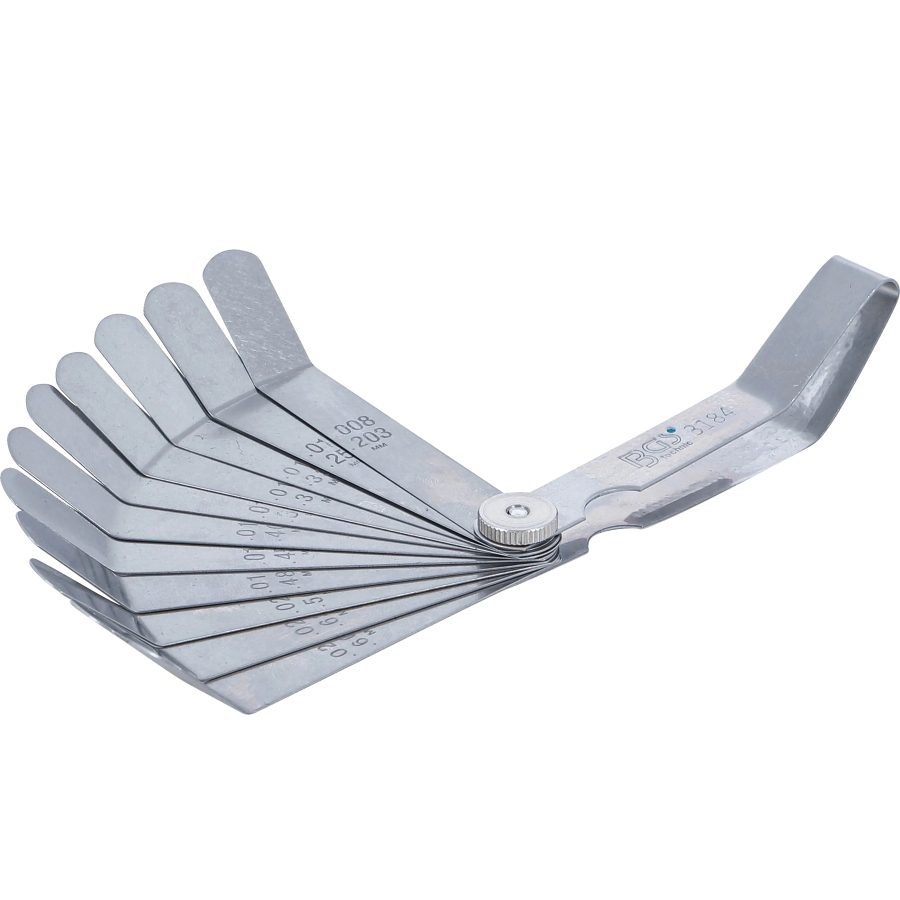

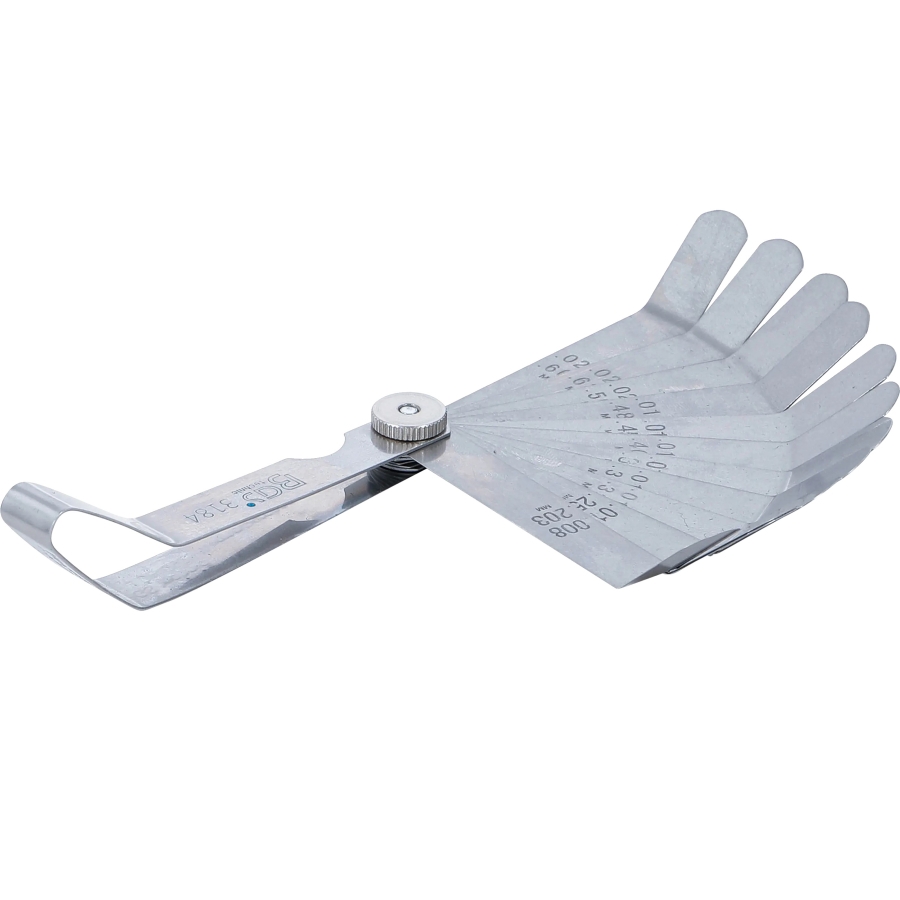

Precision Angled Feeler Gauge with 12 Stainless-Steel Blades
Price:
€4.50
-
Code:3184
-
Weight:0.080 Kgs
Overview:
✔ Precision feeler gauge with 12 angled blades
✔ Stainless-steel construction for corrosion resistance
✔ Measuring range: 0.203–0.660 mm
✔ Angled blade design for access to restricted measuring points
✔ Blade length: 100 mm
✔ Suitable for checking mechanical and valve clearances
The precision feeler gauge is designed for measuring gaps and clearances where straight blades are difficult to position.
Its angled blades provide improved access around valve-train components and other confined mechanical measuring points.

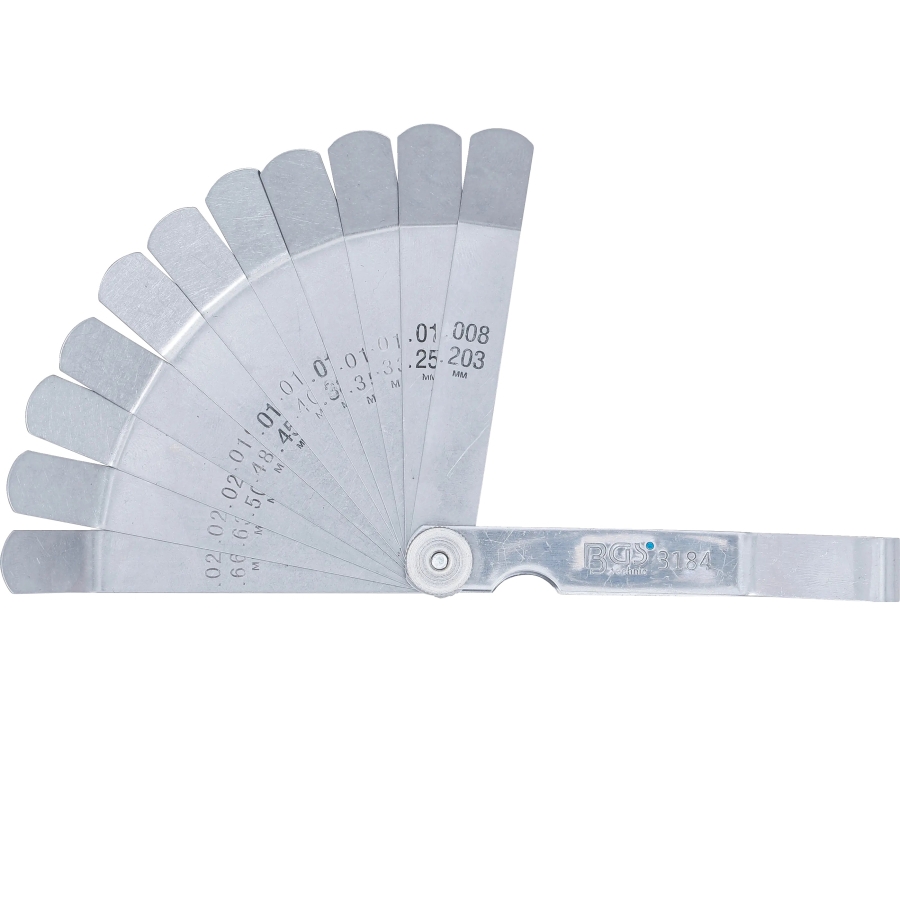

Blade Sizes
The gauge includes the following blade thicknesses:
0.203 mm, 0.254 mm, 0.305 mm, 0.330 mm, 0.356 mm, 0.381 mm, 0.406 mm, 0.457 mm, 0.483 mm, 0.508 mm, 0.635 mm, 0.660 mm
Blade Design
- Number of blades: 12
- Blade shape: Angled
- Blade material: Stainless steel
- Blade length: 100 mm
- Measuring range: 0.203–0.660 mm
Technical Specifications
- Tool type: Precision feeler gauge
- Number of blades: 12
- Measuring range: 0.203–0.660 mm
- Length: 100 mm
- Material: Stainless steel
- Blade profile: Angled
Scope of Delivery
- 1 precision angled feeler gauge with 12 stainless-steel blades
