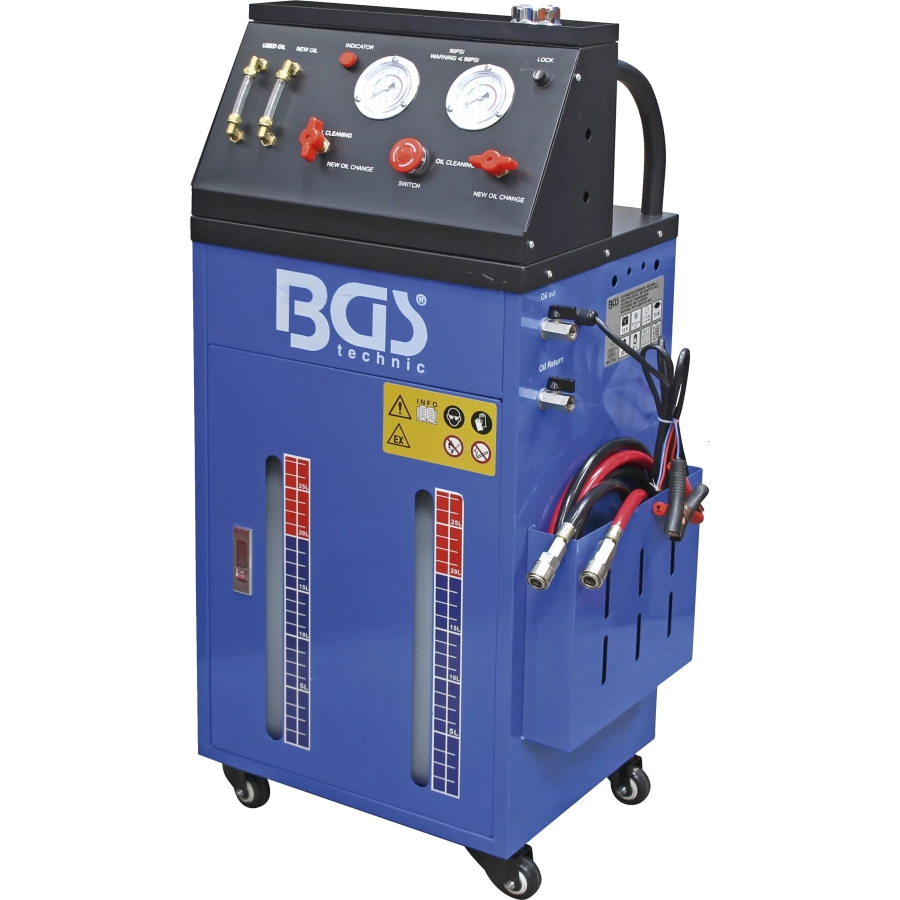

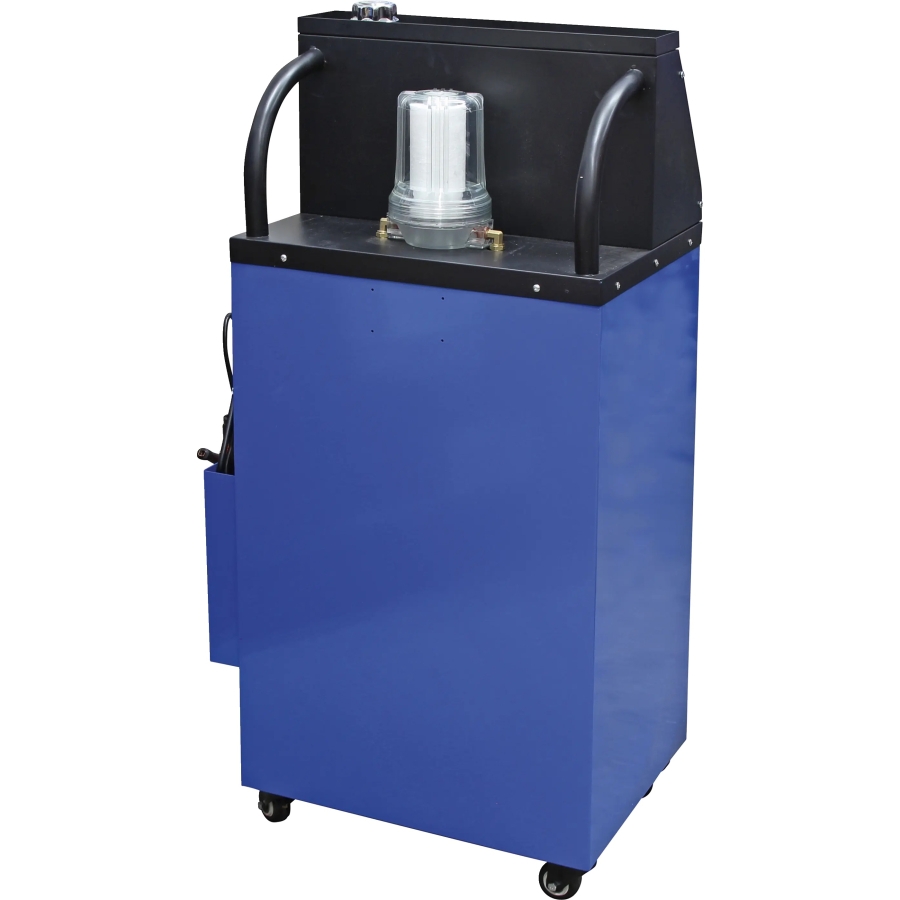

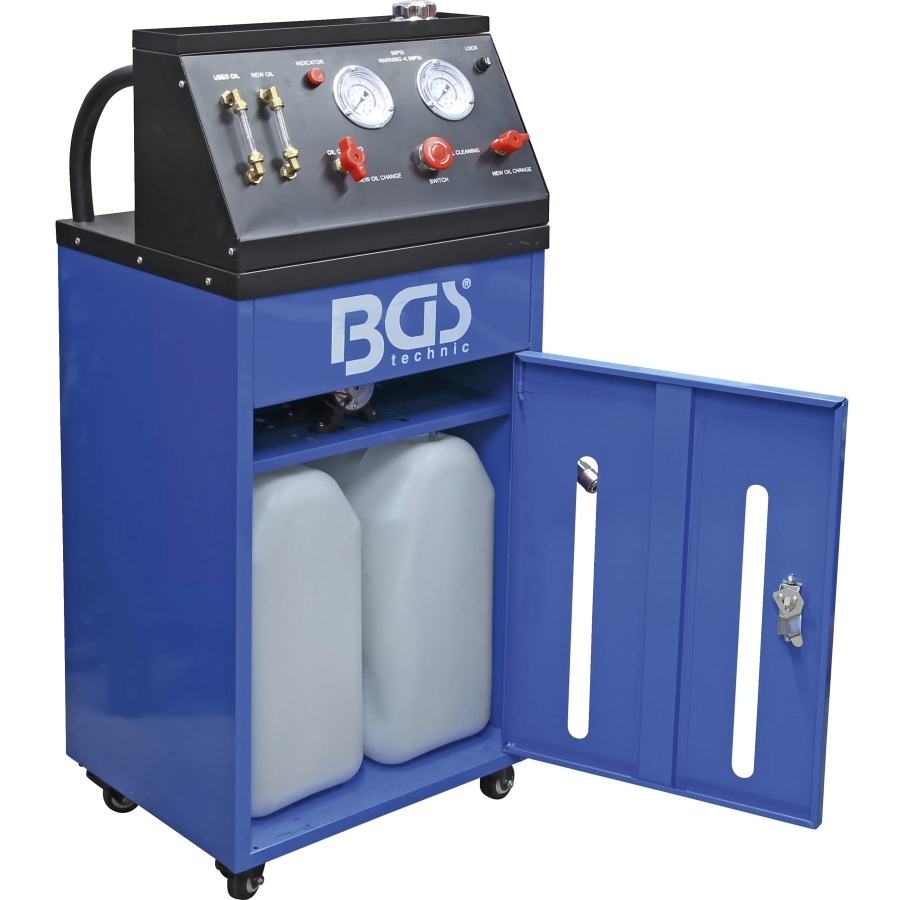

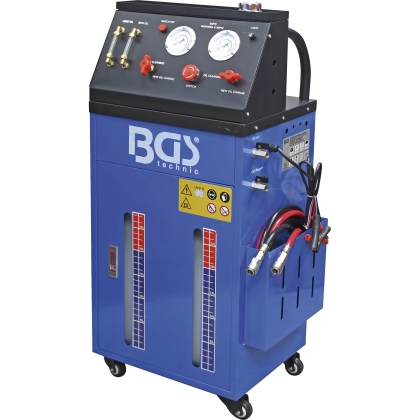

Automatic Transmission Oil Exchange & Cleaning Machine with Adapter Set – 30L

This automatic transmission oil exchange and cleaning machine is designed for professional servicing of automatic transmission systems. The unit removes, flushes, and replaces oils and fluids from most types of automatic transmissions, hydraulic torque converters, transmission coolers, and transmission oil lines.

The system enables a near-complete replacement of automatic transmission fluid (ATF), helping improve transmission performance and reducing wear caused by contaminated or degraded oil.

Suitable for:

• Automatic transmissions
• Torque converters
• Transmission oil coolers
• Transmission oil lines

Extensive Adapter Compatibility

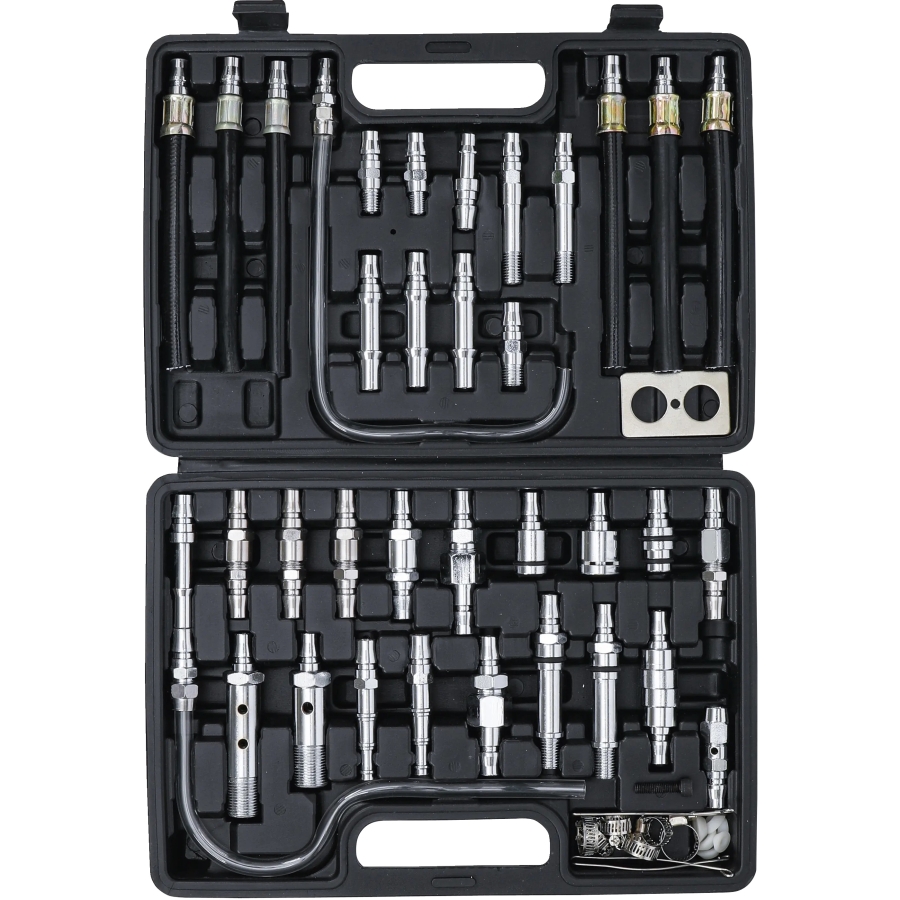

The included 37-piece adapter set provides wide compatibility with numerous transmission systems used in vehicles from manufacturers including:

• Audi
• BMW
• Ford
• Volkswagen
• Toyota
• Land Rover
• Buick

The adapter kit includes connection adapters and hose adapters for efficient servicing across various transmission designs.

12V Powered Mobile Operation

The machine operates directly from a 12V vehicle battery, making it suitable for mobile workshop applications and flexible servicing conditions.

The integrated dual oil pressure gauges provide accurate monitoring during operation.

Oil pressure specifications:

• Gauge diameter: 70 mm
• Pressure range: 0–10 bar / 0–150 psi

Included Hoses and Quick Couplings

The machine is supplied with:

• Red oil hose with quick coupling
• Black oil hose with quick coupling

Hose specifications:

• Length: 126 mm
• Diameter: 12.5 mm (1/2")
• Maximum pressure: 20 bar / 300 psi

All hoses are equipped with quick-connect couplings (male and female).

Package Contents

• 1 automatic transmission oil exchange and flushing machine
• 1 adapter set with 37 connection and hose adapters
• 1 red connection hose with quick coupling
• 1 black connection hose with quick coupling

Technical Specifications

• Power source: 12V vehicle battery
• Pump power: 70W
• Fresh oil tank capacity: 30L
• Waste oil tank capacity: 30L
• Oil pressure gauge diameter: 70 mm
• Oil pressure range: 0–10 bar / 0–150 psi
• Hose diameter: 12.5 mm (1/2")
• Maximum hose pressure: 20 bar / 300 psi
