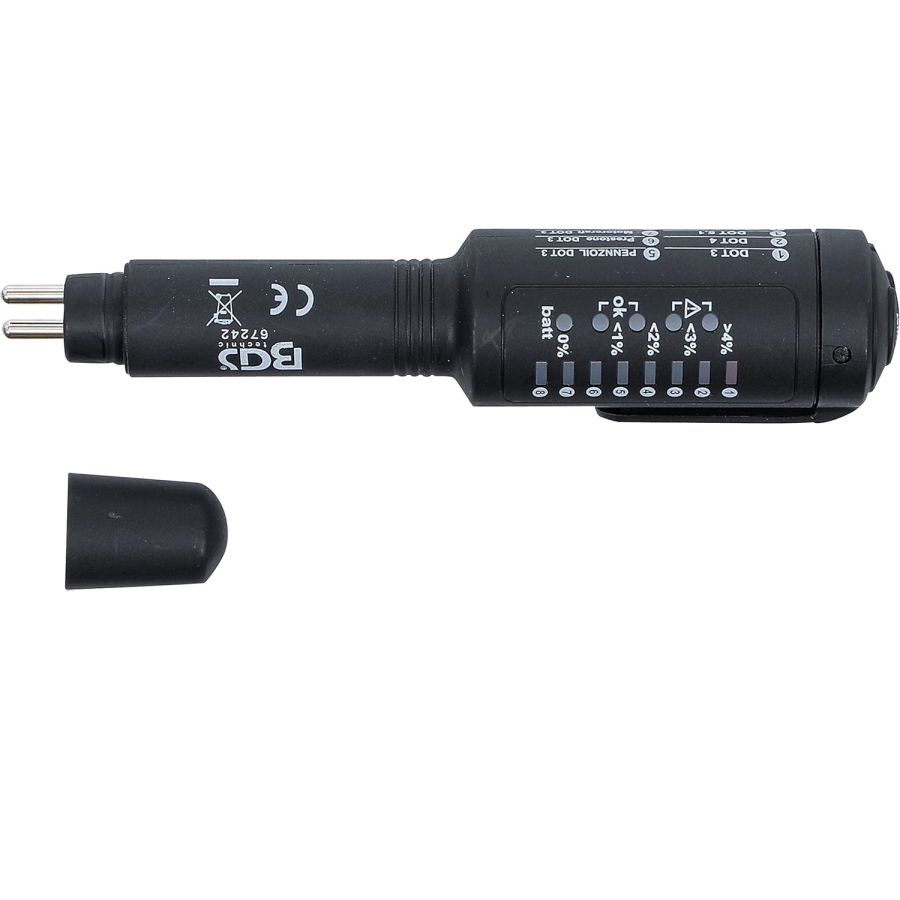

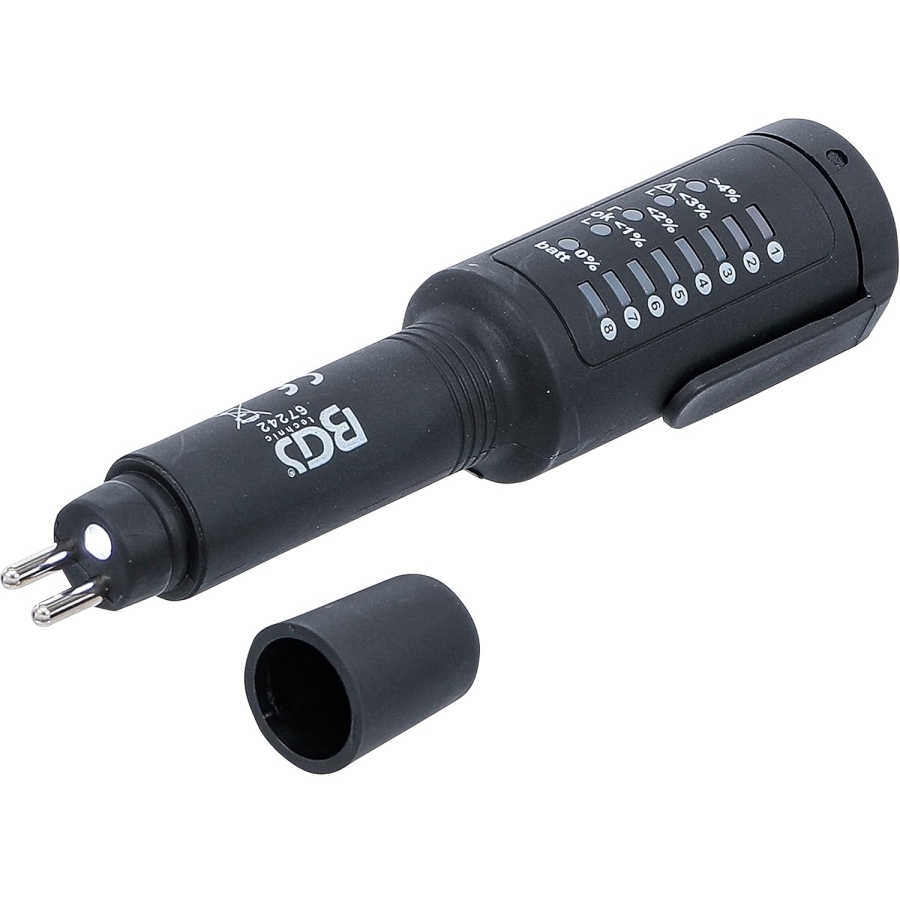

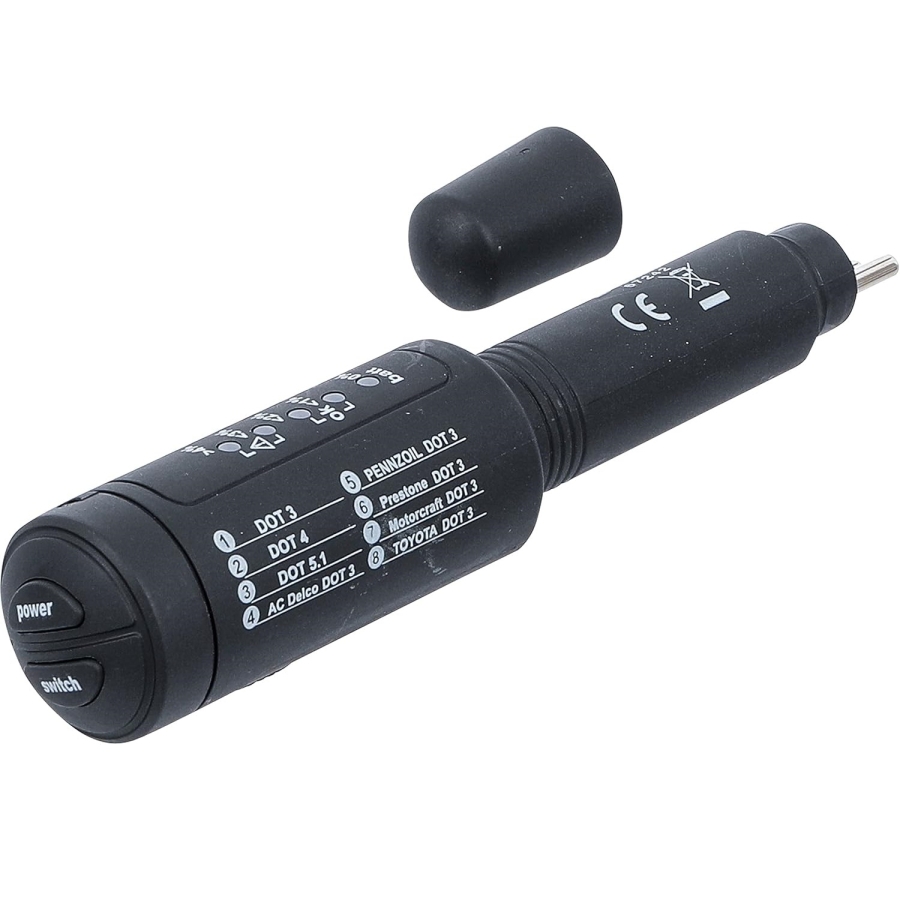

Brake Fluid Tester with LED Display
-
Code:67242
-
Weight:0.107 Kgs
Overview:
✔ Professional brake fluid tester for safe and fast brake fluid inspection
✔ Equipped with 6 LEDs for brake fluid condition evaluation
✔ Suitable for DOT 3, DOT 4 and DOT 5.1 brake fluids
✔ Compatible with selected manufacturer-specific brake fluids
✔ Integrated LED illumination for improved visibility during testing
✔ Compact handheld design for quick operation
✔ Includes 1.5 V AAA battery
✔ Suitable for professional workshops and maintenance applications
This brake fluid tester is designed for safe and rapid evaluation of brake fluid condition by checking moisture contamination levels within the fluid.
Brake fluid gradually absorbs moisture over time, reducing its boiling point and potentially affecting braking performance. Regular testing helps determine whether brake fluid replacement is required and supports preventive maintenance of the braking system.
The integrated 6-LED indicator system provides a clear visual assessment of brake fluid condition, while built-in LED illumination improves visibility when working in darker engine bays or workshop environments.
Suitable for professional workshops, vehicle maintenance operations and routine brake system inspections.
Technical Specifications
Compatible Brake Fluids
- DOT 3
- DOT 4
- DOT 5.1
- Pennzoil DOT 3
- Motorcraft DOT 3
- AC Delco DOT 3
- Prestone DOT 3
- Toyota DOT 3
Display Type
- 6 LED status indicators
Additional Functions
- Integrated LED illumination
Battery
- 1 × 1.5 V AAA battery (included)
Applications
- Brake fluid condition testing
- Moisture content evaluation
- Brake system maintenance
- Vehicle inspection and servicing
- Workshop and automotive diagnostics
Technical Features
- Fast brake fluid analysis
- 6-LED evaluation system
- Integrated LED working light
- Compact handheld design
- Supports multiple brake fluid specifications
- Battery included for immediate use
- Suitable for professional service applications
Operation
- Remove the protective cap and switch on the device by briefly pressing the "Power" button. The "Batt 0%" LED and the LED light should illuminate. If not, replace the battery.
-
Press the "Switch" button to change the brake fluid manufacturer setting:
(1) Briefly press the "Switch" button to select the brake fluid manufacturer.
(2) Press and hold the "Switch" button for more than 3 seconds to reset the tester.Note: The tester should be reset, for example, when testing multiple brake fluids from the same manufacturer.
- Immerse the tester into the brake fluid up to the edge of the plastic housing. Ensure both metal probes are completely submerged.
- The testing process takes approximately 1 second. The tester automatically switches off after 20 seconds.
- Read the test result on the LED display.
LED Status Interpretation
| LED Indicator | Status | Brake Fluid Condition |
|---|---|---|
| 🟢 Green | Battery OK | Device operating normally |
| 🟢 Green | < 1% water content | Brake fluid condition is good |
| 🟡 Yellow | < 2% water content | Brake fluid should be monitored |
| 🟠 Orange | Approximately 3% water content | Brake fluid replacement recommended |
| 🔴 Red | Approximately 4% water content | Warning: Replace brake fluid immediately |
Compatible Brake Fluids
Suitable for testing the following brake fluid types:
- DOT 3
- DOT 4
- DOT 5.1
- AC Delco DOT 3
- Pennzoil DOT 3
- Prestone DOT 3
- Motorcraft DOT 3
- Toyota DOT 3
