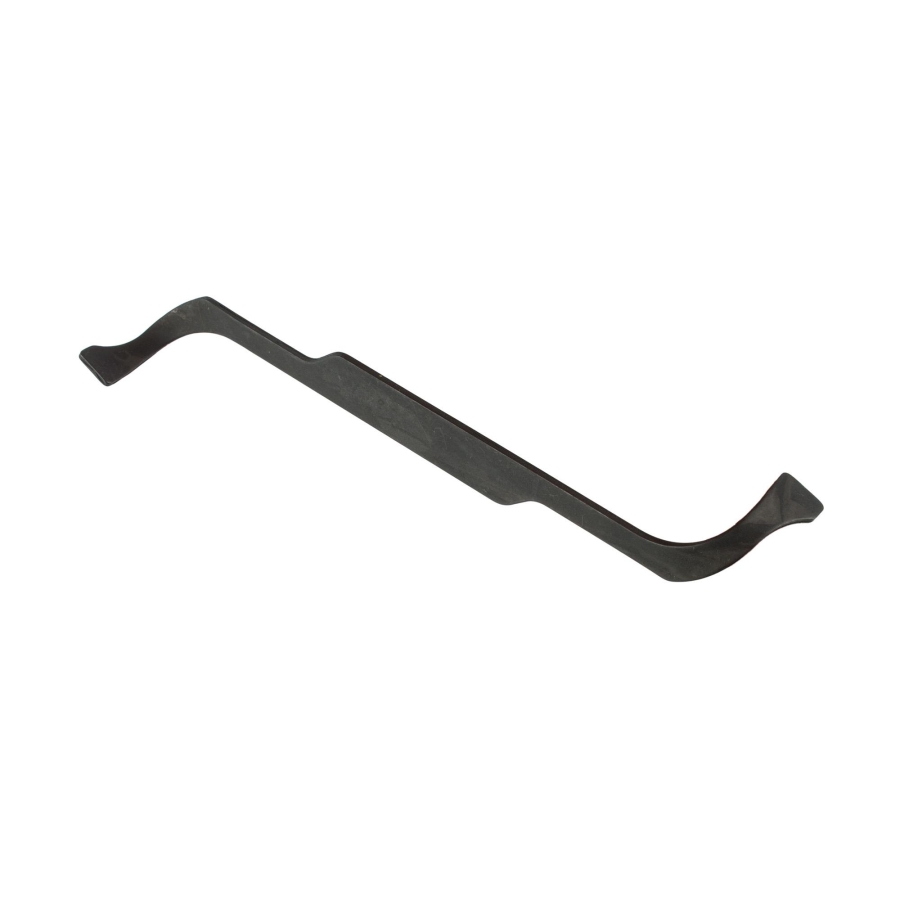

Valve and Bucket Tappet Holding Tool for Hyundai, Kia, Nissan and Toyota, as 09220-2D000

The holding tool is used to retain the bucket tappet in its lowered position during valve clearance adjustment.

The tappet must first be depressed using a separate tool. The holder is then positioned to keep the tappet down, allowing the valve adjustment shim to be removed easily.

For depressing the bucket tappet, use with Item no. 116578 is recommended.

Operating Principle

1. Press the bucket tappet downward with a suitable separate tool.
2. Position the holding tool to retain the tappet in the depressed position.
3. Remove the valve adjustment shim.
4. Replace the shim as required and remove the holding tool according to the applicable repair procedure.

Compatibility

Suitable for compatible bucket tappet systems from:

Hyundai, Kia, Nissan, Toyota and Lexus.

Compatibility must be verified according to the engine and valve-train design.

Comparison References

• Used as Hyundai / Kia 09220-2D000
• Used as Toyota / Lexus J38972-1
• Used as Nissan KV1015120
• Used as Nissan KV 101-15'1S0

Original numbers are for comparison purposes only; this is not an original tool!
